ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )3ZR#..ZRR70..IV5

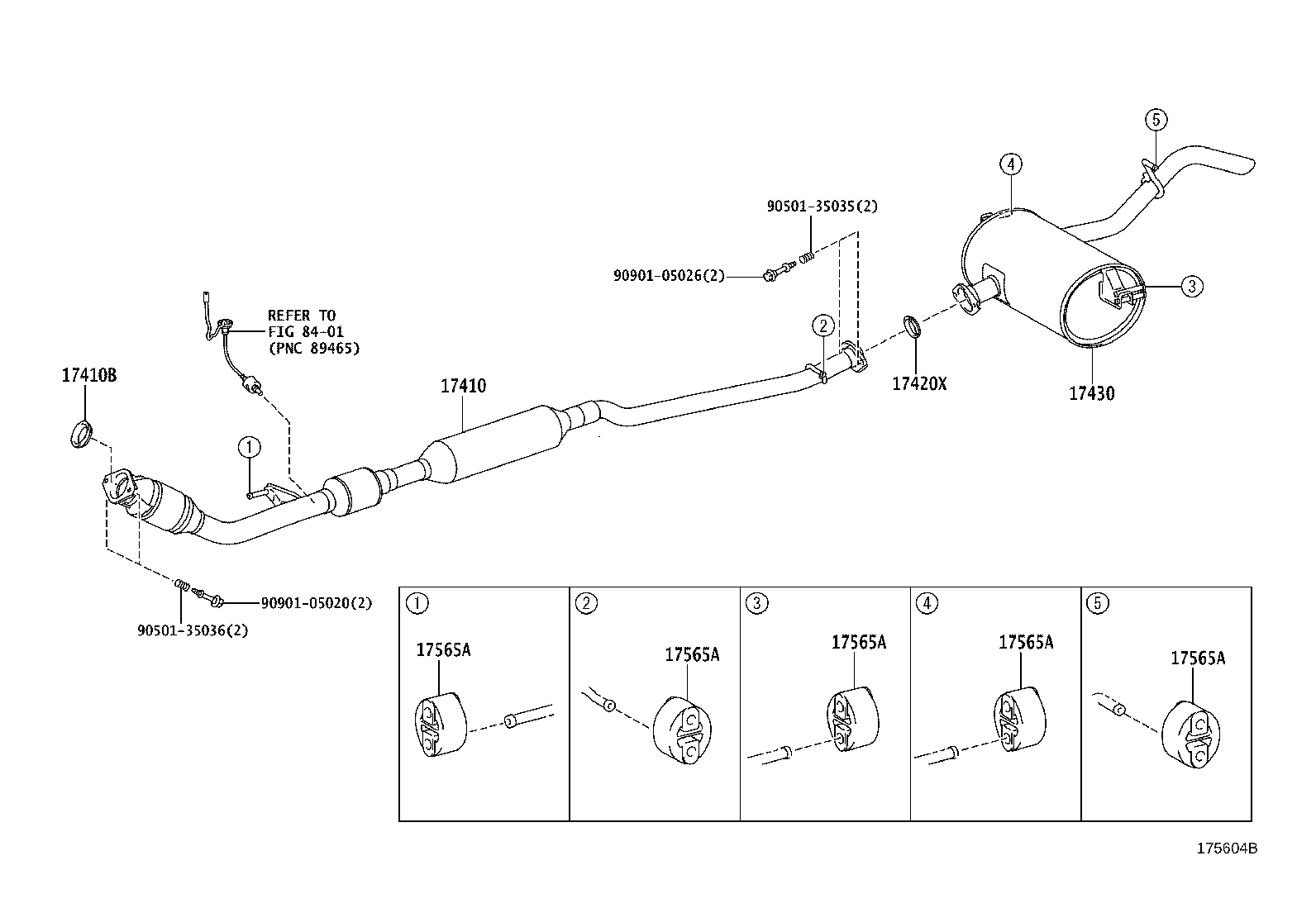

Click highlighted areas on diagram

diagram 17410 17410B 17420X 17430 17565A 17565A 17565A 17565A 17565A 8401 9050135035 9050135036 9090105020 9090105026
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-37200

3ZRFAE,3ZRFE..ZRR70..CBU,IV5

 1
17410B - GASKET, EXHAUST PIPE
17451-28040

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-28020

3ZRFAE,3ZRFE..ZRR70..CBU,IV5

 1
17451-28021

3ZRFAE,3ZRFE..ZRR70..CBU,IV5

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-37240

3ZRFAE,3ZRFE..ZRR70..IV5

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

3ZRFE..ZRR75..IV5;3ZRFAE,3ZRFE..ZRR70..CBU,IV5

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

3ZRFE..ZRR75..IV5;3ZRFAE,3ZRFE..ZRR70..CBU,IV5

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

3ZRFE..ZRR75..IV5;3ZRFAE,3ZRFE..ZRR70..CBU,IV5

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

3ZRFE..ZRR75..IV5;3ZRFAE,3ZRFE..ZRR70..CBU,IV5

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

3ZRFE..ZRR75..IV5;3ZRFAE,3ZRFE..ZRR70..CBU,IV5

 5
Common parts
90501-35035
90501-35036
90901-05020
90901-05026
Linked diagrams
8401
