ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
(0706- )

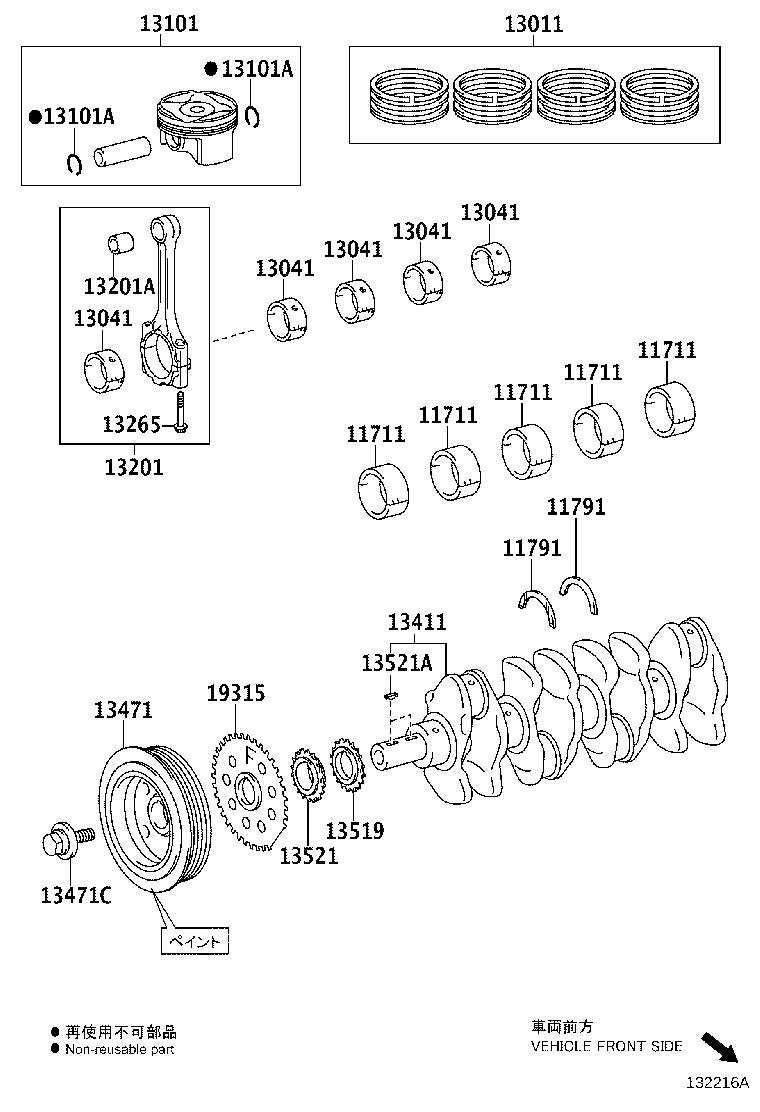

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3702003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK3,修理書参照 |
5 | ||
| 11701-3702004 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK4,修理書参照 |
5 | ||
| 11701-3702001 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK1,修理書参照 |
5 | ||
| 11701-3702002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK2,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3702003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK3,修理書参照 |
5 | ||
| 11701-3702004 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK4,修理書参照 |
5 | ||
| 11701-3702001 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK1,修理書参照 |
5 | ||
| 11701-3702002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK2,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3702003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK3,修理書参照 |
5 | ||
| 11701-3702004 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK4,修理書参照 |
5 | ||
| 11701-3702001 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK1,修理書参照 |
5 | ||
| 11701-3702002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK2,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3702003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK3,修理書参照 |
5 | ||
| 11701-3702004 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK4,修理書参照 |
5 | ||
| 11701-3702001 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK1,修理書参照 |
5 | ||
| 11701-3702002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK2,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3702003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK3,修理書参照 |
5 | ||
| 11701-3702004 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK4,修理書参照 |
5 | ||
| 11701-3702001 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK1,修理書参照 |
5 | ||
| 11701-3702002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK2,修理書参照 |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-22020 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-22020 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-37090 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 STD |
1 | ||
| 13011-37130 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3703003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK3,修理書参照 |
4 | ||
| 13041-3703002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK2,修理書参照 |
4 | ||
| 13041-3703001 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3703003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK3,修理書参照 |
4 | ||
| 13041-3703002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK2,修理書参照 |
4 | ||
| 13041-3703001 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3703003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK3,修理書参照 |
4 | ||
| 13041-3703002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK2,修理書参照 |
4 | ||
| 13041-3703001 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3703003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK3,修理書参照 |
4 | ||
| 13041-3703002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK2,修理書参照 |
4 | ||
| 13041-3703001 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3703003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK3,修理書参照 |
4 | ||
| 13041-3703002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK2,修理書参照 |
4 | ||
| 13041-3703001 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 MARK1,修理書参照 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-37090 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-20064 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-20064 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-39205 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73151 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-22020 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-37031 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 13401-37030 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-37020 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 ｲｴﾛｰ ﾍﾟｲﾝﾄ |
1 | ||
| 13470-37030 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 ﾋﾟﾝｸ ﾍﾟｲﾝﾄ |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 13519 - GEAR, OIL PUMP DRIVE | ||||
| 13519-37010 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-37020 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-04003 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
2 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-37020 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 19315-37010 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
