ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
Production
Jun 2007
-
Apr 2010
Engine
3ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0706- )

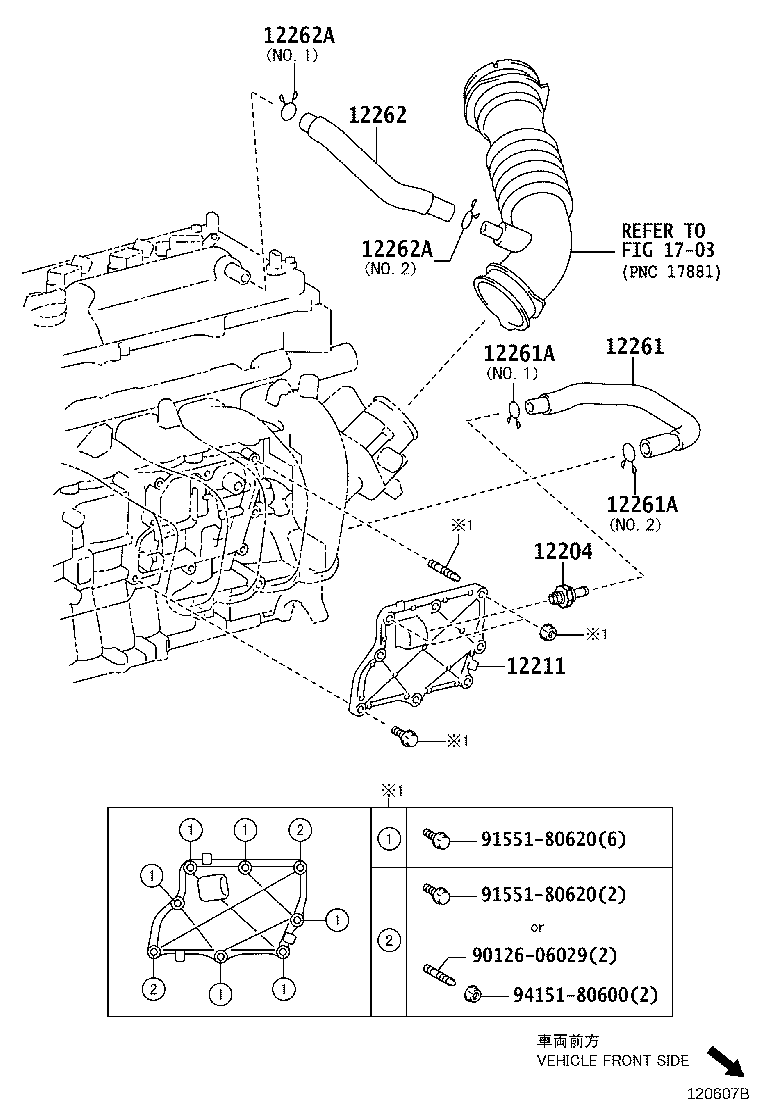

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-37010 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 12211 - CASE, VENTILATION, NO.1 | ||||
| 12211-37010 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-37050 |
3ZRFAE..ZRR7#..CBU,IV5 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-22010 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.2 |
1 | ||
| 90467-23002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.2 |
1 | ||
| 90467-15120 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.1 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-22010 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.2 |
1 | ||
| 90467-23002 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.2 |
1 | ||
| 90467-15120 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.1 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-37030 |
3ZRFAE..ZRR7#..CBU,IV5 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21004 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.1,NO.2 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21004 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 90126-06029 | ||||
| 91551-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1703 | ||||
