ZRR70W-ARXSP (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706-1004)08S..CBU

Click highlighted areas on diagram

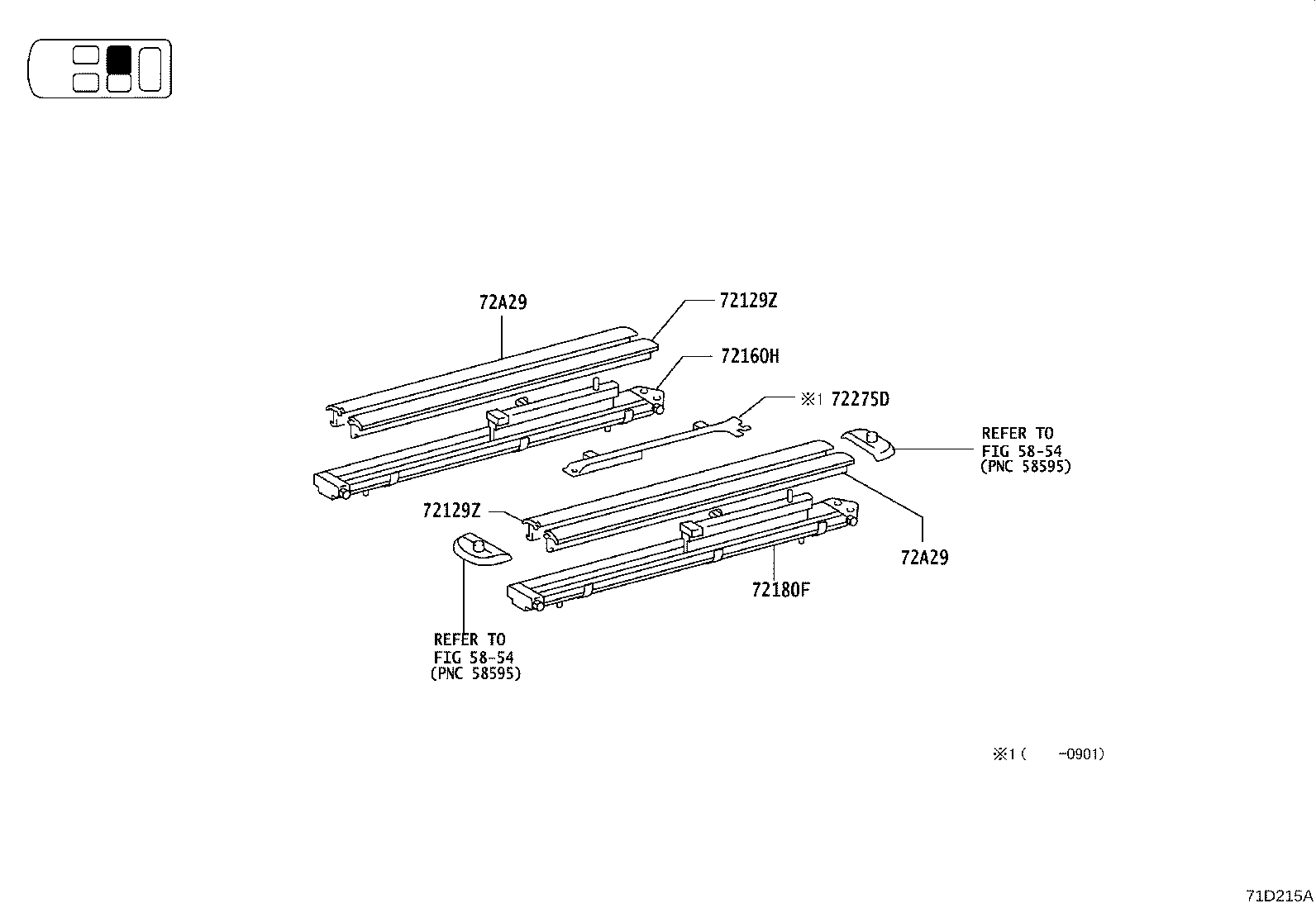

ﾘﾔNO.1ｼｰﾄ(RH) ｶｲﾃﾝ & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

diagram 5854 5854 72129Z 72129Z 72160H 72180F 72275D 72A29 72A29
Part # Description Qty Price
72129Z - PROTECTOR, SEAT TRACK LOWER RAIL
72129-28240B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 4
72129-28240E0

ZRR70..NOAH..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM4#

 4
72129-28240B0

ZRR70..V

DK.GRAY,TRIM1#

 4
72129Z - PROTECTOR, SEAT TRACK LOWER RAIL
72129-28240B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 4
72129-28240E0

ZRR70..NOAH..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM4#

 4
72129-28240B0

ZRR70..V

DK.GRAY,TRIM1#

 4
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-28650

ZRR70..G,V

 1
72160-28650

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72180F - TRACK ASSY, REAR SEAT, INNER RH
72180-28050

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72180-28050

ZRR70..G,V

 1
72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72275-28060

ZRR70..G,V

 2
72275-28060

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 2
72A29 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-28230E0

ZRR70..NOAH..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM4#

 4
72129-28230B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 4
72129-28230B0

ZRR70..V

DK.GRAY,TRIM1#

 4
72A29 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-28230E0

ZRR70..NOAH..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM4#

 4
72129-28230B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 4
72129-28230B0

ZRR70..V

DK.GRAY,TRIM1#

 4
Linked diagrams
5854

(0706-1004)08S..CBU

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(LH) ｶｲﾃﾝ & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

diagram 5854 5854 72129Z 72129Z 72170A 72190E 72275D 72A29 72A29
Part # Description Qty Price
72129Z - PROTECTOR, SEAT TRACK LOWER RAIL
72129-28240B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 4
72129-28240E0

ZRR70..NOAH..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM4#

 4
72129-28240B0

ZRR70..V

DK.GRAY,TRIM1#

 4
72129Z - PROTECTOR, SEAT TRACK LOWER RAIL
72129-28240B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 4
72129-28240E0

ZRR70..NOAH..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM4#

 4
72129-28240B0

ZRR70..V

DK.GRAY,TRIM1#

 4
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72170-28640

ZRR70..G,V

 1
72170-28640

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72190E - TRACK ASSY, REAR SEAT, INNER LH
72190-28050

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72190-28050

ZRR70..G,V

 1
72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72275-28060

ZRR70..G,V

 2
72275-28060

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 2
72A29 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-28230E0

ZRR70..NOAH..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM4#

 4
72129-28230B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 4
72129-28230B0

ZRR70..V

DK.GRAY,TRIM1#

 4
72A29 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-28230E0

ZRR70..NOAH..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM4#

 4
72129-28230B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 4
72129-28230B0

ZRR70..V

DK.GRAY,TRIM1#

 4
Linked diagrams
5854
