ZRR70W-ARXSP (2007)
Toyota Noah/Voxy
(0706- )

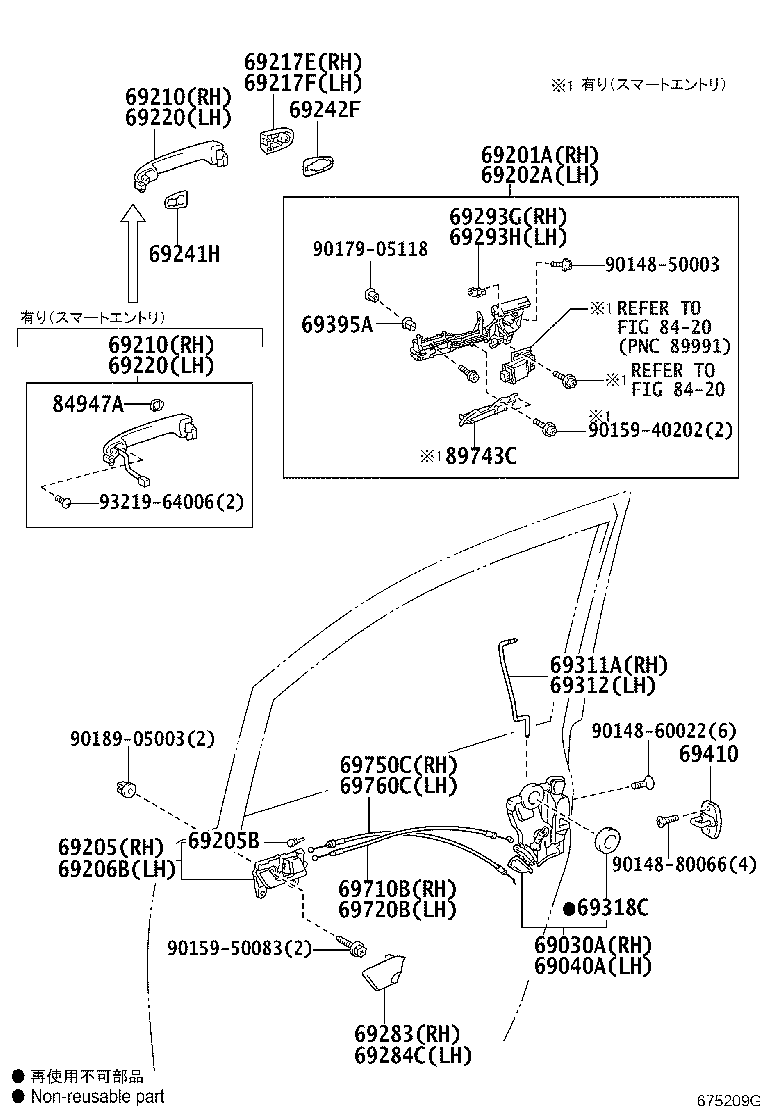

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-42210 |
ZRR7#..CBU,IV5 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-42230 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 69040-42230 |
ZRR7#..(S,X,Z)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69040-12490 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-28030 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69201-28030 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69201-28030 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69201-28030 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 69201-28010 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) |
1 | ||
| 69201-28030 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-28010 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) |
1 | ||
| 69202-28020 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 69202-28020 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69202-28020 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69202-28020 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69202-28020 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-28120B0 |
ZRR7#..S S“G Edition” *(A),DK.GRAY,TRIM49 |
1 | ||
| 69205-28110B0 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 69205-28110E0 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 69205-28110B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 69205-28120B0 |
ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 69205-28120B1 |
ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) DK.GRAY/SILVER FINISH,TRIM1# |
1 | ||
| 69205-28110E3 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
ZRR7#..CBU,IV5 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-28110B0 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 69206-28110B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 69206-28120B0 |
ZRR7#..S S“G Edition” *(A),DK.GRAY,TRIM49 |
1 | ||
| 69206-28110E0 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 69206-28120B0 |
ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 69206-28110E3 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 69206-28120B1 |
ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) DK.GRAY/SILVER FINISH,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-44030D5 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK. RED M.M.,3Q3 |
1 | ||
| 69210-44030B0 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-44030J2 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK.BLUE MC.,8S6 |
1 | ||
| 69210-44030C1 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-44030B9 |
ZRR7#..NOAH..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-30290A8 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030A6 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-30290B2 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-30290K0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-44030R3 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),LT.BLUE M.M.,8S7 |
1 | ||
| 69210-30290B6 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-44030B0 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 69210-44030A6 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 69210-44030C1 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-44030A6 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030B9 |
ZRR7#..(G,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 69210-44030B9 |
ZRR7#..S;ZRR7#..NOAH..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-44030C1 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 69210-44030K2 |
ZRR7#..Z;ZRR7#..VOXY..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK.VIOLET M.M.,9AF |
1 | ||
| 69211-28070A3 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 69211-28070C1 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) BLACK,202 |
1 | ||
| 69210-44030J2 |
ZRR7#..G,V DK.BLUE MC.,8S6 |
1 | ||
| 69210-44030B0 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-44030K2 |
ZRR7#..(V,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 69211-28070P4 |
ZRR7#..NOAH..(S,X,YY)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 69210-44030R3 |
ZRR7#..G,V LT.BLUE M.M.,8S7 |
1 | ||
| 69210-44030D5 |
ZRR7#..G,V DK. RED M.M.,3Q3 |
1 | ||
| 69211-28070D9 |
ZRR7#..X..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 69211-28070P2 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 69211-28070R9 |
ZRR7#..X..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 69211-28070V4 |
ZRR7#..X..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 69210-44030B9 |
ZRR7#..NOAH..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAYME.,1G3 |
1 | ||
| 69210-30290C0 |
ZRR7#..S S“G Edition” *(A),BLACK,202 |
1 | ||
| 69210-30290A8 |
ZRR7#..S S“G Edition” *(A),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030R3 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.BLUE M.M.,8S7 |
1 | ||
| 69210-30290K0 |
ZRR7#..S S“G Edition” *(A),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-44030A6 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030D5 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),DK. RED M.M.,3Q3 |
1 | ||
| 69210-44030B0 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-20410B0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-44030J2 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),DK.BLUE MC.,8S6 |
1 | ||
| 69210-20410B2 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-30290B2 |
ZRR7#..S S“G Edition” *(A),SILVER ME.,1F7 |
1 | ||
| 69210-20410K0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-44030C1 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-20410A1 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-44030D5 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK. RED M.M.,3Q3 |
1 | ||
| 69210-44030B0 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-44030J2 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK.BLUE MC.,8S6 |
1 | ||
| 69210-44030C1 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-44030B9 |
ZRR7#..NOAH..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-30290A8 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030A6 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-30290B2 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-30290K0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-44030R3 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),LT.BLUE M.M.,8S7 |
1 | ||
| 69210-30290B6 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-44030B0 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 69210-44030A6 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 69210-44030C1 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-44030A6 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030B9 |
ZRR7#..(G,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 69210-44030B9 |
ZRR7#..S;ZRR7#..NOAH..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-44030C1 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 69210-44030K2 |
ZRR7#..Z;ZRR7#..VOXY..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK.VIOLET M.M.,9AF |
1 | ||
| 69211-28070A3 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 69211-28070C1 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) BLACK,202 |
1 | ||
| 69210-44030J2 |
ZRR7#..G,V DK.BLUE MC.,8S6 |
1 | ||
| 69210-44030B0 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-44030K2 |
ZRR7#..(V,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 69211-28070P4 |
ZRR7#..NOAH..(S,X,YY)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 69210-44030R3 |
ZRR7#..G,V LT.BLUE M.M.,8S7 |
1 | ||
| 69210-44030D5 |
ZRR7#..G,V DK. RED M.M.,3Q3 |
1 | ||
| 69211-28070D9 |
ZRR7#..X..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 69211-28070P2 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 69211-28070R9 |
ZRR7#..X..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 69211-28070V4 |
ZRR7#..X..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 69210-44030B9 |
ZRR7#..NOAH..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAYME.,1G3 |
1 | ||
| 69210-30290C0 |
ZRR7#..S S“G Edition” *(A),BLACK,202 |
1 | ||
| 69210-30290A8 |
ZRR7#..S S“G Edition” *(A),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030R3 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.BLUE M.M.,8S7 |
1 | ||
| 69210-30290K0 |
ZRR7#..S S“G Edition” *(A),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-44030A6 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030D5 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),DK. RED M.M.,3Q3 |
1 | ||
| 69210-44030B0 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-20410B0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-44030J2 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),DK.BLUE MC.,8S6 |
1 | ||
| 69210-20410B2 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-30290B2 |
ZRR7#..S S“G Edition” *(A),SILVER ME.,1F7 |
1 | ||
| 69210-20410K0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-44030C1 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-20410A1 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-28010A3 |
ZRR7#..CBU,IV5 WHITE PEARL CS.,070 |
1 | ||
| 69217-28010P5 |
ZRR7#..NOAH..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 69217-28010D9 |
ZRR7#..(G,V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 69217-28010P2 |
ZRR7#..CBU,IV5 SILVER ME.,1F7 |
1 | ||
| 69217-28010V4 |
ZRR7#..(G,V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 69250-30010C0 |
ZRR7#..S S“G Edition” *(A),BLACK,202 |
1 | ||
| 69250-30010B2 |
ZRR7#..S S“G Edition” *(A),SILVER ME.,1F7 |
1 | ||
| 69250-30010K1 |
ZRR7#..S S“G Edition” *(A),LT.PURPLE M.M.,9AE |
1 | ||
| 69250-30010A7 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69217-28010R9 |
ZRR7#..(G,V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 69250-30010A7 |
ZRR7#..S S“G Edition” *(A),WHITE PEARL CS.,070 |
1 | ||
| 69250-30010K1 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.PURPLE M.M.,9AE |
1 | ||
| 69217-28010C1 |
ZRR7#..CBU,IV5 BLACK,202 |
1 | ||
| 69250-30010B2 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69250-30010B7 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-60020V0 |
ZRR7#..(G,V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 69217-60020D8 |
ZRR7#..(G,V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 69217-60020R5 |
ZRR7#..(G,V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 69250-30020A6 |
ZRR7#..S S“G Edition” *(A),WHITE PEARL CS.,070 |
1 | ||
| 69250-30020C0 |
ZRR7#..S S“G Edition” *(A),BLACK,202 |
1 | ||
| 69217-60020P3 |
ZRR7#..NOAH..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 69217-60020P0 |
ZRR7#..CBU,IV5 SILVER ME.,1F7 |
1 | ||
| 69250-30020B2 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69250-30020K1 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.PURPLE M.M.,9AE |
1 | ||
| 69250-30020B6 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69250-30020B2 |
ZRR7#..S S“G Edition” *(A),SILVER ME.,1F7 |
1 | ||
| 69217-60020C0 |
ZRR7#..CBU,IV5 BLACK,202 |
1 | ||
| 69250-30020A6 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69217-60020A1 |
ZRR7#..CBU,IV5 WHITE PEARL CS.,070 |
1 | ||
| 69250-30020K1 |
ZRR7#..S S“G Edition” *(A),LT.PURPLE M.M.,9AE |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-44030A6 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030B0 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-44030J2 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK.BLUE MC.,8S6 |
1 | ||
| 69210-44030R3 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),LT.BLUE M.M.,8S7 |
1 | ||
| 69210-44030B9 |
ZRR7#..NOAH..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-44030D5 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK. RED M.M.,3Q3 |
1 | ||
| 69210-30290B6 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-30290K0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-30290A8 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030C1 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-44030B0 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-30290B2 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-44030A6 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030A6 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 69210-44030C1 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-44030K2 |
ZRR7#..Z;ZRR7#..VOXY..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK.VIOLET M.M.,9AF |
1 | ||
| 69210-44030B9 |
ZRR7#..S;ZRR7#..NOAH..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-44030B9 |
ZRR7#..(G,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 69210-44030J2 |
ZRR7#..G,V DK.BLUE MC.,8S6 |
1 | ||
| 69210-44030K2 |
ZRR7#..(V,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 69210-44030D5 |
ZRR7#..G,V DK. RED M.M.,3Q3 |
1 | ||
| 69211-28070D9 |
ZRR7#..X..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 69210-44030C1 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 69210-44030B0 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 69210-44030R3 |
ZRR7#..G,V LT.BLUE M.M.,8S7 |
1 | ||
| 69211-28070P2 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 69211-28070A3 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 69211-28070V4 |
ZRR7#..X..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 69211-28070P4 |
ZRR7#..NOAH..(S,X,YY)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 69210-30290K0 |
ZRR7#..S S“G Edition” *(A),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-30290C0 |
ZRR7#..S S“G Edition” *(A),BLACK,202 |
1 | ||
| 69210-44030B0 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-30290B2 |
ZRR7#..S S“G Edition” *(A),SILVER ME.,1F7 |
1 | ||
| 69210-44030J2 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),DK.BLUE MC.,8S6 |
1 | ||
| 69211-28070R9 |
ZRR7#..X..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 69210-20410A1 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030C1 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-44030A6 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69211-28070C1 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) BLACK,202 |
1 | ||
| 69210-44030D5 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),DK. RED M.M.,3Q3 |
1 | ||
| 69210-20410K0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-44030R3 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.BLUE M.M.,8S7 |
1 | ||
| 69210-30290A8 |
ZRR7#..S S“G Edition” *(A),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030B9 |
ZRR7#..NOAH..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAYME.,1G3 |
1 | ||
| 69210-20410B0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-20410B2 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-44030A6 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030B0 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-44030J2 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK.BLUE MC.,8S6 |
1 | ||
| 69210-44030R3 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),LT.BLUE M.M.,8S7 |
1 | ||
| 69210-44030B9 |
ZRR7#..NOAH..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-44030D5 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK. RED M.M.,3Q3 |
1 | ||
| 69210-30290B6 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-30290K0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-30290A8 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030C1 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-44030B0 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-30290B2 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-44030A6 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030A6 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 69210-44030C1 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-44030K2 |
ZRR7#..Z;ZRR7#..VOXY..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),DK.VIOLET M.M.,9AF |
1 | ||
| 69210-44030B9 |
ZRR7#..S;ZRR7#..NOAH..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69210-44030B9 |
ZRR7#..(G,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 69210-44030J2 |
ZRR7#..G,V DK.BLUE MC.,8S6 |
1 | ||
| 69210-44030K2 |
ZRR7#..(V,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 69210-44030D5 |
ZRR7#..G,V DK. RED M.M.,3Q3 |
1 | ||
| 69211-28070D9 |
ZRR7#..X..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 69210-44030C1 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 69210-44030B0 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 69210-44030R3 |
ZRR7#..G,V LT.BLUE M.M.,8S7 |
1 | ||
| 69211-28070P2 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 69211-28070A3 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 69211-28070V4 |
ZRR7#..X..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 69211-28070P4 |
ZRR7#..NOAH..(S,X,YY)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 69210-30290K0 |
ZRR7#..S S“G Edition” *(A),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-30290C0 |
ZRR7#..S S“G Edition” *(A),BLACK,202 |
1 | ||
| 69210-44030B0 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-30290B2 |
ZRR7#..S S“G Edition” *(A),SILVER ME.,1F7 |
1 | ||
| 69210-44030J2 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),DK.BLUE MC.,8S6 |
1 | ||
| 69211-28070R9 |
ZRR7#..X..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 69210-20410A1 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030C1 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-44030A6 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69211-28070C1 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) BLACK,202 |
1 | ||
| 69210-44030D5 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),DK. RED M.M.,3Q3 |
1 | ||
| 69210-20410K0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.PURPLE M.M.,9AE |
1 | ||
| 69210-44030R3 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),LT.BLUE M.M.,8S7 |
1 | ||
| 69210-30290A8 |
ZRR7#..S S“G Edition” *(A),WHITE PEARL CS.,070 |
1 | ||
| 69210-44030B9 |
ZRR7#..NOAH..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAYME.,1G3 |
1 | ||
| 69210-20410B0 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-20410B2 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
ZRR7#..CBU,IV5 |
2 | ||
| 69242F - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
ZRR7#..CBU,IV5 |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-20020E1 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 69283-20020B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-20010E1 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 69284-20010B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ZRR7#..CBU,IV5 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ZRR7#..CBU,IV5 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-28060 |
ZRR7#..CBU,IV5 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-28060 |
ZRR7#..CBU,IV5 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ZRR7#..CBU,IV5 |
2 | ||
| 69395A - BUSHING(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90386-08066 |
ZRR7#..CBU,IV5 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
ZRR7#..CBU,IV5 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 84947A - COVER, DOOR ELECTRICAL KEY SWITCH | ||||
| 84947-68010 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
2 | ||
| 84947-68010 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
2 | ||
| 84947-68010 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
2 | ||
| 84947-68010 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
2 | ||
| 84947-68010 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
2 | ||
| 84947-68010 |
ZRR7#..S S“G Edition” *(A) |
2 | ||
| 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-68010 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),右側 |
1 | ||
| 89743-30130 |
ZRR7#..08S..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),左側 |
1 | ||
| 89743-68010 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) 右側 |
1 | ||
| 89743-68010 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),右側 |
1 | ||
| 89743-30130 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) 左側 |
1 | ||
| 89743-68010 |
ZRR7#..S S“G Edition” *(A),右側 |
1 | ||
| 89743-30130 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),左側 |
1 | ||
| 89743-68010 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),右側 |
1 | ||
| 89743-30130 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),左側 |
1 | ||
| 89743-68010 |
ZRR7#..NOAH..08S..X..CBU X“Smart Edition” *(B)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),右側 |
1 | ||
| 89743-30130 |
ZRR7#..S S“G Edition” *(A),左側 |
1 | ||
| 89743-30130 |
ZRR7#..08S..X..CBU Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ),左側 |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90159-40202 | ||||
| 90159-50083 | ||||
| 90179-05118 | ||||
| 90189-05003 | ||||
| 93219-64006 | ||||
| Linked diagrams | ||||
| 8420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
