ZRR70W-ARXSP (2007)
Toyota Noah/Voxy
ILLUST NO. 2 OF 2(0706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-28150 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 44050-28210 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 44050-28211 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 44050-28160 |
ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 44050-28190 |
ZRR70..(S,SI,Z,ZS)..(CBU,IV5) VSC−有り |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ZRR7#..CBU,IV5 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ZRR7#..CBU,IV5 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ZRR7#..CBU,IV5 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-28180 |
ZRR7#..CBU,IV5 |
1 | ||
| 44590-28190 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91674-80818 | ||||
ILLUST NO. 2 OF 2(0706- )
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-28150 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 44050-28210 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 44050-28211 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 44050-28160 |
ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 44050-28190 |
ZRR70..(S,SI,Z,ZS)..(CBU,IV5) VSC−有り |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ZRR7#..CBU,IV5 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ZRR7#..CBU,IV5 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
ZRR7#..CBU,IV5 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-28180 |
ZRR7#..CBU,IV5 |
1 | ||
| 44590-28190 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91674-80818 | ||||

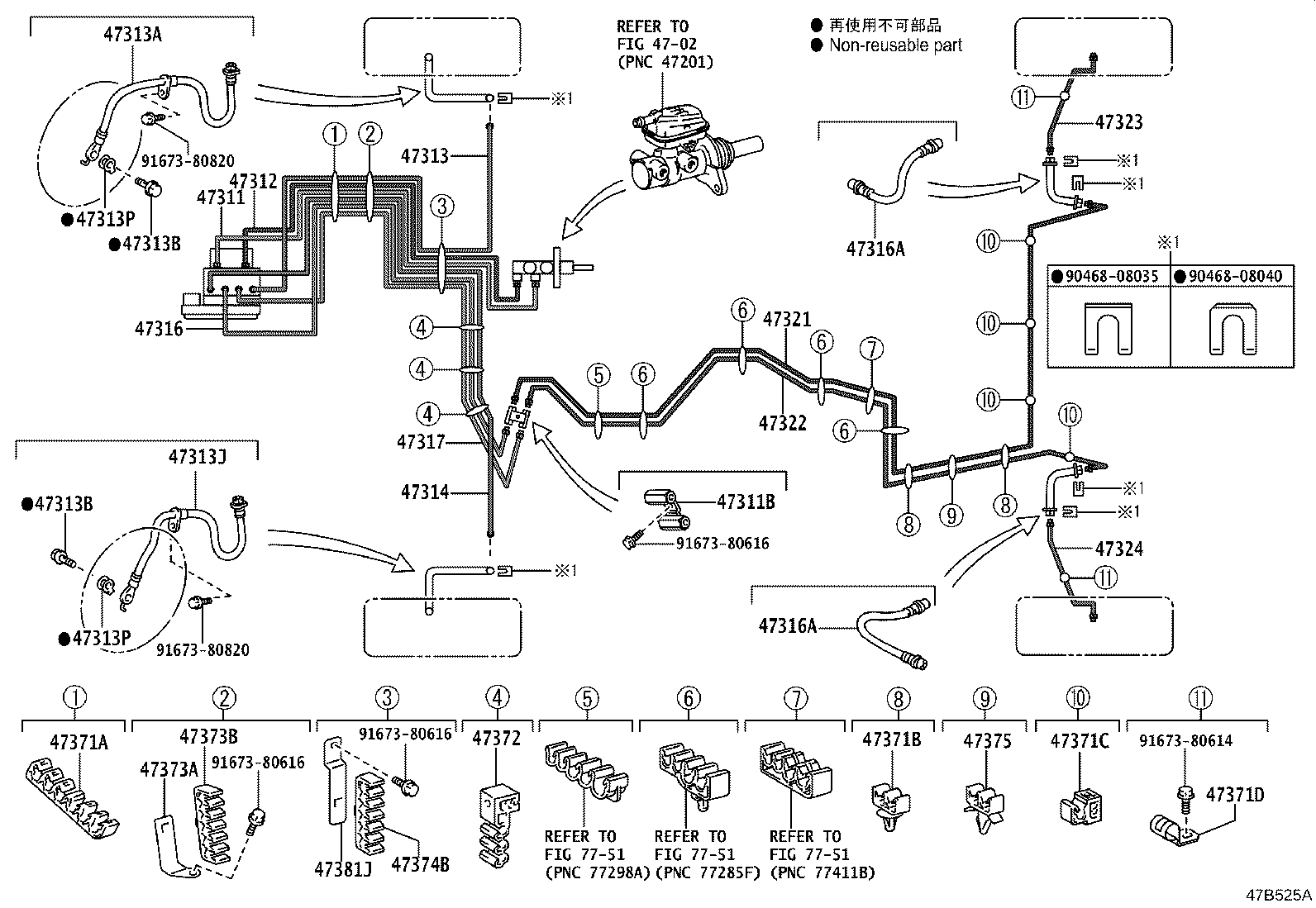

ILLUST NO. 1 OF 2(0706- )ZRR70..G,TRASX,V,X,YY..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28730 |
ZRR7#..CBU,IV5 |
1 | ||
| 47311-28740 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ZRR7#..CBU,IV5 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28530 |
ZRR7#..CBU,IV5 |
1 | ||
| 47312-28540 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28490 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47313-28480 |
ZRR7#..CBU,IV5 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F38 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 90947-02E82 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRR7#..CBU,IV5 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRR7#..CBU,IV5 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02F39 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 90947-02E83 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZRR7#..CBU,IV5 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZRR7#..CBU,IV5 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28400 |
ZRR7#..CBU,IV5 |
1 | ||
| 47314-28410 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28250 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47316-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E81 |
ZRR7#..CBU,IV5 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E81 |
ZRR7#..CBU,IV5 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-28280 |
ZRR7#..CBU,IV5 |
1 | ||
| 47317-28290 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28550 |
ZRR7#..CBU |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28360 |
ZRR7#..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28380 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47323-28370 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47323-28380 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28270 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47324-28280 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47324-28280 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00890 |
ZRR7#..CBU,IV5 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90469-07020 |
ZRR7#..CBU,IV5 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01C82 |
ZRR7#..CBU |
4 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08694 |
ZRR7#..CBU,IV5 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D02 |
ZRR7#..CBU,IV5 |
3 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 90949-01C65 |
ZRR7#..CBU,IV5 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00902 |
ZRR7#..CBU,IV5 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00902 |
ZRR7#..CBU,IV5 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90469-07019 |
ZRR7#..CBU,IV5 |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-02008 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
ILLUST NO. 1 OF 2(0706- )ZRR75..CBU ; (0706- )ZRR70..S,SI,Z,ZS..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28730 |
ZRR7#..CBU,IV5 |
1 | ||
| 47311-28740 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ZRR7#..CBU,IV5 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28530 |
ZRR7#..CBU,IV5 |
1 | ||
| 47312-28540 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28490 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47313-28480 |
ZRR7#..CBU,IV5 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F38 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 90947-02E82 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRR7#..CBU,IV5 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRR7#..CBU,IV5 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02F39 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 90947-02E83 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZRR7#..CBU,IV5 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZRR7#..CBU,IV5 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28400 |
ZRR7#..CBU,IV5 |
1 | ||
| 47314-28410 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28250 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47316-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E81 |
ZRR7#..CBU,IV5 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E81 |
ZRR7#..CBU,IV5 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-28280 |
ZRR7#..CBU,IV5 |
1 | ||
| 47317-28290 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02B95 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 90947-02B95 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02B95 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 90947-02B95 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28550 |
ZRR7#..CBU |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28360 |
ZRR7#..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28380 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47323-28370 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47323-28380 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28270 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47324-28280 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47324-28280 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00890 |
ZRR7#..CBU,IV5 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90469-07020 |
ZRR7#..CBU,IV5 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01C82 |
ZRR7#..CBU |
4 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08694 |
ZRR7#..CBU,IV5 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D02 |
ZRR7#..CBU,IV5 |
3 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 90949-01C65 |
ZRR7#..CBU,IV5 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00902 |
ZRR7#..CBU,IV5 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00902 |
ZRR7#..CBU,IV5 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90469-07019 |
ZRR7#..CBU,IV5 |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-02008 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
ILLUST NO. 1 OF 2(0706- )CBU
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28730 |
ZRR7#..CBU,IV5 |
1 | ||
| 47311-28740 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ZRR7#..CBU,IV5 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28530 |
ZRR7#..CBU,IV5 |
1 | ||
| 47312-28540 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28490 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47313-28480 |
ZRR7#..CBU,IV5 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F38 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 90947-02E82 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRR7#..CBU,IV5 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRR7#..CBU,IV5 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02F39 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 90947-02E83 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZRR7#..CBU,IV5 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZRR7#..CBU,IV5 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28400 |
ZRR7#..CBU,IV5 |
1 | ||
| 47314-28410 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28250 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47316-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E81 |
ZRR7#..CBU,IV5 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E81 |
ZRR7#..CBU,IV5 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-28280 |
ZRR7#..CBU,IV5 |
1 | ||
| 47317-28290 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02B95 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 90947-02B95 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02B95 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 90947-02B95 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28550 |
ZRR7#..CBU |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28360 |
ZRR7#..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28380 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47323-28370 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47323-28380 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28270 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47324-28280 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47324-28280 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00890 |
ZRR7#..CBU,IV5 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90469-07020 |
ZRR7#..CBU,IV5 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01C82 |
ZRR7#..CBU |
4 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08694 |
ZRR7#..CBU,IV5 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D02 |
ZRR7#..CBU,IV5 |
3 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 90949-01C65 |
ZRR7#..CBU,IV5 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00902 |
ZRR7#..CBU,IV5 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00902 |
ZRR7#..CBU,IV5 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90469-07019 |
ZRR7#..CBU,IV5 |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-02008 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
