ZRR70W-APXSP5 (2010)
Toyota Noah/Voxy

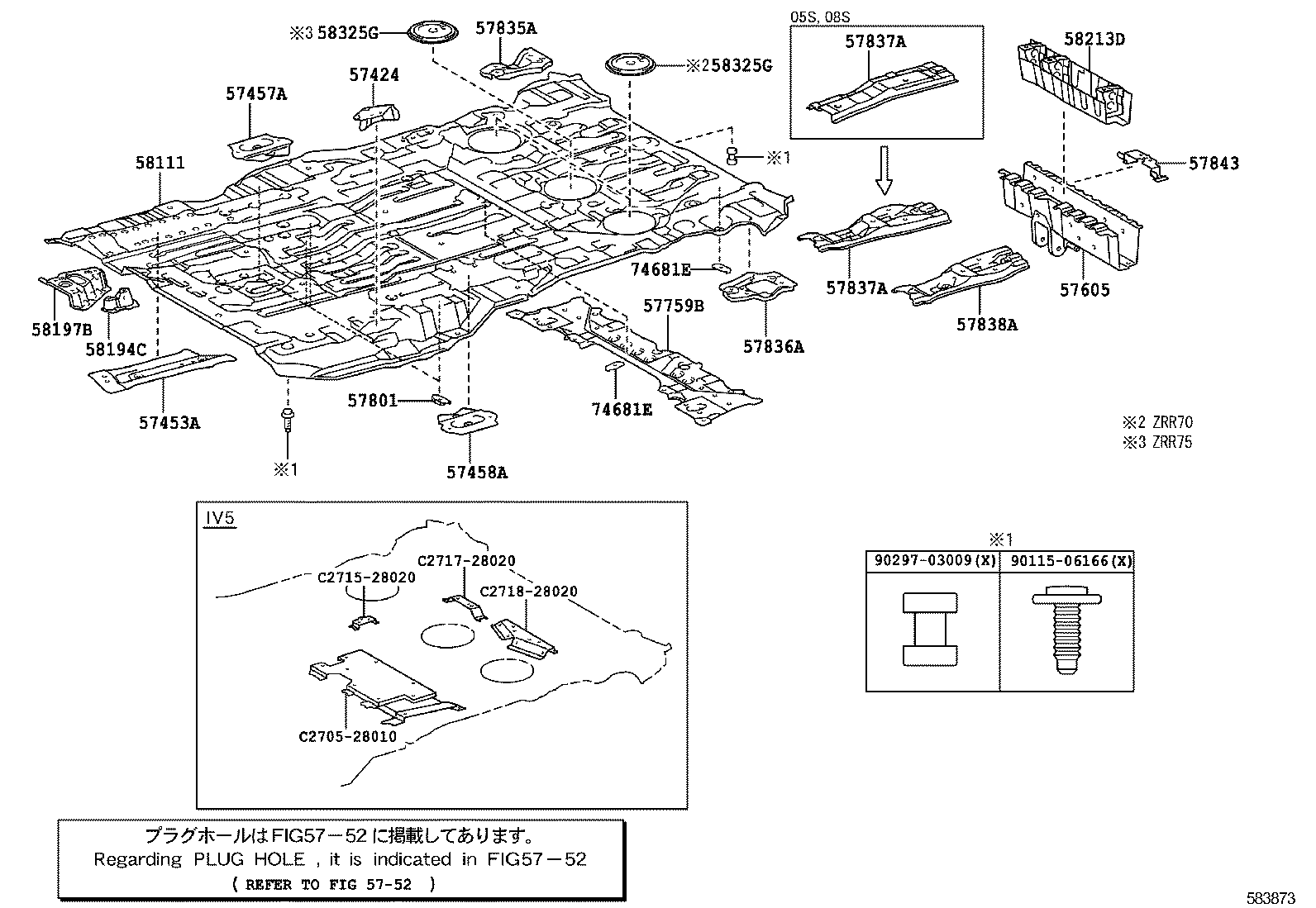

ILLUST NO. 2 OF 2(1004- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57424 - BRACKET, FRONT FLOOR REINFORCEMENT, LH | ||||
| 57484-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 57484-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 57453A - REINFORCEMENT, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57453-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 57453-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 57457A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH | ||||
| 57457-28021 |
ZRR7#..CBU,IV5 |
1 | ||
| 57457-28021 |
ZRR7#..CBU,IV5 |
1 | ||
| 57458A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH | ||||
| 57457-28021 |
ZRR7#..CBU,IV5 |
1 | ||
| 57457-28021 |
ZRR7#..CBU,IV5 |
1 | ||
| 57605 - CROSSMEMBER SUB-ASSY, REAR | ||||
| 57606-28840 |
ZRR70..CBU,IV5 |
1 | ||
| 57606-28A40 |
ZRR70..CBU,IV5 |
1 | ||
| 57759B - PLATE, REAR FLOOR CROSSMEMBER, NO.1 | ||||
| 57759-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 57759-28041 |
ZRR7#..CBU,IV5 |
1 | ||
| 57801 - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 67188-52020 |
ZRR7#..CBU,IV5 |
2 | ||
| 67188-52020 |
ZRR7#..CBU,IV5 |
2 | ||
| 67188-52020 |
ZRR7#..IV5 HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ |
3 | ||
| 67188-52020 |
ZRR7#..IV5 ｵｰﾃﾞｨｵ−AVN DVD 9ｽﾋﾟｰｶｰ 有り(ｽﾃｱﾘﾝｸﾞｽｲｯﾁ) |
3 | ||
| 67188-52020 |
ZRR7#..X..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&ｽﾀｰﾄｼｽﾃﾑ(運転席&助手席)&ｵｰﾃﾞｨｵ−AVN DVD 9ｽﾋﾟｰｶｰ 有り(ｽﾃｱﾘﾝｸﾞｽｲｯﾁ) |
3 | ||
| 57835A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57807-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 57807-28060 |
ZRR7#..CBU,IV5 |
1 | ||
| 57836A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 | ||||
| 57808-28110 |
ZRR7#..CBU,IV5 |
1 | ||
| 57808-28130 |
ZRR7#..07S..IV5 |
1 | ||
| 57837A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 | ||||
| 57049-28010 |
ZRR7#..07S..(CBU,IV5) |
1 | ||
| 57049-28010 |
ZRR70..G,V |
1 | ||
| 57837-28040 |
ZRR75..(07S,08S)..(CBU,IV5);ZRR70..(S,SI,X,Z,ZS)..(CBU,IV5) |
1 | ||
| 57837A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 | ||||
| 57049-28010 |
ZRR7#..07S..(CBU,IV5) |
1 | ||
| 57049-28010 |
ZRR70..G,V |
1 | ||
| 57837-28040 |
ZRR75..(07S,08S)..(CBU,IV5);ZRR70..(S,SI,X,Z,ZS)..(CBU,IV5) |
1 | ||
| 57838A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4 | ||||
| 58039-28020 |
ZRR70..G,V |
1 | ||
| 57838-28040 |
ZRR75..(07S,08S)..(CBU,IV5);ZRR70..(S,SI,X,Z,ZS)..(CBU,IV5) |
1 | ||
| 58039-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 57843 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.5 | ||||
| 57843-28050 |
ZRR7#..IV5 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-28J00 |
ZRR70..S,Z ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 58111-28J20 |
ZRR70..S,Z ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 58111-28J40 |
ZRR70..S,Z ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ |
1 | ||
| 58111-28J60 |
ZRR70..S,Z ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 58111-28J30 |
ZRR70..G,V HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 58111-28J60 |
ZRR70..G,V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 58111-28J50 |
ZRR70..G,V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 58111-28K10 |
ZRR70..HTWVM..IV5 |
1 | ||
| 58111-28J40 |
ZRR70..G,V |
1 | ||
| 58111-28Q30 |
ZRR70..HTWVM..IV5 HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 58111-28U60 |
ZRR70..07S..X..IV5 |
1 | ||
| 58111-28V90 |
ZRR70..07S..(SI,ZS)..IV5 |
1 | ||
| 58111-28V90 |
ZRR70..07S..X..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&ｽﾀｰﾄｼｽﾃﾑ(運転席&助手席) |
1 | ||
| 58111-28Y90 |
ZRR70..07S..X..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&ｽﾀｰﾄｼｽﾃﾑ(運転席&助手席)&ｵｰﾃﾞｨｵ−AVN DVD 9ｽﾋﾟｰｶｰ 有り(ｽﾃｱﾘﾝｸﾞｽｲｯﾁ) |
1 | ||
| 58111-28Y70 |
ZRR70..07S..X..IV5 ｵｰﾃﾞｨｵ−AVN DVD 9ｽﾋﾟｰｶｰ 有り(ｽﾃｱﾘﾝｸﾞｽｲｯﾁ) |
1 | ||
| 58111-28Y90 |
ZRR70..07S..(SI,ZS)..IV5 ｵｰﾃﾞｨｵ−AVN DVD 9ｽﾋﾟｰｶｰ 有り(ｽﾃｱﾘﾝｸﾞｽｲｯﾁ) |
1 | ||
| 58194C - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, LH | ||||
| 58194-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 58194-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET | ||||
| 58197-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 58197-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58203-28020 |
ZRR7#..07S..(CBU,IV5) |
1 | ||
| 58325G - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-28100 |
ZRR70..CBU,IV5 |
1 | ||
| 58325-28100 |
ZRR70..CBU,IV5 |
1 | ||
| 58325G - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-28100 |
ZRR70..CBU,IV5 |
1 | ||
| 58325-28100 |
ZRR70..CBU,IV5 |
1 | ||
| 74681E - RETAINER, NAVIGATION ECU | ||||
| 74681-58010 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 74681-58010 |
ZRR7#..S,Z ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ |
1 | ||
| 74681-58010 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 74681-58010 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
2 | ||
| 74681-58010 |
ZRR7#..S,Z ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
2 | ||
| 74681-58010 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 74681-58010 |
ZRR7#..X..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&ｽﾀｰﾄｼｽﾃﾑ(運転席&助手席)&ｵｰﾃﾞｨｵ−AVN DVD 9ｽﾋﾟｰｶｰ 有り(ｽﾃｱﾘﾝｸﾞｽｲｯﾁ) |
1 | ||
| 74681-58010 |
ZRR7#..X..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&ｽﾀｰﾄｼｽﾃﾑ(運転席&助手席) |
1 | ||
| 74681E - RETAINER, NAVIGATION ECU | ||||
| 74681-58010 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 74681-58010 |
ZRR7#..S,Z ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ |
1 | ||
| 74681-58010 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 74681-58010 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
2 | ||
| 74681-58010 |
ZRR7#..S,Z ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
2 | ||
| 74681-58010 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 74681-58010 |
ZRR7#..X..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&ｽﾀｰﾄｼｽﾃﾑ(運転席&助手席)&ｵｰﾃﾞｨｵ−AVN DVD 9ｽﾋﾟｰｶｰ 有り(ｽﾃｱﾘﾝｸﾞｽｲｯﾁ) |
1 | ||
| 74681-58010 |
ZRR7#..X..IV5 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ&ｽﾀｰﾄｼｽﾃﾑ(運転席&助手席) |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90297-03009 | ||||
| C2705-28010 | ||||
| C2715-28020 | ||||
| C2717-28020 | ||||
| C2718-28020 | ||||
| Linked diagrams | ||||
| 5752 | ||||
