ZRR70G-BRXEK (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706-1004)08S

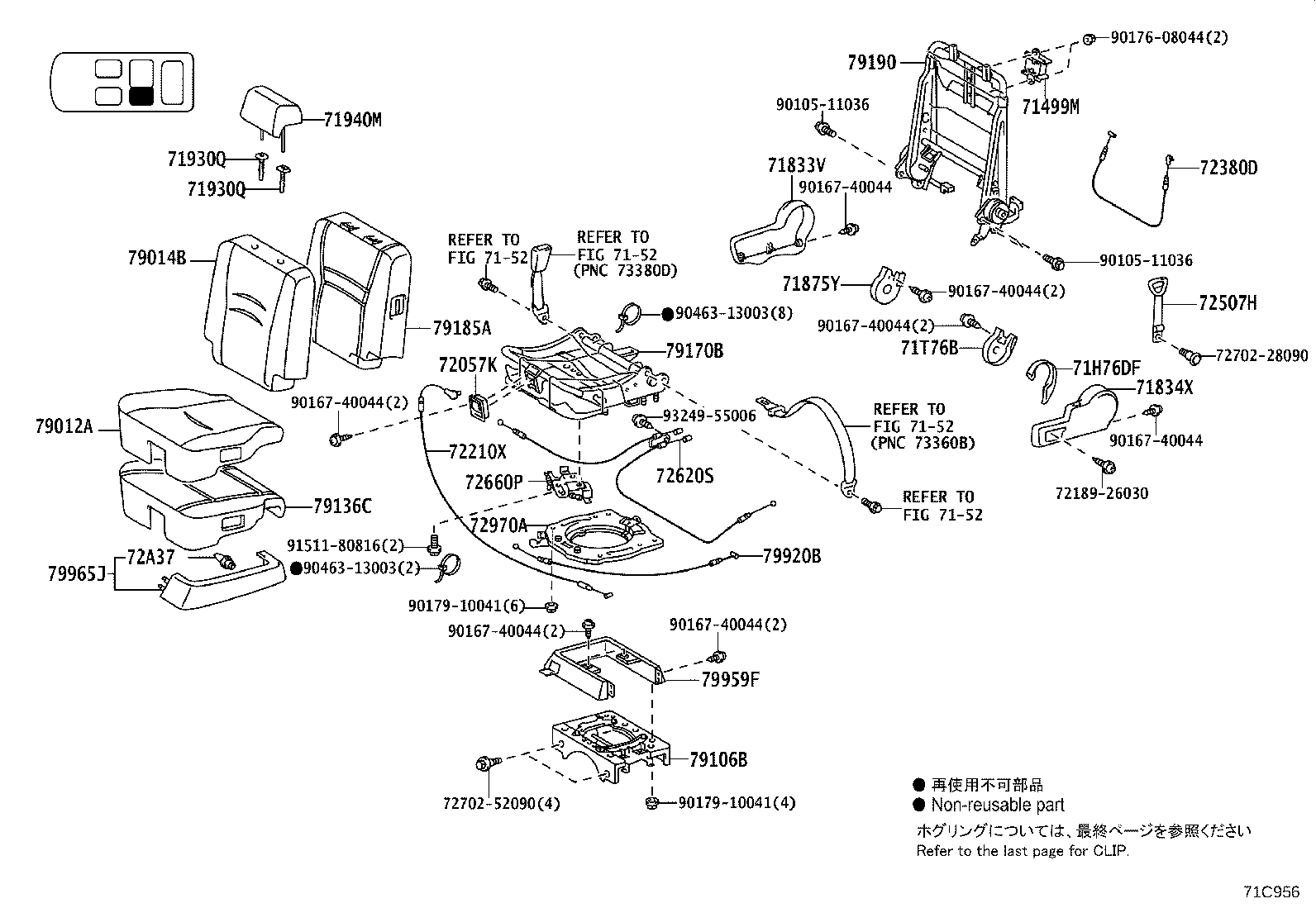

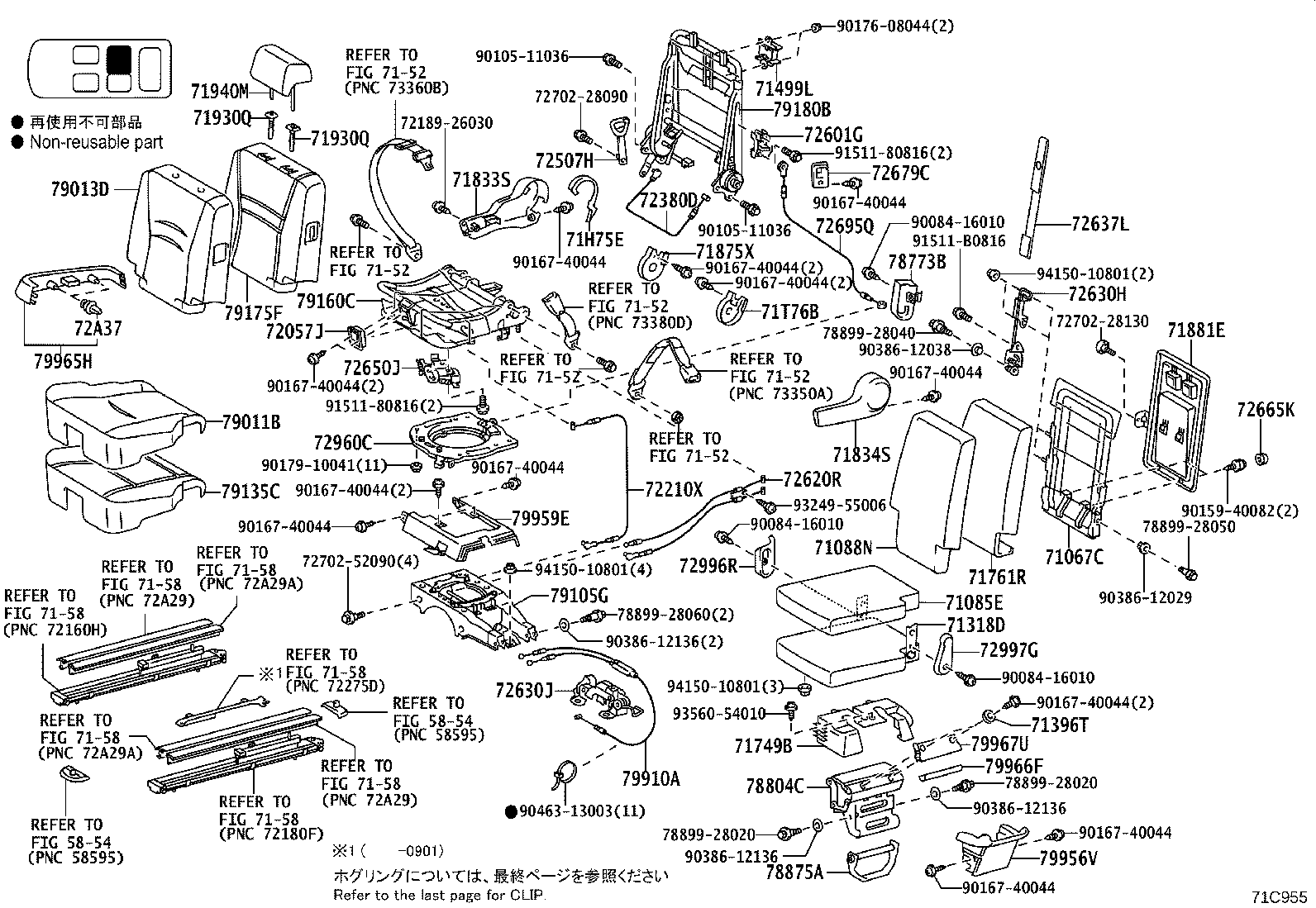

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(RH)

diagram 71033F 71067C 71085E 71088N 71307F 71318D 71356B 71396T 71396T 71499L 7152 7152 71695K 71712N 71749B 71761R 71833S 71833Y 71834S 71875X 71875X 71881E 71930Q 71930Q 71940M 71H76F 71T76B 72065F 72211H 72507H 72525R 72551M 72552K 72601G 72613H 72613K 72630H 72637L 72649C 72649C 72657A 72665J 72666F 72679C 72679C 72695H 72695Q 72695Q 7270228090 7270228110 7270228130 72927H 72966D 72995J 72996R 72997G 79011B 79013D 79105G 79135C 79160C 79175F 79180B 79951C 79959E 79965H 79966F 79966K 79967U 79967W 79J67N 82G11 82G11 9008416010 9008416010 9010510406 9010510406 9011910409 9011910409 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017608044 9046313003 9151180816 9151180816 9151180816 9151581030 9151581030 9356054010 9356054010 9356054010 9415010801 9415010801 9418561000 9418561000 9616001500
Part # Description Qty Price
71033F - LEG SUB-ASSY, REAR SEAT CUSHION, RH
71039-28010

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71067C - FRAME SUB-ASSY, REAR SIDE SEAT BACK, RH
71067-28060

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71067-28090

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
71067-28090

ZRR70..G,V

 1
71085E - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH
71085-28090B3

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
71085-28100C2

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 1
71085-28150B2

ZRR70..V

DARK GRAY,TRIM1#

 1
71085-28130E1

ZRR70..G

GREGE,TRIM4#

 1
71085-28140C2

ZRR7#..08S..(S,SI,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,BLACK,TRIM1#

 1
71085-28130E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
71085-28120B3

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
71085-28160E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71088N - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH
71088-28120B1

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
71088-28130E0

ZRR70..G

GREGE,TRIM4#

 1
71088-28090B1

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
71088-28140C0

ZRR7#..08S..(S,SI,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,BLACK,TRIM1#

 1
71088-28130E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71088-28100C0

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 1
71088-28150B0

ZRR70..V

DARK GRAY,TRIM1#

 1
71088-28160E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71307F - BRACKET SUB-ASSY, NO.1 SEAT CUSHION(FOR RH SEAT)
71307-28050

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71318D - PAD, CENTER SEAT CUSHION
71032-28020

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71032-28030

ZRR70..G,V

 1
71032-28030

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
71356B - PLATE, REAR SEAT BACK HINGE, INNER RH
71356-28050

ZRR75..(07S,08S)..CBU;ZRR70..(S,SI,X,Z,ZS)..CBU

 1
71396T - CUSHION, NO.1 SEAT SUPPORT, REAR
71396-28030B0

ZRR7#..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 2
71396-28030E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
71396T - CUSHION, NO.1 SEAT SUPPORT, REAR
71396-28030B0

ZRR7#..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 2
71396-28030E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
71499L - DAMPER, NO.1 SEAT BACK SPRING, RH
71499-46020

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
71499-28050

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71499-46020

ZRR70..G,V

 1
71695K - PROTECTOR, NO.1 SEAT BACK, RH
71695-28220

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71712N - COVER, SIDE SEAT CUSHION, REAR
71712-28010B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71712-28010E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71749B - COVER, SIDE SEAT LOWER CUSHION, RH
71749-28020B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71749-28030B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71749-28030E0

ZRR70..G

GREGE,TRIM4#

 1
71749-28030E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71749-28030B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71749-28020E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71761R - PAD, REAR SIDE SEAT BACK
71761-28020

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71761-28030

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
71761-28030

ZRR70..G,V

 1
71833S - COVER, REAR SEAT RECLINING, NO.1 RH
71801-28010B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71801-28010B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71801-28010E0

ZRR70..G

GREGE,TRIM4#

 1
71833-28170B0

ZRR70..(S,SI,X,Z,ZS)..CBU;ZRR75..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71833-28170E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71801-28010E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71833Y - CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT)
71769-28020B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71769-28020E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71834S - COVER, REAR SEAT RECLINING, NO.1 LH
71834-28170B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71834-28160E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71834-28170B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71834-28170E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71834-28170E0

ZRR70..G

GREGE,TRIM4#

 1
71834-28160B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71875X - COVER, RECLINING ADJUSTER INSIDE, RH
71875-28070B1

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71875-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

NO.1

 1
71875-28070E0

ZRR70..G

GREGE,TRIM4#

 2
71875-28070B1

ZRR70..V

DK.GRAY,TRIM1#

 2
71875-28070E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49,NO.1:ｲﾗｽﾄ参照

 2
71876-28270B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#,NO.2

 1
71876-28270E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49,NO.2:ｲﾗｽﾄ参照

 1
71875-28340B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71875-28340B0

ZRR70..V

DK.GRAY,TRIM1#

 2
71875-28340E0

ZRR70..G

GREGE,TRIM4#

 2
71875X - COVER, RECLINING ADJUSTER INSIDE, RH
71875-28070B1

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71875-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

NO.1

 1
71875-28070E0

ZRR70..G

GREGE,TRIM4#

 2
71875-28070B1

ZRR70..V

DK.GRAY,TRIM1#

 2
71875-28070E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49,NO.1:ｲﾗｽﾄ参照

 2
71876-28270B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#,NO.2

 1
71876-28270E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49,NO.2:ｲﾗｽﾄ参照

 1
71875-28340B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71875-28340B0

ZRR70..V

DK.GRAY,TRIM1#

 2
71875-28340E0

ZRR70..G

GREGE,TRIM4#

 2
71881E - BOARD, REAR NO.1 SEAT BACK, CENTER
79156-28030B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79156-28030B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79156-28030E0

ZRR70..G

GREGE,TRIM4#

 1
79156-28040B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79156-28030E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79156-28040E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71940M - HEADREST ASSY, REAR SEAT
71940-28C11E1

ZRR7#..G

GREGE,TRIM4#

 2
71940-28C00C0

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28C10E0

ZRR7#..G

GREGE,TRIM4#

 2
71940-28C20B0

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28C10E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
71940-28C21B1

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28C01C2

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28B10B1

ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU

DARK GRAY,TRIM1#

 2
71H76F - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH S
71875-28280B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71876-28260B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71876-28260B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71876-28260E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71876-28260E0

ZRR70..G

GREGE,TRIM4#

 1
71875-28280E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71T76B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-28070B1

ZRR70..V

DK.GRAY,TRIM1#

 2
71876-28330B0

ZRR70..V

DK.GRAY,TRIM1#

 2
71876-28070B1

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71876-28070E0

ZRR70..G

GREGE,TRIM4#

 2
71876-28070E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
71876-28330B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71876-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
71876-28330E0

ZRR70..G

GREGE,TRIM4#

 2
72065F - BELT SUB-ASSY, REAR SEAT HOOK, RH
72065-28170E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
72065-28170C0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM1#

 1
72065-28171C0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM1#

 1
72211H - HANDLE, SEAT TRACK ADJUSTING, RH
72211-28140

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 2
72507H - HANDLE SUB-ASSY, RECLINING RELEASE, RH
72507-28120C0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM1#

 2
72507-28130E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
72507-28130B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
72507-28130E0

ZRR70..G

GREGE,TRIM4#

 2
72507-28120E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
72507-28130B0

ZRR70..V

DK.GRAY,TRIM1#

 2
72525R - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-47020B1

ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72525-47020E2

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72551M - COVER, RECLINING HINGE, RH NO.1(FOR RH SEAT)
72551-28070B0

ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72551-28070E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
72552K - COVER, RECLINING HINGE, LH NO.1(FOR RH SEAT)
72552-28070E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72552-28070B0

ZRR70..(S,SI,X,Z,ZS)..CBU;ZRR75..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72601G - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-28020

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
72601-28030

ZRR70..G,V

 1
72601-28030

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72613H - STRIKER, REAR SEAT LOCK
72613-28130

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72613K - STRIKER, REAR SEAT LOCK, NO.2
72613-28170

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72630H - LOCK ASSY, NO.1 SEAT BACK
72630-28110

ZRR70..G,V

 1
72630-28100

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
72630-28110

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72637L - HANDLE, REAR SEAT LOCK
72637-28120C1

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72637-28120E1

ZRR70..G

GREGE,TRIM4#

 1
72637-28130E0

ZRR70..G

GREGE,TRIM4#

 1
72637-28120C1

ZRR70..V

DK.GRAY,TRIM1#

 1
72637-28130C0

ZRR70..V

DK.GRAY,TRIM1#

 1
72637-28120E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72637-28130C0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
72649C - SPRING, REAR SEAT CUSHION SUPPORT
72649-28010

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 4
72649C - SPRING, REAR SEAT CUSHION SUPPORT
72649-28010

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 4
72657A - SILENCER, REAR SEAT BACK LOCK CONTROL ROD
72657-28010

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72665J - COVER, REAR SEAT LOCK, RH
72665-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72666F - COVER, REAR SEAT LOCK, LH
72666-28050

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72679C - BEZEL, REAR SEAT BACK LOCK CONTROL
72679-28080B0

ZRR70..V

DK.GRAY,TRIM1#

 1
72679-28060B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#,NO.1

 1
72679-28080B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
72679-28080E0

ZRR70..G

GREGE,TRIM4#

 1
72679-28070

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

NO.2

 1
72679-28060E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72679-28080E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
72679C - BEZEL, REAR SEAT BACK LOCK CONTROL
72679-28080B0

ZRR70..V

DK.GRAY,TRIM1#

 1
72679-28060B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#,NO.1

 1
72679-28080B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
72679-28080E0

ZRR70..G

GREGE,TRIM4#

 1
72679-28070

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

NO.2

 1
72679-28060E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72679-28080E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
72695H - CABLE, REAR NO.1 SEAT LOCK CONTROL, RH
72695-28090

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
72695Q - CABLE, REAR SEAT LOCK CONTROL
72695-28070

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 4
72695-28100

ZRR70..G,V

 1
72695-28100

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72695Q - CABLE, REAR SEAT LOCK CONTROL
72695-28070

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 4
72695-28100

ZRR70..G,V

 1
72695-28100

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72927H - COVER, REAR NO.1 SEAT CUSHION UNDER, RH NO.1
72927-28110B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72927-28110E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72966D - PLATE, REAR SEAT TURN LOCK, NO.1 RH
72966-28040

ZRR75..(07S,08S)..CBU;ZRR70..(S,SI,X,Z,ZS)..CBU

 1
72995J - COVER, REAR NO.1 SEAT CUSHION
79952-28040B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72996R - COVER, REAR NO.1 SEAT BACK, RH
72996-28100E0

ZRR70..G

GREGE,TRIM4#

 1
72996-28100B0

ZRR70..V

DK.GRAY,TRIM1#

 1
72996-28100B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
72996-28100E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
72996-28190E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72996-28190B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72997G - COVER, REAR NO.1 SEAT BACK, LH NO.1
72997-28020B0

ZRR70..V

DK.GRAY,TRIM1#

 1
72997-28020E0

ZRR70..G

GREGE,TRIM4#

 1
72997-28050B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72997-28020E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
72997-28050E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72997-28020B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79011-28E70B2

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79011-28E60B3

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79011-28E80B2

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79011-28F10E1

ZRR70..G

GREGE,TRIM4#

 1
79011-28F00B3

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79011-28E61B3

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79011-28F40B2

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79011-28F10E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79011-28F20B2

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79011-28E81B2

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79011-28F30B2

ZRR70..V

DARK GRAY,TRIM1#

 1
79011-28E71B2

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79011-28G10E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH
79013-28F90E1

ZRR70..G

GREGE,TRIM4#

 1
79013-28F80B1

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28F40B1

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79013-28G00B1

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28G20B1

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28F60B0

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79013-28G10B1

ZRR70..V

DARK GRAY,TRIM1#

 1
79013-28F50B0

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79013-28F80B2

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28G21B2

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28F90E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79013-28F91E2

ZRR70..G

GREGE,TRIM4#

 1
79013-28G11B2

ZRR70..V

DARK GRAY,TRIM1#

 1
79013-28G01B2

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28G90E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79105G - LEG SUB-ASSY, NO.1 SEAT, RH
79105-28350

ZRR70..G,V

 1
79105-28330

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79105-28350

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79135C - PAD, NO.1 SEAT CUSHION, RH
79135-28430

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79135-28450

ZRR70..G,V

 1
79135-28450

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79160C - SPRING ASSY, NO.1 SEAT CUSHION
79160-28360

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79160-28340

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79160-28360

ZRR70..G,V

 1
79175F - PAD, NO.1 SEAT BACK, RH
79175-28420

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79175-28400

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79175-28420

ZRR70..G,V

 1
79180B - SPRING ASSY, NO.1 SEAT BACK, RH
79180-28650

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79180-28650

ZRR70..G,V

 1
79180-28630

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79951C - COVER, NO.1 SEAT CUSHION, NO.3
79952-28030B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79959E - COVER, NO.1 SEAT LEG, RH
79959-28180B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79959-28180E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79959-28180E0

ZRR70..G

GREGE,TRIM4#

 1
79959-28180B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79959-28210E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79959-28210B0

ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79965H - COVER, NO.1 SEAT LEG SIDE, NO.2(FOR RH SEAT)
79965-28180E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79965-28180B0

ZRR70..(S,SI,X,Z,ZS)..CBU;ZRR75..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79965-28200E0

ZRR70..G

GREGE,TRIM4#

 1
79965-28200B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79965-28200B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79965-28200E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79966F - COVER, NO.1 SEAT LEG SIDE, NO.3(FOR RH SEAT)
79966-28140B0

ZRR7#..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79966-28140E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79966K - COVER, REAR SEAT LEG, RH(FOR RH SEAT)
79966-28150B0

ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79966-28150E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79967U - COVER, REAR NO.1 SEAT LEG SIDE, NO.2
79965-28160B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79965-28160E1

ZRR70..G

GREGE,TRIM4#

 1
79965-28160B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79965-28170B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79965-28160E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79965-28170E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79967W - COVER, REAR NO.1 SEAT LEG SIDE, NO.4
79967-28060E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
79967-28060B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 2
79J67N - COVER, REAR SEAT LEG SIDE, NO.7
79967-28070E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
79967-28070B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 2
82G11 - CLAMP, WIRING HARNESS
82711-2B660

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 2
82G11 - CLAMP, WIRING HARNESS
82711-2B660

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 2
Common parts
72702-28090
72702-28110
72702-28130
90084-16010
90105-10406
90119-10409
90167-40044
90176-08044
90463-13003
91511-80816
91515-81030
93560-54010
94150-10801
94185-61000
96160-01500
Linked diagrams
7152

(0706-1004)08S

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(LH)

diagram 71308J 71356C 7152 7152 71833V 71834X 71875Y 71930Q 71930Q 71940M 71T76B 72066B 72211H 72507H 72526J 72551R 72552P 72613H 72613K 72649C 72649C 72657A 72665J 72666F 72695Q 72695Q 7270228090 7270228110 72928E 72966E 79012A 79014B 79106B 79136C 79170B 79185A 79190 79951B 79952A 79959F 79965J 79966N 79967W 79J67N 9011910409 9011910409 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9046313003 9151581030 9151581030 9418561000 9616001500
Part # Description Qty Price
71308J - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH
71308-28070

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71356C - PLATE, REAR SEAT BACK HINGE, INNER LH
71356-28050

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71833V - COVER, NO.1 SEAT RECLINING, NO.2 RH
71833-28160E0

ZRR70..G

GREGE,TRIM4#

 1
71833-28180E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71833-28180B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71833-28160B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71833-28160B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71833-28160E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71834X - COVER, REAR SEAT RECLINING, NO.2 LH
71802-28020B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71802-28020E0

ZRR70..G

GREGE,TRIM4#

 1
71802-28020B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71834-28210B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71834-28210E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71802-28020E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71875Y - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT B
71875-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 1
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71940M - HEADREST ASSY, REAR SEAT
71940-28C11E1

ZRR7#..G

GREGE,TRIM4#

 2
71940-28C00C0

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28C10E0

ZRR7#..G

GREGE,TRIM4#

 2
71940-28C20B0

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28C10E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
71940-28C21B1

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28C01C2

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28B10B1

ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU

DARK GRAY,TRIM1#

 2
71T76B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-28070B1

ZRR70..V

DK.GRAY,TRIM1#

 2
71876-28330B0

ZRR70..V

DK.GRAY,TRIM1#

 2
71876-28070B1

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71876-28070E0

ZRR70..G

GREGE,TRIM4#

 2
71876-28070E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
71876-28330B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71876-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
71876-28330E0

ZRR70..G

GREGE,TRIM4#

 2
72066B - BELT SUB-ASSY, REAR SEAT HOOK, LH
72065-28171C0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM1#

 1
72065-28170C0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM1#

 1
72211H - HANDLE, SEAT TRACK ADJUSTING, RH
72211-28140

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 2
72507H - HANDLE SUB-ASSY, RECLINING RELEASE, RH
72507-28120C0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM1#

 2
72507-28130E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
72507-28130B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
72507-28130E0

ZRR70..G

GREGE,TRIM4#

 2
72507-28120E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
72507-28130B0

ZRR70..V

DK.GRAY,TRIM1#

 2
72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH
72526-47020B1

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72526-47020E2

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72551R - COVER, RECLINING HINGE, RH NO.1(FOR LH SEAT)
72551-28070B0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72552P - COVER, RECLINING HINGE, LH NO.1(FOR LH SEAT)
72552-28060B0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72552-28060E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72613H - STRIKER, REAR SEAT LOCK
72613-28130

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72613K - STRIKER, REAR SEAT LOCK, NO.2
72613-28170

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72649C - SPRING, REAR SEAT CUSHION SUPPORT
72649-28010

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 4
72649C - SPRING, REAR SEAT CUSHION SUPPORT
72649-28010

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 4
72657A - SILENCER, REAR SEAT BACK LOCK CONTROL ROD
72657-28010

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72665J - COVER, REAR SEAT LOCK, RH
72665-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72666F - COVER, REAR SEAT LOCK, LH
72666-28050

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72695Q - CABLE, REAR SEAT LOCK CONTROL
72695-28070

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 4
72695-28100

ZRR70..G,V

 1
72695-28100

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72695Q - CABLE, REAR SEAT LOCK CONTROL
72695-28070

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 4
72695-28100

ZRR70..G,V

 1
72695-28100

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72928E - COVER, REAR SEAT CUSHION UNDER, LH
72928-28090B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72928-28090E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72966E - PLATE, REAR SEAT TURN LOCK, NO.1 LH
72966-28050

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79012-28670B3

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79012-28710B3

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79012-28720E1

ZRR70..G

GREGE,TRIM4#

 1
79012-28690B2

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79012-28680B2

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79012-28730B2

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79012-28671B3

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79012-28720E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79012-28691B2

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79012-28790E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79012-28681B2

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79012-28750B2

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79012-28740B2

ZRR70..V

DARK GRAY,TRIM1#

 1
79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79014-28B70B0

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79014-28C40B1

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79014-28C30B1

ZRR70..V

DARK GRAY,TRIM1#

 1
79014-28C00B1

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79014-28B80B0

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79014-28B60B1

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79014-28C41B2

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79014-28C10E1

ZRR70..G

GREGE,TRIM4#

 1
79014-28C20B1

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79014-28C10E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79014-28C21B2

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79014-28C80E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79014-28C11E2

ZRR70..G

GREGE,TRIM4#

 1
79014-28C31B2

ZRR70..V

DARK GRAY,TRIM1#

 1
79014-28C00B2

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79106B - LEG SUB-ASSY, NO.1 SEAT, LH
79106-28220

ZRR70..G,V

 1
79106-28220

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79106-28200

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79136C - PAD, NO.1 SEAT CUSHION, LH
79136-28170

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79136-28190

ZRR70..G,V

 1
79136-28190

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79170B - SPRING ASSY, NO.1 SEAT CUSUION, LH
79170-28120

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79170-28140

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79170-28140

ZRR70..G,V

 1
79185A - PAD, NO.1 SEAT BACK, LH
79185-28130

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79185-28150

ZRR70..G,V

 1
79185-28150

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79190 - SPRING ASSY, NO.1 SEAT BACK, LH
79190-28440

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79190-28460

ZRR70..G,V

 1
79190-28460

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79951B - COVER, NO.1 SEAT CUSHION, NO.1
79952-28030B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79952-28030E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
79952A - COVER, NO.1 SEAT CUSHION, NO.2
79952-28040B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79952-28040E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
79959F - COVER, NO.1 SEAT LEG, LH
79959-28190B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79959-28190E0

ZRR70..G

GREGE,TRIM4#

 1
79959-28190B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79959-28220B0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79959-28190E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79959-28220E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79965J - COVER, NO.1 SEAT LEG SIDE, NO.2(FOR LH SEAT)
79965-28210B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79965-28210E0

ZRR70..G

GREGE,TRIM4#

 1
79965-28210B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79965-28210E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79965-28220E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79965-28220B0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79966N - COVER, REAR SEAT LEG, LH(FOR LH SEAT)
79966-28160E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79966-28160B0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79967W - COVER, REAR NO.1 SEAT LEG SIDE, NO.4
79967-28060E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
79967-28060B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 2
79J67N - COVER, REAR SEAT LEG SIDE, NO.7
79967-28070E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
79967-28070B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 2
Common parts
72702-28090
72702-28110
90119-10409
90167-40044
90463-13003
91515-81030
94185-61000
96160-01500
Linked diagrams
7152

(0706-1004)08S..CBU

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(RH),ｶｲﾃﾝ & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

diagram 5854 5854 71067C 71085E 71088N 71318D 71396T 71499L 7152 7152 7152 7152 7152 7152 7158 7158 7158 7158 7158 7158 7158 71749B 71761R 71833S 71834S 71875X 71881E 71930Q 71930Q 71940M 71H75E 71T76B 72057J 7218926030 72210X 72380D 72507H 72601G 72620R 72630H 72630J 72637L 72650J 72665K 72679C 72695Q 7270228090 7270228130 7270252090 72960C 72996R 72997G 72A37 78773B 78804C 78875A 7889928020 7889928020 7889928040 7889928050 7889928060 79011B 79013D 79105G 79135C 79160C 79175F 79180B 79910A 79956V 79959E 79965H 79966F 79967U 9008416010 9008416010 9008416010 9010511036 9010511036 9015940082 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017608044 9017910041 9038612029 9038612038 9038612136 9038612136 9038612136 9046313003 9151180816 9151180816 91511B0816 9324955006 9356054010 9415010801 9415010801 9415010801
Part # Description Qty Price
71067C - FRAME SUB-ASSY, REAR SIDE SEAT BACK, RH
71067-28060

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71067-28090

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
71067-28090

ZRR70..G,V

 1
71085E - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH
71085-28090B3

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
71085-28100C2

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 1
71085-28150B2

ZRR70..V

DARK GRAY,TRIM1#

 1
71085-28130E1

ZRR70..G

GREGE,TRIM4#

 1
71085-28140C2

ZRR7#..08S..(S,SI,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,BLACK,TRIM1#

 1
71085-28130E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
71085-28120B3

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
71085-28160E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71088N - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH
71088-28120B1

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
71088-28130E0

ZRR70..G

GREGE,TRIM4#

 1
71088-28090B1

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
71088-28140C0

ZRR7#..08S..(S,SI,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,BLACK,TRIM1#

 1
71088-28130E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71088-28100C0

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 1
71088-28150B0

ZRR70..V

DARK GRAY,TRIM1#

 1
71088-28160E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71318D - PAD, CENTER SEAT CUSHION
71032-28020

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71032-28030

ZRR70..G,V

 1
71032-28030

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
71396T - CUSHION, NO.1 SEAT SUPPORT, REAR
71396-28030B0

ZRR7#..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 2
71396-28030E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
71499L - DAMPER, NO.1 SEAT BACK SPRING, RH
71499-46020

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
71499-28050

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71499-46020

ZRR70..G,V

 1
71749B - COVER, SIDE SEAT LOWER CUSHION, RH
71749-28020B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71749-28030B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71749-28030E0

ZRR70..G

GREGE,TRIM4#

 1
71749-28030E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71749-28030B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71749-28020E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71761R - PAD, REAR SIDE SEAT BACK
71761-28020

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
71761-28030

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
71761-28030

ZRR70..G,V

 1
71833S - COVER, REAR SEAT RECLINING, NO.1 RH
71801-28010B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71801-28010B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71801-28010E0

ZRR70..G

GREGE,TRIM4#

 1
71833-28170B0

ZRR70..(S,SI,X,Z,ZS)..CBU;ZRR75..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71833-28170E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71801-28010E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71834S - COVER, REAR SEAT RECLINING, NO.1 LH
71834-28170B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71834-28160E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71834-28170B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71834-28170E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71834-28170E0

ZRR70..G

GREGE,TRIM4#

 1
71834-28160B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71875X - COVER, RECLINING ADJUSTER INSIDE, RH
71875-28070B1

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71875-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

NO.1

 1
71875-28070E0

ZRR70..G

GREGE,TRIM4#

 2
71875-28070B1

ZRR70..V

DK.GRAY,TRIM1#

 2
71875-28070E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49,NO.1:ｲﾗｽﾄ参照

 2
71876-28270B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#,NO.2

 1
71876-28270E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49,NO.2:ｲﾗｽﾄ参照

 1
71875-28340B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71875-28340B0

ZRR70..V

DK.GRAY,TRIM1#

 2
71875-28340E0

ZRR70..G

GREGE,TRIM4#

 2
71881E - BOARD, REAR NO.1 SEAT BACK, CENTER
79156-28030B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79156-28030B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79156-28030E0

ZRR70..G

GREGE,TRIM4#

 1
79156-28040B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79156-28030E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79156-28040E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71940M - HEADREST ASSY, REAR SEAT
71940-28C11E1

ZRR7#..G

GREGE,TRIM4#

 2
71940-28C00C0

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28C10E0

ZRR7#..G

GREGE,TRIM4#

 2
71940-28C20B0

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28C10E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
71940-28C21B1

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28C01C2

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28B10B1

ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU

DARK GRAY,TRIM1#

 2
71H75E - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH S
71875-28260B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71875-28260E0

ZRR70..G

GREGE,TRIM4#

 1
71875-28260E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71875-28260B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71T76B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-28070B1

ZRR70..V

DK.GRAY,TRIM1#

 2
71876-28330B0

ZRR70..V

DK.GRAY,TRIM1#

 2
71876-28070B1

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71876-28070E0

ZRR70..G

GREGE,TRIM4#

 2
71876-28070E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
71876-28330B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71876-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
71876-28330E0

ZRR70..G

GREGE,TRIM4#

 2
72057J - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL(FOR RH SEAT)
72057-28040E0

ZRR70..G

GREGE,TRIM4#

 1
72057-28040B0

ZRR70..V

DK.GRAY,TRIM1#

 1
72057-28040E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
72057-28040B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
72210X - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH
72210-28270

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 2
72210-28270

ZRR70..G,V

 2
72380D - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72380-28030

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 2
72380-28030

ZRR70..G,V

 2
72507H - HANDLE SUB-ASSY, RECLINING RELEASE, RH
72507-28120C0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM1#

 2
72507-28130E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
72507-28130B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
72507-28130E0

ZRR70..G

GREGE,TRIM4#

 2
72507-28120E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
72507-28130B0

ZRR70..V

DK.GRAY,TRIM1#

 2
72601G - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-28020

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
72601-28030

ZRR70..G,V

 1
72601-28030

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72620R - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)
72620-28080

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72620-28080

ZRR70..G,V

 1
72630H - LOCK ASSY, NO.1 SEAT BACK
72630-28110

ZRR70..G,V

 1
72630-28100

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
72630-28110

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72630J - LOCK ASSY, REAR NO.1 SEAT
78089-28020

ZRR70..G,V

 1
78089-28020

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72637L - HANDLE, REAR SEAT LOCK
72637-28120C1

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72637-28120E1

ZRR70..G

GREGE,TRIM4#

 1
72637-28130E0

ZRR70..G

GREGE,TRIM4#

 1
72637-28120C1

ZRR70..V

DK.GRAY,TRIM1#

 1
72637-28130C0

ZRR70..V

DK.GRAY,TRIM1#

 1
72637-28120E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72637-28130C0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
72650J - LOCK ASSY, REAR SEAT, RH
72650-28100

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72650-28100

ZRR70..G,V

 1
72665K - CAP(FOR REAR SEAT BACK LOCK COVER)
90339-10001P5

ZRR70..V

DK.GRAY,TRIM1#

 2
90339-10001E7

ZRR70..G

GREGE,TRIM4#

 2
90339-10001P5

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
72679C - BEZEL, REAR SEAT BACK LOCK CONTROL
72679-28080B0

ZRR70..V

DK.GRAY,TRIM1#

 1
72679-28060B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#,NO.1

 1
72679-28080B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
72679-28080E0

ZRR70..G

GREGE,TRIM4#

 1
72679-28070

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

NO.2

 1
72679-28060E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72679-28080E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
72695Q - CABLE, REAR SEAT LOCK CONTROL
72695-28070

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 4
72695-28100

ZRR70..G,V

 1
72695-28100

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72960C - TABLE ASSY, NO.1 SEAT TURN, RH
72960-28270

ZRR70..G,V

 1
72960-28270

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72996R - COVER, REAR NO.1 SEAT BACK, RH
72996-28100E0

ZRR70..G

GREGE,TRIM4#

 1
72996-28100B0

ZRR70..V

DK.GRAY,TRIM1#

 1
72996-28100B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
72996-28100E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
72996-28190E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72996-28190B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72997G - COVER, REAR NO.1 SEAT BACK, LH NO.1
72997-28020B0

ZRR70..V

DK.GRAY,TRIM1#

 1
72997-28020E0

ZRR70..G

GREGE,TRIM4#

 1
72997-28050B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72997-28020E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
72997-28050E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72997-28020B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
72A37 - CLIP (FOR SEAT TRACK COVER)
90467-10161

ZRR70..G,V

 4
90467-10161

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 4
78773B - COVER, SUB SEAT HINGE, RH
78773-28020B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
78773-28020E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
78773-28020E0

ZRR70..G

GREGE,TRIM4#

 1
78773-28020B0

ZRR70..V

DK.GRAY,TRIM1#

 1
78804C - LEG SUB-ASSY, SUB SEAT CUSHION
78804-28010

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
78804-28010

ZRR70..G,V

 1
78875A - STRIKER, SUB SEAT LOCK
78875-28030

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
78875-28030

ZRR70..G,V

 1
79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79011-28E70B2

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79011-28E60B3

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79011-28E80B2

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79011-28F10E1

ZRR70..G

GREGE,TRIM4#

 1
79011-28F00B3

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79011-28E61B3

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79011-28F40B2

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79011-28F10E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79011-28F20B2

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79011-28E81B2

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79011-28F30B2

ZRR70..V

DARK GRAY,TRIM1#

 1
79011-28E71B2

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79011-28G10E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH
79013-28F90E1

ZRR70..G

GREGE,TRIM4#

 1
79013-28F80B1

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28F40B1

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79013-28G00B1

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28G20B1

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28F60B0

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79013-28G10B1

ZRR70..V

DARK GRAY,TRIM1#

 1
79013-28F50B0

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79013-28F80B2

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28G21B2

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28F90E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79013-28F91E2

ZRR70..G

GREGE,TRIM4#

 1
79013-28G11B2

ZRR70..V

DARK GRAY,TRIM1#

 1
79013-28G01B2

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79013-28G90E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79105G - LEG SUB-ASSY, NO.1 SEAT, RH
79105-28350

ZRR70..G,V

 1
79105-28330

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79105-28350

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79135C - PAD, NO.1 SEAT CUSHION, RH
79135-28430

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79135-28450

ZRR70..G,V

 1
79135-28450

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79160C - SPRING ASSY, NO.1 SEAT CUSHION
79160-28360

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79160-28340

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79160-28360

ZRR70..G,V

 1
79175F - PAD, NO.1 SEAT BACK, RH
79175-28420

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79175-28400

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79175-28420

ZRR70..G,V

 1
79180B - SPRING ASSY, NO.1 SEAT BACK, RH
79180-28650

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79180-28650

ZRR70..G,V

 1
79180-28630

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79910A - CABLE ASSY, REAR SEAT TURN, NO.1
79910-28010

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79910-28010

ZRR70..G,V

 1
79956V - COVER, REAR SEAT LEG SIDE, RH
79956-28180B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79956-28180B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79956-28180E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79956-28180E1

ZRR70..G

GREGE,TRIM4#

 1
79959E - COVER, NO.1 SEAT LEG, RH
79959-28180B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79959-28180E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79959-28180E0

ZRR70..G

GREGE,TRIM4#

 1
79959-28180B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79959-28210E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79959-28210B0

ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79965H - COVER, NO.1 SEAT LEG SIDE, NO.2(FOR RH SEAT)
79965-28180E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79965-28180B0

ZRR70..(S,SI,X,Z,ZS)..CBU;ZRR75..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79965-28200E0

ZRR70..G

GREGE,TRIM4#

 1
79965-28200B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79965-28200B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79965-28200E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79966F - COVER, NO.1 SEAT LEG SIDE, NO.3(FOR RH SEAT)
79966-28140B0

ZRR7#..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79966-28140E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79967U - COVER, REAR NO.1 SEAT LEG SIDE, NO.2
79965-28160B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79965-28160E1

ZRR70..G

GREGE,TRIM4#

 1
79965-28160B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79965-28170B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79965-28160E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79965-28170E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
Common parts
72189-26030
72702-28090
72702-28130
72702-52090
78899-28020
78899-28040
78899-28050
78899-28060
90084-16010
90105-11036
90159-40082
90167-40044
90176-08044
90179-10041
90386-12029
90386-12038
90386-12136
90463-13003
91511-80816
91511-B0816
93249-55006
93560-54010
94150-10801
Linked diagrams
5854
7152
7158

(0706-1004)08S..CBU

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(LH),ｶｲﾃﾝ & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

diagram 71499M 7152 7152 7152 7152 71833V 71834X 71875Y 71930Q 71930Q 71940M 71T76B 72057K 7218926030 72210X 72380D 72507H 72620S 72660P 7270228090 7270252090 72970A 72A37 79012A 79014B 79106B 79136C 79170B 79185A 79190 79920B 79959F 79965J 9010511036 9010511036 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017608044 9017910041 9017910041 9046313003 9046313003 9151180816 9324955006
Part # Description Qty Price
71499M - DAMPER, NO.1 SEAT BACK SPRING, LH
71499-46020

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
71499-46020

ZRR70..G,V

 1
71833V - COVER, NO.1 SEAT RECLINING, NO.2 RH
71833-28160E0

ZRR70..G

GREGE,TRIM4#

 1
71833-28180E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71833-28180B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71833-28160B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71833-28160B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71833-28160E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71834X - COVER, REAR SEAT RECLINING, NO.2 LH
71802-28020B0

ZRR70..V

DK.GRAY,TRIM1#

 1
71802-28020E0

ZRR70..G

GREGE,TRIM4#

 1
71802-28020B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
71834-28210B0

ZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71834-28210E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71802-28020E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
71875Y - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT B
71875-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 1
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71930Q - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71940M - HEADREST ASSY, REAR SEAT
71940-28C11E1

ZRR7#..G

GREGE,TRIM4#

 2
71940-28C00C0

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28C10E0

ZRR7#..G

GREGE,TRIM4#

 2
71940-28C20B0

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28C10E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
71940-28C21B1

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28C01C2

ZRR7#..08S..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28B10B1

ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU

DARK GRAY,TRIM1#

 2
71T76B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-28070B1

ZRR70..V

DK.GRAY,TRIM1#

 2
71876-28330B0

ZRR70..V

DK.GRAY,TRIM1#

 2
71876-28070B1

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71876-28070E0

ZRR70..G

GREGE,TRIM4#

 2
71876-28070E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
71876-28330B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
71876-28060

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
71876-28330E0

ZRR70..G

GREGE,TRIM4#

 2
72057K - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL(FOR LH SEAT)
72057-28040E0

ZRR70..G

GREGE,TRIM4#

 1
72057-28040B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
72057-28040B0

ZRR70..V

DK.GRAY,TRIM1#

 1
72210X - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH
72210-28270

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 2
72210-28270

ZRR70..G,V

 2
72380D - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72380-28030

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 2
72380-28030

ZRR70..G,V

 2
72507H - HANDLE SUB-ASSY, RECLINING RELEASE, RH
72507-28120C0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM1#

 2
72507-28130E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 2
72507-28130B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 2
72507-28130E0

ZRR70..G

GREGE,TRIM4#

 2
72507-28120E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
72507-28130B0

ZRR70..V

DK.GRAY,TRIM1#

 2
72620S - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR LH SEAT)
72620-28090

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72620-28090

ZRR70..G,V

 1
72660P - LOCK ASSY, REAR SEAT, LH
72660-28100

ZRR70..G,V

 1
72660-28100

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72970A - TABLE ASSY, NO.1 SEAT TURN, LH
72970-28260

ZRR70..G,V

 1
72970-28260

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
72A37 - CLIP (FOR SEAT TRACK COVER)
90467-10161

ZRR70..G,V

 4
90467-10161

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 4
79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79012-28670B3

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79012-28710B3

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79012-28720E1

ZRR70..G

GREGE,TRIM4#

 1
79012-28690B2

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79012-28680B2

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79012-28730B2

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79012-28671B3

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79012-28720E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79012-28691B2

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79012-28790E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79012-28681B2

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79012-28750B2

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79012-28740B2

ZRR70..V

DARK GRAY,TRIM1#

 1
79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79014-28B70B0

ZRR7#..08S..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79014-28C40B1

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79014-28C30B1

ZRR70..V

DARK GRAY,TRIM1#

 1
79014-28C00B1

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79014-28B80B0

ZRR7#..08S..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79014-28B60B1

ZRR7#..08S..X..CBU

DARK GRAY,TRIM1#

 1
79014-28C41B2

ZRR7#..08S..(Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79014-28C10E1

ZRR70..G

GREGE,TRIM4#

 1
79014-28C20B1

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79014-28C10E1

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79014-28C21B2

ZRR7#..08S..(S,SI)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79014-28C80E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79014-28C11E2

ZRR70..G

GREGE,TRIM4#

 1
79014-28C31B2

ZRR70..V

DARK GRAY,TRIM1#

 1
79014-28C00B2

ZRR70..08S..X..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DARK GRAY,TRIM1#

 1
79106B - LEG SUB-ASSY, NO.1 SEAT, LH
79106-28220

ZRR70..G,V

 1
79106-28220

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79106-28200

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79136C - PAD, NO.1 SEAT CUSHION, LH
79136-28170

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79136-28190

ZRR70..G,V

 1
79136-28190

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79170B - SPRING ASSY, NO.1 SEAT CUSUION, LH
79170-28120

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79170-28140

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79170-28140

ZRR70..G,V

 1
79185A - PAD, NO.1 SEAT BACK, LH
79185-28130

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79185-28150

ZRR70..G,V

 1
79185-28150

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79190 - SPRING ASSY, NO.1 SEAT BACK, LH
79190-28440

ZRR75..08S..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

 1
79190-28460

ZRR70..G,V

 1
79190-28460

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79920B - CABLE ASSY, REAR SEAT TURN, NO.2
79910-28020

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ

 1
79910-28020

ZRR70..G,V

 1
79959F - COVER, NO.1 SEAT LEG, LH
79959-28190B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79959-28190E0

ZRR70..G

GREGE,TRIM4#

 1
79959-28190B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79959-28220B0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79959-28190E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79959-28220E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79965J - COVER, NO.1 SEAT LEG SIDE, NO.2(FOR LH SEAT)
79965-28210B0

ZRR70..V

DK.GRAY,TRIM1#

 1
79965-28210E0

ZRR70..G

GREGE,TRIM4#

 1
79965-28210B0

ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU

ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,DK.GRAY,TRIM1#

 1
79965-28210E0

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
79965-28220E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79965-28220B0

ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
Common parts
72189-26030
72702-28090
72702-52090
90105-11036
90167-40044
90176-08044
90179-10041
90463-13003
91511-80816
93249-55006
Linked diagrams
7152

(0706- )07S,08S

Click highlighted areas on diagram

ﾘﾔNO.2ｼｰﾄ(RH)

diagram 71208B 71330D 71393C 71398L 71398L 71485E 7152 7152 7152 7152 71693M 71694F 71696F 71843K 71844K 71848U 71931G 71931G 71940N 71H75G 71H76H 72063B 72065D 72525P 72613H 72613L 72650H 72779B 72781H 72927F 7455 79021D 79023D 79235F 79236G 79260C 79273D 79275F 79378E 79937G 79956Y 79956Y 9010906247 9010906247 9011910409 9011910409 9011910409 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9046313003 9155180816 9155180816 9155180820 9155380612 9155480818 9356054012 9356054012 9356054012
Part # Description Qty Price
71208B - WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1
71208-28050

ZRR7#..(07S,08S)..CBU

 1
71208-28051

ZRR7#..(07S,08S)..CBU

 1
71330D - HINGE ASSY, REAR NO.2 SEAT, RH
71330-28030

ZRR7#..(07S,08S)..CBU

 1
71393C - BAND, NO.2 SEAT CUSHION, RH NO.1
71393-28060

ZRR7#..(07S,08S)..CBU

 1
71398L - GUIDE, NO.2 SEAT CUSHION SUPPORT, RH
71398-28010

ZRR7#..(07S,08S)..CBU

 2
71398L - GUIDE, NO.2 SEAT CUSHION SUPPORT, RH
71398-28010

ZRR7#..(07S,08S)..CBU

 2
71485E - COVER, REAR SEAT HINGE
71485-28030B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

MD.GRAY,TRIM1#

 1
71485-28030E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71693M - COVER, REAR SEAT CUSHION HINGE, OUTER RH
71693-28090E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71693-28090B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71694F - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.4
71694-28090B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71694-28090E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71696F - PROTECTOR, NO.2 SEAT BACK, RH
71696-28030

ZRR7#..(07S,08S)..CBU

 1
71843K - COVER, REAR NO.2 SEAT RECLINING, NO.2 RH
71843-28090E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71843-28080B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71844K - COVER, REAR NO.2 SEAT RECLINING, NO.2 LH
71844-28100B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71844-28100E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71848U - CAP, NO.2 SEAT ADJUSTER COVER, RH
71848-28030B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

MD.GRAY,TRIM1#

 1
71848-28030E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71931-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71931-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71940N - HEADREST ASSY, REAR SEAT, NO.2
71940-28B80B0

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28B40E0

ZRR7#..G

GREGE,TRIM4#

 2
71940-28B60C0

ZRR7#..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28B81B1

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28B41E1

ZRR7#..G

GREGE,TRIM4#

 2
71940-28B61C2

ZRR7#..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28B40E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
71940-28B20B1

ZRR7#..X..CBU

DK.GRAY,TRIM1#

 2
71H75G - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 RH S
71875-28060

ZRR7#..(07S,08S)..CBU

 2
71H76H - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH S
71876-28060

ZRR7#..(07S,08S)..CBU

 2
72063B - HOOK SUB-ASSY, REAR SEAT, RH
72063-28010B0

ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5)

LT.GRAY,TRIM1#

 1
72063-28010E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72065D - HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH
72065-28161C0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

BLACK,TRIM1#

 1
72065-28160C0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

BLACK,TRIM1#

 1
72065-28160E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72525P - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH
72525-26090E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72525-26090B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72613H - STRIKER, REAR SEAT LOCK
72613-28130

ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU

 2
72613L - STRIKER, REAR SEAT LOCK, REAR OUTER
72613-28180

ZRR7#..(07S,08S)..CBU

 2
72650H - CABLE ASSY, REAR NO.2 SEAT LOCK, RH
72695-28110

ZRR7#..(07S,08S)..CBU

 1
72779B - GUIDE, REAR SEAT HINGE PAWL
72779-28020

ZRR7#..(07S,08S)..CBU

 2
72781H - SPRING, REAR NO.2 SEAT PLATE, RH
72781-28010

ZRR7#..(07S,08S)..CBU

 1
72927F - COVER, REAR SEAT CUSHION UNDER, RH
72927-28080E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72927-28080B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79021D - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79021-28D40B2

ZRR7#..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79021-28D30B2

ZRR7#..V

DARK GRAY,TRIM1#

 1
79021-28D00B3

ZRR7#..X..CBU

DARK GRAY,TRIM1#

 1
79021-28D21B3

ZRR7#..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79021-28D10E1

ZRR7#..G

GREGE,TRIM4#

 1
79021-28D31B3

ZRR7#..V

DARK GRAY,TRIM1#

 1
79021-28D20B2

ZRR7#..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79021-28D41B3

ZRR7#..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79021-28D10E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79021-28D00B4

ZRR7#..X..CBU

DARK GRAY,TRIM1#

 1
79021-28D11E2

ZRR7#..G

GREGE,TRIM4#

 1
79023D - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79023-28C10B3

ZRR7#..X..CBU

DARK GRAY,TRIM1#

 1
79023-28C20E1

ZRR7#..G

GREGE,TRIM4#

 1
79023-28C30B2

ZRR7#..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79023-28C20E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79023-28C11B3

ZRR7#..X..CBU

DARK GRAY,TRIM1#

 1
79023-28C11B4

ZRR7#..X..CBU

DARK GRAY,TRIM1#

 1
79023-28C22E2

ZRR7#..G

GREGE,TRIM4#

 1
79023-28C51B2

ZRR7#..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79023-28C41B2

ZRR7#..V

DARK GRAY,TRIM1#

 1
79023-28C21E1

ZRR7#..G

GREGE,TRIM4#

 1
79023-28C50B2

ZRR7#..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79023-28C31B2

ZRR7#..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79023-28C52B3

ZRR7#..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79023-28C40B2

ZRR7#..V

DARK GRAY,TRIM1#

 1
79023-28C42B3

ZRR7#..V

DARK GRAY,TRIM1#

 1
79023-28C32B3

ZRR7#..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79023-28C22E2

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79235F - PAD, NO.2 SEAT CUSHION, RH
79235-28100

ZRR7#..(07S,08S)..CBU

 1
79236G - COVER, NO.2 SEAT LEG, RH
79236-28130B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79077-28010B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79236-28130E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79260C - SPRING ASSY, NO.2 SEAT CUSHION, RH
79260-28120

ZRR7#..(07S,08S)..CBU

 1
79273D - COVER, NO.2 SEAT HINGE, REAR RH
79273-28070B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

MD.GRAY,TRIM1#

 1
79273-28070E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79275F - PAD, NO.2 SEAT BACK, RH
79275-28111

ZRR7#..(07S,08S)..CBU

 1
79275-28112

ZRR7#..(07S,08S)..CBU

 1
79275-28110

ZRR7#..(07S,08S)..CBU

 1
79378E - COVER, NO.3 SEAT CUSHION HINGE, RH
79378-28010E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79378-28010B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

MD.GRAY,TRIM1#

 1
79937G - COVER, REAR SEAT LEG, NO.2
79937-28140E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79937-28140B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

MD.GRAY,TRIM1#

 1
79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER)
90467-05162B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 4
90467-05162E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 4
79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER)
90467-05162B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 4
90467-05162E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 4
Common parts
90109-06247
90119-10409
90167-40044
90463-13003
91551-80816
91551-80820
91553-80612
91554-80818
93560-54012
Linked diagrams
7152
7455

(0706- )07S,08S

Click highlighted areas on diagram

ﾘﾔNO.2ｼｰﾄ(LH)

diagram 71208D 71340C 71393E 71398L 71398M 71486F 7152 7152 7152 71693F 71694G 71696N 71843M 71844H 71849M 71931G 71931G 71931G 71931G 71940N 71964A 71970C 71H75G 71H76H 72064B 72066C 72526K 72613L 72613L 72660N 72779B 72781G 72928F 7455 79022B 79024D 79245A 79246H 79270B 79273F 79285C 79378F 79937H 79956Y 79956Y 9010906247 9010906247 9011910409 9011910409 9011910409 9011910409 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9046313003 9155180816 9155180816 9155180820 9155380612 9155480818 9356054012 9356054012 9356054012
Part # Description Qty Price
71208D - WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1
71208-28050

ZRR7#..(07S,08S)..CBU

 1
71208-28051

ZRR7#..(07S,08S)..CBU

 1
71340C - HINGE ASSY, REAR NO.2 SEAT, LH
71340-28040

ZRR7#..(07S,08S)..CBU

 1
71393E - BAND, NO.2 SEAT CUSHION, LH NO.1
71393-28060

ZRR7#..(07S,08S)..CBU

 1
71398L - GUIDE, NO.2 SEAT CUSHION SUPPORT, RH
71398-28010

ZRR7#..(07S,08S)..CBU

 2
71398M - GUIDE, NO.2 SEAT CUSHION SUPPORT, LH
71398-28010

ZRR7#..(07S,08S)..CBU

 2
71486F - COVER, REAR SEAT HINGE, LH
71486-28020B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

MD.GRAY,TRIM1#

 1
71486-28020E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71693F - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1
71693-28100E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71693-28100B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71694G - COVER, REAR SEAT CUSHION HINGE, INNER LH
71694-28100B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71694-28100E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71696N - PROTECTOR, REAR SEAT, NO.2
71696-28030

ZRR7#..(07S,08S)..CBU

 1
71843M - COVER, REAR SEAT RECLINING, NO.2 RH
71843-28090E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71843-28090B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71844H - COVER, REAR SEAT RECLINING, NO.2 LH
71844-28110E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
71844-28110B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
71849M - CAP, NO.2 SEAT ADJUSTER COVER, LH
71848-28030E0

ZRR70..G

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,GREGE,TRIM4#

 1
71848-28030B1

ZRR70..V

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,MD.GRAY,TRIM1#

 1
71848-28030B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

MD.GRAY,TRIM1#

 1
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71931-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71931-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71931-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931G - SUPPORT ASSY, REAR SEAT HEADREST
71931-47010E4

ZRR7#..S

ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49

 2
71931-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-47010E3

ZRR7#..S

ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49

 2
71930-47010B2

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71940N - HEADREST ASSY, REAR SEAT, NO.2
71940-28B80B0

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28B40E0

ZRR7#..G

GREGE,TRIM4#

 2
71940-28B60C0

ZRR7#..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28B81B1

ZRR7#..V

DARK GRAY,TRIM1#

 2
71940-28B41E1

ZRR7#..G

GREGE,TRIM4#

 2
71940-28B61C2

ZRR7#..(S,SI,Z,ZS)..CBU

BLACK,TRIM1#

 2
71940-28B40E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
71940-28B20B1

ZRR7#..X..CBU

DK.GRAY,TRIM1#

 2
71H75G - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 RH S
71875-28060

ZRR7#..(07S,08S)..CBU

 2
71H76H - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH S
71876-28060

ZRR7#..(07S,08S)..CBU

 2
72064B - HOOK SUB-ASSY, REAR SEAT, LH
72064-28010B0

ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5)

LT.GRAY,TRIM1#

 1
72064-28010E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72064-28020E0

ZRR70..G

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,GREGE,TRIM4#

 1
72064-28020B0

ZRR70..V

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,LT.GRAY,TRIM1#

 1
72066C - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH
72065-28210C0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

BLACK,TRIM1#

 1
72065-28211C0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

BLACK,TRIM1#

 1
72065-28210E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72526K - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH
72526-26040B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
72526-26040E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72613L - STRIKER, REAR SEAT LOCK, REAR OUTER
72613-28180

ZRR7#..(07S,08S)..CBU

 2
72613L - STRIKER, REAR SEAT LOCK, REAR OUTER
72613-28180

ZRR7#..(07S,08S)..CBU

 2
72660N - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH
72695-28110

ZRR7#..(07S,08S)..CBU

 1
72779B - GUIDE, REAR SEAT HINGE PAWL
72779-28020

ZRR7#..(07S,08S)..CBU

 2
72781G - SPRING, REAR NO.2 SEAT PLATE, LH
72781-28010

ZRR7#..(07S,08S)..CBU

 1
72928F - COVER, REAR NO.2 SEAT CUSHION UNDER, LH
72928-28070E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
72928-28070B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79022B - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79022-28750B2

ZRR7#..(S,SI)..CBU

DK.GRAY,TRIM1#

 1
79022-28740E1

ZRR7#..G

GREGE,TRIM4#

 1
79022-28771B3

ZRR7#..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79022-28730B3

ZRR7#..X..CBU

DK.GRAY,TRIM1#

 1
79022-28741E2

ZRR7#..G

GREGE,TRIM4#

 1
79022-28760B2

ZRR7#..V

DK.GRAY,TRIM1#

 1
79022-28751B3

ZRR7#..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79022-28770B2

ZRR7#..(Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79022-28761B3

ZRR7#..V

DARK GRAY,TRIM1#

 1
79022-28730B4

ZRR7#..X..CBU

DARK GRAY,TRIM1#

 1
79022-28740E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79024-28740B2

ZRR7#..(S,SI)..CBU

DK.GRAY,TRIM1#

 1
79024-28730E1

ZRR7#..G

GREGE,TRIM4#

 1
79024-28730E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79024-28721B3

ZRR7#..X..CBU

DARK GRAY,TRIM1#

 1
79024-28732E2

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79024-28750B2

ZRR7#..V

DK.GEAY,TRIM1#

 1
79024-28760B2

ZRR7#..(Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79024-28742B3

ZRR7#..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79024-28761B2

ZRR7#..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79024-28731E1

ZRR7#..G

GREGE,TRIM4#

 1
79024-28751B2

ZRR7#..V

DARK GRAY,TRIM1#

 1
79024-28720B3

ZRR7#..X..CBU

DK.GRAY,TRIM1#

 1
79024-28721B4

ZRR7#..X..CBU

DARK GRAY,TRIM1#

 1
79024-28732E2

ZRR7#..G

GREGE,TRIM4#

 1
79024-28752B3

ZRR7#..V

DARK GRAY,TRIM1#

 1
79024-28762B3

ZRR7#..(Z,ZS)..CBU

DARK GRAY,TRIM1#

 1
79024-28741B2

ZRR7#..(S,SI)..CBU

DARK GRAY,TRIM1#

 1
79245A - PAD, NO.2 SEAT CUSHION, LH
79245-28050

ZRR7#..(07S,08S)..CBU

 1
79246H - COVER, NO.2 SEAT LEG, LH
79077-28030B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79246-28080E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79246-28080B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 1
79270B - SPRING ASSY, NO.2 SEAT CUSHION, LH
79270-28080

ZRR7#..(07S,08S)..CBU

 1
79273F - COVER, NO.2 SEAT HINGE, NO.2
79273-28080B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

MD.GRAY,TRIM1#

 1
79273-28080E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79285C - PAD, NO.2 SEAT BACK, LH
79285-28081

ZRR7#..(07S,08S)..CBU

 1
79285-28080

ZRR7#..(07S,08S)..CBU

 1
79285-28082

ZRR7#..(07S,08S)..CBU

 1
79378F - COVER, NO.2 SEAT CUSHION HINGE, LH
79378-28020B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

MD.GRAY,TRIM1#

 1
79378-28020E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79937H - COVER, REAR SEAT LEG, NO.2
79937-28150B1

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

MD.GRAY,TRIM1#

 1
79937-28150E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER)
90467-05162B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 4
90467-05162E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 4
79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER)
90467-05162B0

ZRR7#..(S,SI,V,X,Z,ZS)..CBU

DK.GRAY,TRIM1#

 4
90467-05162E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 4
Common parts
90109-06247
90119-10409
90167-40044
90463-13003
91551-80816
91551-80820
91553-80612
91554-80818
93560-54012
Linked diagrams
7152
7455

(0706- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram
Part # Description Qty Price
