ZRR70G-BPXEK (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706-1004)3ZRFE

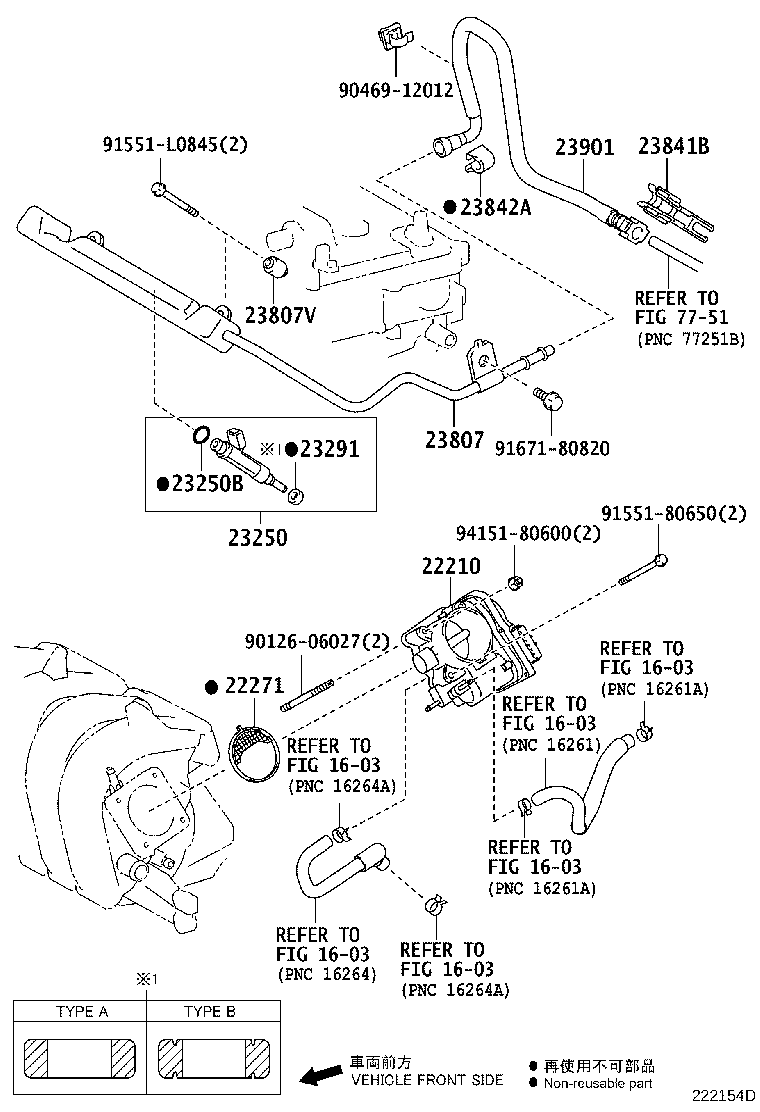

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 22210 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7751 9012606027 9046912012 9155180650 91551L0845 9167180820 9415180600
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-37010

3ZRFE..ZRR7#..CBU,IV5

 1
22271 - GASKET, THROTTLE BODY
22271-75031

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 1
23250 - INJECTOR ASSY, FUEL
23209-39145

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 4
23209-39146

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-28020

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

TYPE B:ｲﾗｽﾄ参照

 4
23291-23010

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 4
23291-41010

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 4
23291-23010

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-37050

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-28010

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 1
23901 - TUBE SUB-ASSY, FUEL
23901-37030

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 1
Common parts
90126-06027
90469-12012
91551-80650
91551-L0845
91671-80820
94151-80600
Linked diagrams
1603
7751
