AZR65G-BRSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

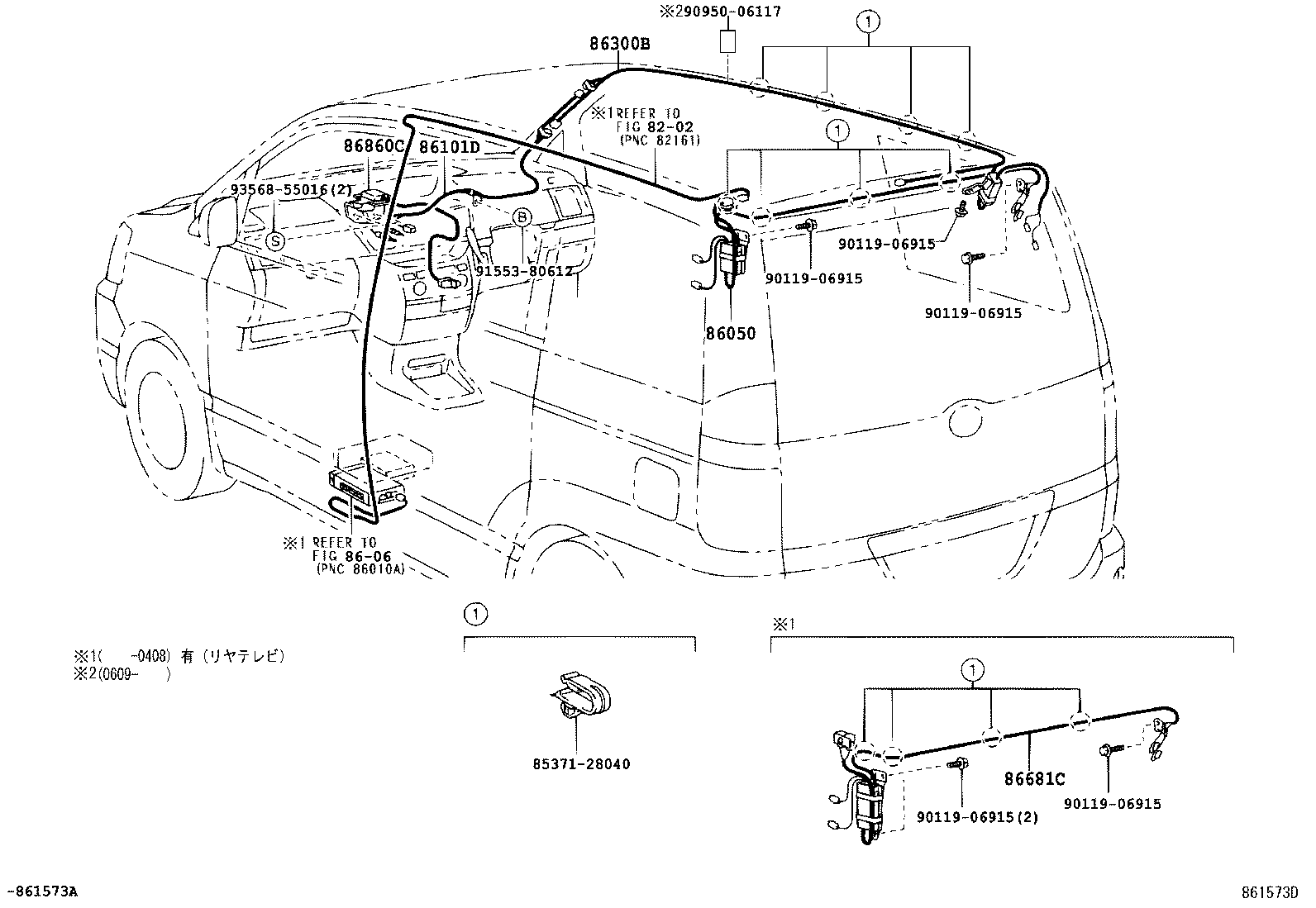

Click highlighted areas on diagram

diagram 8202 8537128040 86050 8606 86101D 86300B 86681C 86860C 9011906915 9011906915 9011906915 9011906915 9011906915 9095006117 9155380612 9356855016
Part # Description Qty Price
86050 - ANTENNA ASSY, TELEVISION
86050-28080

AZR6#

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-28560

AZR6#

ｱﾘ(ﾃﾚﾋﾞ)

 1
86101-28550

AZR6#

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-28400

AZR6#

ｱﾘ(ﾃﾚﾋﾞ)

 1
86300-28390

AZR6#

 1
86681C - DIVIDER, ANTENNA
86681-28030

AZR6#

 1
86860C - ANTENNA ASSY, NAVIGATION
86860-28140

AZR6#

 1
86860-28090

AZR6#

 1
Common parts
85371-28040
90119-06915
90950-06117
91553-80612
93568-55016
Linked diagrams
8202
8606
