AZR65G-BRSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111-0408)VOXY..V,X

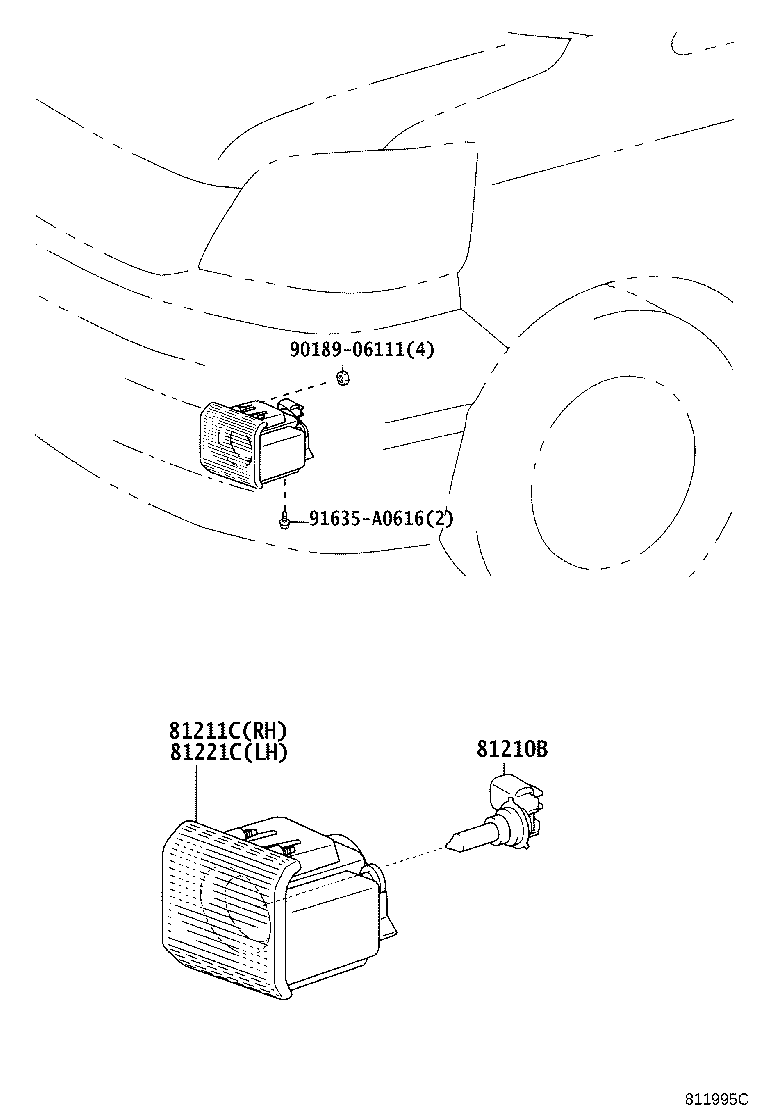

Click highlighted areas on diagram

diagram 81210B 81211C 81221C 9018906111 91635A0616
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13057

AZR6#..S,Z

12V 35W

 2
90981-13047

AZR6#..L,V,X

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-13040

AZR6#..S,Z

 1
81211-28160

AZR6#..VOXY..(V,X)

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-13040

AZR6#..S,Z

 1
81221-28160

AZR6#..VOXY..(V,X)

 1
Common parts
90189-06111
91635-A0616

(0111-0408)S,Z

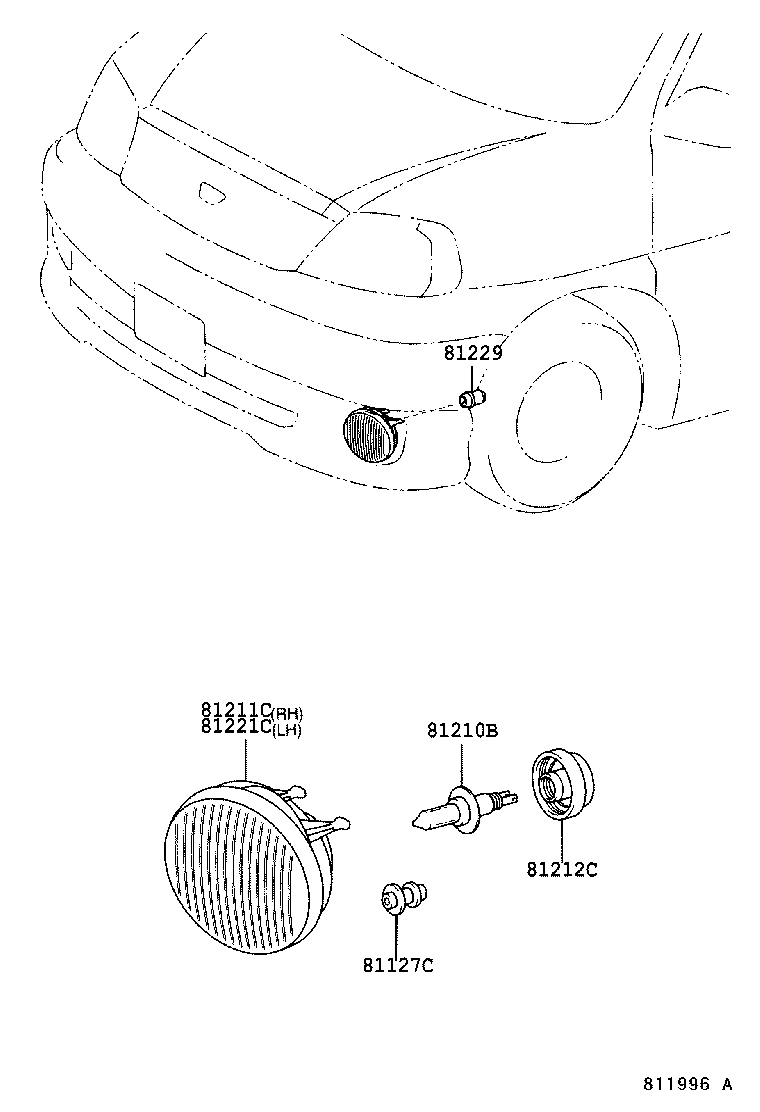

Click highlighted areas on diagram

ｴｱﾛｼﾖｳ

diagram 81127C 81210B 81211C 81212C 81221C 81229
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

AZR6#..S,Z

 2
81210B - BULB, FOG LAMP
90981-13057

AZR6#..S,Z

12V 35W

 2
90981-13047

AZR6#..L,V,X

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-13040

AZR6#..S,Z

 1
81211-28160

AZR6#..VOXY..(V,X)

 1
81212C - COVER, FOG LAMP
90075-65003

AZR6#..S,Z

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-13040

AZR6#..S,Z

 1
81221-28160

AZR6#..VOXY..(V,X)

 1
81229 - BRACKET, FOG LAMP
81481-10030

AZR6#..S,Z

 4
