AZR65G-BRSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

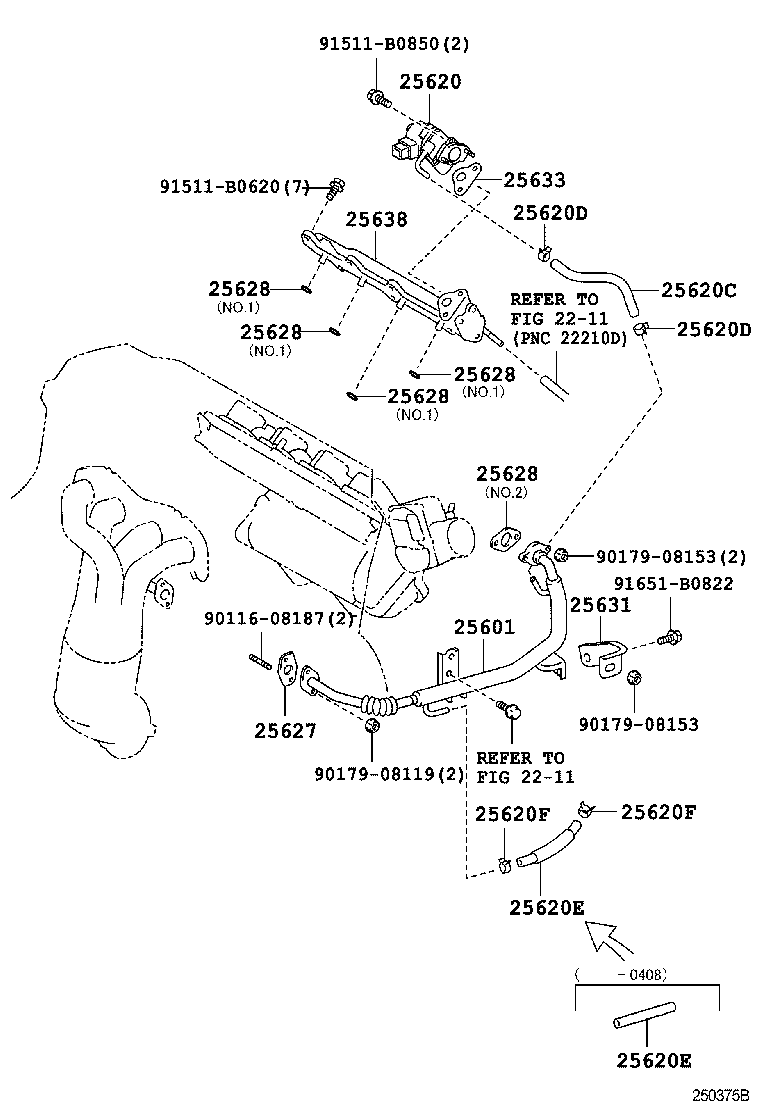

Click highlighted areas on diagram

diagram 2211 2211 25601 25620 25620C 25620D 25620D 25620E 25620E 25620F 25620F 25627 25628 25628 25628 25628 25628 25631 25633 25638 9011608187 9017908119 9017908153 9017908153 91511B0620 91511B0850 91651B0822
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-28010

1AZFSE..AZR6#

 1
25620 - VALVE ASSY, EGR
25620-28090

1AZFSE..AZR6#

 1
25620C - HOSE, WATER BY-PASS, NO.1
99555-10100

1AZFSE..AZR6#

 1
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
96135-51300

1AZFSE..AZR6#

 2
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
96135-51300

1AZFSE..AZR6#

 2
25620E - HOSE, WATER BY-PASS NO.2
99555-10200

1AZFSE..AZR6#

 1
25620E - HOSE, WATER BY-PASS NO.2
99555-10200

1AZFSE..AZR6#

 1
25620F - CLIP(FOR WATER BY-PASS HOSE, NO.2)
96135-51300

1AZFSE..AZR6#

 2
25620F - CLIP(FOR WATER BY-PASS HOSE, NO.2)
96135-51300

1AZFSE..AZR6#

 2
25627 - GASKET, EGR VALVE
25627-74080

1AZFSE..AZR6#

 1
25628 - GASKET, EGR INLET
25628-28030

1AZFSE..AZR6#

NO.2

 1
25628-28010

1AZFSE..AZR6#

NO.1

 4
25628 - GASKET, EGR INLET
25628-28030

1AZFSE..AZR6#

NO.2

 1
25628-28010

1AZFSE..AZR6#

NO.1

 4
25628 - GASKET, EGR INLET
25628-28030

1AZFSE..AZR6#

NO.2

 1
25628-28010

1AZFSE..AZR6#

NO.1

 4
25628 - GASKET, EGR INLET
25628-28030

1AZFSE..AZR6#

NO.2

 1
25628-28010

1AZFSE..AZR6#

NO.1

 4
25628 - GASKET, EGR INLET
25628-28030

1AZFSE..AZR6#

NO.2

 1
25628-28010

1AZFSE..AZR6#

NO.1

 4
25631 - STAY, EGR PIPE, NO.1
25631-28010

1AZFSE..AZR6#

 1
25633 - GASKET, EGR VALVE
25633-28010

1AZFSE..AZR6#

 1
25638 - CHAMBER, EGR DELIVERY
25638-28010

1AZFSE..AZR6#

 1
Common parts
90116-08187
90179-08119
90179-08153
91511-B0620
91511-B0850
91651-B0822
Linked diagrams
2211
