AZR65G-BRSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

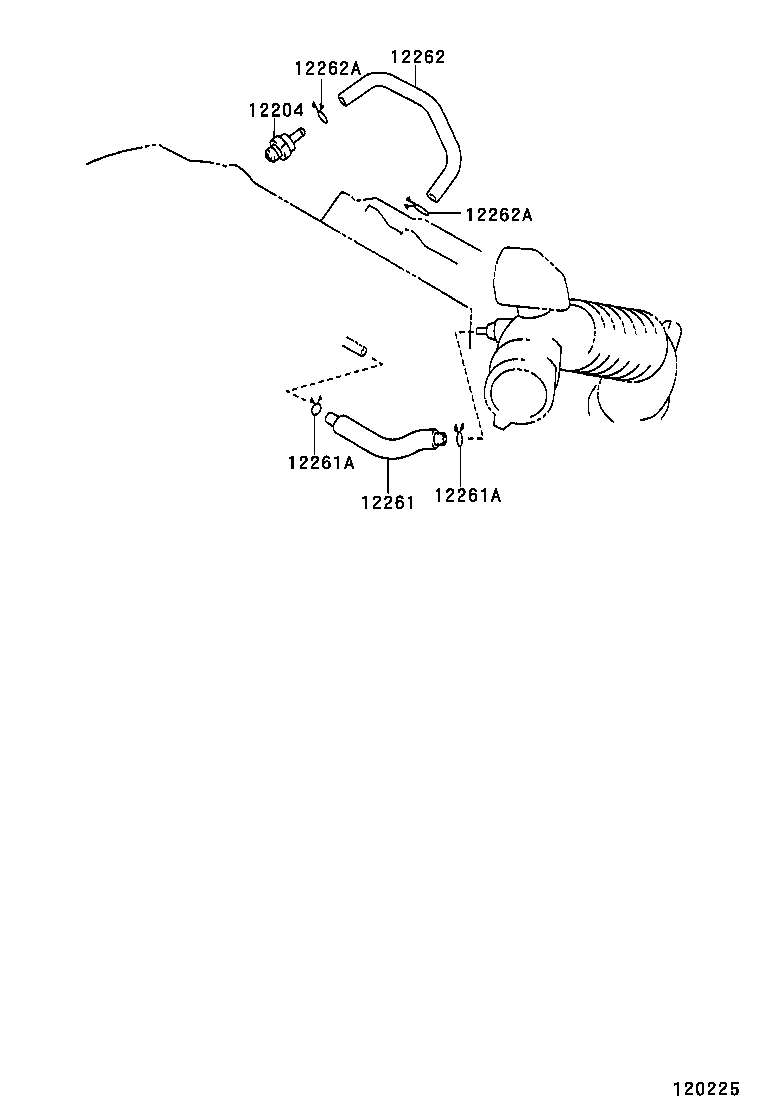

Click highlighted areas on diagram

diagram 12204 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-28020

1AZFSE..AZR6#

 1
12261 - HOSE, VENTILATION
12261-28060

1AZFSE..AZR6#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003

1AZFSE..AZR6#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003

1AZFSE..AZR6#

 2
12262 - HOSE, VENTILATION, NO.2
12262-28030

1AZFSE..AZR6#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

1AZFSE..AZR6#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

1AZFSE..AZR6#

 2
