AZR65G-BRSQH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111-0408)VOXY

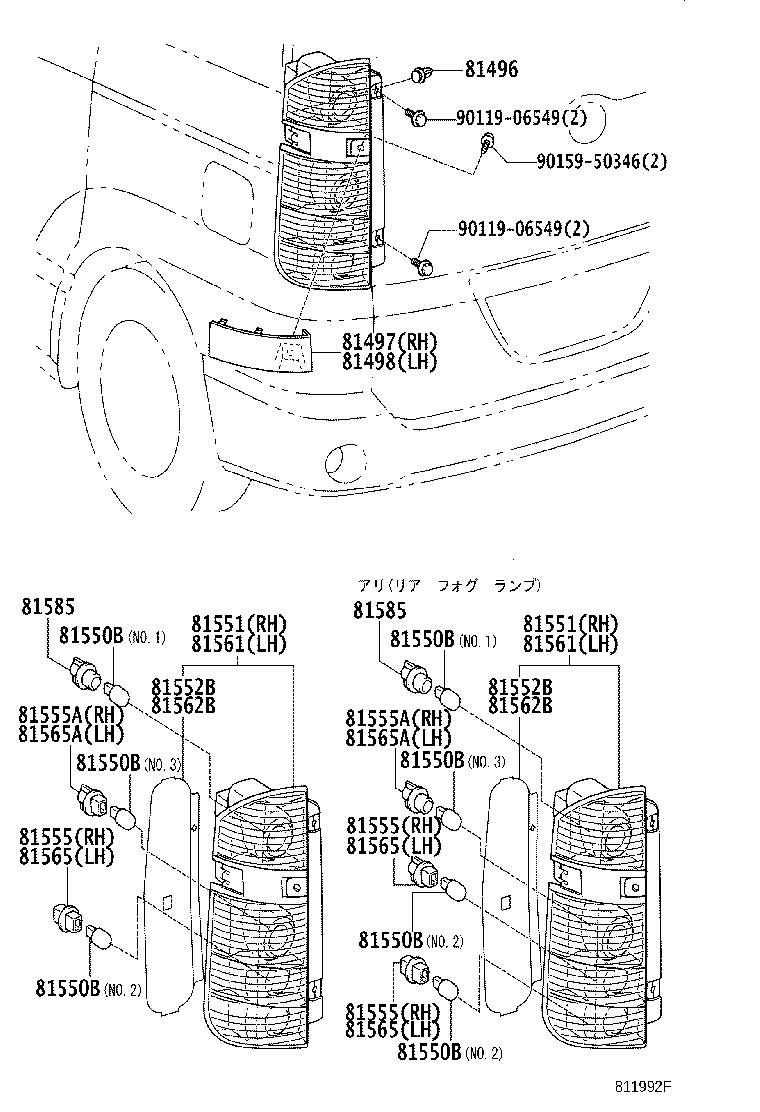

Click highlighted areas on diagram

diagram 81496 81497 81498 81550B 81550B 81550B 81550B 81550B 81550B 81550B 81551 81551 81552B 81552B 81555 81555 81555 81555A 81555A 81561 81561 81562B 81562B 81565 81565 81565 81565A 81565A 81585 81585 9011906549 9011906549 9015950346
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

AZR6#

 4
81497 - COVER, REAR COMBINATION LAMP, RH
81497-28040C0

AZR6#..4HC..Z

ﾓﾃﾞﾘｽﾀ-ｸﾞﾗﾝﾄﾞ ﾋﾞﾚﾂﾄ,BLACK,202

 1
81497-28040A1

AZR6#

WHITE PM.,042

 1
81497-28040B1

AZR6#

DARK GRAY M.M.,1E2

 1
81497-28040D0

AZR6#..4HC..Z

ｷﾗﾒｷ *(A),ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B),BORDEAUX MC.,3P2

 1
81497-28040B0

AZR6#

SILVER ME.,1D4

 1
81497-28040A0

AZR6#..L,V,X

SUPER WHITE 2,040

 1
81497-28040C0

AZR6#..4HC..Z

ｷﾗﾒｷ *(A),ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B),BLACK,202

 1
81497-28040B2

AZR6#..Z

ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),GRAY.ME,1D2

 1
81497-28040D1

AZR6#..L,V,X

LT.ROSE M.M.,3Q1

 1
81497-28040D0

AZR6#..VOXY..(V,X)

BORDEAUX MC.,3P2

 1
81497-28040C0

AZR6#..Z

ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),BLACK,202

 1
81497-28040J0

AZR6#

DARK BLUE MC,8Q7

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-28040C0

AZR6#..4HC..Z

ｷﾗﾒｷ *(A),ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B),BLACK,202

 1
81498-28040D0

AZR6#..4HC..Z

ｷﾗﾒｷ *(A),ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B),BORDEAUX MC.,3P2

 1
81498-28040C0

AZR6#..4HC..Z

ﾓﾃﾞﾘｽﾀ-ｸﾞﾗﾝﾄﾞ ﾋﾞﾚﾂﾄ,BLACK,202

 1
81498-28040B0

AZR6#

SILVER ME.,1D4

 1
81498-28040A0

AZR6#..L,V,X

SUPER WHITE 2,040

 1
81498-28040C0

AZR6#..Z

ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),BLACK,202

 1
81498-28040D1

AZR6#..L,V,X

LT.ROSE M.M.,3Q1

 1
81498-28040B2

AZR6#..Z

ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),GRAY.ME,1D2

 1
81498-28040A1

AZR6#

WHITE PM.,042

 1
81498-28040B1

AZR6#

DARK GRAY M.M.,1E2

 1
81498-28040J0

AZR6#

DARK BLUE MC,8Q7

 1
81498-28040D0

AZR6#..VOXY..(V,X)

BORDEAUX MC.,3P2

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

AZR6#

12V 16W,NO.2

 2
90981-11059

AZR6#

12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2

 4
90981-11048

AZR6#

12V 21/5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.1

 2
90981-11048

AZR6#

12V 21/5W,NO.1

 2
90981-13043

AZR6#

12V 21W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

AZR6#

12V 16W,NO.2

 2
90981-11059

AZR6#

12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2

 4
90981-11048

AZR6#

12V 21/5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.1

 2
90981-11048

AZR6#

12V 21/5W,NO.1

 2
90981-13043

AZR6#

12V 21W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

AZR6#

12V 16W,NO.2

 2
90981-11059

AZR6#

12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2

 4
90981-11048

AZR6#

12V 21/5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.1

 2
90981-11048

AZR6#

12V 21/5W,NO.1

 2
90981-13043

AZR6#

12V 21W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

AZR6#

12V 16W,NO.2

 2
90981-11059

AZR6#

12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2

 4
90981-11048

AZR6#

12V 21/5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.1

 2
90981-11048

AZR6#

12V 21/5W,NO.1

 2
90981-13043

AZR6#

12V 21W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

AZR6#

12V 16W,NO.2

 2
90981-11059

AZR6#

12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2

 4
90981-11048

AZR6#

12V 21/5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.1

 2
90981-11048

AZR6#

12V 21/5W,NO.1

 2
90981-13043

AZR6#

12V 21W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

AZR6#

12V 16W,NO.2

 2
90981-11059

AZR6#

12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2

 4
90981-11048

AZR6#

12V 21/5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.1

 2
90981-11048

AZR6#

12V 21/5W,NO.1

 2
90981-13043

AZR6#

12V 21W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

AZR6#

12V 16W,NO.2

 2
90981-11059

AZR6#

12V 16W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2

 4
90981-11048

AZR6#

12V 21/5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.1

 2
90981-11048

AZR6#

12V 21/5W,NO.1

 2
90981-13043

AZR6#

12V 21W,NO.3

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-28310

AZR6#..VOXY

 1
81551-28330

AZR6#..VOXY

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81551 - LENS, REAR COMBINATION LAMP, RH
81551-28310

AZR6#..VOXY

 1
81551-28330

AZR6#..VOXY

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81552B - PACKING, REAR COMBINATION LAMP BODY, RH
81552-28240

AZR6#

 1
81552B - PACKING, REAR COMBINATION LAMP BODY, RH
81552-28240

AZR6#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28240

AZR6#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 2
81555-28240

AZR6#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28240

AZR6#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 2
81555-28240

AZR6#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28240

AZR6#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 2
81555-28240

AZR6#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-3A030

AZR6#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-3A030

AZR6#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-28330

AZR6#..VOXY

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81561-28310

AZR6#..VOXY

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-28330

AZR6#..VOXY

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81561-28310

AZR6#..VOXY

 1
81562B - PACKING, REAR COMBINATION LAMP BODY, LH
81562-28240

AZR6#

 1
81562B - PACKING, REAR COMBINATION LAMP BODY, LH
81562-28240

AZR6#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28240

AZR6#

 1
81555-28240

AZR6#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 2
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28240

AZR6#

 1
81555-28240

AZR6#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 2
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28240

AZR6#

 1
81555-28240

AZR6#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 2
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-3A030

AZR6#

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-3A030

AZR6#

 1
81585 - SOCKET & WIRE, REAR LAMP
81585-30290

AZR6#..VOXY

 2
81585 - SOCKET & WIRE, REAR LAMP
81585-30290

AZR6#..VOXY

 2
Common parts
90119-06549
90159-50346
