AZR65G-BRSQH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )07S,08S

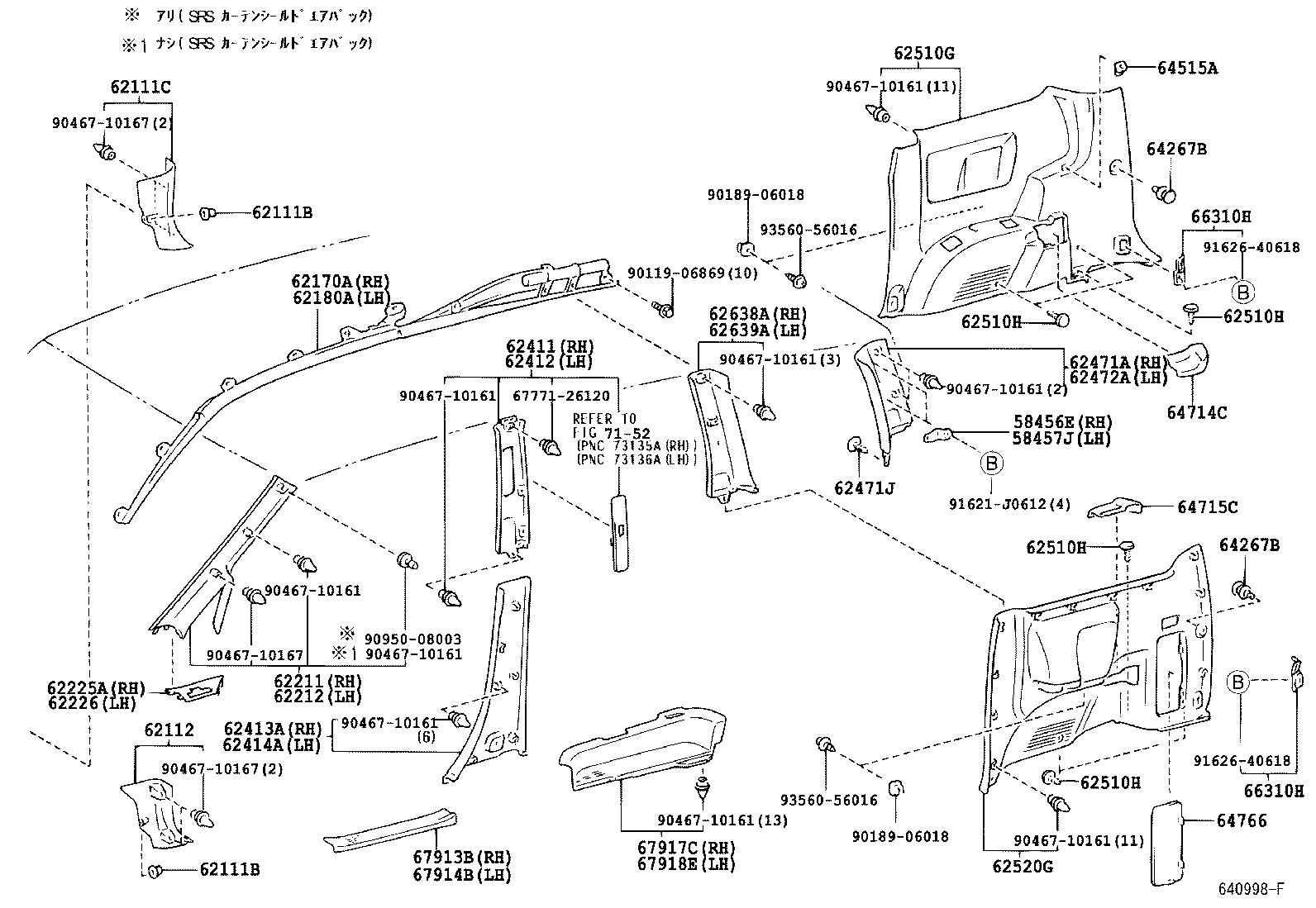

Click highlighted areas on diagram

diagram 58456E 58457J 62111B 62111B 62111C 62112 62170A 62180A 62211 62212 62225A 62226 62411 62412 62413A 62414A 62471A 62471J 62472A 62510G 62510H 62510H 62510H 62510H 62520G 62638A 62639A 64267B 64267B 64515A 64714C 64715C 64766 66310H 66310H 6777126120 67913B 67914B 67917C 67918E 7152 9011906869 9018906018 9018906018 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710167 9046710167 9046710167 9095008003 91621J0612 9162640618 9162640618 9356056016 9356056016
Part # Description Qty Price
58456E - BRACKET, REAR GARNISH, NO.1 RH
58456-28030

AZR6#

 2
58457J - BRACKET, REAR GARNISH, NO.1 LH
58456-28030

AZR6#

 2
62111B - CLIP(FOR COWL SIDE TRIM)
90467-06193B0

AZR6#..S;AZR6#..VOXY

LT.GRAY,TRIM1#

 2
62111B - CLIP(FOR COWL SIDE TRIM)
90467-06193B0

AZR6#..S;AZR6#..VOXY

LT.GRAY,TRIM1#

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-28130B0

AZR6#

STONE,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-28140B0

AZR6#

STONE,TRIM1#

 1
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-28010

AZR6#

 1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-28010

AZR6#

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-28030B0

AZR6#

LT.GRAY,TRIM1#

 1
62210-28040B0

AZR6#

ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62220-28030B0

AZR6#

LT.GRAY,TRIM1#

 1
62220-28040B0

AZR6#

ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#

 1
62225A - GARNISH, FRONT PILLAR, LOWER RH
62225-28020B0

AZR6#

LT.GRAY,TRIM1#

 1
62226 - GARNISH, FRONT PILLAR, LOWER LH
62226-28020B0

AZR6#

LT.GRAY,TRIM1#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-28050B0

AZR6#

LT.GRAY,TRIM1#

 1
62410-28060B0

AZR6#

ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-28050B0

AZR6#

LT.GRAY,TRIM1#

 1
62420-28060B0

AZR6#

ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-28070B0

AZR6#

STONE,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-28100B0

AZR6#

STONE,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-28150B0

AZR6#

LT.GRAY,TRIM1#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-0502022

AZR6#..VOXY..(V,X)

BLACK,TRIM19

 2
90467-05020P1

AZR6#..L,V,X

DK.GRAY,TRIM19

 2
90467-05161C0

AZR6#..S;AZR6#..VOXY

BLACK,TRIM1#

 2
90467-05020P1

AZR6#..S,Z

DK.GRAY,TRIM1#

 2
62472A - GARNISH, ROOF SIDE, INNER LH
62472-28170B0

AZR6#

LT.GRAY,TRIM1#

 1
62510G - TRIM ASSY, SIDE NO.1, RH
62510-28220B0

AZR6#

STONE,TRIM1#

 1
62510H - CLIP(FOR QUARTER TRIM FRONT PANEL)
90467-05027B4

AZR6#

STONE,TRIM1#

 6
62510H - CLIP(FOR QUARTER TRIM FRONT PANEL)
90467-05027B4

AZR6#

STONE,TRIM1#

 6
62510H - CLIP(FOR QUARTER TRIM FRONT PANEL)
90467-05027B4

AZR6#

STONE,TRIM1#

 6
62510H - CLIP(FOR QUARTER TRIM FRONT PANEL)
90467-05027B4

AZR6#

STONE,TRIM1#

 6
62520G - TRIM ASSY, SIDE NO.1, LH
62520-28370B0

AZR6#

STONE,TRIM1#

 1
62638A - GARNISH, QUARTER PILLAR, RH
62638-28180B0

AZR6#

LT.GRAY,TRIM1#

 1
62639A - GARNISH, QUARTER PILLAR, LH
62639-28210B0

AZR6#

LT.GRAY,TRIM1#

 1
64267B - HOOK, PACKAGE HOLDER NET
64267-28020B0

AZR6#

STONE,TRIM1#

 2
64267B - HOOK, PACKAGE HOLDER NET
64267-28020B0

AZR6#

STONE,TRIM1#

 2
64515A - HOLDER, LUGGAGE COMPARTMENT DOOR HOOK
64515-28010B0

AZR6#

STONE,TRIM1#

 1
64714C - COVER, DECK SIDE TRIM, RH
64714-28010B0

AZR6#

STONE,TRIM1#

 1
64715C - COVER, DECK SIDE TRIM, LH
64715-28010B0

AZR6#

STONE,TRIM1#

 1
64766 - COVER SUB-ASSY, QUARTER TRIM JACK
64766-28020B0

AZR6#

STONE,TRIM1#

 1
66310H - HOOK ASSY, ROPE
66310-28070B0

AZR6#

STONE,TRIM1#

 2
66310H - HOOK ASSY, ROPE
66310-28070B0

AZR6#

STONE,TRIM1#

 2
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-28040B0

AZR6#

STONE,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-28040B0

AZR6#

STONE,TRIM1#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67917-28090B0

AZR6#

ｱﾘ(ｶｲﾃﾝ ｼｷ ﾘﾔｼ-ﾄ OR ﾘﾔ ｽﾛ-ﾌﾟ),STONE,TRIM1#

 1
67917-28080B0

AZR6#

STONE,TRIM1#

 1
67918E - PLATE, REAR DOOR SCUFF, LH
67918-28090B0

AZR6#

ｱﾘ(ｶｲﾃﾝ ｼｷ ﾘﾔｼ-ﾄ OR ﾘﾔ ｽﾛ-ﾌﾟ),STONE,TRIM1#

 1
67918-28080B0

AZR6#

STONE,TRIM1#

 1
Common parts
67771-26120
90119-06869
90189-06018
90467-10161
90467-10167
90950-08003
91621-J0612
91626-40618
93560-56016
Linked diagrams
7152
