AZR65G-BRSQH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )AZR65

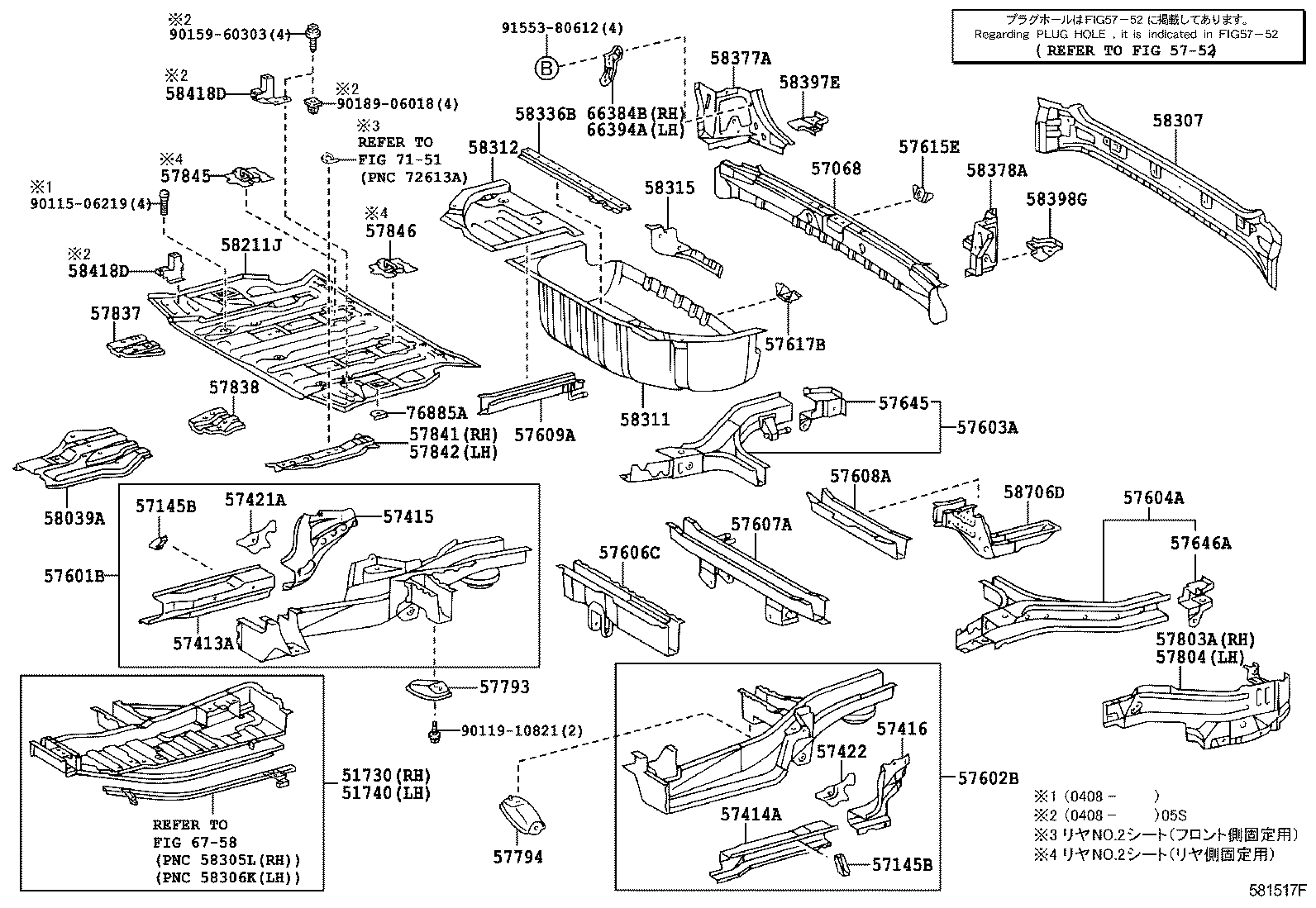

Click highlighted areas on diagram

diagram 51730 51740 57068 57145B 57145B 57413A 57414A 57415 57416 57421A 57422 5752 57601B 57602B 57603A 57604A 57606C 57607A 57608A 57609A 57615E 57617B 57645 57646A 57793 57794 57803A 57804 57837 57838 57841 57842 57845 57846 58039A 58211J 58307 58311 58312 58315 58336B 58377A 58378A 58397E 58398G 58418D 58418D 58706D 66384B 66394A 6758 7151 76885A 9011506219 9011910821 9015960303 9018906018 9155380612
Part # Description Qty Price
51730 - STEP ASSY, REAR FLOOR, RH
51730-28050

AZR6#

 1
51740 - STEP ASSY, REAR FLOOR, LH
51740-28060

AZR6#

 1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-28260

AZR6#

 1
57145B - PATCH, FRONT SIDE MEMBER, REAR
57145-28060

AZR6#

 2
57145B - PATCH, FRONT SIDE MEMBER, REAR
57145-28060

AZR6#

 2
57413A - MEMBER, FLOOR SIDE, INNER REAR RH
57413-28160

AZR6#

 1
57414A - MEMBER, FLOOR SIDE, INNER REAR LH
57414-28120

AZR6#

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57415-28110

AZR6#

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57416-28100

AZR6#

 1
57421A - PLATE, FLOOR SIDE RAIL, RH
57421-28120

AZR6#

 1
57422 - PLATE, FLOOR SIDE RAIL, LH
57422-28090

AZR6#

 1
57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57041-28090

AZR6#

 1
57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57042-28030

AZR6#

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-28070

AZR65

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-28050

AZR6#

 1
C3502-22010

AZR6#..L,V,X

ｱﾘ(ｳｴﾙｷﾔﾌﾞ)

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-28750

AZR65

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-44060

AZR65

 1
57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57655-44020

AZR6#

 1
57609A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57609-28050

AZR65

 1
57615E - BRACKET, REAR BUMPER ARM
57615-28050

AZR65

 1
57617B - RETAINER, REAR BUMPER ARM
57617-44020

AZR65

 1
57645 - REINFORCEMENT, REAR SIDE MEMBER, RH
57645-28060

AZR6#

 1
57646A - REINFORCEMENT, REAR SIDE MEMBER, LH
57646-28030

AZR6#

 1
57793 - BRACKET, REAR SUSPENSION ARM, REAR RH NO.1
57793-44030

AZR6#

 1
57794 - BRACKET, REAR SUSPENSION ARM, REAR LH NO.1
57794-44030

AZR6#

 1
57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57803-28050

AZR6#

 1
57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
57804-28030

AZR6#

 1
57837 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57837-28030

AZR6#

 1
57838 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
57839-28020

AZR6#

 1
57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57841-28060

AZR6#

 1
57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
57842-28050

AZR6#

 1
57845 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH
57845-28050

AZR6#

 1
57846 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH
57846-28020

AZR6#

 1
58039A - REINFORCEMENT SUB-ASSY, REAR FLOOR PANEL
58039-28010

AZR6#

 1
58211J - PAN, CENTER FLOOR
58211-28900

AZR65;AZR60..L,V,X

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-28090

AZR6#

 1
58311 - PAN, REAR FLOOR
58311-28A10

AZR65..L,V,X

ｳｴﾙｷﾔﾌﾞ

 1
58311-2J440

AZR65

 1
58312 - PANEL, REAR BODY FLOOR, NO.1
58312-28040

AZR65

 1
58315 - EXTENSION, REAR FLOOR PANEL
58315-28100

AZR65

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-44040

AZR65..L,V,X

ｳｴﾙｷﾔﾌﾞ

 1
58336-44020

AZR65

 1
58377A - PANEL, BODY LOWER BACK, RH
58377-28010

AZR6#

 1
58378A - PANEL, BODY LOWER BACK, LH
58378-28010

AZR6#

 1
58397E - COVER, BODY LOWER BACK, RH
58397-28020

AZR6#

 1
58398G - COVER, BODY LOWER BACK, LH
58398-28060

AZR6#

 1
58706D - BRACKET SUB-ASSY, JACK CARRIER, NO.1
58706-44010

AZR6#

 1
66384B - BRACKET, ROPE HOOK, NO.2 RH
66384-28020

AZR6#

 1
66394A - BRACKET, ROPE HOOK, NO.2 LH
66394-28010

AZR6#

 1
76885A - RETAINER, REAR SPOILER
76885-28010

AZR6#

 2
Common parts
90115-06219
90119-10821
90159-60303
90189-06018
91553-80612
Linked diagrams
5752
6758
7151
