AZR65G-BRSEH (2001)
Toyota Noah/Voxy
ILLUST NO. 2 OF 2(0111-0408)
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87103-28100 |
AZR6# |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28340 |
AZR6# |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-28010 |
AZR6# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28170 |
AZR6# |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-28260 |
AZR6# |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-28210 |
AZR6# |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 87138-28240 |
AZR6# |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-2R740 |
AZR6# |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06915 | ||||
| 90480-26022 | ||||
| 91631-B0614 | ||||
| 93315-14008 | ||||
| 93381-16016 | ||||

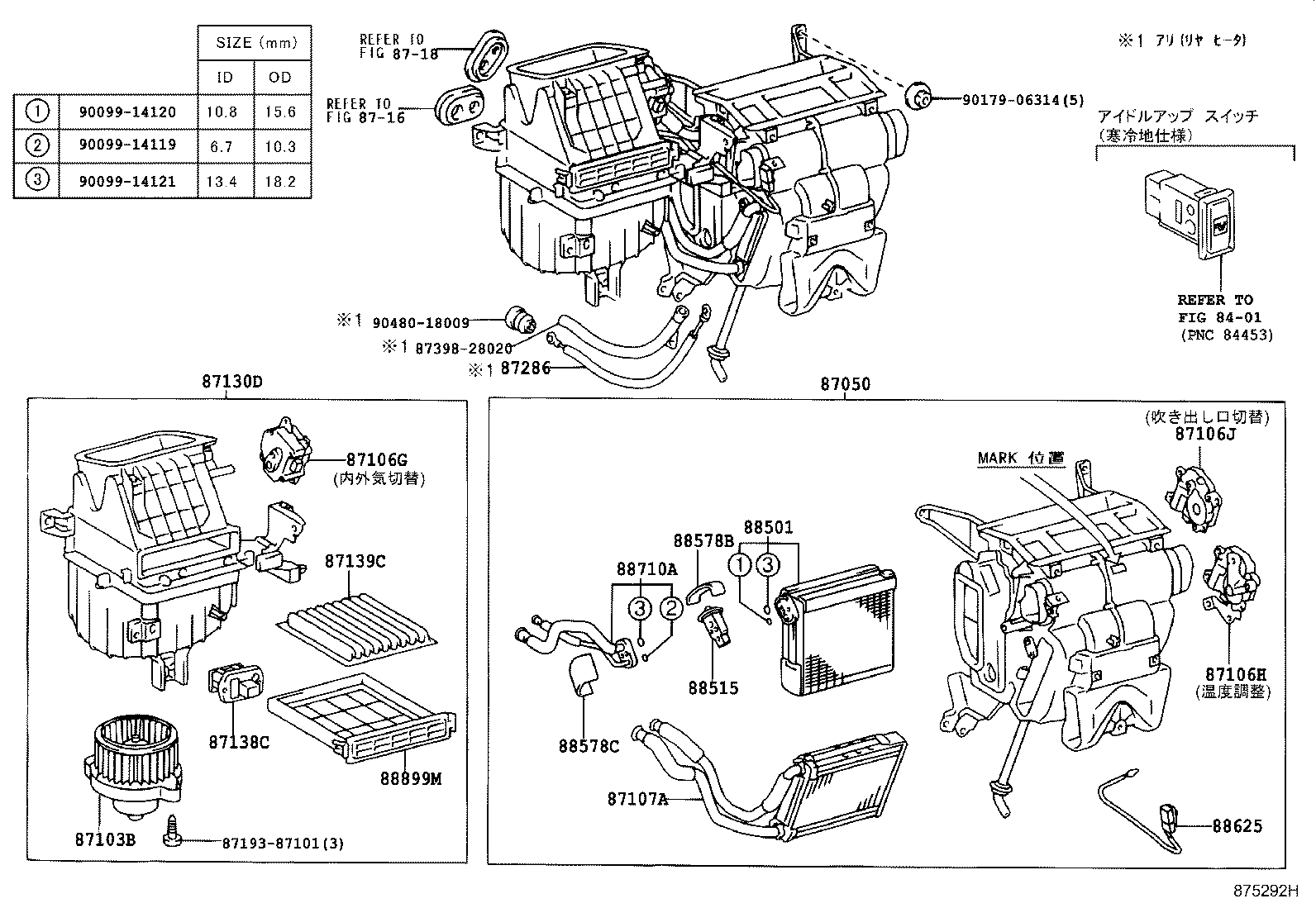

ILLUST NO. 1 OF 2(0111-0408)
ﾌﾛﾝﾄ--ﾏﾆﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-28460 |
AZR6#..S,X,Z ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ & ﾏﾆﾕｱﾙｴｱｺﾝ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87050-28430 |
AZR6# ｱﾘ(ｵ-ﾄ ｴｱｺﾝ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87050-28440 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ & ｵｰﾄｴｱｺﾝ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87050-44260 |
AZR6#..S,X,Z ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87050-28450 |
AZR6#..S,X,Z ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87050-44230 |
AZR6#..S,X,Z ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-44030 |
AZR6# |
1 | ||
| 87103-44040 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-44050 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87106-44040 |
AZR6# |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-44030 |
AZR6# |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-44020 |
AZR6# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28290 |
AZR6# MARK 575 OR 577 (PNC 87050) : ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87107-28270 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ);MARK 576 OR 578 (PNC 87050) : ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-44060 |
AZR6# ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-28500 |
AZR6# ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ;ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ |
1 | ||
| 87130-44080 |
AZR6#..S,X,Z ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-28210 |
AZR6#..S,X,Z ｱﾘ(PTC ﾋ-ﾀ) |
1 | ||
| 87138-20350 |
AZR6#..S,X,Z |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28010 |
AZR6# 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-47020 |
AZR6# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87286 - CABLE, CONTROL | ||||
| 87286-28010 |
AZR6# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28310 |
AZR6# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-28160 |
AZR6# ﾋﾝﾊﾞﾝ MARK=447500-2000 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
AZR6# |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-44090 |
AZR6# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
AZR6# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-44450 |
AZR6# |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-41010 |
AZR6# |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 87398-28020 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06314 | ||||
| 90480-18009 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8716 | ||||
| 8718 | ||||

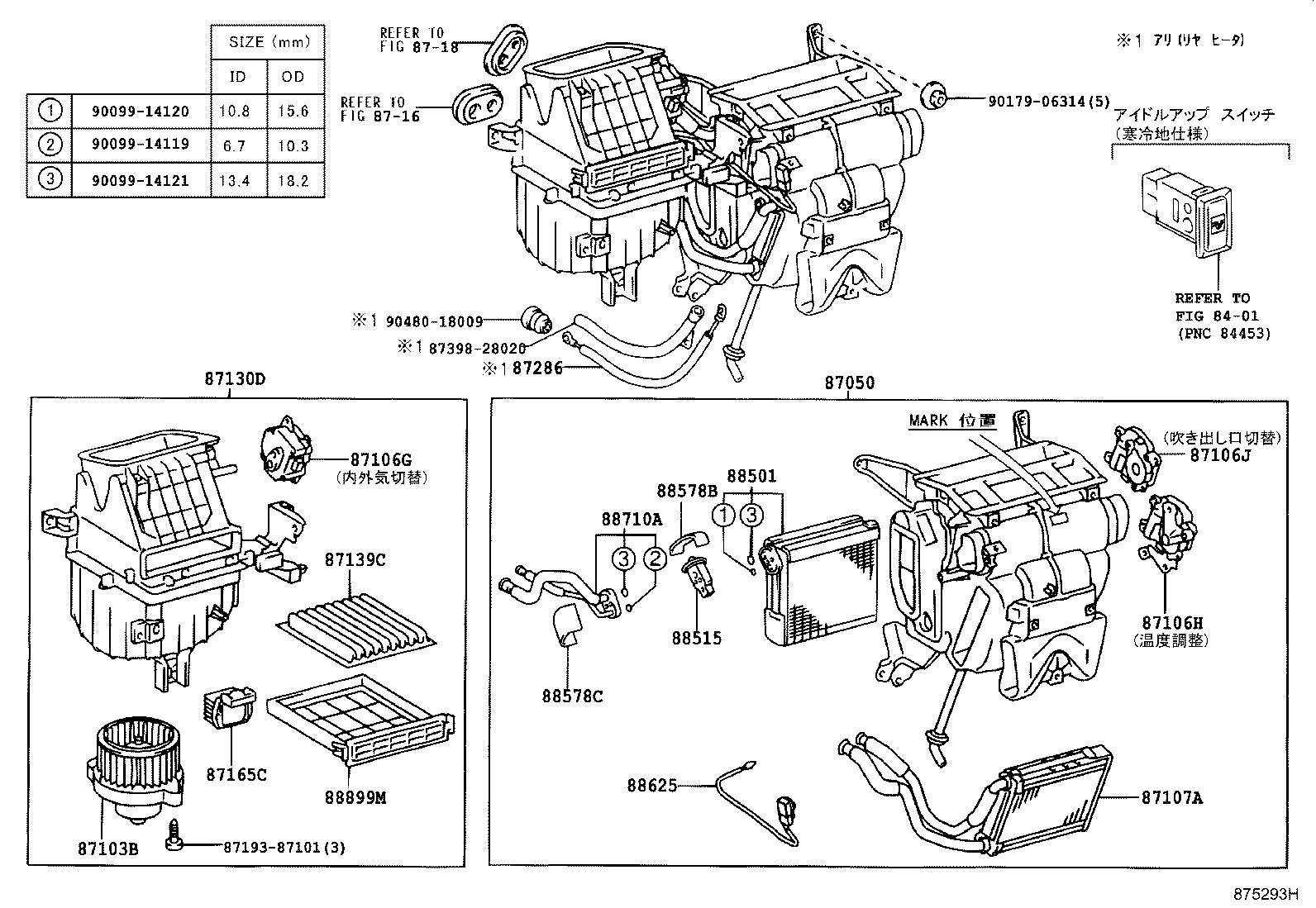

ILLUST NO. 1 OF 2(0111-0408)
ﾌﾛﾝﾄ--ｵ-ﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-28460 |
AZR6#..S,X,Z ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ & ﾏﾆﾕｱﾙｴｱｺﾝ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87050-28430 |
AZR6# ｱﾘ(ｵ-ﾄ ｴｱｺﾝ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87050-28440 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ & ｵｰﾄｴｱｺﾝ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87050-44260 |
AZR6#..S,X,Z ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87050-28450 |
AZR6#..S,X,Z ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87050-44230 |
AZR6#..S,X,Z ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-44030 |
AZR6# |
1 | ||
| 87103-44040 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-44050 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87106-44040 |
AZR6# |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-44030 |
AZR6# |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-44020 |
AZR6# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28290 |
AZR6# MARK 575 OR 577 (PNC 87050) : ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87107-28270 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ);MARK 576 OR 578 (PNC 87050) : ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-44060 |
AZR6# ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-28500 |
AZR6# ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ;ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ |
1 | ||
| 87130-44080 |
AZR6#..S,X,Z ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28010 |
AZR6# 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-47020 |
AZR6# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-47010 |
AZR6# |
1 | ||
| 87165-32010 |
AZR6# ｱﾘ(PTC ﾋ-ﾀ) |
1 | ||
| 87286 - CABLE, CONTROL | ||||
| 87286-28010 |
AZR6# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28310 |
AZR6# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-28160 |
AZR6# ﾋﾝﾊﾞﾝ MARK=447500-2000 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
AZR6# |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-44090 |
AZR6# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
AZR6# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-44450 |
AZR6# |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-41010 |
AZR6# |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 87398-28020 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06314 | ||||
| 90480-18009 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8716 | ||||
| 8718 | ||||
ILLUST NO. 1 OF 2(0111-0408)
ﾌﾛﾝﾄ--ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-28460 |
AZR6#..S,X,Z ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ & ﾏﾆﾕｱﾙｴｱｺﾝ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87050-28430 |
AZR6# ｱﾘ(ｵ-ﾄ ｴｱｺﾝ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87050-28440 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ & ｵｰﾄｴｱｺﾝ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87050-44260 |
AZR6#..S,X,Z ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87050-28450 |
AZR6#..S,X,Z ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87050-44230 |
AZR6#..S,X,Z ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-44030 |
AZR6# |
1 | ||
| 87103-44040 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-44050 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ);ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 87106-44040 |
AZR6# |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-44030 |
AZR6# |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-44020 |
AZR6# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28290 |
AZR6# MARK 575 OR 577 (PNC 87050) : ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87107-28270 |
AZR6# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｲﾄﾞﾙｱｯﾌﾟ ｽｲｯﾁ);MARK 576 OR 578 (PNC 87050) : ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-44060 |
AZR6# ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87130-28500 |
AZR6# ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ;ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ |
1 | ||
| 87130-44080 |
AZR6#..S,X,Z ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87137B - COVER, HEATER BLOWER | ||||
| 87137-44010 |
AZR6# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28010 |
AZR6# 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-47020 |
AZR6# 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-47010 |
AZR6# |
1 | ||
| 87165-32010 |
AZR6# ｱﾘ(PTC ﾋ-ﾀ) |
1 | ||
| 87286 - CABLE, CONTROL | ||||
| 87286-28010 |
AZR6# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28310 |
AZR6# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-28160 |
AZR6# ﾋﾝﾊﾞﾝ MARK=447500-2000 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
AZR6# |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-44090 |
AZR6# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
AZR6# |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-28290 |
AZR6# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-44450 |
AZR6# |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-41010 |
AZR6# |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 87398-28020 | ||||
| 90099-00303 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-08103 | ||||
| 90179-06314 | ||||
| 90480-18009 | ||||
| Linked diagrams | ||||
| 8401 | ||||
