AZR65G-BRSEH (2001)
Toyota Noah/Voxy
Production
Nov 2001
-
Aug 2004
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

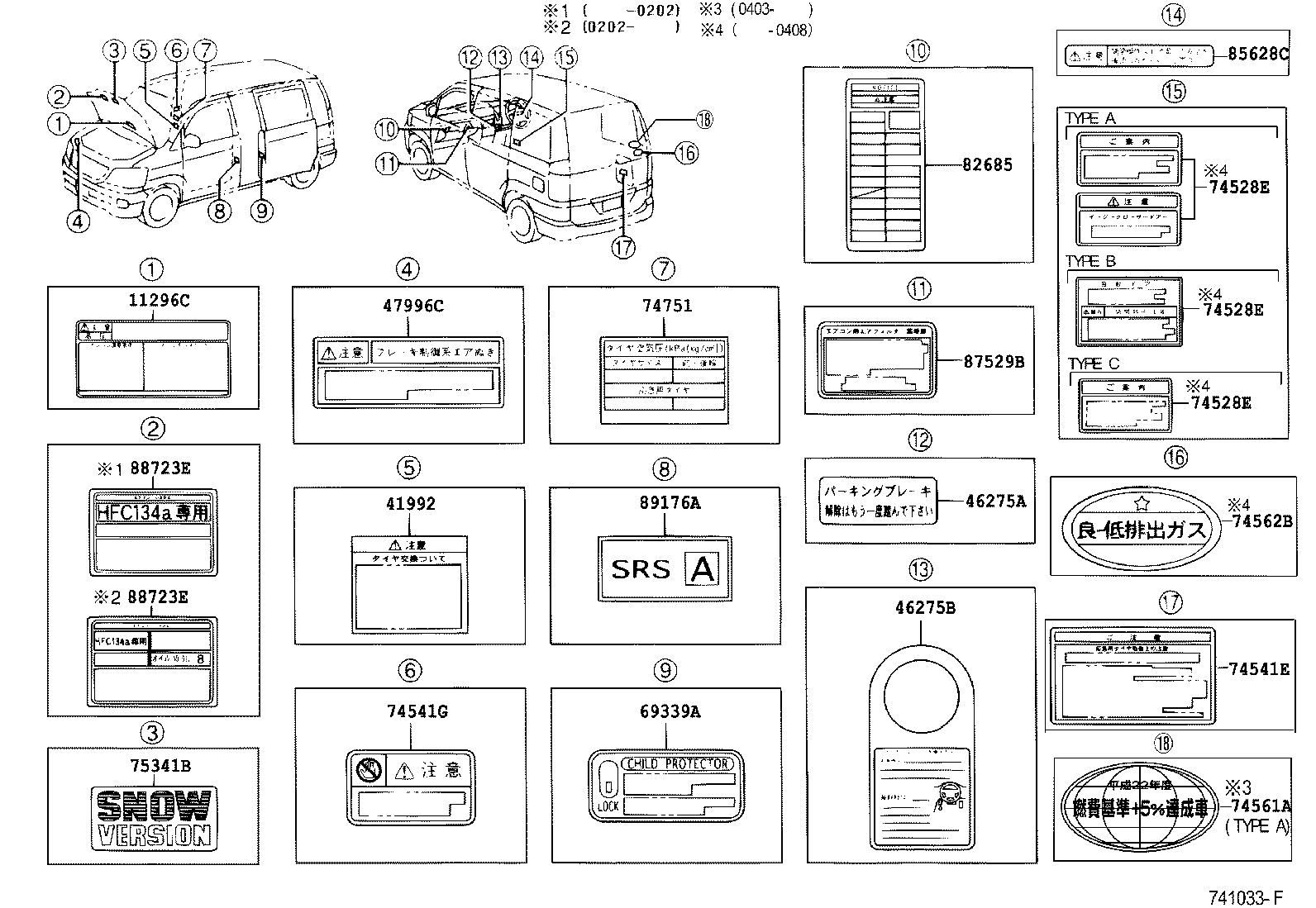

ILLUST NO. 1 OF 2(0111- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11296C - LABEL, ENGINE SERVICE INFORMATION | ||||
| 11296-28021 |
1AZFSE..AZR6# |
1 | ||
| 11296-28020 |
1AZFSE..AZR6#..4HC |
1 | ||
| 41992 - LABEL, DIFFERENTIAL NOTICE | ||||
| 41992-33010 |
AZR65 |
1 | ||
| 46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1 | ||||
| 46275-33010A0 |
AZR6#..S;AZR6#..VOXY WHITE,TRIM1# |
1 | ||
| 46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2 | ||||
| 46275-47010 |
AZR6# |
1 | ||
| 47996C - LABEL, BRAKE BLEED CAUTION | ||||
| 47996-21010 |
AZR65 |
1 | ||
| 69339A - PLATE, CHILD PROTECTOR LOCK CAUTION | ||||
| 69339-20030 |
AZR6# |
1 | ||
| 74528E - LABEL, POWER SLIDE DOOR NOTICE | ||||
| 74541-28050 |
AZR6#..S,X,Z TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 74528-28090 |
AZR6# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 74528-28080 |
AZR6# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74528E - LABEL, POWER SLIDE DOOR NOTICE | ||||
| 74541-28050 |
AZR6#..S,X,Z TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 74528-28090 |
AZR6# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 74528-28080 |
AZR6# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74528E - LABEL, POWER SLIDE DOOR NOTICE | ||||
| 74541-28050 |
AZR6#..S,X,Z TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 74528-28090 |
AZR6# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 74528-28080 |
AZR6# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-28060 |
AZR6# |
1 | ||
| 74541G - PLATE, SAFETY CAUTION | ||||
| 74541-28060 |
AZR6# |
1 | ||
| 74561A - LABEL, FUEL CONSUMPTION INFORMATION | ||||
| 74561-52020 |
AZR6# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 74562B - LABEL, EMISSION INFORMATION | ||||
| 74562-40040 |
AZR6# |
1 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-28700 |
AZR6# |
1 | ||
| 75341B - PLATE, HOOD NAME | ||||
| 75341-20060 |
AZR6# |
1 | ||
| 82685 - PLATE, CAUTION | ||||
| 82685-28080 |
AZR6# |
1 | ||
| 85628C - LABEL, AUTOMATIC DOOR | ||||
| 85628-26011 |
AZR6# |
1 | ||
| 87529B - LABEL, A/C FILTER INFORMATION | ||||
| 87529-50020 |
AZR6# |
1 | ||
| 88723E - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-28010 |
AZR6# |
1 | ||
| 88723-42050 |
AZR6#..4HC |
1 | ||
| 88723E - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-28010 |
AZR6# |
1 | ||
| 88723-42050 |
AZR6#..4HC |
1 | ||
| 89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION | ||||
| 89176-32010 |
AZR6# |
1 | ||
