AZR65G-BRSEH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

Click highlighted areas on diagram

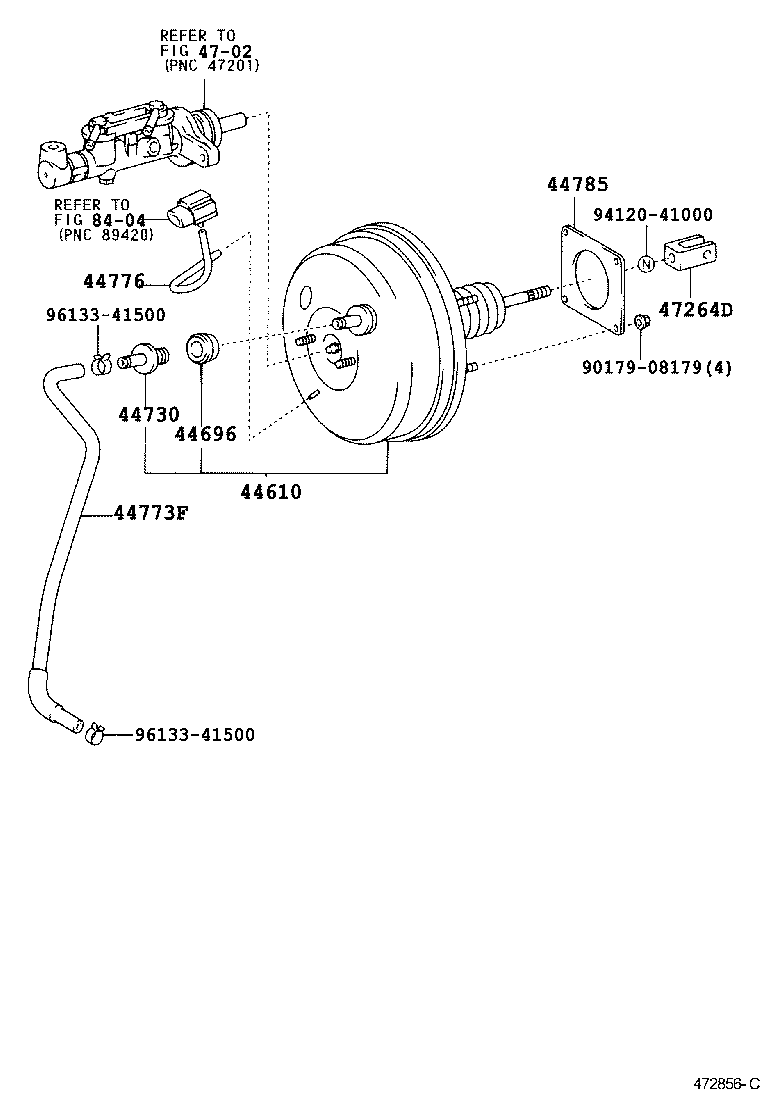

diagram 44610 44696 44730 44773F 44776 44785 4702 47264D 8404 9017908179 9412041000 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2J120

AZR6#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

AZR6#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

AZR6#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-28140

AZR6#

 1
44776 - HOSE, BRAKE BOOSTER
44776-28040

AZR6#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AZR6#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-60020

AZR6#

 1
Common parts
90179-08179
94120-41000
96133-41500
Linked diagrams
4702
8404
