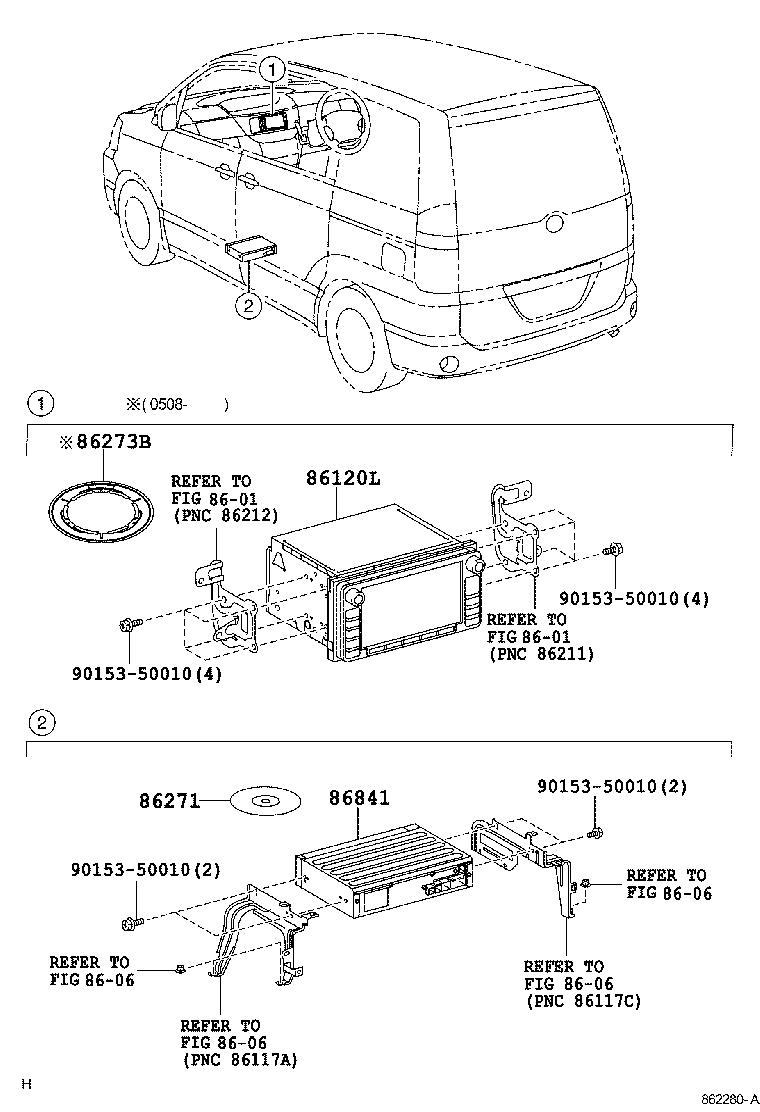

Toyota Noah/voxy AZR65 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
86120L - RECEIVER ASSY, NAVIGATION
86120-28400	AZR6# FUJITSU TEN,ID=16035	11/2001 - 05/2003	1
86120-28510	AZR6# FUJITSU TEN,ID=26000	08/2004 - 08/2005	1
86120-28520	AZR6#..07S,08S MATSUSHITA,ID=56056,ｱﾘ(7 ｽﾋﾟ-ｶ)	08/2004 - 08/2005	1
86100-28061	AZR6#..07S,08S MATSUSHITA,ID=56060,ｱﾘ(7 ｽﾋﾟ-ｶ)	05/2006 - 08/2006	1
86100-28062	AZR6#..07S,08S MATSUSHITA,ID=56060,ｱﾘ(7 ｽﾋﾟ-ｶ)	09/2006 - 03/2007	1
86100-28050	AZR6# MATSUSHITA,ID=56076	08/2005 - 04/2006	1
86100-28053	AZR6# MATSUSHITA,ID=56076	04/2007 - 12/2999	1
86100-28051	AZR6# MATSUSHITA,ID=56076	05/2006 - 08/2006	1
86100-28052	AZR6# MATSUSHITA,ID=56076	09/2006 - 03/2007	1
86100-28060	AZR6#..07S,08S MATSUSHITA,ID=56060,ｱﾘ(7 ｽﾋﾟ-ｶ)	08/2005 - 04/2006	1
86100-28063	AZR6#..07S,08S MATSUSHITA,ID=56060,ｱﾘ(7 ｽﾋﾟ-ｶ)	04/2007 - 12/2999	1
86271 - DISC, DISC PLAYER
86271-13063	AZR6# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)	10/2004 - 08/2005	1
86271-13062	AZR6# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)	08/2004 - 10/2004	1
86273B - ADAPTER, DISC PLAYER
86273-58010	AZR6#	08/2005 - 12/2999	1
86841 - COMPUTER, NAVIGATION
86841-13031	AZR6# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)	08/2004 - 08/2005	1
Common parts
90153-50010
Linked diagrams
8601
8606

AZR65G-BRESH (2004)
