AZR65G-BRESH (2004)
Toyota Noah/Voxy
(0408-0702)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

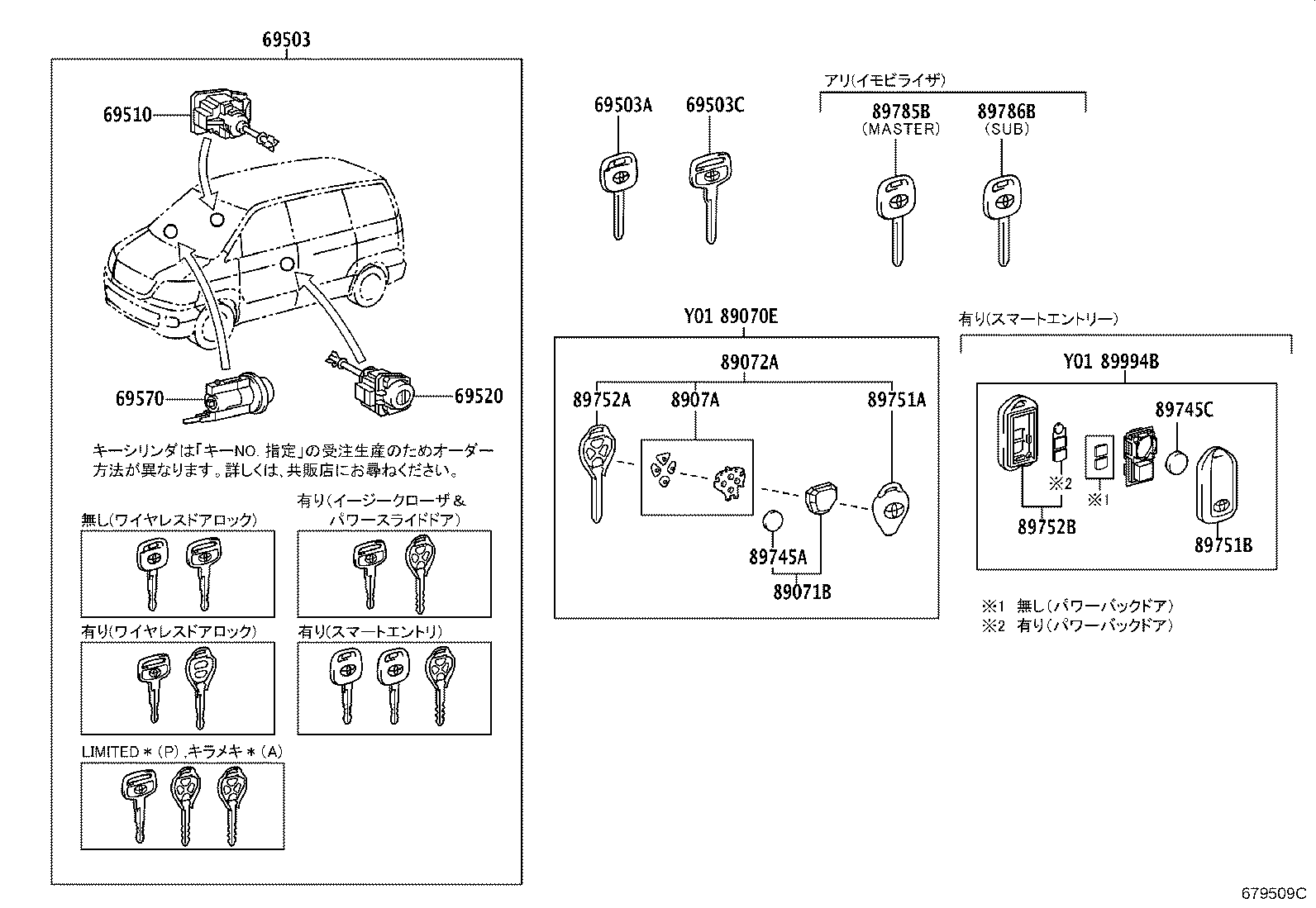

| 69503 - CYLINDER SET, LOCK | ||||
| 69005-28750 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69005-28A80 |
AZR6#..08S..X ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69005-28A61 |
AZR6# |
1 | ||
| 69005-28740 |
AZR6# ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69005-28A70 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 69005-28A60 |
AZR6# |
1 | ||
| 69005-28B40 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 69005-28A71 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 69005-28B31 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 69005-28760 |
AZR6#..S,X,Z ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69005-28B70 |
AZR6#..Z;AZR6#..NOAH..08S..X LIMITED *(P),ｷﾗﾒｷ *(A) |
1 | ||
| 69005-28B30 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 69005-28B41 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
AZR6#..S,X,Z ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00199 |
AZR6#..08S..X ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503C - KEY, SUB | ||||
| 90999-00186 |
AZR6# |
1 | ||
| 90999-00186 |
AZR6# |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-28140 |
AZR6# |
1 | ||
| 69510-28140 |
AZR6# |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-28100 |
AZR6# |
1 | ||
| 69520-28100 |
AZR6# |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-44040 |
AZR6# |
1 | ||
| 69570-44040 |
AZR6# |
1 | ||
| 69570-44050 |
AZR6#..X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69570-44050 |
AZR6#..X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-44070 |
AZR6# |
1 | ||
| 89070-44210 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ｲﾓﾋﾞﾗｲｻﾞ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89070-58330 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89070-28A60 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89070-28610 |
AZR6# |
1 | ||
| 89070-26160 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) & ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 89070-28620 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) & ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 89070-12350 |
AZR6# |
1 | ||
| 89070-26250 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 89070-28320 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-26030 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 89071-12021 |
AZR6# |
1 | ||
| 89071-28010 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89071-28150 |
AZR6# |
1 | ||
| 89071-44010 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-12100 |
AZR6# |
1 | ||
| 89072-47020 |
AZR6# |
1 | ||
| 89072-26070 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 89072-58090 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89072-28440 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89072-28310 |
AZR6#..X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
AZR6# |
1 | ||
| 89745-40010 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89745-48030 |
AZR6#..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸｷｰ用 |
1 | ||
| 89745-26010 |
AZR6# |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
AZR6#..X CR2032,ｽﾏｰﾄｷｰ用 |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-44010 |
AZR6# |
1 | ||
| 89751-50010 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89751-26010 |
AZR6#..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸｷｰ用 |
1 | ||
| 89751-26010 |
AZR6# |
1 | ||
| 89751-28070 |
AZR6#..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸｷｰ用 |
1 | ||
| 89751-28070 |
AZR6# |
1 | ||
| 89751B - COVER, TRANSMITTER HOUSING | ||||
| 89751-68010 |
AZR6#..X ｽﾏｰﾄｷｰ用 |
1 | ||
| 89752B - CASE, TRANSMITTER HOUSING | ||||
| 89752-44070 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ﾊﾟﾜ-ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 89752-68010 |
AZR6#..X ｱﾘ(ｽﾏ-ﾄ ｴﾝﾄﾘ) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-60160 |
AZR6#..X |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-60170 |
AZR6#..X ﾌﾞﾗﾝｸｷｰ |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-44010 |
AZR6#..X ｱﾘ(ﾊﾟﾜ-ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 89994-44010 |
AZR6#..X ｱﾘ(ﾊﾟﾜ-ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 89994-13010 |
AZR6#..X |
1 | ||
| 89994-13010 |
AZR6#..X |
1 | ||
(0702- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-28750 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69005-28A80 |
AZR6#..08S..X ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69005-28A61 |
AZR6# |
1 | ||
| 69005-28740 |
AZR6# ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69005-28A70 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 69005-28A60 |
AZR6# |
1 | ||
| 69005-28B40 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 69005-28A71 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 69005-28B31 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 69005-28760 |
AZR6#..S,X,Z ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69005-28B70 |
AZR6#..Z;AZR6#..NOAH..08S..X LIMITED *(P),ｷﾗﾒｷ *(A) |
1 | ||
| 69005-28B30 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 69005-28B41 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
AZR6#..S,X,Z ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00199 |
AZR6#..08S..X ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503C - KEY, SUB | ||||
| 90999-00186 |
AZR6# |
1 | ||
| 90999-00186 |
AZR6# |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-28140 |
AZR6# |
1 | ||
| 69510-28140 |
AZR6# |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-28100 |
AZR6# |
1 | ||
| 69520-28100 |
AZR6# |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-44040 |
AZR6# |
1 | ||
| 69570-44040 |
AZR6# |
1 | ||
| 69570-44050 |
AZR6#..X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69570-44050 |
AZR6#..X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-44070 |
AZR6# |
1 | ||
| 89070-44210 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ｲﾓﾋﾞﾗｲｻﾞ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89070-58330 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89070-28A60 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89070-28610 |
AZR6# |
1 | ||
| 89070-26160 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) & ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 89070-28620 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) & ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 89070-12350 |
AZR6# |
1 | ||
| 89070-26250 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 89070-28320 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-26030 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 89071-12021 |
AZR6# |
1 | ||
| 89071-28010 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89071-28150 |
AZR6# |
1 | ||
| 89071-44010 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-12100 |
AZR6# |
1 | ||
| 89072-47020 |
AZR6# |
1 | ||
| 89072-26070 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 89072-58090 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89072-28440 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89072-28310 |
AZR6#..X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-28030 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 8907A-28020 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 8907A-28010 |
AZR6# |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
AZR6# |
1 | ||
| 89745-40010 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89745-48030 |
AZR6#..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸｷｰ用 |
1 | ||
| 89745-26010 |
AZR6# |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
AZR6#..X CR2032,ｽﾏｰﾄｷｰ用 |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-44010 |
AZR6# |
1 | ||
| 89751-50010 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89751-26010 |
AZR6#..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸｷｰ用 |
1 | ||
| 89751-26010 |
AZR6# |
1 | ||
| 89751-28070 |
AZR6#..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸｷｰ用 |
1 | ||
| 89751-28070 |
AZR6# |
1 | ||
| 89751B - COVER, TRANSMITTER HOUSING | ||||
| 89751-68010 |
AZR6#..X ｽﾏｰﾄｷｰ用 |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-33020 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 89752-33160 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89752-22050 |
AZR6# ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = LH) |
1 | ||
| 89752-28070 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ｲｰｼﾞｰｸﾛｰｻﾞ & ﾊﾟﾜｰｽﾗｲﾄﾞ ﾄﾞｱ = RH & LH) |
1 | ||
| 89752-46020 |
AZR6# |
1 | ||
| 89752-12080 |
AZR6# |
1 | ||
| 89752B - CASE, TRANSMITTER HOUSING | ||||
| 89752-44070 |
AZR6#..X ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ﾊﾟﾜ-ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 89752-68010 |
AZR6#..X ｱﾘ(ｽﾏ-ﾄ ｴﾝﾄﾘ) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-60160 |
AZR6#..X |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-60170 |
AZR6#..X ﾌﾞﾗﾝｸｷｰ |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-44010 |
AZR6#..X ｱﾘ(ﾊﾟﾜ-ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 89994-44010 |
AZR6#..X ｱﾘ(ﾊﾟﾜ-ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 89994-13010 |
AZR6#..X |
1 | ||
| 89994-13010 |
AZR6#..X |
1 | ||
