AZR65G-BRESH (2004)
Toyota Noah/Voxy
Production
Aug 2004
-
Jun 2007
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0408- )

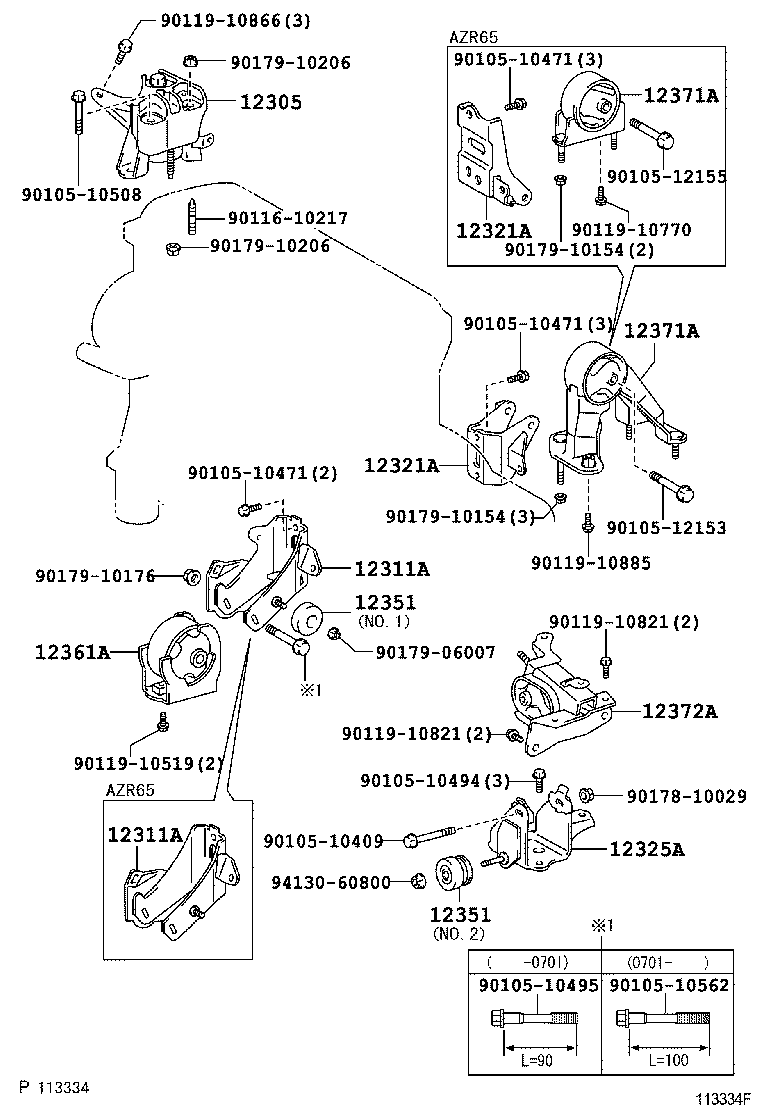

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-28140 |
1AZFSE..AZR65 |
1 | ||
| 12305-28140 |
1AZFSE..AZR65 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-28130 |
1AZFSE..AZR65 |
1 | ||
| 12311-28130 |
1AZFSE..AZR65 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-28130 |
1AZFSE..AZR65 |
1 | ||
| 12311-28130 |
1AZFSE..AZR65 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-28120 |
1AZFSE..AZR65 |
1 | ||
| 12321-28140 |
1AZFSE..AZR65 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-28120 |
1AZFSE..AZR65 |
1 | ||
| 12321-28140 |
1AZFSE..AZR65 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-28140 |
1AZFSE..AZR65 |
1 | ||
| 12325-28230 |
1AZFSE..AZR6# |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-28010 |
1AZFSE..AZR6# |
1 | ||
| 12351-11023 |
1AZFSE..AZR6# NO.2 |
1 | ||
| 12351-28010 |
1AZFSE..AZR6# NO.1 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-28010 |
1AZFSE..AZR6# |
1 | ||
| 12351-11023 |
1AZFSE..AZR6# NO.2 |
1 | ||
| 12351-28010 |
1AZFSE..AZR6# NO.1 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-28170 |
1AZFSE..AZR6# |
1 | ||
| 12361-28171 |
1AZFSE..AZR6# |
1 | ||
| 12361-28170 |
1AZFSE..AZR6# |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-28100 |
1AZFSE..AZR65 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-28100 |
1AZFSE..AZR65 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-28100 |
1AZFSE..AZR65 |
1 | ||
| 12372-28100 |
1AZFSE..AZR6# |
1 | ||
| Common parts | ||||
| 90105-10409 | ||||
| 90105-10471 | ||||
| 90105-10494 | ||||
| 90105-10495 | ||||
| 90105-10508 | ||||
| 90105-10562 | ||||
| 90105-12153 | ||||
| 90105-12155 | ||||
| 90116-10217 | ||||
| 90119-10519 | ||||
| 90119-10770 | ||||
| 90119-10821 | ||||
| 90119-10866 | ||||
| 90119-10885 | ||||
| 90178-10029 | ||||
| 90179-06007 | ||||
| 90179-10154 | ||||
| 90179-10176 | ||||
| 90179-10206 | ||||
| 94130-60800 | ||||
