AZR65G-BREEH (2004)

Toyota Noah/Voxy

Production Aug 2004 - Jun 2007
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

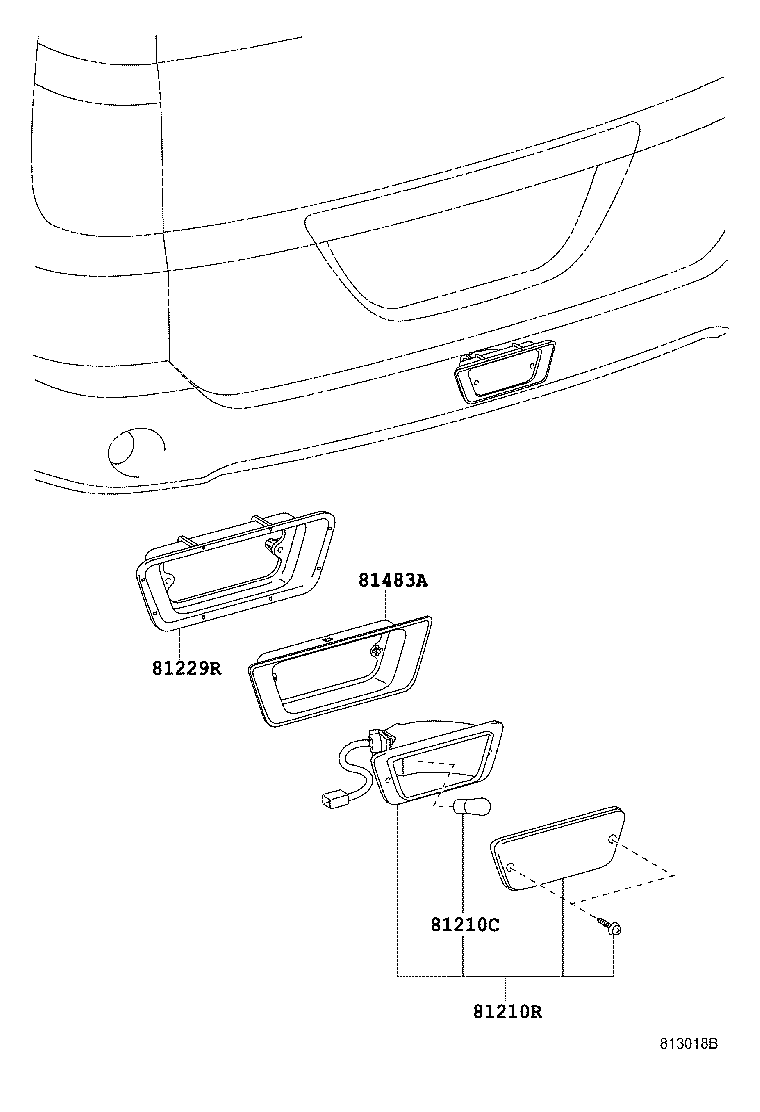

Click highlighted areas on diagram

diagram 81210C 81210R 81229R 81483A
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

AZR6#

12V 21W

 1
81210R - LAMP ASSY, REAR FOG
81480-28010

AZR6#

 1
81229R - BRACKET, REAR FOG LAMP
81481-28090

AZR6#..TRASX,X,YY

 1
81481-28100

AZR6#..S,Z

 1
81483A - PROTECTOR, FOG LAMP
81483-28010

AZR6#..TRASX,X,YY

 1
81483-28020

AZR6#..S,Z

 1
