AZR65G-BPEEH (2004)

Toyota Noah/Voxy

Production Aug 2004 - Jun 2007
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

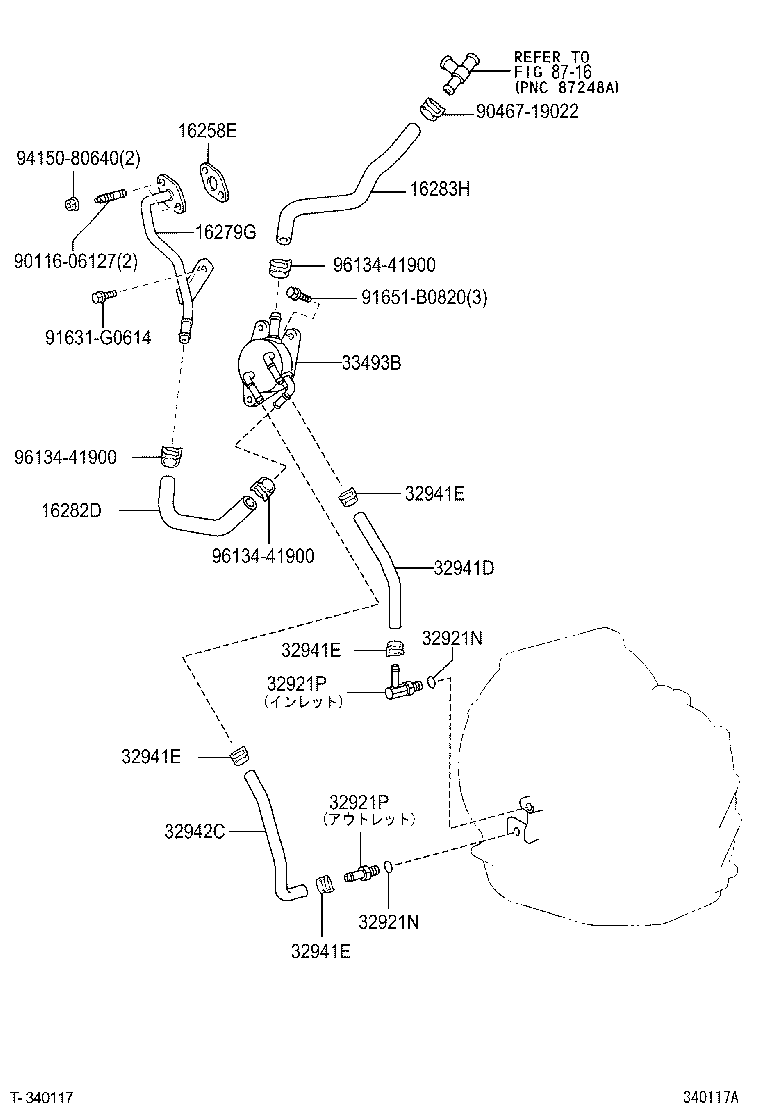

Click highlighted areas on diagram

K111,K111F

diagram 16258E 16279G 16282D 16283H 32921N 32921N 32921P 32921P 32941D 32941E 32941E 32941E 32941E 32942C 33493B 8716 9011606127 9046719022 91631G0614 91651B0820 9415080640 9613441900 9613441900 9613441900
Part # Description Qty Price
16258E - GASKET(FOR WATER BY-PASS PIPE)
16258-28040

1AZFSE..AZR6#

 1
16279G - PIPE, WATER BY-PASS, NO.3
16279-28020

1AZFSE..AZR6#

 1
16282D - HOSE, WATER BY-PASS, NO.5
16282-28050

1AZFSE..AZR6#

 1
16283H - HOSE, WATER BY-PASS, NO.6
16283-28050

1AZFSE..AZR6#

 1
32921N - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AZR6#

 2
32921N - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AZR6#

 2
32921P - UNION(FOR OIL COOLER TUBE)
90407-13009

AZR6#

ｲﾝﾚｯﾄ

 1
90404-13004

AZR6#

ｱｳﾄﾚｯﾄ

 1
32921P - UNION(FOR OIL COOLER TUBE)
90407-13009

AZR6#

ｲﾝﾚｯﾄ

 1
90404-13004

AZR6#

ｱｳﾄﾚｯﾄ

 1
32941D - HOSE, OIL COOLER INLET
32943-44010

AZR6#

 1
32941E - CLIP(FOR OIL COOLER TUBE)
90467-16022

AZR6#

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90467-16022

AZR6#

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90467-16022

AZR6#

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90467-16022

AZR6#

 4
32942C - HOSE, OIL COOLER OUTLET, NO.1
32943-44020

AZR6#

 1
32943-44021

AZR6#

 1
33493B - COOLER, OIL
33493-44030

AZR6#

 1
Common parts
90116-06127
90467-19022
91631-G0614
91651-B0820
94150-80640
96134-41900
Linked diagrams
8716
