AZR65G-BNENH (2004)
Toyota Noah/Voxy
Production
Aug 2004
-
Jun 2007
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0408- )

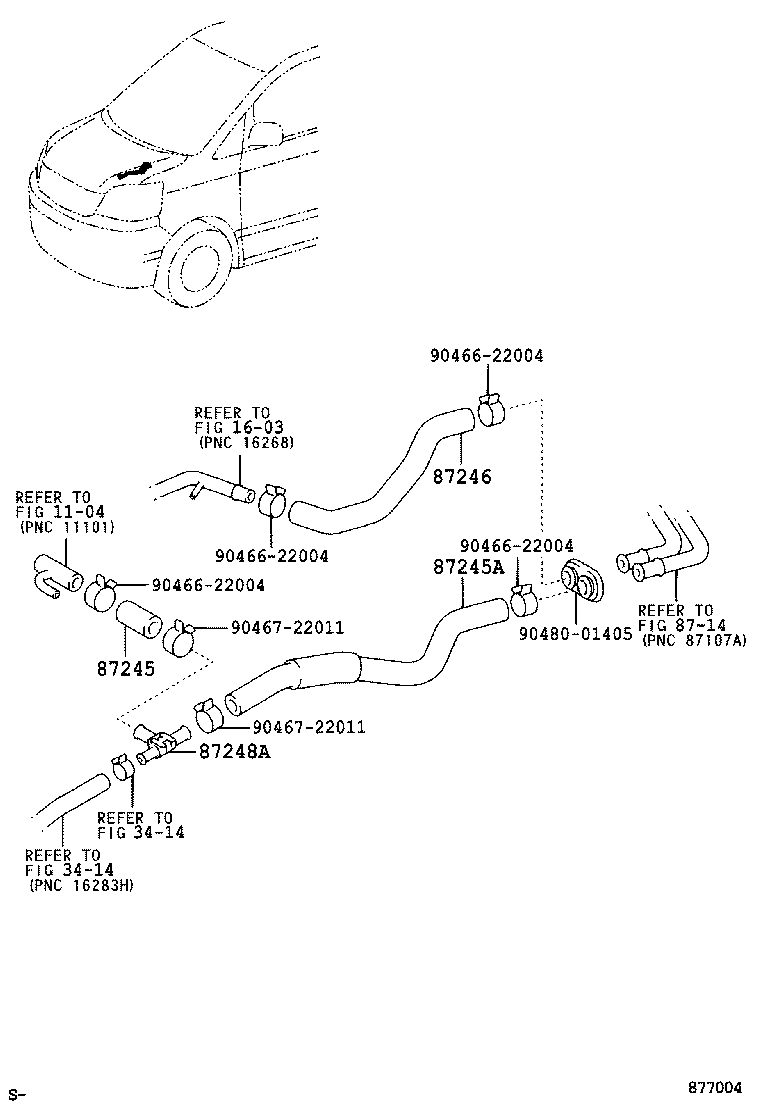

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-2D660 |
AZR6# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28A10 |
AZR6#..05S,08S |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-28A00 |
AZR6#..05S,08S |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-20380 |
AZR6# |
1 | ||
| Common parts | ||||
| 90466-22004 | ||||
| 90467-22011 | ||||
| 90480-01405 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 3414 | ||||
| 8714 | ||||
(0408- )

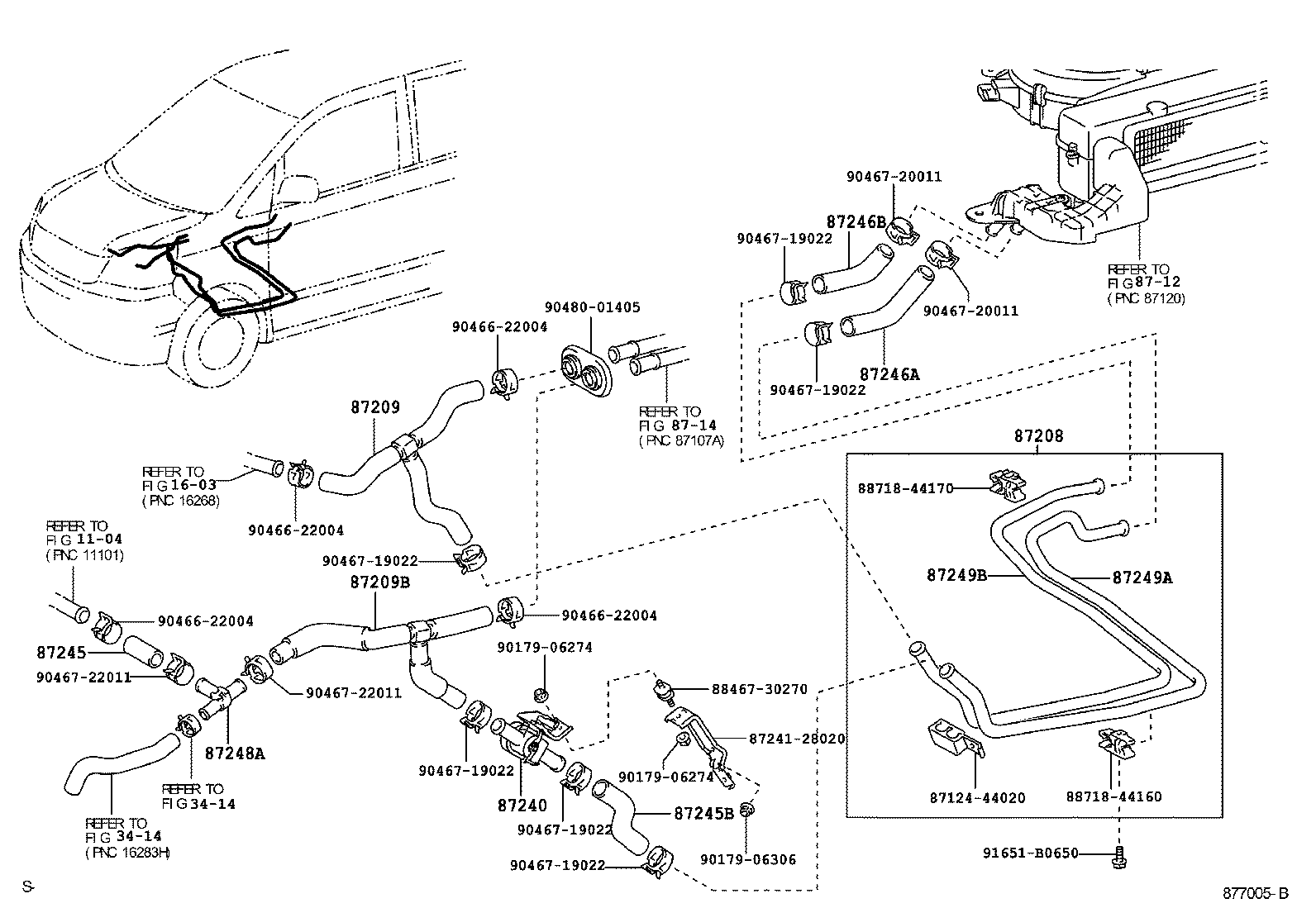

Click highlighted areas on diagram
ｱﾘ(ﾘﾔ ﾋ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-28680 |
AZR6# |
1 | ||
| 87208-28680 |
AZR6# |
1 | ||
| 87209 - HOSE SUB-ASSY, WATER | ||||
| 87209-28730 |
AZR6# |
1 | ||
| 87209-28680 |
AZR6# |
1 | ||
| 87209B - HOSE SUB-ASSY, WATER, B | ||||
| 87209-28660 |
AZR6# ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87209-28670 |
AZR6#..S,X,Z |
1 | ||
| 87209-28740 |
AZR6# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-28110 |
AZR6# |
1 | ||
| 87240-28110 |
AZR6# |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-2D660 |
AZR6# |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-28A20 |
AZR6# |
1 | ||
| 87245-44550 |
AZR6# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2J720 |
AZR6#..S,X,Z |
1 | ||
| 87245-2J730 |
AZR6# ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-2J730 |
AZR6# |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-2J740 |
AZR6# |
1 | ||
| 87245-2J740 |
AZR6# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-20380 |
AZR6# |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-28300 |
AZR6# |
1 | ||
| 87248-28300 |
AZR6# |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-28310 |
AZR6# |
1 | ||
| 87248-28310 |
AZR6# |
1 | ||
| Common parts | ||||
| 87124-44020 | ||||
| 87241-28020 | ||||
| 88467-30270 | ||||
| 88718-44160 | ||||
| 88718-44170 | ||||
| 90179-06274 | ||||
| 90179-06306 | ||||
| 90466-22004 | ||||
| 90467-19022 | ||||
| 90467-20011 | ||||
| 90467-22011 | ||||
| 90480-01405 | ||||
| 91651-B0650 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 3414 | ||||
| 8712 | ||||
| 8714 | ||||
