AZR65G-BNENH (2004)
Toyota Noah/Voxy
Production
Aug 2004
-
Jun 2007
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

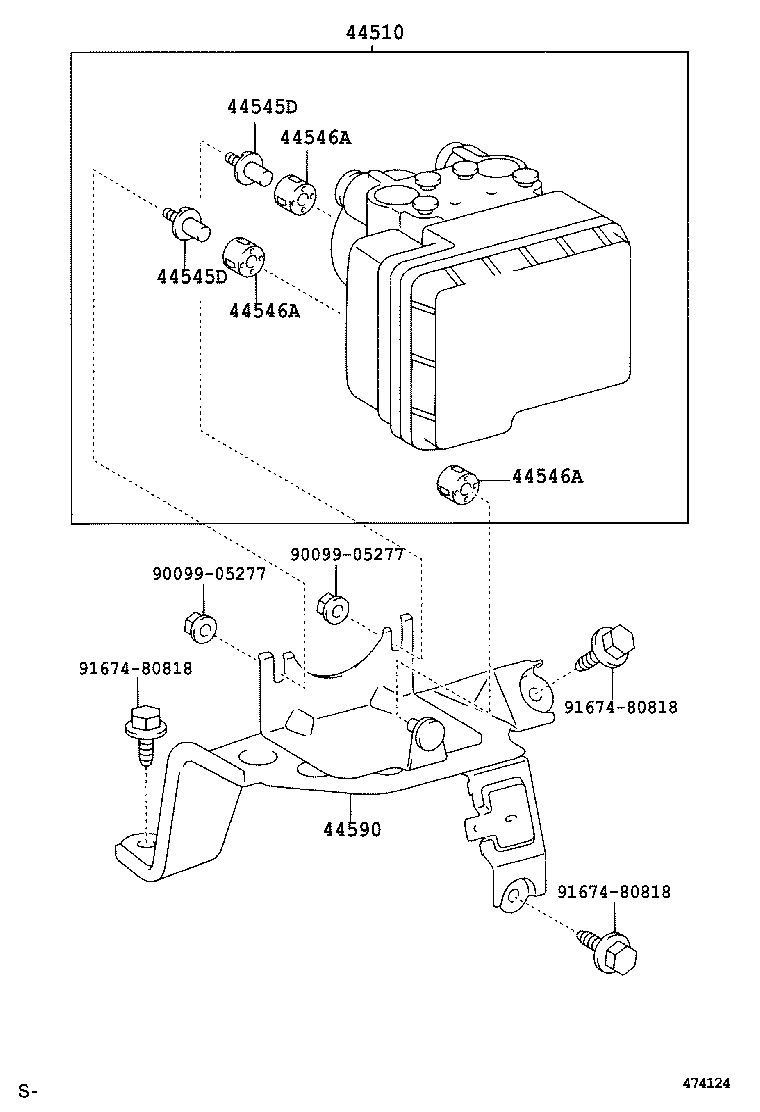

ILLUST NO. 2 OF 2(0408- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-44160 |
AZR65 |
1 | ||
| 44050-42070 |
AZR6# |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
AZR6# |
2 | ||
| 44545-42090 |
AZR65 ｱﾘ(VSC) |
2 | ||
| 44545-42070 |
AZR6# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
AZR6# |
2 | ||
| 44545-42090 |
AZR65 ｱﾘ(VSC) |
2 | ||
| 44545-42070 |
AZR6# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
AZR6# |
3 | ||
| 44546-42090 |
AZR65 ｱﾘ(VSC) |
3 | ||
| 44546-42070 |
AZR6# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
AZR6# |
3 | ||
| 44546-42090 |
AZR65 ｱﾘ(VSC) |
3 | ||
| 44546-42070 |
AZR6# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
AZR6# |
3 | ||
| 44546-42090 |
AZR65 ｱﾘ(VSC) |
3 | ||
| 44546-42070 |
AZR6# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-28120 |
AZR6# |
1 | ||
| 44590-44050 |
AZR65 ｱﾘ(VSC) |
1 | ||
| 44590-44060 |
AZR6# |
1 | ||
| 44590-44050 |
AZR65 ｱﾘ(VSC) |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91674-80818 | ||||
