AZR65G-ARSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

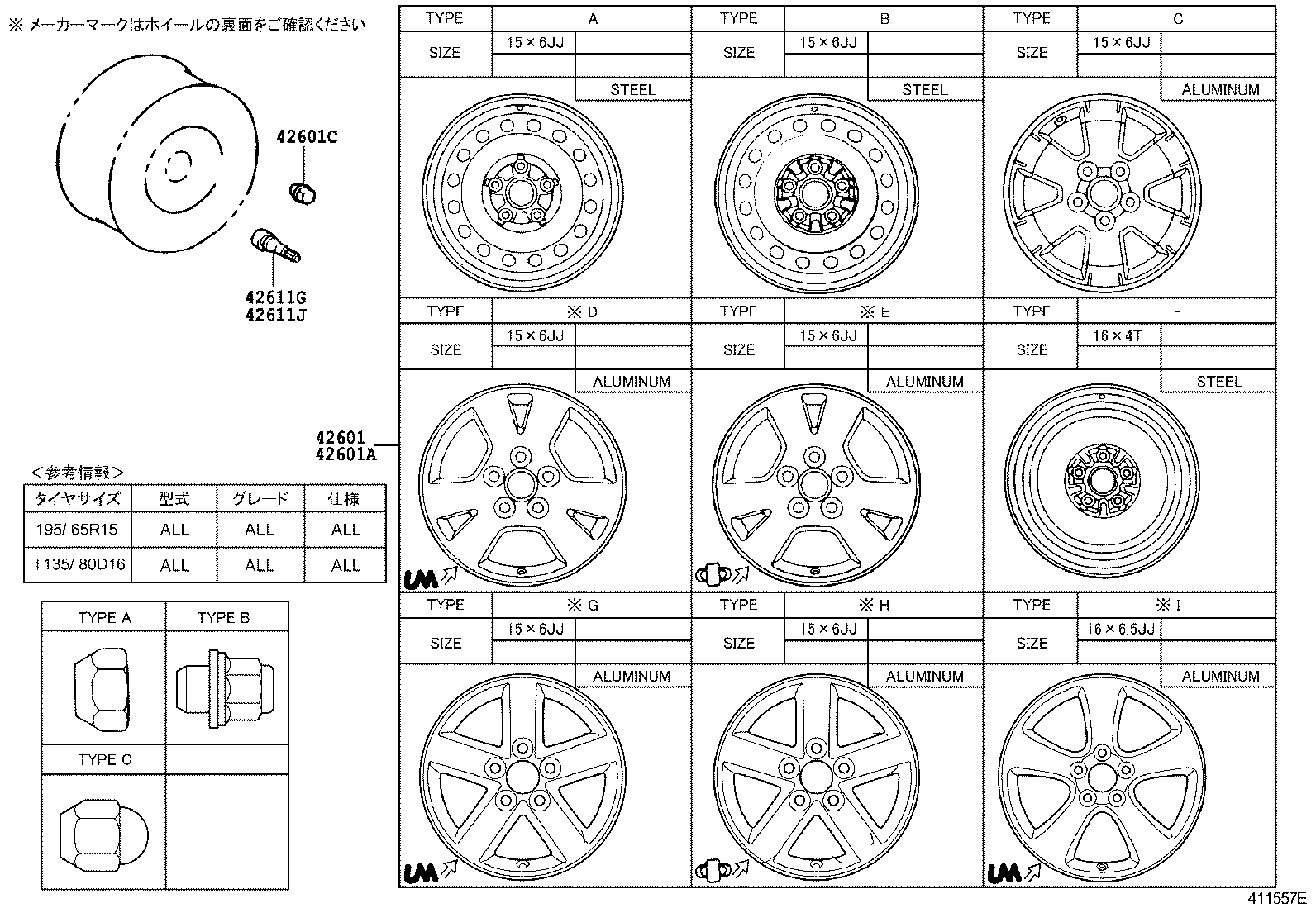

ILLUST NO. 1 OF 3(0111- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42611G 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42611-28590

AZR6#..4HC..Z

15X6JJ,ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),TYPE D:ｲﾗｽﾄ参照

 4
42611-28530

AZR6#..S,Z

15X6JJ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42611-28520

AZR6#..S,Z

15X6JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-44100

AZR6#

16X4T,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42601C - NUT, HUB (FOR AXLE)
90942-01007

AZR6#..4HC..Z

ﾓﾃﾞﾘｽﾀ- ｸﾞﾗﾝﾄﾞ ﾋﾞﾚﾂﾄ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 20
90942-01033

AZR6#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

AZR6#

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

AZR6#

 1

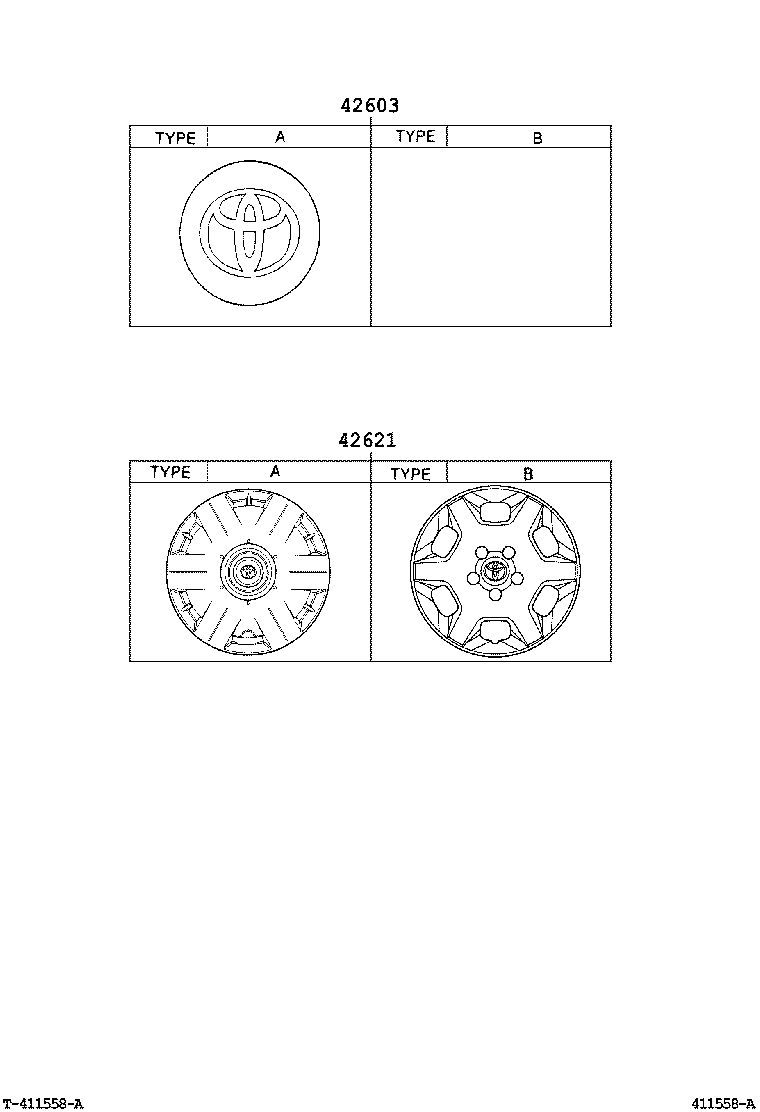

ILLUST NO. 3 OF 4(0111- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-28380

AZR6#..4HC..Z

*ALU,ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼｬﾙ *(F),TYPE A:ｲﾗｽﾄｻﾝｼｮｳ

 4
42638-28040

AZR6#..S,Z

*ALU,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42621 - CAP, WHEEL
42602-28350

AZR6#..4HC..Z

ﾓﾃﾞﾘｽﾀ- ｸﾞﾗﾝﾄﾞ ﾋﾞﾚﾂﾄ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 4

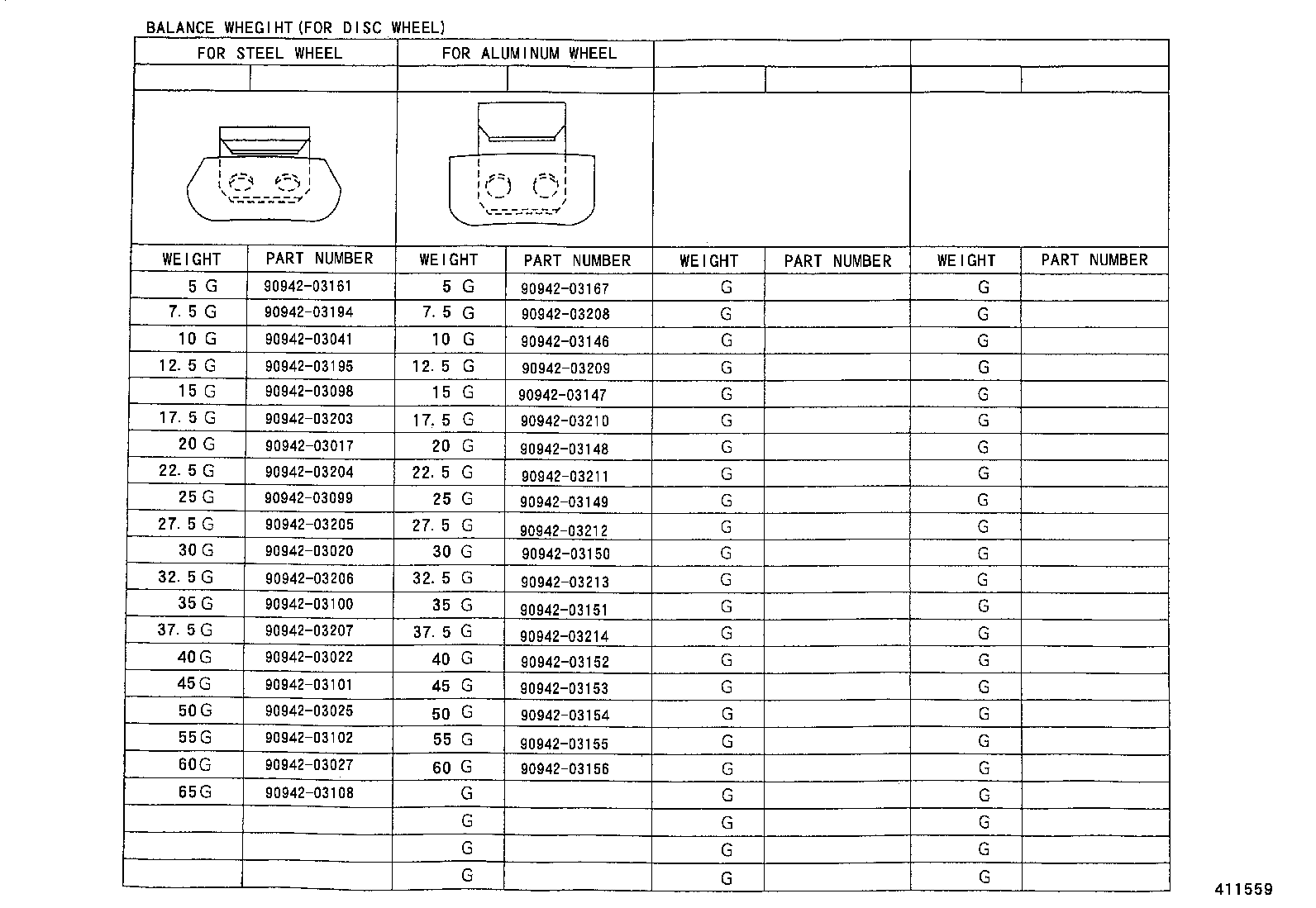

ILLUST NO. 4 OF 4(0111- )

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203041 9094203098 9094203099 9094203100 9094203101 9094203102 9094203108 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203161 9094203167 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214

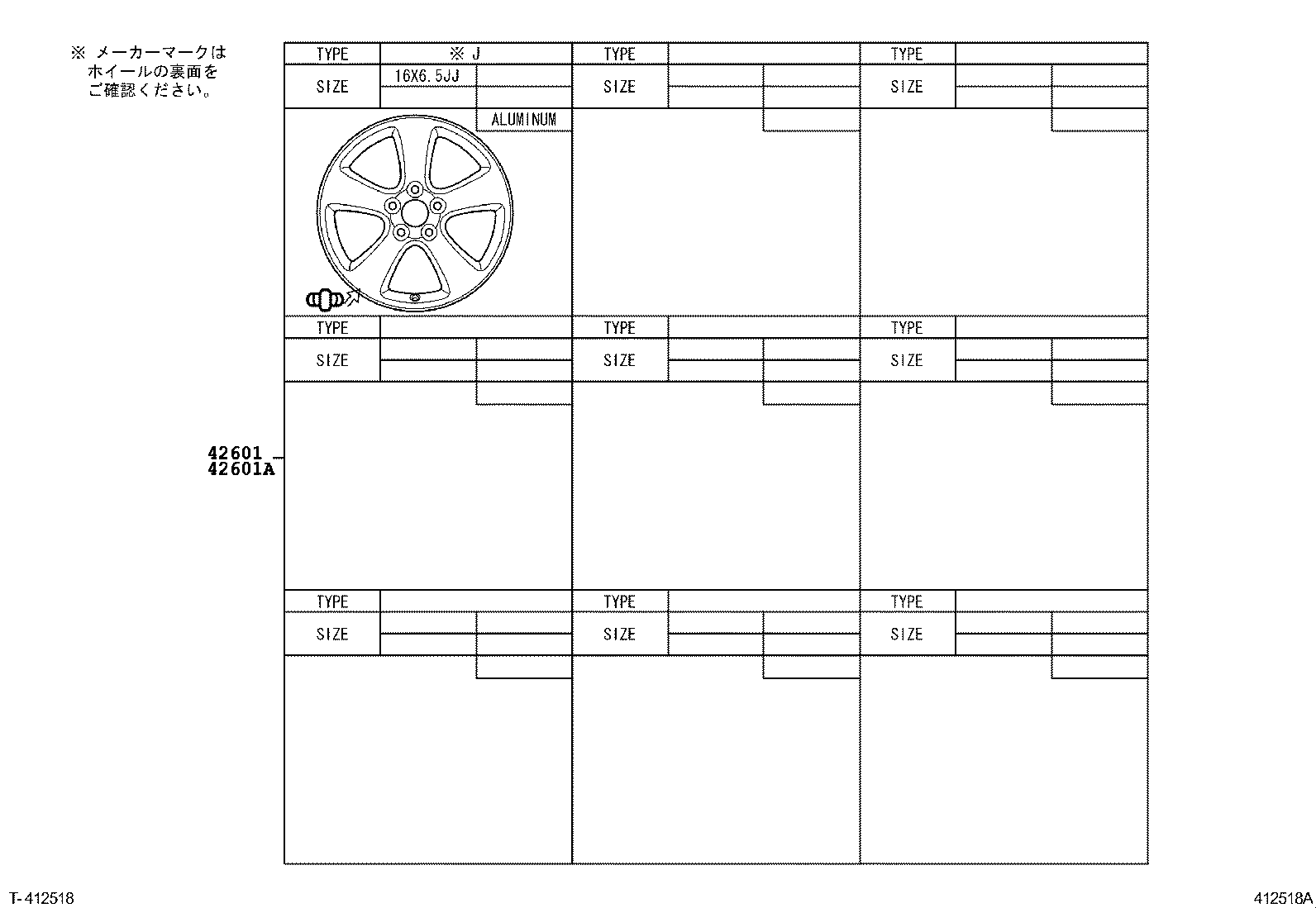

ILLUST NO. 2 OF 4(0111- )

Click highlighted areas on diagram

diagram 42601 42601A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-28590

AZR6#..4HC..Z

15X6JJ,ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),TYPE D:ｲﾗｽﾄ参照

 4
42611-28530

AZR6#..S,Z

15X6JJ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42611-28520

AZR6#..S,Z

15X6JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-44100

AZR6#

16X4T,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ

 1
