AZR65G-ARSQH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

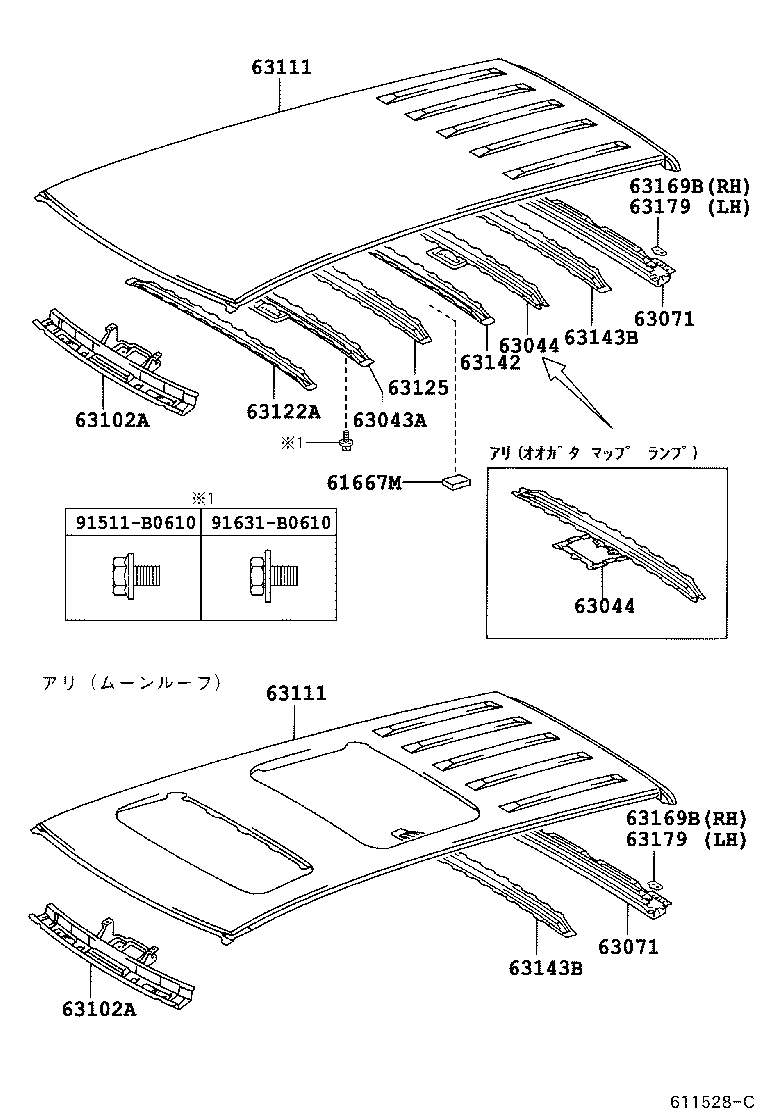

ILLUST NO. 1 OF 2(0111- )

Click highlighted areas on diagram

diagram 61667M 63043A 63044 63044 63071 63071 63102A 63102A 63111 63111 63122A 63125 63142 63143B 63143B 63169B 63169B 63179 63179 91511B0610 91631B0610
Part # Description Qty Price
63043A - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.1
63043-28010

AZR6#

 1
63044 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 A
63044-28020

AZR6#..S,X,Z

 1
63045-28010

AZR6#

ｱﾘ(ｵｵｶﾞﾀ ﾏﾂﾌﾟ ﾗﾝﾌﾟ)

 1
63044 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 A
63044-28020

AZR6#..S,X,Z

 1
63045-28010

AZR6#

ｱﾘ(ｵｵｶﾞﾀ ﾏﾂﾌﾟ ﾗﾝﾌﾟ)

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-28030

AZR6#

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-28030

AZR6#

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-28020

AZR6#

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-28020

AZR6#

 1
63111 - PANEL, ROOF
63111-28240

AZR6#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
63111-28230

AZR6#

 1
63111 - PANEL, ROOF
63111-28240

AZR6#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
63111-28230

AZR6#

 1
63122A - REINFORCEMENT, ROOF PANEL, FRONT
63122-28070

AZR6#

 1
63125 - REINFORCEMENT, ROOF PANEL, NO.2
63125-28060

AZR6#

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-28070

AZR6#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-28060

AZR6#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-28060

AZR6#

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-44010

AZR6#

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-44010

AZR6#

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-44010

AZR6#

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-44010

AZR6#

 1
Common parts
91511-B0610
91631-B0610

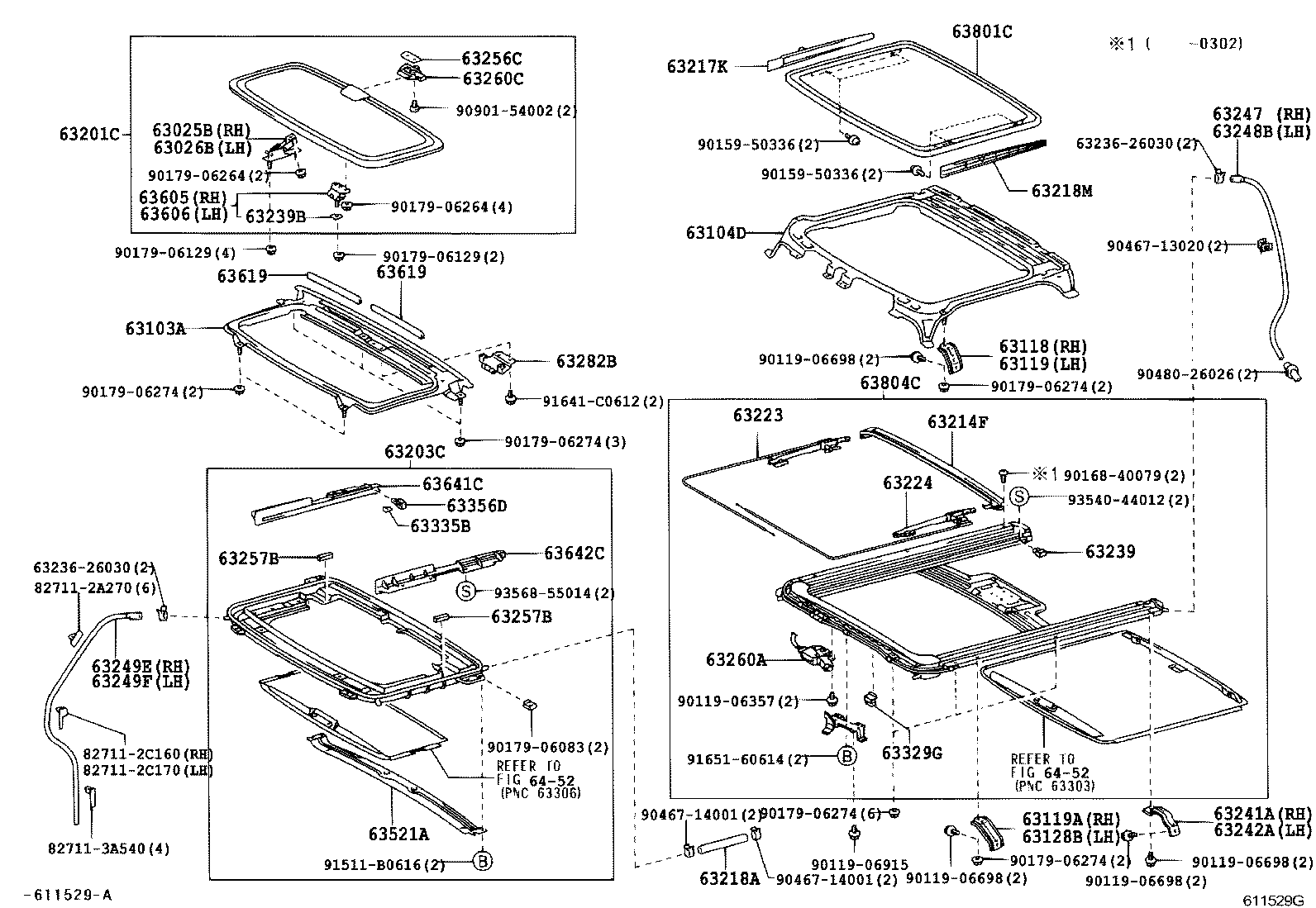

ILLUST NO. 2 OF 2(0111-0408)

Click highlighted areas on diagram

diagram 63025B 63026B 63103A 63104D 63118 63119 63119A 63128B 63201C 63203C 63214F 63217K 63218A 63218M 63223 63224 6323626030 6323626030 63239 63239B 63241A 63242A 63247 63248B 63249E 63249F 63256C 63257B 63257B 63260A 63260C 63282B 63329G 63335B 63356D 63521A 63605 63606 63619 63619 63641C 63642C 63801C 63804C 6452 6452 827112A270 827112C160 827112C170 827113A540 9011906357 9011906698 9011906698 9011906698 9011906698 9011906915 9015950336 9015950336 9016840079 9017906083 9017906129 9017906129 9017906264 9017906264 9017906274 9017906274 9017906274 9017906274 9017906274 9046713020 9046714001 9046714001 9048026026 9090154002 91511B0616 91641C0612 9165160614 9354044012 9356855014
Part # Description Qty Price
63025B - LINK SUB-ASSY, TILT ROOF, RH
63025-28050

AZR6#

 1
63026B - LINK SUB-ASSY, TILT ROOF, LH
63026-28050

AZR6#

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-28050

AZR6#

 1
63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63104-28060

AZR6#

 1
63118 - SUPPORT, ROOF PANEL, RH
63118-28030

AZR6#

 1
63119 - SUPPORT, ROOF PANEL, LH
63118-28030

AZR6#

 1
63119A - SUPPORT, ROOF PANEL, REAR RH
63118-28040

AZR6#

 1
63128B - SUPPORT, ROOF PANEL, REAR LH
63118-28040

AZR6#

 1
63201C - GLASS SUB-ASSY, TILT ROOF
63201-28360

AZR6#

*TT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
63203C - HOUSING SUB-ASSY, TILT ROOF
63203-28130B0

AZR6#

LT. GRAY,TRIM1#

 1
63203-28130A0

AZR6#..NOAH..(L,X)

IVORY,TRIM4#

 1
63214F - CHANNEL, ROOF DRIP, REAR
63214-28120

AZR6#

 1
63217K - GARNISH, SLIDING ROOF SIDE, RH
63217-28050

AZR6#

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63245-28070

AZR6#

長さ=345

 2
63218M - GARNISH, SLIDING ROOF SIDE, LH
63218-28050

AZR6#

 1
63223 - CABLE, SLIDING ROOF DRIVE, RH
63223-28040

AZR6#

 1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-28040

AZR6#

 1
63239 - STOPPER, SLIDING ROOF PANEL
63239-28050

AZR6#

 2
63239B - PAD, TILT ROOF GLASS
63239-26020

AZR6#

 2
63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63241-28030

AZR6#

 1
63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63241-28030

AZR6#

 1
63247 - HOSE, SLIDING ROOF HOUSING DRAIN
63247-28060

AZR6#

 1
63248B - HOSE, SLIDING ROOF
63248-28030

AZR6#

 1
63249E - HOSE, SLIDING ROOF DRAIN
63249-28070

AZR6#

 1
63249F - HOSE, SLIDING ROOF DRAIN
63249-28080

AZR6#

 1
63256C - SEAL, TILT ROOF GLASS
63256-44010

AZR6#

 1
63257B - SEAL, SLIDING ROOF
63257-28010

AZR6#

 2
63257B - SEAL, SLIDING ROOF
63257-28010

AZR6#

 2
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-28131

AZR6#

 1
63260-28130

AZR6#

 1
63260C - HANDLE ASSY, TILT ROOF LOCK
63260-26030

AZR6#

 1
63282B - STRIKER, TILT ROOF LOCK
63282-44021

AZR6#

 1
63282-44020

AZR6#

 1
63329G - STOPPER, SUNSHADE LOCK
63329-28090

AZR6#

 2
63335B - CUSHION, SUNSHADE TRIM, NO.1
63335-28060

AZR6#

 2
63356D - HOLDER, SUNSHADE TRIM
63356-28020

AZR6#

 2
63521A - STRENGTH, ROOF PANEL
63521-28020

AZR6#

 1
63605 - HINGE SUB-ASSY, TILT ROOF, RH
63605-28070

AZR6#

 1
63606 - HINGE SUB-ASSY, TILT ROOF, LH
63606-28070

AZR6#

 1
63619 - COVER, TILT ROOF PANEL
63619-28050

AZR6#

 2
63619-44010

AZR6#

 2
63619 - COVER, TILT ROOF PANEL
63619-28050

AZR6#

 2
63619-44010

AZR6#

 2
63641C - RAIL, SUNSHADE, NO.1 FRONT RH
63681-28010

AZR6#

 1
63642C - RAIL, SUNSHADE, NO.1 FRONT LH
63682-28010

AZR6#

 1
63801C - GLASS SUB-ASSY, REAR SLIDE ROOF
63801-28140

AZR6#

*TT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
63804C - HOUSING SUB-ASSY, REAR SLIDE ROOF
63804-28030B0

AZR6#

LT. GRAY,TRIM1#

 1
63804-28030A0

AZR6#..NOAH..(L,X)

IVORY,TRIM4#

 1
Common parts
63236-26030
82711-2A270
82711-2C160
82711-2C170
82711-3A540
90119-06357
90119-06698
90119-06915
90159-50336
90168-40079
90179-06083
90179-06129
90179-06264
90179-06274
90467-13020
90467-14001
90480-26026
90901-54002
91511-B0616
91641-C0612
91651-60614
93540-44012
93568-55014
Linked diagrams
6452
