AZR65G-ARSEH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

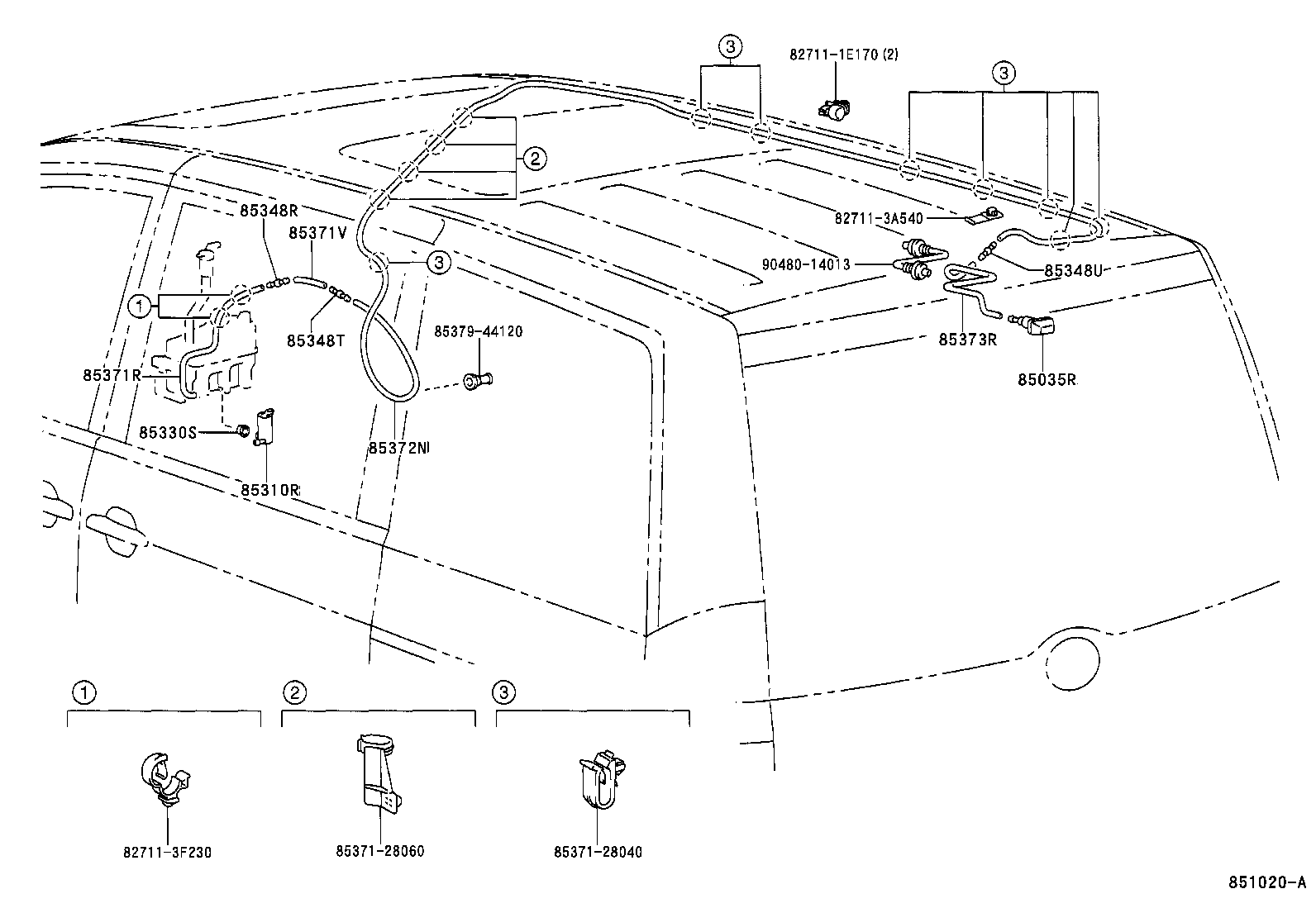

Click highlighted areas on diagram

diagram 827111E170 827113A540 827113F230 85035R 85310R 85330S 85348R 85348T 85348U 8537128040 8537128060 85371R 85371V 85372N 85373R 8537944120 9048014013
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-28140

AZR6#

 1
85310R - MOTOR ASSY, REAR WASHER
85330-60140

AZR6#

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

AZR6#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

AZR6#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AZR6#

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

AZR6#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06013

AZR6#

*H,L=1000

 1
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
90099-33299

AZR6#

*H,L=30

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33595

AZR6#

長さ=4600

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

AZR6#

*H,L=280

 1
90099-33080

AZR6#

*H,L=300

 1
Common parts
82711-1E170
82711-3A540
82711-3F230
85371-28040
85371-28060
85379-44120
90480-14013
