AZR65G-ARSEH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

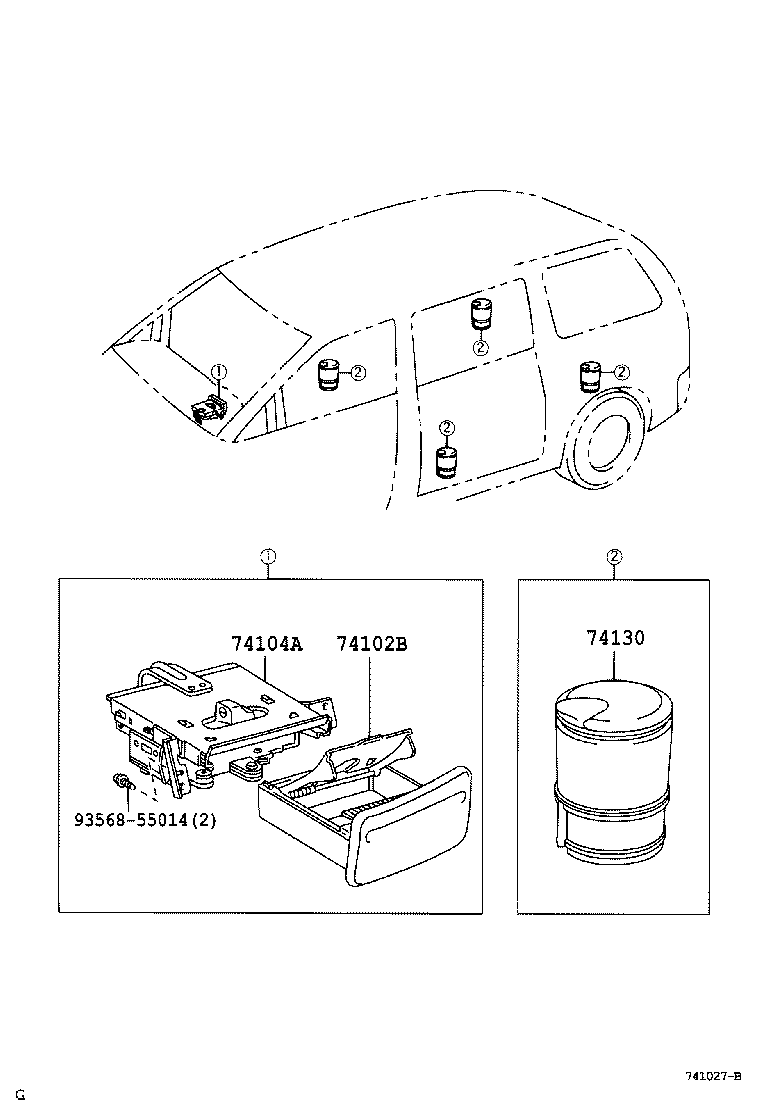

Click highlighted areas on diagram

diagram 74102B 74104A 74130 9356855014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-28080E0

AZR6#..NOAH..(L,X)

FAWN,TRIM4#

 1
74102-28080B0

AZR6#

STONE,TRIM1#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-28120

AZR6#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-28040C0

AZR6#..S;AZR6#..VOXY

BLACK,TRIM1#

 1
74130-28040C0

AZR6#..NOAH..(L,X)

BLACK,TRIM1#,4#

 1
Common parts
93568-55014
