AZR65G-ARSEH (2001)
Toyota Noah/Voxy
Production
Nov 2001
-
Aug 2004
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0111- )

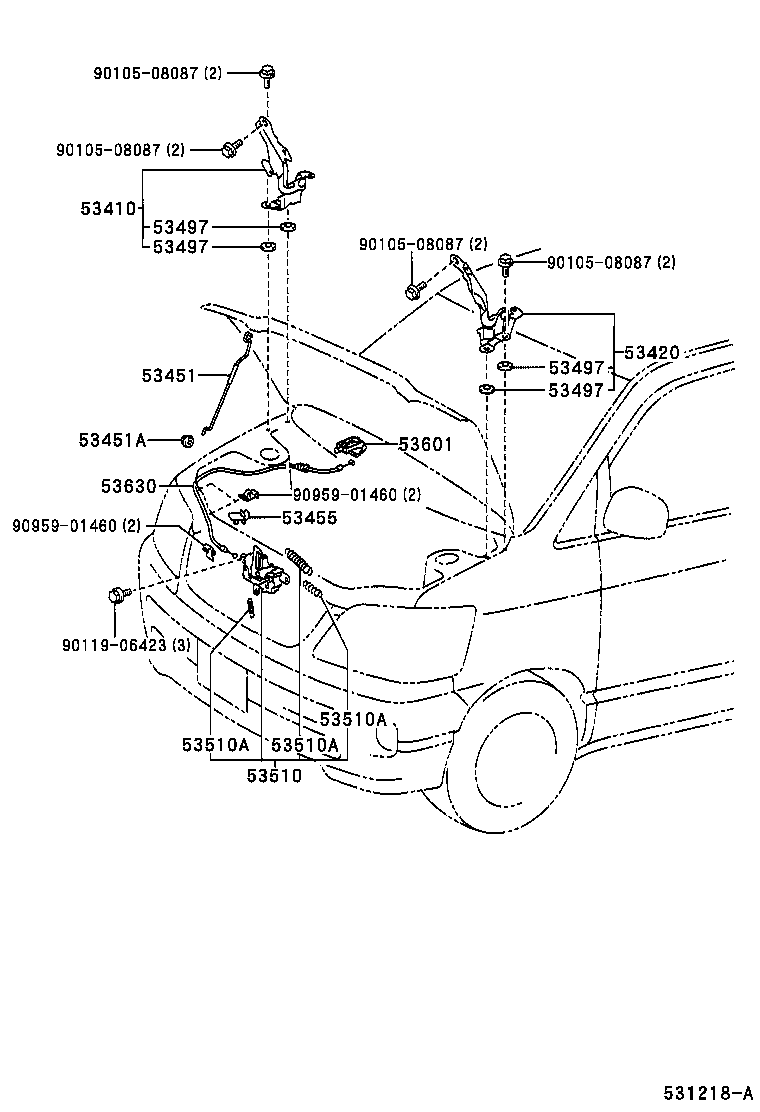

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-28050 |
AZR6# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-28050 |
AZR6# |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-28080 |
AZR6# |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15028 |
AZR6# |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-28020 |
AZR6# |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
AZR6# 厚さ=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
AZR6# 厚さ=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
AZR6# 厚さ=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
AZR6# 厚さ=0.5 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-28080 |
AZR6# |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09052 |
AZR6# 線径=0.9,ｺｲﾙ巻数=20.75 |
1 | ||
| 90506-16077 |
AZR6# 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-12063 |
AZR6# 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09052 |
AZR6# 線径=0.9,ｺｲﾙ巻数=20.75 |
1 | ||
| 90506-16077 |
AZR6# 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-12063 |
AZR6# 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09052 |
AZR6# 線径=0.9,ｺｲﾙ巻数=20.75 |
1 | ||
| 90506-16077 |
AZR6# 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 90506-12063 |
AZR6# 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010B2 |
AZR6# STONE,TRIM1# |
1 | ||
| 53601-52010E0 |
AZR6#..NOAH..(L,X) FAWN,TRIM4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-28100 |
AZR6# |
1 | ||
| Common parts | ||||
| 90105-08087 | ||||
| 90119-06423 | ||||
| 90959-01460 | ||||
