AZR65G-ARSEH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

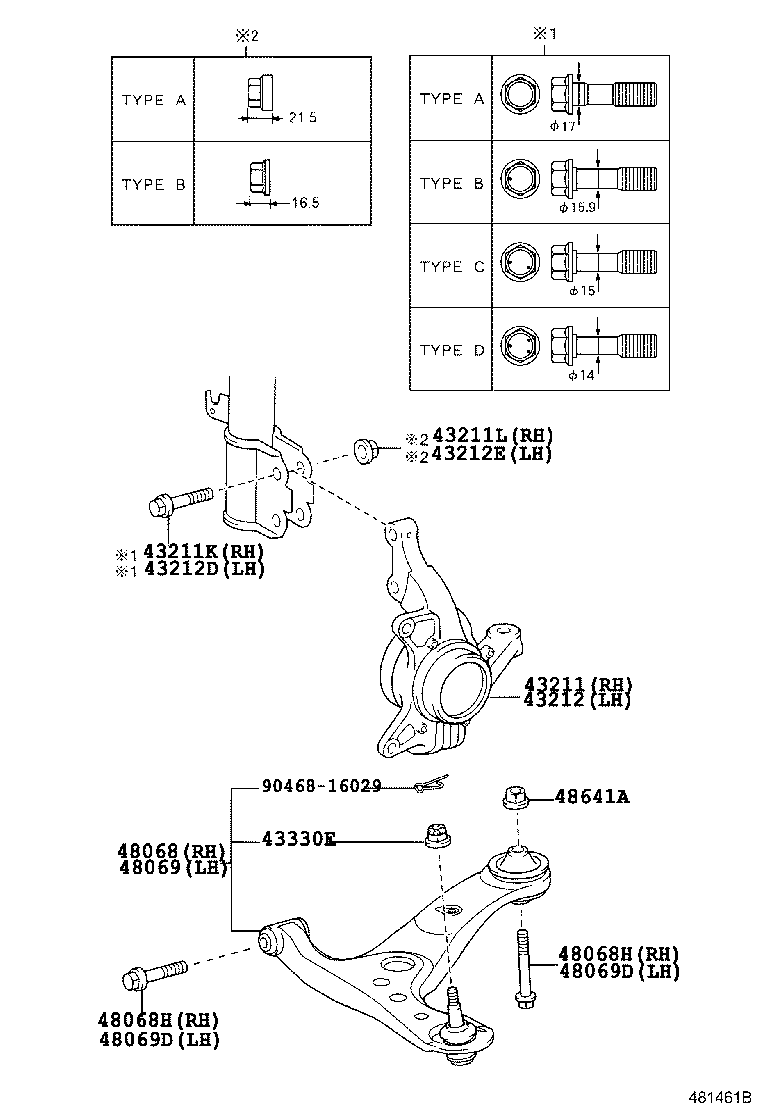

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330E 48068 48068H 48068H 48069 48069D 48069D 48641A 9046816029
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-44050

AZR65

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17005

AZR6#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17004

AZR6#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17003

AZR6#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17008

AZR6#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17001

AZR6#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90179-17001

AZR6#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
43212 - KNUCKLE, STEERING, LH
43212-44050

AZR65

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17005

AZR6#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17004

AZR6#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17003

AZR6#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17008

AZR6#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17001

AZR6#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90179-17001

AZR6#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
90171-14011

AZR6#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-29235

AZR6#

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14086

AZR6#

 2
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14086

AZR6#

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-29235

AZR6#

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14086

AZR6#

 2
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14086

AZR6#

 2
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90179-14068

AZR6#

 2
Common parts
90468-16029
