AZR65G-ARSEH (2001)
Toyota Noah/Voxy
Production
Nov 2001
-
Aug 2004
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

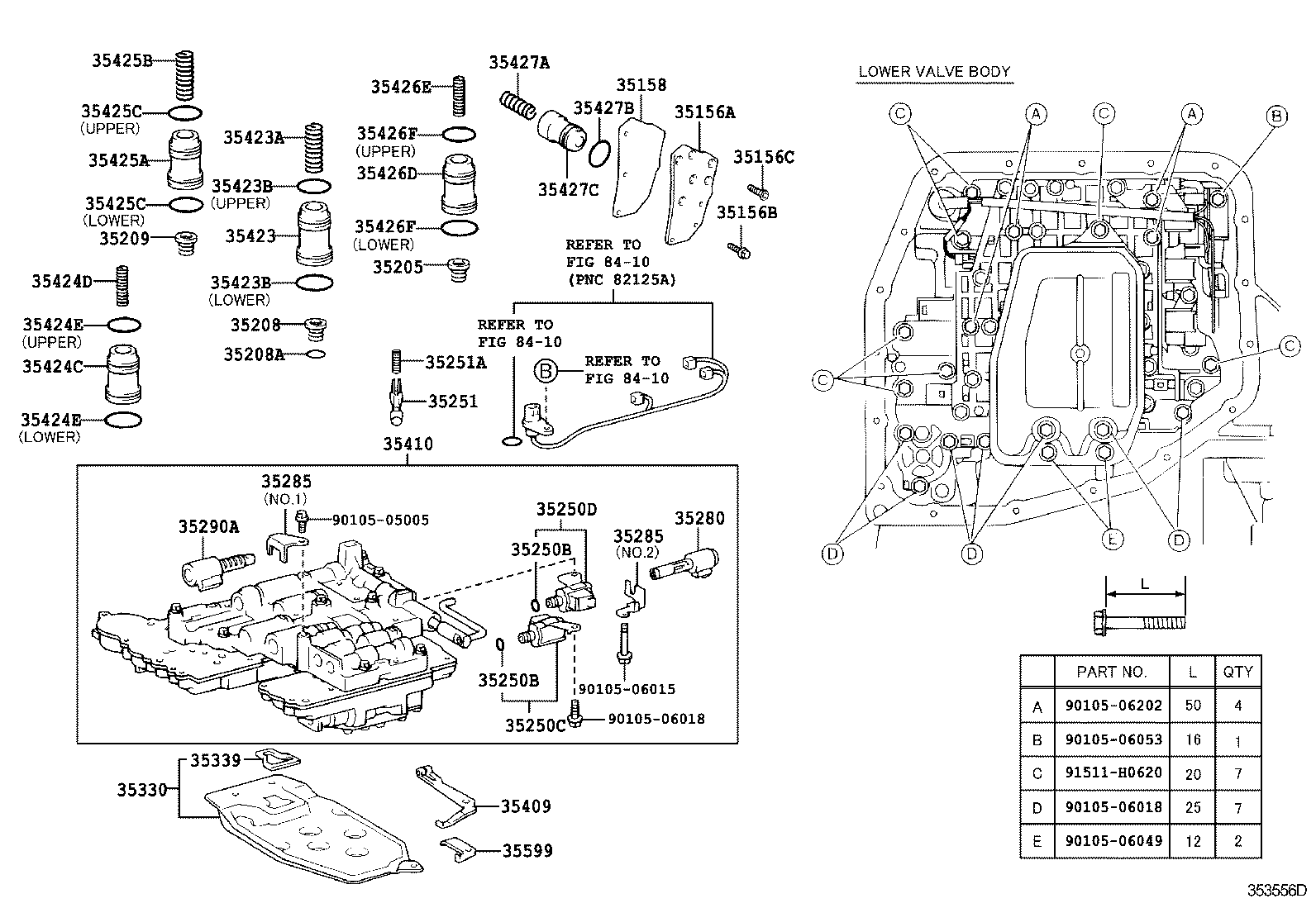

ILLUST NO. 2 OF 2(0111- )4HC
Click highlighted areas on diagram
A248E,A248F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12030 |
AZR6# |
2 | ||
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12030 |
AZR6# |
2 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-12030 |
AZR6# |
1 | ||
| 35197 - CLAMP, TRANSAXLE APPLY TUBE, NO.3 | ||||
| 35197-12030 |
AZR6# |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-12030 |
AZR6# |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-28040 |
AZR65 |
1 | ||
| 35899 - TUBE, GOVERNOR PRESSURE | ||||
| 35899-12040 |
AZR6# |
1 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| 91611-G0612 | ||||

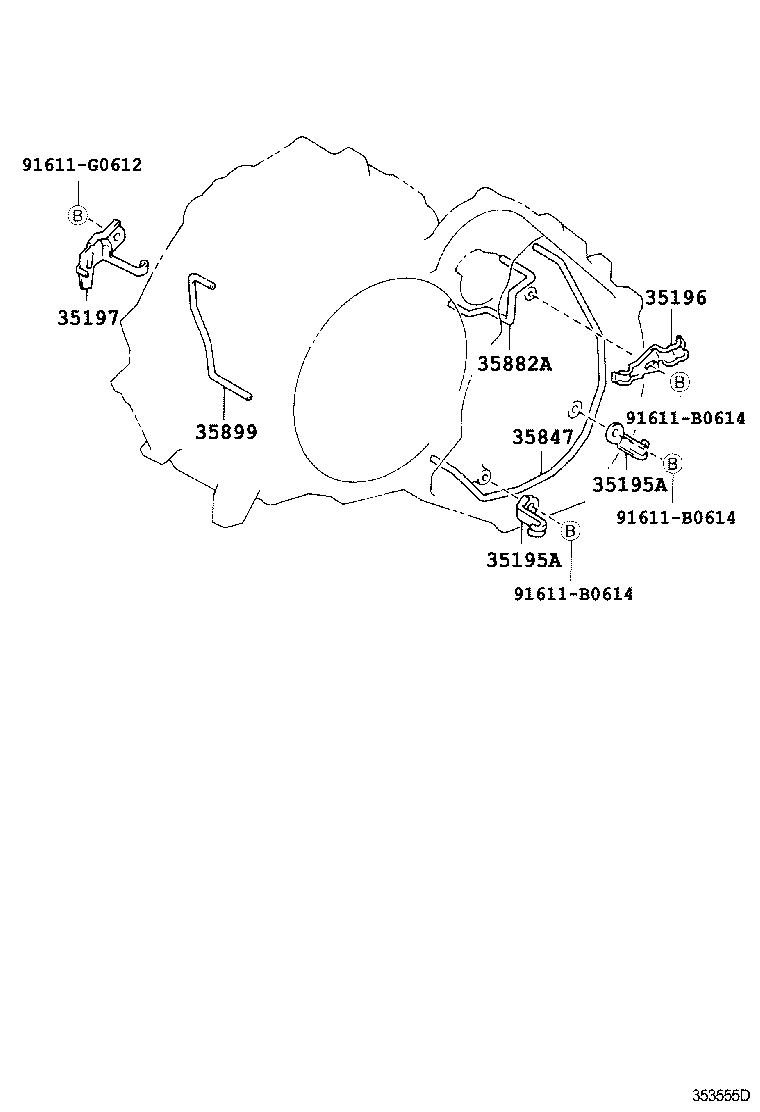

ILLUST NO. 1 OF 2(0111- )4HC
Click highlighted areas on diagram
A248E,A248F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35156A - PLATE, TRANSMISSION CASE, NO.2 | ||||
| 35108-12020 |
AZR6# |
1 | ||
| 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90105-06049 |
AZR6# |
2 | ||
| 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90149-60041 |
AZR6# |
7 | ||
| 35158 - GASKET, TRANSMISSION CASE, NO.2 PLATE | ||||
| 35158-12020 |
AZR6# |
1 | ||
| 35205 - SPRING SUB-ASSY, C-3 ACCUMULATOR | ||||
| 35205-20030 |
AZR6# |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35205-20040 |
AZR6# |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
AZR6# |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-20030 |
AZR6# |
1 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
AZR6# |
2 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
AZR6# |
2 | ||
| 35250C - SOLENOID ASSY, TRANSMISSION NO.1 | ||||
| 35250-12010 |
AZR6# |
1 | ||
| 35250D - SOLENOID ASSY, TRANSMISSION NO.2 | ||||
| 35250-12020 |
AZR6# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
AZR6# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
AZR6# |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-44010 |
AZR6# |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-44010 |
AZR6# NO.2 |
1 | ||
| 35285-12020 |
AZR6# NO.1 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-44010 |
AZR6# NO.2 |
1 | ||
| 35285-12020 |
AZR6# NO.1 |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-12020 |
AZR6# |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-12040 |
AZR6# |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12020 |
AZR6# |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-12030 |
AZR6# |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-44030 |
AZR6# |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-12020 |
AZR6# |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-22034 |
AZR6# |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
AZR6# 下側 |
1 | ||
| 90301-21012 |
AZR6# 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
AZR6# 下側 |
1 | ||
| 90301-21012 |
AZR6# 上側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-12050 |
AZR6# |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22058 |
AZR6# |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
AZR6# 上側 |
1 | ||
| 90301-29011 |
AZR6# 下側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
AZR6# 上側 |
1 | ||
| 90301-29011 |
AZR6# 下側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-12050 |
AZR6# |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22057 |
AZR6# |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
AZR6# 下側 |
1 | ||
| 90301-26012 |
AZR6# 上側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
AZR6# 下側 |
1 | ||
| 90301-26012 |
AZR6# 上側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35423-12020 |
AZR6# |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-22034 |
AZR6# |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
AZR6# 下側 |
1 | ||
| 90301-21012 |
AZR6# 上側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
AZR6# 下側 |
1 | ||
| 90301-21012 |
AZR6# 上側 |
1 | ||
| 35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90501-23126 |
AZR6# |
1 | ||
| 35427B - RING, O (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
AZR6# |
1 | ||
| 35427C - PISTON, B-4 ACCUMULATOR | ||||
| 35427-13010 |
AZR6# |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-12020 |
AZR6# |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06015 | ||||
| 90105-06018 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06202 | ||||
| 91511-H0620 | ||||
| Linked diagrams | ||||
| 8410 | ||||
