AZR65G-AREEH (2004)

Toyota Noah/Voxy

Production Aug 2004 - Jun 2007
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

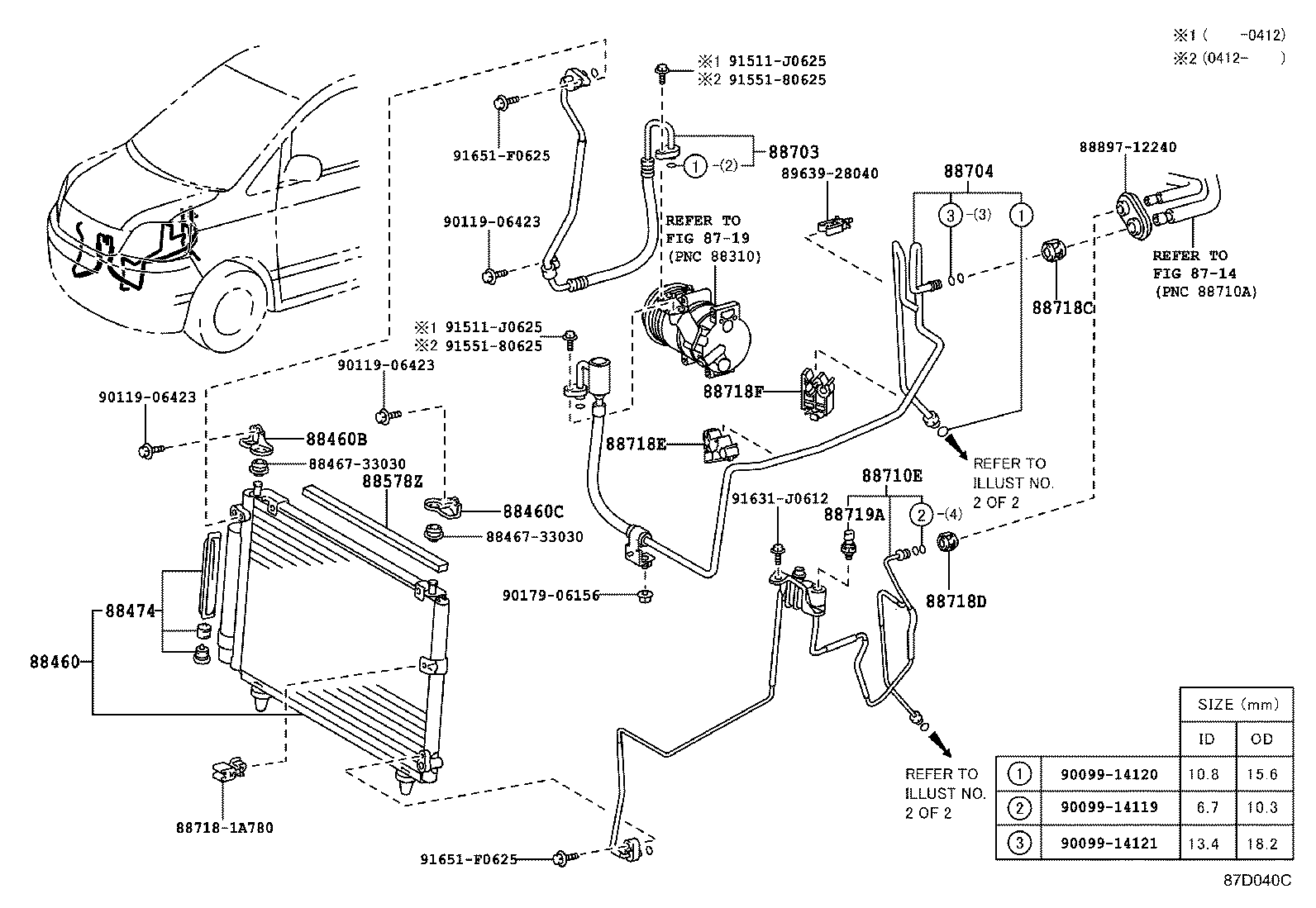

ILLUST NO. 1 OF 2(0408- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ

diagram 8714 8719 88460 88460B 88460C 8846733030 8846733030 88474 88578Z 88703 88704 88710E 887181A780 88718C 88718D 88718E 88718F 88719A 8889712240 8963928040 9009914119 9009914120 9009914121 9011906423 9011906423 9011906423 9017906156 91511J0625 91511J0625 9155180625 9155180625 91631J0612 91651F0625 91651F0625
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-28580

AZR6#

 1
88460-28580

AZR6#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-2J800

AZR6#

 1
88688-2J800

AZR6#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-2J810

AZR6#

 1
88688-2J810

AZR6#

 1
88474 - DRYER, COOLER
88474-47010

AZR6#

 1
88474-47010

AZR6#

 1
88578Z - PACKING, COOLER, NO.1
88578-28550

AZR6#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-28120

AZR6#

 1
88703-28060

AZR6#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-28160

AZR6#

 1
88704-28220

AZR6#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-2X100

AZR6#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88710-2R750

AZR6#

 1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-2D140

AZR6#

 2
88718-2D140

AZR6#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 2
88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88718-2D150

AZR6#

 2
88718-2D150

AZR6#

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 2
88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)
88718-2J210

AZR6#

 1
88718-2J210

AZR6#

 1
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-44230

AZR6#

 1
88718-44230

AZR6#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020

AZR6#

 1
Common parts
88467-33030
88718-1A780
88897-12240
89639-28040
90099-14119
90099-14120
90099-14121
90119-06423
90179-06156
91511-J0625
91551-80625
91631-J0612
91651-F0625
Linked diagrams
8714
8719
