Toyota Noah/voxy AZR65 MIRROR - JDM Part Detective

AZR65G-ANENH (2004)

Toyota Noah/Voxy

Production Aug 2004 - Jun 2007

Engine 1AZFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

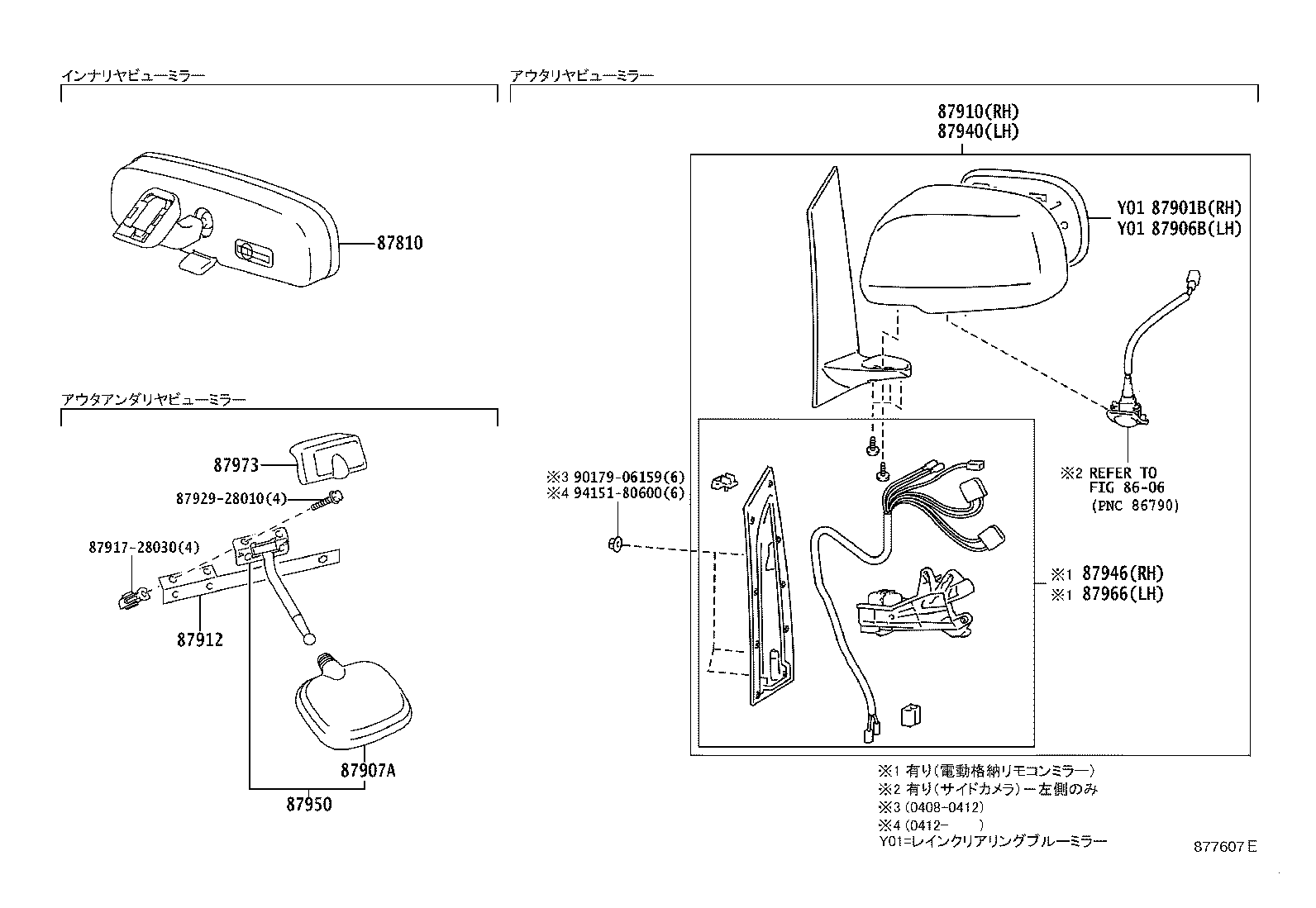

(0408-0504)

Click highlighted areas on diagram

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52040	AZR6#	08/2004 - 12/2006	1
87810-52041	AZR6#	01/2007 - 12/2999	1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-28750	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾐﾗｰ OR ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗｰ	11/2001 - 08/2004	1
87931-48140	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗｰﾋｰﾀｰﾂｷ	11/2001 - 08/2004	1
87931-48130	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-	11/2001 - 08/2004	1
87931-28800	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-	08/2004 - 12/2999	1
87931-28750	AZR6#..Z ｷﾗﾒｷ *(A)	04/2005 - 12/2999	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-48140	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ	11/2001 - 08/2004	1
87961-28730	AZR6#..Z ｷﾗﾒｷ *(A)	04/2005 - 12/2999	1
87961-48130	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-	11/2001 - 08/2004	1
87961-28780	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-	08/2004 - 12/2999	1
87961-28730	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾐﾗｰ OR ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗｰ	11/2001 - 08/2004	1
87907A - MIRROR SUB-ASSY, OUTER UNDER REAR VIEW
87907-28010	AZR6#..S,Z	11/2001 - 08/2003	1
87907-28010	AZR6#..L,V,X	11/2001 - 08/2004	1
87907-28010	AZR6#..TRASX,X,YY	08/2004 - 12/2999	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-28750A1	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,WHITE PM.,042	11/2001 - 08/2004	1
87910-28750B1	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87910-28750B0	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,SILVER ME.,1D4	11/2001 - 08/2004	1
87910-28750J0	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87910-28760A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,WHITE PM.,042	11/2001 - 08/2004	1
87910-28740	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾐﾗ-	11/2001 - 08/2004	1
87910-28760B1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87910-28780B1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87910-28780A0	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,SUPER WHITE 2,040	11/2001 - 08/2004	1
87910-28760B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,SILVER ME.,1D4	11/2001 - 08/2004	1
87910-28760D1	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,LT.ROSE M.M.,3Q1	11/2001 - 08/2004	1
87910-28780B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,SILVER ME.,1D4	11/2001 - 08/2004	1
87910-28780J0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87910-28760J0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87910-28800C0	AZR6#..05S ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,BLACK,202	08/2004 - 06/2007	1
87910-28780A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,WHITE PM.,042	11/2001 - 08/2004	1
87910-28760A0	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,SUPER WHITE 2,040	11/2001 - 08/2004	1
87910-28800A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,WHITE PM.,042	08/2004 - 06/2007	1
87910-28780D1	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,LT.ROSE M.M.,3Q1	11/2001 - 08/2004	1
87910-28800D0	AZR6#..NOAH..(X,YY) ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,RED MC.,3M8	08/2004 - 06/2007	1
87910-28800B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,SILVER ME.,1D4	08/2004 - 06/2007	1
87910-28800J0	AZR6#..S,TRASX,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK BLUE MC.,8P8	08/2004 - 06/2007	1
87910-28790	AZR6#..Z ｷﾗﾒｷ *(A)	04/2005 - 12/2999	1
87912 - PROTECTOR, OUTER MIRROR
87912-28030	AZR6#..TRASX,X,YY	08/2004 - 12/2999	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-28730A1	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,WHITE PM.,042	11/2001 - 08/2004	1
87940-28720	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾐﾗ-	11/2001 - 08/2004	1
87940-28730B0	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,SILVER ME.,1D4	11/2001 - 08/2004	1
87940-28730B1	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87940-28740A0	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,SUPER WHITE 2,040	11/2001 - 08/2004	1
87940-28740B1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87940-28760A0	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,SUPER WHITE 2,040	11/2001 - 08/2004	1
87940-28740A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,WHITE PM.,042	11/2001 - 08/2004	1
87940-28740J0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87940-28760B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,SILVER ME.,1D4	11/2001 - 08/2004	1
87940-28740D1	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,LT.ROSE M.M.,3Q1	11/2001 - 08/2004	1
87940-28760J0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87940-28760D1	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,LT.ROSE M.M.,3Q1	11/2001 - 08/2004	1
87940-28760B1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87940-28730J0	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87940-28780A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,WHITE PM.,042	08/2004 - 06/2007	1
87940-28740B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,SILVER ME.,1D4	11/2001 - 08/2004	1
87940-28780D0	AZR6#..NOAH..(X,YY) ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,RED MC.,3M8	08/2004 - 06/2007	1
87940-28780B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,SILVER ME.,1D4	08/2004 - 06/2007	1
87940-28780J0	AZR6#..S,TRASX,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK BLUE MC.,8P8	08/2004 - 06/2007	1
87940-28760A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,WHITE PM.,042	11/2001 - 08/2004	1
87940-28780C0	AZR6#..05S ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗｰ,BLACK,202	08/2004 - 06/2007	1
87940-28770	AZR6#..Z ｷﾗﾒｷ *(A)	04/2005 - 12/2999	1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-28800	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾉｿﾞｸ(ｷﾗﾒｷ*(A))	08/2004 - 06/2007	1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-28140	AZR6#..TRASX,X,YY	08/2004 - 12/2999	1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-28780	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾉｿﾞｸ(ｷﾗﾒｷ*(A))	08/2004 - 06/2007	1
87973 - COVER, OUTER UNDER RR VIEW MIRROR
87973-28040	AZR6#..TRASX,X,YY	08/2004 - 12/2999	1
87973-28040	AZR6#..L,V,X	11/2001 - 08/2004	1
Common parts
87917-28030
87929-28010
90179-06159
94151-80600
Linked diagrams
8606

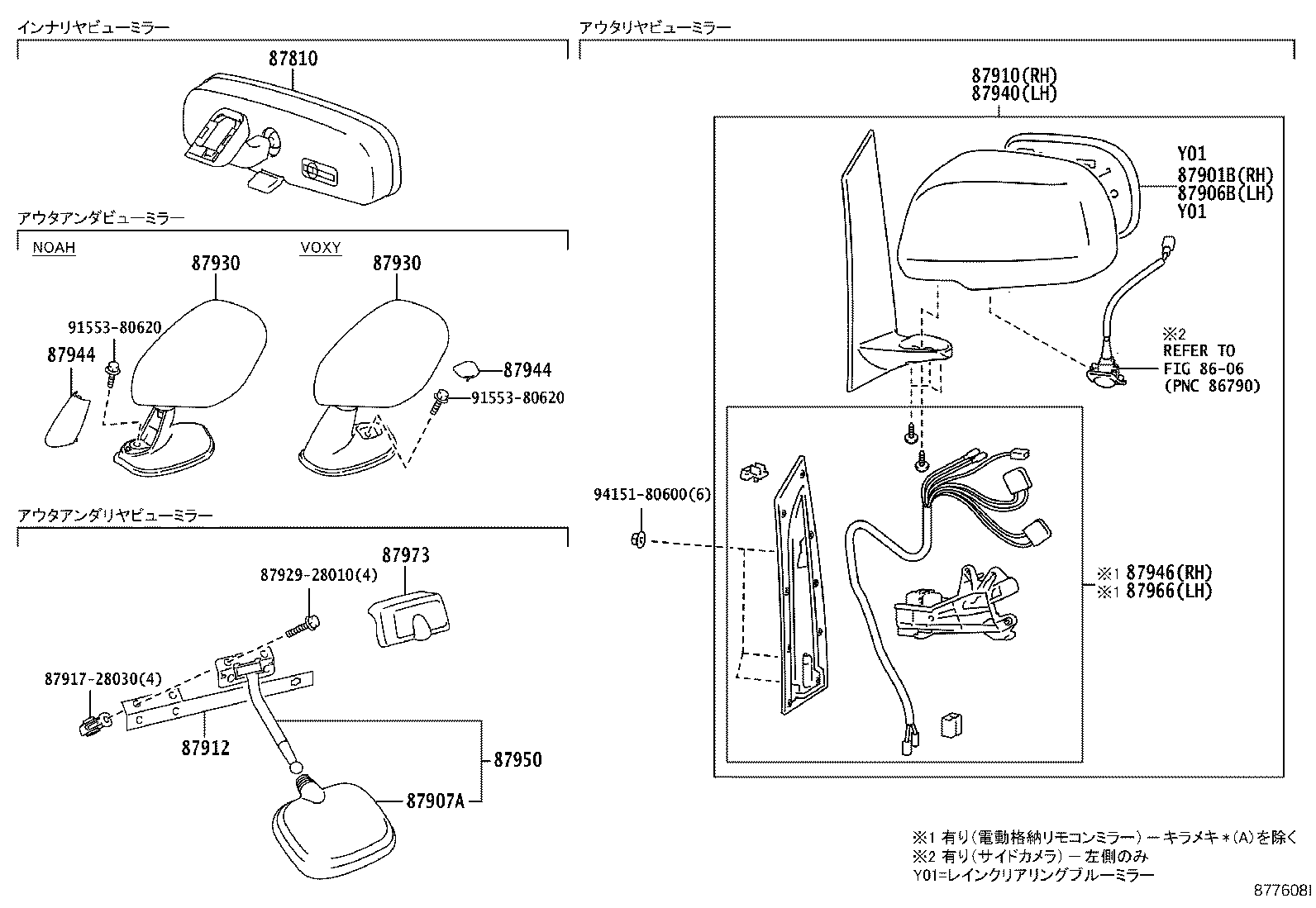

(0504- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52040	AZR6#	08/2004 - 12/2006	1
87810-52041	AZR6#	01/2007 - 12/2999	1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-28750	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾐﾗｰ OR ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗｰ	11/2001 - 08/2004	1
87931-48140	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗｰﾋｰﾀｰﾂｷ	11/2001 - 08/2004	1
87931-48130	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-	11/2001 - 08/2004	1
87931-28800	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-	08/2004 - 12/2999	1
87931-28750	AZR6#..Z ｷﾗﾒｷ *(A)	04/2005 - 12/2999	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-48140	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ	11/2001 - 08/2004	1
87961-28730	AZR6#..Z ｷﾗﾒｷ *(A)	04/2005 - 12/2999	1
87961-48130	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-	11/2001 - 08/2004	1
87961-28780	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-	08/2004 - 12/2999	1
87961-28730	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾐﾗｰ OR ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗｰ	11/2001 - 08/2004	1
87907A - MIRROR SUB-ASSY, OUTER UNDER REAR VIEW
87907-28010	AZR6#..S,Z	11/2001 - 08/2003	1
87907-28010	AZR6#..L,V,X	11/2001 - 08/2004	1
87907-28010	AZR6#..TRASX,X,YY	08/2004 - 12/2999	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-28750A1	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,WHITE PM.,042	11/2001 - 08/2004	1
87910-28750B1	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87910-28750B0	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,SILVER ME.,1D4	11/2001 - 08/2004	1
87910-28750J0	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87910-28760A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,WHITE PM.,042	11/2001 - 08/2004	1
87910-28740	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾐﾗ-	11/2001 - 08/2004	1
87910-28760B1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87910-28780B1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87910-28780A0	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,SUPER WHITE 2,040	11/2001 - 08/2004	1
87910-28760B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,SILVER ME.,1D4	11/2001 - 08/2004	1
87910-28760D1	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,LT.ROSE M.M.,3Q1	11/2001 - 08/2004	1
87910-28780B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,SILVER ME.,1D4	11/2001 - 08/2004	1
87910-28780J0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87910-28760J0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87910-28800C0	AZR6#..05S ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,BLACK,202	08/2004 - 06/2007	1
87910-28780A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,WHITE PM.,042	11/2001 - 08/2004	1
87910-28760A0	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,SUPER WHITE 2,040	11/2001 - 08/2004	1
87910-28800A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,WHITE PM.,042	08/2004 - 06/2007	1
87910-28780D1	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,LT.ROSE M.M.,3Q1	11/2001 - 08/2004	1
87910-28800D0	AZR6#..NOAH..(X,YY) ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,RED MC.,3M8	08/2004 - 06/2007	1
87910-28800B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,SILVER ME.,1D4	08/2004 - 06/2007	1
87910-28800J0	AZR6#..S,TRASX,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK BLUE MC.,8P8	08/2004 - 06/2007	1
87910-28790	AZR6#..Z ｷﾗﾒｷ *(A)	04/2005 - 12/2999	1
87912 - PROTECTOR, OUTER MIRROR
87912-28030	AZR6#..TRASX,X,YY	08/2004 - 12/2999	1
87930 - DEVICE ASSY, FRONT FENDER SIDE VIEW, LH
87930-28040A1	AZR6#..NOAH WHITE PM.,042	08/2005 - 06/2007	1
87930-28040C0	AZR6#..YY BLACK,202	08/2005 - 06/2007	1
87930-28040B1	AZR6#..NOAH..(S,X) DARK GRAY M.M.,1E2	08/2005 - 06/2007	1
87930-28040B0	AZR6#..NOAH SILVER ME.,1D4	08/2005 - 06/2007	1
87930-28040J0	AZR6#..NOAH..(S,X) DARK BLUE MC.,8P8	08/2005 - 06/2007	1
87930-28040D0	AZR6#..NOAH..(X,YY) RED MC.,3M8	08/2005 - 06/2007	1
87930-28050B2	AZR6#..Z;AZR6#..NOAH..08S..X ﾘﾐﾃｯﾄﾞ (P) OR ｷﾗﾒｷ (A),GRAY M.,1D2	08/2005 - 12/2999	1
87930-28050C0	AZR6#..Z ｷﾗﾒｷ *(A),BLACK,202	04/2005 - 12/2999	1
87930 - DEVICE ASSY, FRONT FENDER SIDE VIEW, LH
87930-28040A1	AZR6#..NOAH WHITE PM.,042	08/2005 - 06/2007	1
87930-28040C0	AZR6#..YY BLACK,202	08/2005 - 06/2007	1
87930-28040B1	AZR6#..NOAH..(S,X) DARK GRAY M.M.,1E2	08/2005 - 06/2007	1
87930-28040B0	AZR6#..NOAH SILVER ME.,1D4	08/2005 - 06/2007	1
87930-28040J0	AZR6#..NOAH..(S,X) DARK BLUE MC.,8P8	08/2005 - 06/2007	1
87930-28040D0	AZR6#..NOAH..(X,YY) RED MC.,3M8	08/2005 - 06/2007	1
87930-28050B2	AZR6#..Z;AZR6#..NOAH..08S..X ﾘﾐﾃｯﾄﾞ (P) OR ｷﾗﾒｷ (A),GRAY M.,1D2	08/2005 - 12/2999	1
87930-28050C0	AZR6#..Z ｷﾗﾒｷ *(A),BLACK,202	04/2005 - 12/2999	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-28730A1	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,WHITE PM.,042	11/2001 - 08/2004	1
87940-28720	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾐﾗ-	11/2001 - 08/2004	1
87940-28730B0	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,SILVER ME.,1D4	11/2001 - 08/2004	1
87940-28730B1	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87940-28740A0	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,SUPER WHITE 2,040	11/2001 - 08/2004	1
87940-28740B1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87940-28760A0	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,SUPER WHITE 2,040	11/2001 - 08/2004	1
87940-28740A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,WHITE PM.,042	11/2001 - 08/2004	1
87940-28740J0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87940-28760B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,SILVER ME.,1D4	11/2001 - 08/2004	1
87940-28740D1	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,LT.ROSE M.M.,3Q1	11/2001 - 08/2004	1
87940-28760J0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87940-28760D1	AZR6#..L,V,X ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,LT.ROSE M.M.,3Q1	11/2001 - 08/2004	1
87940-28760B1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,DARK GRAY M.M.,1E2	11/2001 - 08/2004	1
87940-28730J0	AZR6#..S,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK BLUE MC,8Q7	11/2001 - 08/2004	1
87940-28780A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,WHITE PM.,042	08/2004 - 06/2007	1
87940-28740B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ-,SILVER ME.,1D4	11/2001 - 08/2004	1
87940-28780D0	AZR6#..NOAH..(X,YY) ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,RED MC.,3M8	08/2004 - 06/2007	1
87940-28780B0	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,SILVER ME.,1D4	08/2004 - 06/2007	1
87940-28780J0	AZR6#..S,TRASX,X,Z ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ-,DARK BLUE MC.,8P8	08/2004 - 06/2007	1
87940-28760A1	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾚｲﾝｸﾘｱﾘﾝｸﾞﾐﾗ- ﾋ-ﾀ-ﾂｷ,WHITE PM.,042	11/2001 - 08/2004	1
87940-28780C0	AZR6#..05S ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗｰ,BLACK,202	08/2004 - 06/2007	1
87940-28770	AZR6#..Z ｷﾗﾒｷ *(A)	04/2005 - 12/2999	1
87944 - COVER, FRONT FENDER SIDE VIEW DEVICE, LH
87944-28020A1	AZR6#..NOAH WHITE PM.,042	08/2005 - 06/2007	1
87944-28020B1	AZR6#..NOAH..(S,X) DARK GRAY M.M.,1E2	08/2005 - 06/2007	1
87944-28020C0	AZR6#..YY BLACK,202	08/2005 - 06/2007	1
87944-28020D0	AZR6#..NOAH..(X,YY) RED MC.,3M8	08/2005 - 06/2007	1
87944-28020B0	AZR6#..NOAH SILVER ME.,1D4	08/2005 - 06/2007	1
87944-28020J0	AZR6#..NOAH..(S,X) DARK BLUE MC.,8P8	08/2005 - 06/2007	1
87944-28030C0	AZR6#..Z ｷﾗﾒｷ *(A),BLACK,202	04/2005 - 12/2999	1
87944-28030B2	AZR6#..Z;AZR6#..NOAH..08S..X ﾘﾐﾃｯﾄﾞ (P) OR ｷﾗﾒｷ (A),GRAY M.,1D2	08/2005 - 12/2999	1
87944 - COVER, FRONT FENDER SIDE VIEW DEVICE, LH
87944-28020A1	AZR6#..NOAH WHITE PM.,042	08/2005 - 06/2007	1
87944-28020B1	AZR6#..NOAH..(S,X) DARK GRAY M.M.,1E2	08/2005 - 06/2007	1
87944-28020C0	AZR6#..YY BLACK,202	08/2005 - 06/2007	1
87944-28020D0	AZR6#..NOAH..(X,YY) RED MC.,3M8	08/2005 - 06/2007	1
87944-28020B0	AZR6#..NOAH SILVER ME.,1D4	08/2005 - 06/2007	1
87944-28020J0	AZR6#..NOAH..(S,X) DARK BLUE MC.,8P8	08/2005 - 06/2007	1
87944-28030C0	AZR6#..Z ｷﾗﾒｷ *(A),BLACK,202	04/2005 - 12/2999	1
87944-28030B2	AZR6#..Z;AZR6#..NOAH..08S..X ﾘﾐﾃｯﾄﾞ (P) OR ｷﾗﾒｷ (A),GRAY M.,1D2	08/2005 - 12/2999	1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-28800	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾉｿﾞｸ(ｷﾗﾒｷ*(A))	08/2004 - 06/2007	1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-28140	AZR6#..TRASX,X,YY	08/2004 - 12/2999	1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-28780	AZR6# ﾃﾞﾝﾄﾞｳｶｸﾉｳﾘﾓｺﾝﾐﾗ- & ﾉｿﾞｸ(ｷﾗﾒｷ*(A))	08/2004 - 06/2007	1
87973 - COVER, OUTER UNDER RR VIEW MIRROR
87973-28040	AZR6#..TRASX,X,YY	08/2004 - 12/2999	1
87973-28040	AZR6#..L,V,X	11/2001 - 08/2004	1
Common parts
87917-28030
87929-28010
91553-80620
94151-80600
Linked diagrams
8606

AZR65G-ANENH (2004)

(0408-0504)

(0504- )

Part Price Details
