AZR65G-ANENH (2004)

Toyota Noah/Voxy

Production Aug 2004 - Jun 2007
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

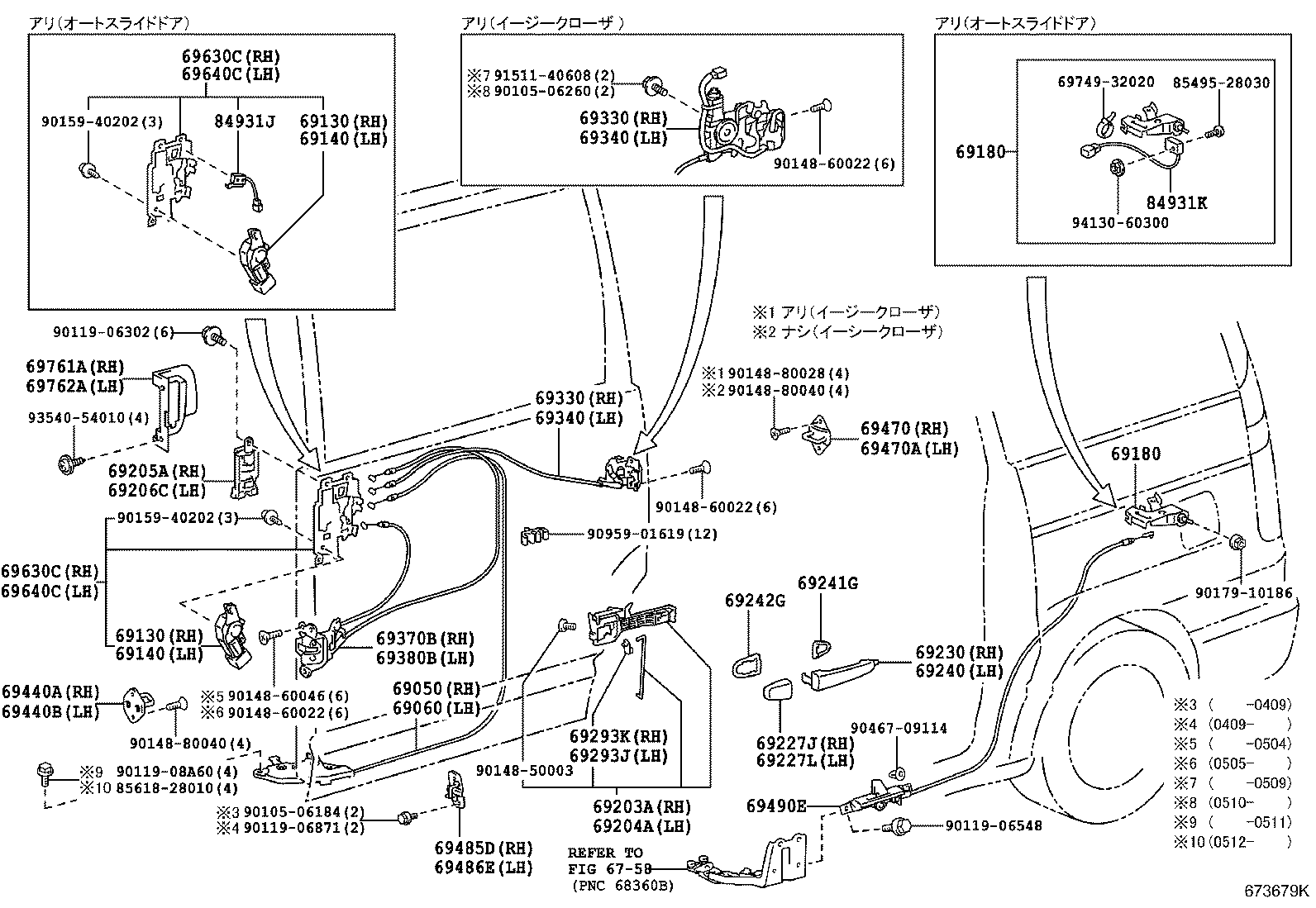

Click highlighted areas on diagram

diagram 6758 69050 69060 69130 69130 69140 69140 69180 69180 69203A 69204A 69205A 69206C 69227J 69227L 69230 69240 69241G 69242G 69293J 69293K 69330 69330 69340 69340 69370B 69380B 69440A 69440B 69470 69470A 69485D 69486E 69490E 69630C 69630C 69640C 69640C 6974932020 69761A 69762A 84931J 84931K 8549528030 8561828010 9010506184 9010506260 9011906302 9011906548 9011906871 9011908A60 9014850003 9014860022 9014860022 9014860022 9014860046 9014880028 9014880040 9014880040 9015940202 9015940202 9017910186 9046709114 9095901619 9151140608 9354054010 9413060300
Part # Description Qty Price
69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69050-28020

AZR6#

 1
69050-28020

AZR6#

 1
69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69060-28060

AZR6#

 1
69060-28060

AZR6#

 1
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-58020

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69130-58010

AZR6#

 1
69130-58010

AZR6#

 1
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-58020

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69130-58010

AZR6#

 1
69130-58010

AZR6#

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-58020

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69140-58020

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69140-58010

AZR6#

 1
69140-58010

AZR6#

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-58020

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69140-58020

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69140-58010

AZR6#

 1
69140-58010

AZR6#

 1
69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69180-28060

AZR6#

 1
69180-28070

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69180-28070

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69180-28060

AZR6#

 1
69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69180-28060

AZR6#

 1
69180-28070

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69180-28070

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69180-28060

AZR6#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-28010

AZR6#

 1
69203-28010

AZR6#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-28010

AZR6#

 1
69204-28010

AZR6#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69207-28020B1

AZR6#..S,Z;AZR6#..05S,07S

DK.GRAY,TRIM1#

 1
69207-28020B1

AZR6#..L,V

DK.GRAY,TRIM1#

 1
69207-28020B1

AZR6#..S,X,Z

PNC67603,67604 = ﾘﾔﾄﾞｱ ﾄﾘﾑ ｵ-ﾅﾒﾝﾄ(ｲﾗｽﾄ ｻﾝｼﾖｳ) = ﾌｱﾌﾞﾘﾂｸ,DK.GRAY,TRIM19

 1
69207-28020B0

AZR6#..S,X,Z

PNC67603,67604 = ﾘﾔﾄﾞｱ ﾄﾘﾑ ｵ-ﾅﾒﾝﾄ(ｲﾗｽﾄ ｻﾝｼﾖｳ) = ﾌｱﾌﾞﾘﾂｸ ﾚｽ,STONE,TRIM19

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69208-28020B0

AZR6#..S,X,Z

PNC67603,67604 = ﾘﾔﾄﾞｱ ﾄﾘﾑ ｵ-ﾅﾒﾝﾄ(ｲﾗｽﾄ ｻﾝｼﾖｳ) = ﾌｱﾌﾞﾘﾂｸ ﾚｽ,STONE,TRIM19

 1
69208-28020B1

AZR6#..S,X,Z

PNC67603,67604 = ﾘﾔﾄﾞｱ ﾄﾘﾑ ｵ-ﾅﾒﾝﾄ(ｲﾗｽﾄ ｻﾝｼﾖｳ) = ﾌｱﾌﾞﾘﾂｸ,DK.GRAY,TRIM19

 1
69208-28020B1

AZR6#..L,V

DK.GRAY,TRIM1#

 1
69208-28020B1

AZR6#..S,Z;AZR6#..05S,07S

DK.GRAY,TRIM1#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-28050A1

AZR6#

WHITE PM.,042

 1
69227-28050B1

AZR6#

DARK GRAY M.M.,1E2

 1
69227-28050B0

AZR6#

SILVER ME.,1D4

 1
69227-28050A0

AZR6#..L,V,X

SUPER WHITE 2,040

 1
69227-28050D1

AZR6#..L,V,X

LT.ROSE M.M.,3Q1

 1
69227-28050B0

AZR6#

SILVER ME.,1D4

 1
69227-28050J0

AZR6#

DARK BLUE MC,8Q7

 1
69227-28050A1

AZR6#

WHITE PM.,042

 1
69227-28050D4

AZR6#..NOAH..(X,YY)

RED MC.,3M8

 1
69227-58010

AZR6#..Z;AZR6#..NOAH..08S..X

*CR,LIMITED *(P),ｷﾗﾒｷ *(A)

 1
69227-28050C1

AZR6#..05S

BLACK,202

 1
69227-28050R0

AZR6#..S,TRASX,X,Z

DARK BLUE MC.,8P8

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-28050B0

AZR6#

SILVER ME.,1D4

 1
69227-28050B1

AZR6#

DARK GRAY M.M.,1E2

 1
69227-28050D1

AZR6#..L,V,X

LT.ROSE M.M.,3Q1

 1
69227-28050B0

AZR6#

SILVER ME.,1D4

 1
69227-28050A1

AZR6#

WHITE PM.,042

 1
69227-28050A1

AZR6#

WHITE PM.,042

 1
69227-28050A0

AZR6#..L,V,X

SUPER WHITE 2,040

 1
69227-28050J0

AZR6#

DARK BLUE MC,8Q7

 1
69227-28050C1

AZR6#..05S

BLACK,202

 1
69227-28050R0

AZR6#..S,TRASX,X,Z

DARK BLUE MC.,8P8

 1
69227-58010

AZR6#..Z;AZR6#..NOAH..08S..X

*CR,LIMITED *(P),ｷﾗﾒｷ *(A)

 1
69227-28050D4

AZR6#..NOAH..(X,YY)

RED MC.,3M8

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69213-28010A1

AZR6#

WHITE PM.,042

 1
69213-28010J0

AZR6#

DARK BLUE MC,8Q7

 1
69213-28010A0

AZR6#..L,V,X

SUPER WHITE 2,040

 1
69213-28010B1

AZR6#

DARK GRAY M.M.,1E2

 1
69213-28010A1

AZR6#

WHITE PM.,042

 1
69213-28010C1

AZR6#..05S

BLACK,202

 1
69213-28010D4

AZR6#..NOAH..(X,YY)

RED MC.,3M8

 1
69213-28010D1

AZR6#..L,V,X

LT.ROSE M.M.,3Q1

 1
69213-28010B0

AZR6#

SILVER ME.,1D4

 1
69213-28010R0

AZR6#..S,TRASX,X,Z

DARK BLUE MC.,8P8

 1
69230-58010

AZR6#..Z;AZR6#..NOAH..08S..X

ﾒｯｷ,LIMITED *(P),ｷﾗﾒｷ *(A)

 1
69213-28010B0

AZR6#

SILVER ME.,1D4

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69213-28010A1

AZR6#

WHITE PM.,042

 1
69213-28010B0

AZR6#

SILVER ME.,1D4

 1
69213-28010A0

AZR6#..L,V,X

SUPER WHITE 2,040

 1
69213-28010D1

AZR6#..L,V,X

LT.ROSE M.M.,3Q1

 1
69213-28010A1

AZR6#

WHITE PM.,042

 1
69213-28010C1

AZR6#..05S

BLACK,202

 1
69213-28010R0

AZR6#..S,TRASX,X,Z

DARK BLUE MC.,8P8

 1
69213-28010J0

AZR6#

DARK BLUE MC,8Q7

 1
69213-28010B0

AZR6#

SILVER ME.,1D4

 1
69213-28010D4

AZR6#..NOAH..(X,YY)

RED MC.,3M8

 1
69213-28010B1

AZR6#

DARK GRAY M.M.,1E2

 1
69230-58010

AZR6#..Z;AZR6#..NOAH..08S..X

ﾒｯｷ,LIMITED *(P),ｷﾗﾒｷ *(A)

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-28060

AZR6#

 2
69241-28060

AZR6#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-28020

AZR6#

 2
69242-60030

AZR6#

 2
69293J - SNAP, REAR DOOR OUTSIDE HANDLE, LH
69293-12030

AZR6#

 1
69293-12030

AZR6#

 1
69293K - SNAP, REAR DOOR OUTSIDE HANDLE, RH
69293-12040

AZR6#

 1
69293-12040

AZR6#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69200-28020

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69200-28031

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69330-28071

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69200-28030

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69330-28080

AZR6#..S,X,Z

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69200-28022

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69330-28070

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69330-28070

AZR6#..S,X,Z

 1
69330-28081

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69330-28080

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69200-28021

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69330-28072

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69330-28082

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69200-28032

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69200-28033

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69200-28023

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69330 - LOCK ASSY, REAR DOOR, RH
69200-28020

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69200-28031

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69330-28071

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69200-28030

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69330-28080

AZR6#..S,X,Z

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69200-28022

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69330-28070

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69330-28070

AZR6#..S,X,Z

 1
69330-28081

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69330-28080

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69200-28021

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69330-28072

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69330-28082

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69200-28032

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69200-28033

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69200-28023

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-28160

AZR6#..S,X,Z

 1
69300-28060

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69340-28170

AZR6#..S,X,Z

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69340-28170

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69300-28063

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69300-28061

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69300-28071

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69300-28073

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69340-28171

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69300-28070

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69340-28161

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69340-28162

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69340-28160

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69300-28062

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69300-28072

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69340-28172

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-28160

AZR6#..S,X,Z

 1
69300-28060

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69340-28170

AZR6#..S,X,Z

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69340-28170

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69300-28063

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69300-28061

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69300-28071

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69300-28073

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69340-28171

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69300-28070

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69340-28161

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69340-28162

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69340-28160

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69300-28062

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69300-28072

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69340-28172

AZR6#..(05S,08S)..(TRASX,X,YY)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69370B - LOCK ASSY, SLIDE DOOR, FRONT RH
69370-28070

AZR6#

 1
69370-28071

AZR6#

 1
69370-28080

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69370-28070

AZR6#

 1
69370-28081

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69370-28080

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69380B - LOCK ASSY, SLIDE DOOR, FRONT LH
69380-28080

AZR6#

 1
69380-28080

AZR6#

 1
69380-28090

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69380-28081

AZR6#

 1
69380-28090

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69380-28091

AZR6#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-58011

AZR6#

 1
69440-28050

AZR6#

 1
69440-28050

AZR6#

 1
69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-58011

AZR6#

 1
69440-28050

AZR6#

 1
69440-28050

AZR6#

 1
69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470-28100

AZR6#..S,X,Z

 1
69470-28110

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69470-28120

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69470-28130

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69470-28100

AZR6#..S,X,Z

 1
69470-28110

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69470-28130

AZR6#

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
69470-28120

AZR6#..(05S,08S)..(TRASX,X,YY)

 1
69485D - STRIKER, SLIDE DOOR OPEN, RH
69485-28020

AZR6#

 1
69485-28020

AZR6#

 1
69486E - STRIKER, SLIDE DOOR OPEN, LH
69486-28050

AZR6#

 1
69486-28050

AZR6#

 1
69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN
69490-28030

AZR6#

 1
69490-28030

AZR6#

 1
69630C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
69630-28130

AZR6#

 1
69630-28130

AZR6#

 1
69630-58020

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69630C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
69630-28130

AZR6#

 1
69630-28130

AZR6#

 1
69630-58020

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69640-28190

AZR6#

 1
69640-28220

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69640-28220

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69640-28190

AZR6#

 1
69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69640-28190

AZR6#

 1
69640-28220

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69640-28220

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69640-28190

AZR6#

 1
69761A - BEZEL, DOOR LOCK CONTROL KNOB, RH
69761-28020B1

AZR6#..S,Z;AZR6#..05S,07S

DK.GRAY,TRIM1#

 1
69761-28020B1

AZR6#..S,X,Z

PNC67603,67604 = ﾘﾔﾄﾞｱ ﾄﾘﾑ ｵ-ﾅﾒﾝﾄ(ｲﾗｽﾄ ｻﾝｼﾖｳ) = ﾌｱﾌﾞﾘﾂｸ,DK.GRAY,TRIM19

 1
69761-28020B0

AZR6#..S,X,Z

PNC67603,67604 = ﾘﾔﾄﾞｱ ﾄﾘﾑ ｵ-ﾅﾒﾝﾄ(ｲﾗｽﾄ ｻﾝｼﾖｳ) = ﾌｱﾌﾞﾘﾂｸ ﾚｽ,STONE,TRIM19

 1
69761-28020B1

AZR6#..L,V

DK.GRAY,TRIM1#

 1
69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH
69762-28020B1

AZR6#..S,X,Z

PNC67603,67604 = ﾘﾔﾄﾞｱ ﾄﾘﾑ ｵ-ﾅﾒﾝﾄ(ｲﾗｽﾄ ｻﾝｼﾖｳ) = ﾌｱﾌﾞﾘﾂｸ,DK.GRAY,TRIM19

 1
69762-28020B1

AZR6#..L,V

DK.GRAY,TRIM1#

 1
69762-28020B0

AZR6#..S,X,Z

PNC67603,67604 = ﾘﾔﾄﾞｱ ﾄﾘﾑ ｵ-ﾅﾒﾝﾄ(ｲﾗｽﾄ ｻﾝｼﾖｳ) = ﾌｱﾌﾞﾘﾂｸ ﾚｽ,STONE,TRIM19

 1
69762-28020B1

AZR6#..S,Z;AZR6#..05S,07S

DK.GRAY,TRIM1#

 1
84931J - SWITCH, DOOR CONTROL
84931-58020

AZR6#

右側ﾄﾞｱ

 1
84931-28110

AZR6#

左側ﾄﾞｱ

 1
84931-28110

AZR6#

 1
84931K - SWITCH, DOOR CONTROL
84931-28070

AZR6#

 1
84931-28070

AZR6#

 1
Common parts
69749-32020
85495-28030
85618-28010
90105-06184
90105-06260
90119-06302
90119-06548
90119-06871
90119-08A60
90148-50003
90148-60022
90148-60046
90148-80028
90148-80040
90159-40202
90179-10186
90467-09114
90959-01619
91511-40608
93540-54010
94130-60300
Linked diagrams
6758
