AZR60G-BRSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111-0408)S,X,Z

Click highlighted areas on diagram

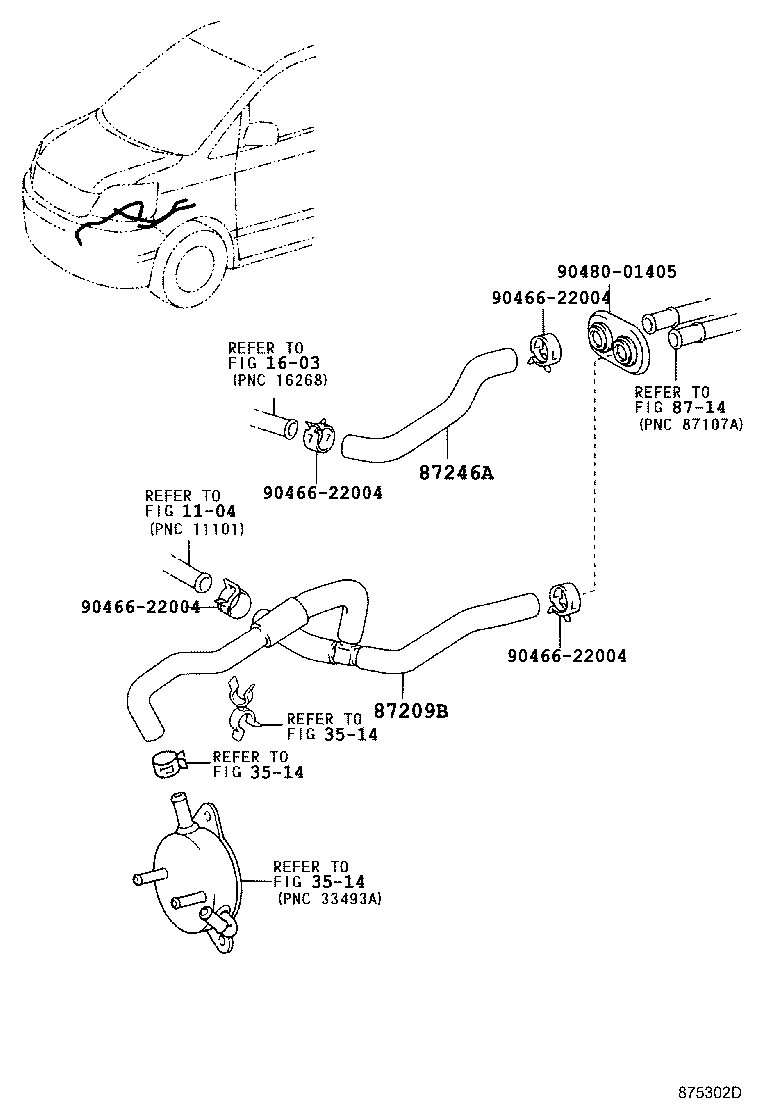

diagram 1104 1603 3514 3514 3514 8714 87209B 87246A 9046622004 9046622004 9046622004 9046622004 9048001405
Part # Description Qty Price
87209B - HOSE SUB-ASSY, WATER, B
87209-28660

AZR6#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87209-28670

AZR6#..S,X,Z

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J720

AZR6#..S,X,Z

 1
87245-2J730

AZR6#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
Common parts
90466-22004
90480-01405
Linked diagrams
1104
1603
3514
8714

(0111-0408)

Click highlighted areas on diagram

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

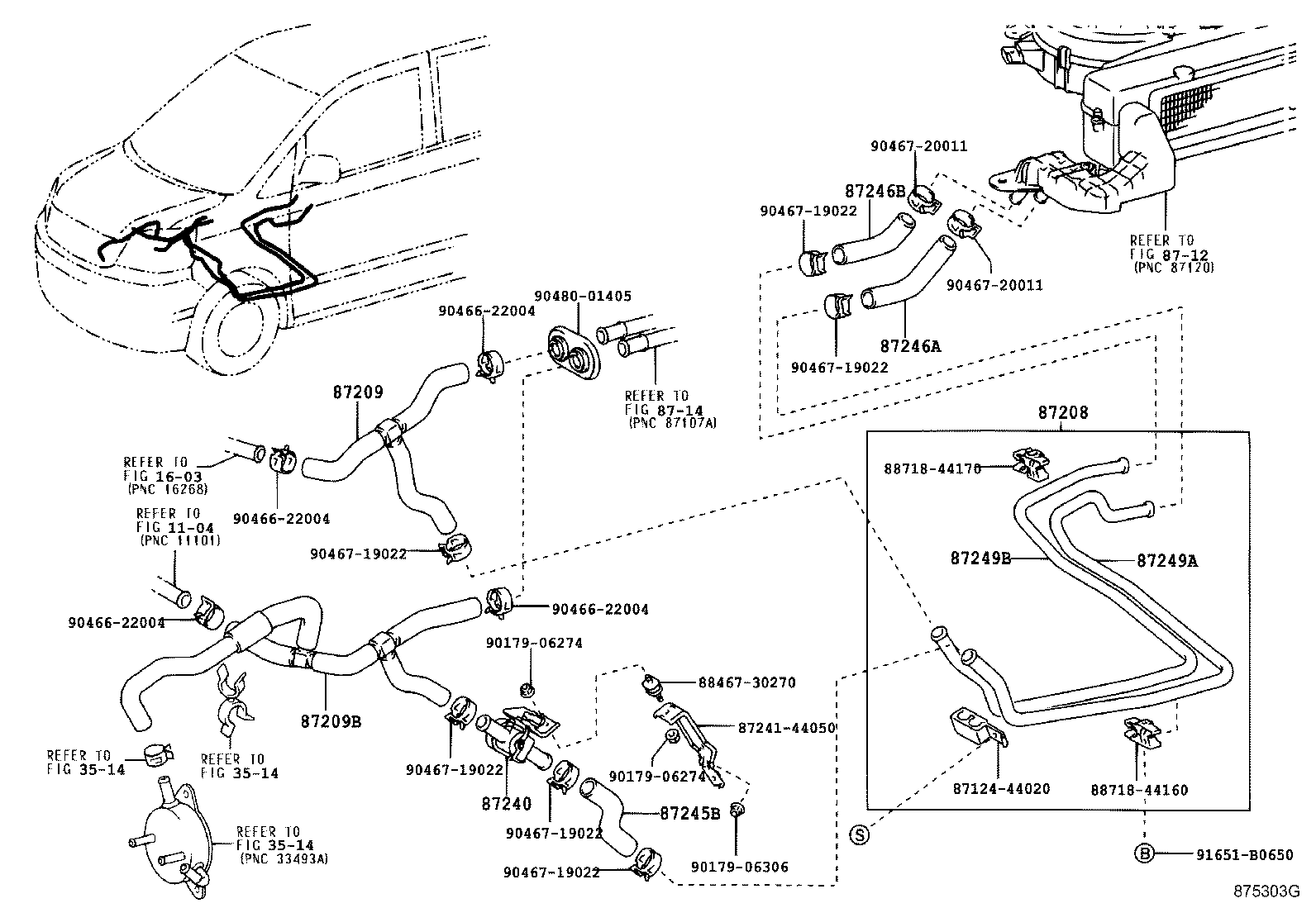

diagram 1104 1603 3514 3514 3514 8712 8712444020 8714 87208 87209 87209B 87240 8724144050 87245B 87246A 87246B 87249A 87249B 8846730270 8871844160 8871844170 9017906274 9017906274 9017906306 9046622004 9046622004 9046622004 9046622004 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046720011 9046720011 9048001405 91651B0650
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-28680

AZR6#

 1
87209 - HOSE SUB-ASSY, WATER
87209-28680

AZR6#

 1
87209B - HOSE SUB-ASSY, WATER, B
87209-28660

AZR6#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87209-28670

AZR6#..S,X,Z

 1
87240 - VALVE ASSY, HEATER WATER
87240-28110

AZR6#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-44550

AZR6#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J720

AZR6#..S,X,Z

 1
87245-2J730

AZR6#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2J740

AZR6#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-28300

AZR6#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-28310

AZR6#

 1
Common parts
87124-44020
87241-44050
88467-30270
88718-44160
88718-44170
90179-06274
90179-06306
90466-22004
90467-19022
90467-20011
90480-01405
91651-B0650
Linked diagrams
1104
1603
3514
8712
8714
