AZR60G-BRSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111-0408)

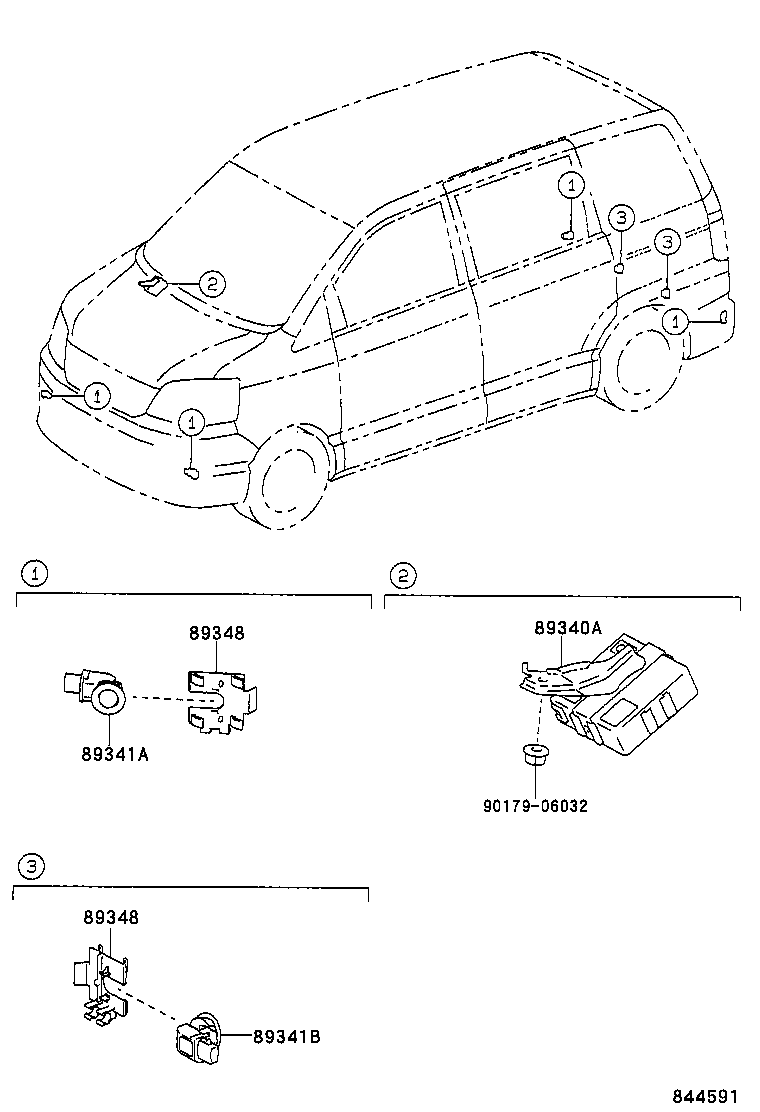

Click highlighted areas on diagram

diagram 89340A 89341A 89341B 89348 89348 9017906032
Part # Description Qty Price
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-28130

AZR6#

 1
89341A - SENSOR, ULTRASONIC, NO.1
89341-28370

AZR6#

 4
89341B - SENSOR, ULTRASONIC, NO.2
89341-28360

AZR6#

 2
89348 - RETAINER, ULTRASONIC SENSOR, NO.1
89348-28040

AZR6#

 6
89348 - RETAINER, ULTRASONIC SENSOR, NO.1
89348-28040

AZR6#

 6
Common parts
90179-06032
