AZR60G-BRSSH (2001)
Toyota Noah/Voxy

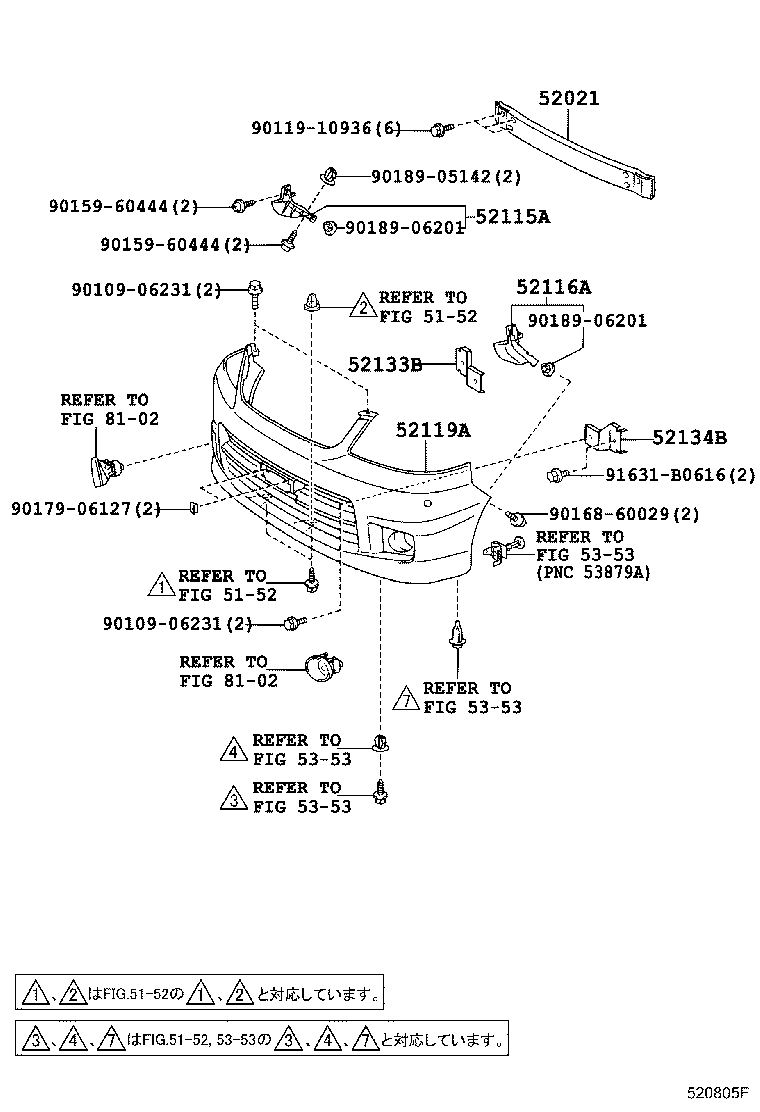

(0111-0408)S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28190 |
AZR6# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28110 |
AZR6#..VOXY |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28110 |
AZR6#..VOXY |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-2J200D1 |
AZR6#..VOXY..(V,X) LT.ROSE M.M.,3Q1 |
1 | ||
| 52119-2J270C0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A),ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B),BLACK,202 |
1 | ||
| 52119-2J270D0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A),ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J370D0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ);ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J370C0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ);ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BLACK,202 |
1 | ||
| 52119-2J270C0 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),BLACK,202 |
1 | ||
| 52119-2J200C0 |
AZR60..VOXY..X ﾄｳｶｲ/ｱｲﾁﾁｸｹﾞﾝﾃｲ *(N),BLACK,202 |
1 | ||
| 52119-2J200A1 |
AZR6#..VOXY..(V,X) WHITE PM.,042 |
1 | ||
| 52119-2J200B0 |
AZR6#..VOXY..(V,X) SILVER ME.,1D4 |
1 | ||
| 52119-2J270B2 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),GRAY ME.,1D2 |
1 | ||
| 52119-2J200D0 |
AZR6#..VOXY..(V,X) BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J200A0 |
AZR6#..VOXY..(V,X) SUPER WHITE 2,040 |
1 | ||
| 52119-2J240A1 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
1 | ||
| 52119-2J240C0 |
AZR60..VOXY..X ﾄｳｶｲ/ｱｲﾁﾁｸｹﾞﾝﾃｲ *(N) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BLACK,202 |
1 | ||
| 52119-2J240B1 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J200B1 |
AZR6#..VOXY..(V,X) DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J200J0 |
AZR6#..VOXY..(V,X) DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J240J0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J240B0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
1 | ||
| 52119-2J240A0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SUPER WHITE 2,040 |
1 | ||
| 52119-2J250B1 |
AZR6#..S DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J240D0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J270B1 |
AZR6#..Z DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J260A0 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
1 | ||
| 52119-2J250A0 |
AZR6#..S WHITE PM.,042 |
1 | ||
| 52119-2J250J0 |
AZR6#..S DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J250B0 |
AZR6#..S SILVER ME.,1D4 |
1 | ||
| 52119-2J270J0 |
AZR6#..Z DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J260B1 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J270B0 |
AZR6#..Z SILVER ME.,1D4 |
1 | ||
| 52119-2J260B0 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
1 | ||
| 52119-2J260J0 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J370J0 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J370A0 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
1 | ||
| 52119-2J270A0 |
AZR6#..Z WHITE PM.,042 |
1 | ||
| 52119-2J370B0 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
1 | ||
| 52119-2J370B1 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J240D1 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),LT.ROSE M.M.,3Q1 |
1 | ||
| 52133B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, RH | ||||
| 52133-28070 |
AZR6#..S |
1 | ||
| 52134B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, LH | ||||
| 52134-28070 |
AZR6#..S |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90119-10936 | ||||
| 90159-60444 | ||||
| 90168-60029 | ||||
| 90179-06127 | ||||
| 90189-05142 | ||||
| 90189-06201 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8102 | ||||

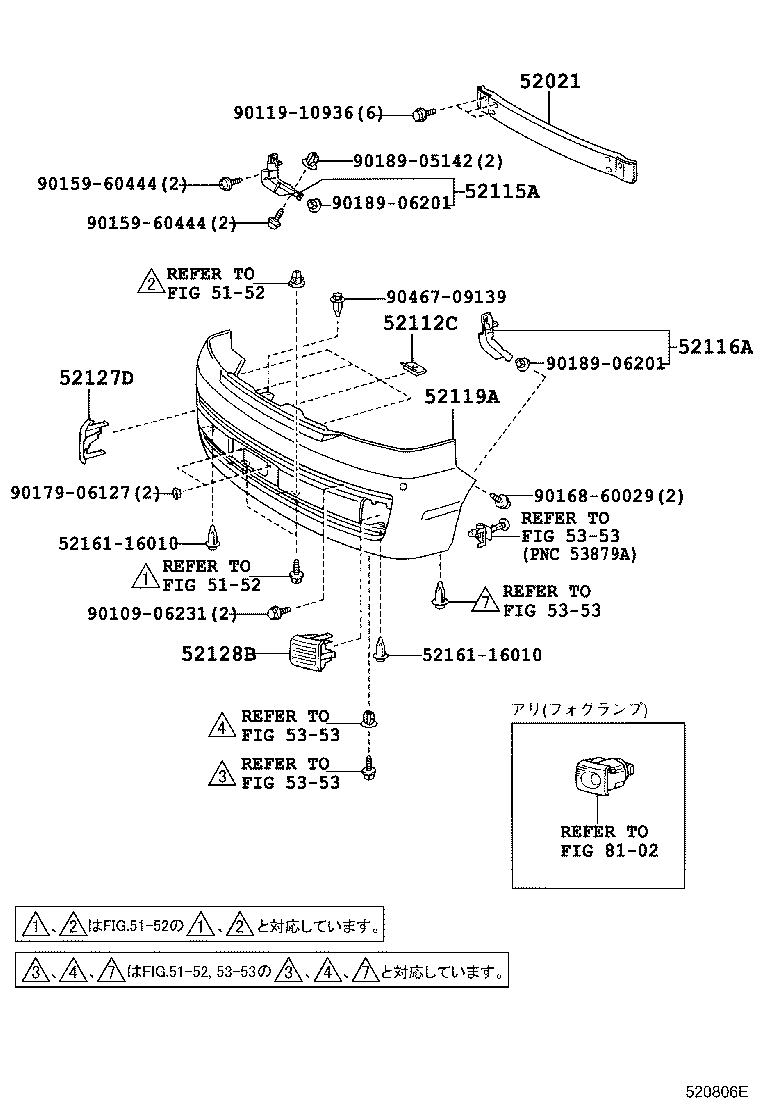

(0111-0408)VOXY..V,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28190 |
AZR6# |
1 | ||
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-28080 |
AZR6#..VOXY 右側 |
1 | ||
| 52112-28080 |
AZR6#..VOXY 左側 |
3 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28110 |
AZR6#..VOXY |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28110 |
AZR6#..VOXY |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-2J270C0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A),ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B),BLACK,202 |
1 | ||
| 52119-2J270D0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A),ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J370D0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ);ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J370C0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ);ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BLACK,202 |
1 | ||
| 52119-2J270C0 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),BLACK,202 |
1 | ||
| 52119-2J200C0 |
AZR60..VOXY..X ﾄｳｶｲ/ｱｲﾁﾁｸｹﾞﾝﾃｲ *(N),BLACK,202 |
1 | ||
| 52119-2J200A1 |
AZR6#..VOXY..(V,X) WHITE PM.,042 |
1 | ||
| 52119-2J200B0 |
AZR6#..VOXY..(V,X) SILVER ME.,1D4 |
1 | ||
| 52119-2J270B2 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),GRAY ME.,1D2 |
1 | ||
| 52119-2J200D0 |
AZR6#..VOXY..(V,X) BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J200A0 |
AZR6#..VOXY..(V,X) SUPER WHITE 2,040 |
1 | ||
| 52119-2J200D1 |
AZR6#..VOXY..(V,X) LT.ROSE M.M.,3Q1 |
1 | ||
| 52119-2J240A1 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
1 | ||
| 52119-2J240C0 |
AZR60..VOXY..X ﾄｳｶｲ/ｱｲﾁﾁｸｹﾞﾝﾃｲ *(N) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BLACK,202 |
1 | ||
| 52119-2J240B1 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J200B1 |
AZR6#..VOXY..(V,X) DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J200J0 |
AZR6#..VOXY..(V,X) DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J240J0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J240B0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
1 | ||
| 52119-2J240A0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SUPER WHITE 2,040 |
1 | ||
| 52119-2J250B1 |
AZR6#..S DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J240D0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J270B1 |
AZR6#..Z DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J260A0 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
1 | ||
| 52119-2J250A0 |
AZR6#..S WHITE PM.,042 |
1 | ||
| 52119-2J250J0 |
AZR6#..S DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J250B0 |
AZR6#..S SILVER ME.,1D4 |
1 | ||
| 52119-2J270J0 |
AZR6#..Z DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J260B1 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J270B0 |
AZR6#..Z SILVER ME.,1D4 |
1 | ||
| 52119-2J260B0 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
1 | ||
| 52119-2J260J0 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J370J0 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J370A0 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
1 | ||
| 52119-2J270A0 |
AZR6#..Z WHITE PM.,042 |
1 | ||
| 52119-2J370B0 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
1 | ||
| 52119-2J370B1 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J240D1 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),LT.ROSE M.M.,3Q1 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28100A0 |
AZR6#..VOXY..X SUPER WHITE 2,040 |
1 | ||
| 52127-28100A1 |
AZR6#..VOXY..X WHITE PM.,042 |
1 | ||
| 52127-28100J0 |
AZR6#..VOXY..X DARK BLUE MC,8Q7 |
1 | ||
| 52127-28100B1 |
AZR6#..VOXY..X DARK GRAY M.M.,1E2 |
1 | ||
| 52127-28100C0 |
AZR60..VOXY..X ﾄｳｶｲ/ｱｲﾁﾁｸｹﾞﾝﾃｲ *(N),BLACK,202 |
1 | ||
| 52127-28100B0 |
AZR6#..VOXY..X SILVER ME.,1D4 |
1 | ||
| 52127-28100D0 |
AZR6#..VOXY..X BORDEAUX MC.,3P2 |
1 | ||
| 52127-28100D1 |
AZR6#..VOXY..X LT.ROSE M.M.,3Q1 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28100D1 |
AZR6#..VOXY..X LT.ROSE M.M.,3Q1 |
1 | ||
| 52128-28100A0 |
AZR6#..VOXY..X SUPER WHITE 2,040 |
1 | ||
| 52128-28100C0 |
AZR60..VOXY..X ﾄｳｶｲ/ｱｲﾁﾁｸｹﾞﾝﾃｲ *(N),BLACK,202 |
1 | ||
| 52128-28100B1 |
AZR6#..VOXY..X DARK GRAY M.M.,1E2 |
1 | ||
| 52128-28100J0 |
AZR6#..VOXY..X DARK BLUE MC,8Q7 |
1 | ||
| 52128-28100A1 |
AZR6#..VOXY..X WHITE PM.,042 |
1 | ||
| 52128-28100D0 |
AZR6#..VOXY..X BORDEAUX MC.,3P2 |
1 | ||
| 52128-28100B0 |
AZR6#..VOXY..X SILVER ME.,1D4 |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90109-06231 | ||||
| 90119-10936 | ||||
| 90159-60444 | ||||
| 90168-60029 | ||||
| 90179-06127 | ||||
| 90189-05142 | ||||
| 90189-06201 | ||||
| 90467-09139 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8102 | ||||

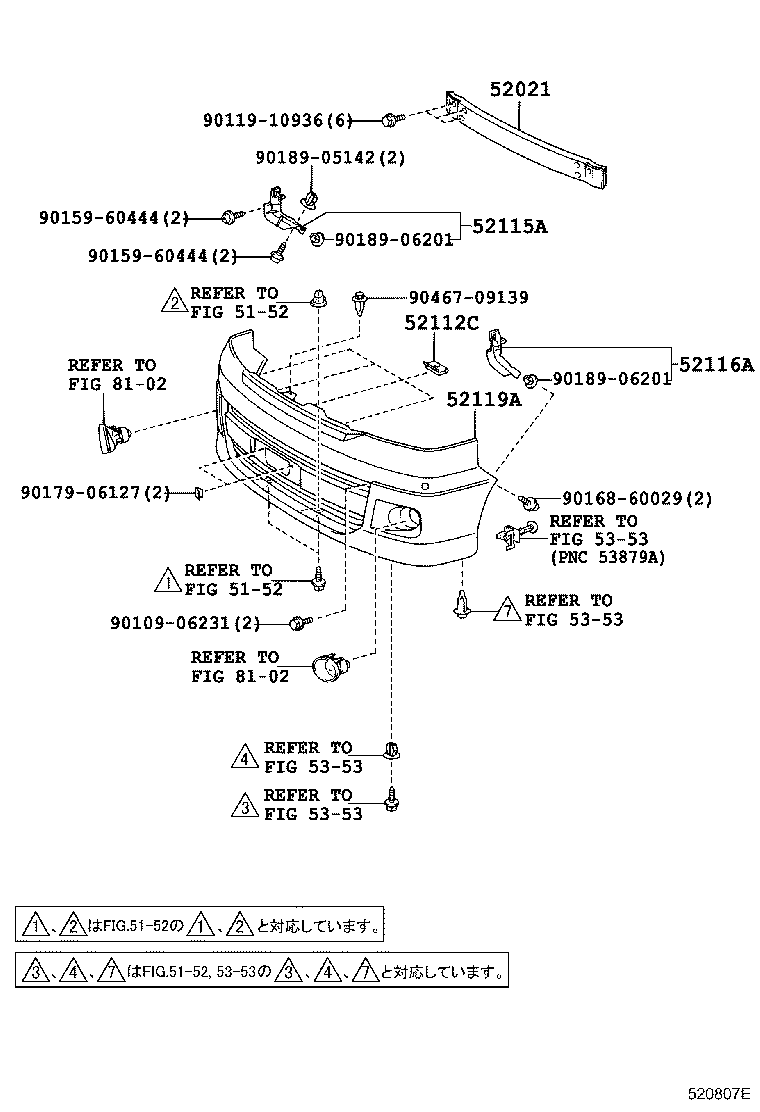

(0111-0408)Z
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28190 |
AZR6# |
1 | ||
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-28080 |
AZR6#..VOXY 右側 |
1 | ||
| 52112-28080 |
AZR6#..VOXY 左側 |
3 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28110 |
AZR6#..VOXY |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28110 |
AZR6#..VOXY |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-2J270C0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A),ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B),BLACK,202 |
1 | ||
| 52119-2J270D0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A),ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J370D0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ);ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J370C0 |
AZR6#..4HC..Z ｷﾗﾒｷ *(A) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ);ｷﾗﾒｷﾅﾋﾞｽﾍﾟｼﾔﾙ *(B) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BLACK,202 |
1 | ||
| 52119-2J270C0 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),BLACK,202 |
1 | ||
| 52119-2J200C0 |
AZR60..VOXY..X ﾄｳｶｲ/ｱｲﾁﾁｸｹﾞﾝﾃｲ *(N),BLACK,202 |
1 | ||
| 52119-2J200A1 |
AZR6#..VOXY..(V,X) WHITE PM.,042 |
1 | ||
| 52119-2J200B0 |
AZR6#..VOXY..(V,X) SILVER ME.,1D4 |
1 | ||
| 52119-2J270B2 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),GRAY ME.,1D2 |
1 | ||
| 52119-2J200D0 |
AZR6#..VOXY..(V,X) BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J200A0 |
AZR6#..VOXY..(V,X) SUPER WHITE 2,040 |
1 | ||
| 52119-2J200D1 |
AZR6#..VOXY..(V,X) LT.ROSE M.M.,3Q1 |
1 | ||
| 52119-2J240A1 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
1 | ||
| 52119-2J240C0 |
AZR60..VOXY..X ﾄｳｶｲ/ｱｲﾁﾁｸｹﾞﾝﾃｲ *(N) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BLACK,202 |
1 | ||
| 52119-2J240B1 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J200B1 |
AZR6#..VOXY..(V,X) DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J200J0 |
AZR6#..VOXY..(V,X) DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J240J0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J240B0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
1 | ||
| 52119-2J240A0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SUPER WHITE 2,040 |
1 | ||
| 52119-2J250B1 |
AZR6#..S DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J240D0 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J270B1 |
AZR6#..Z DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J260A0 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
1 | ||
| 52119-2J250A0 |
AZR6#..S WHITE PM.,042 |
1 | ||
| 52119-2J250J0 |
AZR6#..S DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J250B0 |
AZR6#..S SILVER ME.,1D4 |
1 | ||
| 52119-2J270J0 |
AZR6#..Z DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J260B1 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J270B0 |
AZR6#..Z SILVER ME.,1D4 |
1 | ||
| 52119-2J260B0 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
1 | ||
| 52119-2J260J0 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J370J0 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK BLUE MC,8Q7 |
1 | ||
| 52119-2J370A0 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),WHITE PM.,042 |
1 | ||
| 52119-2J270A0 |
AZR6#..Z WHITE PM.,042 |
1 | ||
| 52119-2J370B0 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),SILVER ME.,1D4 |
1 | ||
| 52119-2J370B1 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),DARK GRAY M.M.,1E2 |
1 | ||
| 52119-2J240D1 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ),LT.ROSE M.M.,3Q1 |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90119-10936 | ||||
| 90159-60444 | ||||
| 90168-60029 | ||||
| 90179-06127 | ||||
| 90189-05142 | ||||
| 90189-06201 | ||||
| 90467-09139 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
