AZR60G-BRSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0111-0408)

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905277 9009905277 91621B0816 91621B0816 91621B0816 9167480818 9167480818 9167480818
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-42070

AZR6#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

AZR6#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

AZR6#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

AZR6#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

AZR6#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

AZR6#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-28120

AZR6#

 1
Common parts
90099-05277
91621-B0816
91674-80818

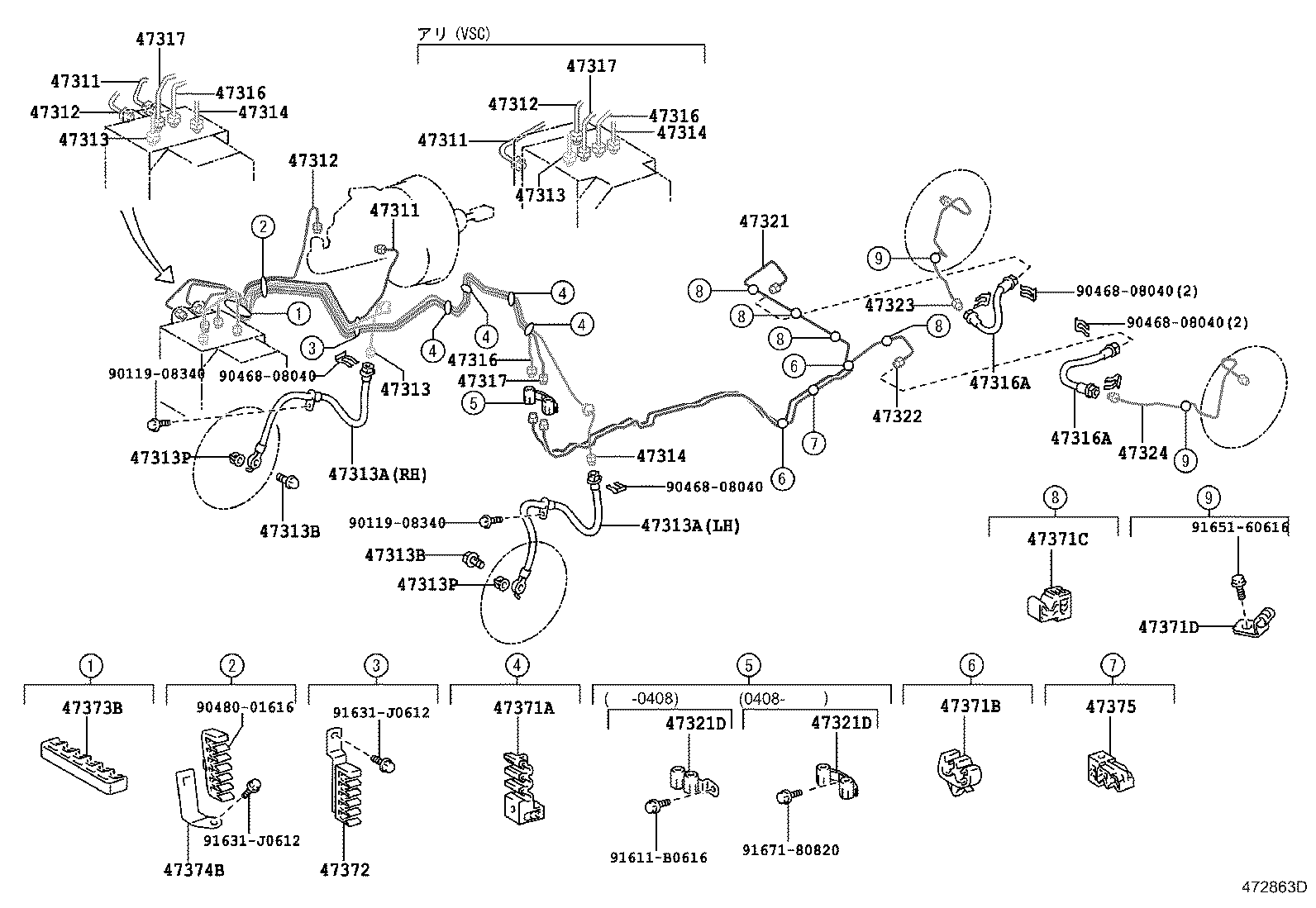

ILLUST NO. 1 OF 2(0111- )

Click highlighted areas on diagram

diagram 47311 47311 47311 47312 47312 47312 47313 47313 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47314 47314 47316 47316 47316 47316A 47316A 47317 47317 47317 47321 47321D 47321D 47322 47323 47324 47371A 47371B 47371C 47371D 47372 47373B 47374B 47375 9011908340 9011908340 9046808040 9046808040 9046808040 9046808040 9048001616 91611B0616 91631J0612 91631J0612 9165160616 9167180820
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-28570

AZR6#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-28570

AZR6#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-28570

AZR6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-28360

AZR6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-28360

AZR6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-28360

AZR6#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-28380

AZR6#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-28380

AZR6#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-28380

AZR6#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C77

AZR6#

右側

 1
90947-02C78

AZR6#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C77

AZR6#

右側

 1
90947-02C78

AZR6#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AZR6#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AZR6#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

AZR6#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

AZR6#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-28340

AZR6#

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-28340

AZR6#

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-28340

AZR6#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-28140

AZR6#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-28140

AZR6#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-28140

AZR6#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C80

AZR6#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C80

AZR6#

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-28170

AZR6#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-28170

AZR6#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-28170

AZR6#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-28490

AZR6#

 1
47321-28500

AZR60..L,V,X

ｳｴﾙｷﾔﾌﾞ

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10220

AZR6#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10220

AZR6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-28310

AZR60..L,V,X

ｳｴﾙｷﾔﾌﾞ

 1
47322-28300

AZR6#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-28350

AZR6#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-28250

AZR6#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-52010

AZR6#

 4
47371B - CLAMP, BRAKE TUBE, NO.6
90469-07012

AZR6#

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01B45

AZR6#

 4
47371D - CLAMP, BRAKE TUBE, NO.8
90461-08694

AZR6#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-28070

AZR6#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01B10

AZR6#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01C65

AZR6#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
77299-32030

AZR6#

 1
Common parts
90119-08340
90468-08040
90480-01616
91611-B0616
91631-J0612
91651-60616
91671-80820
