AZR60G-BRSQH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

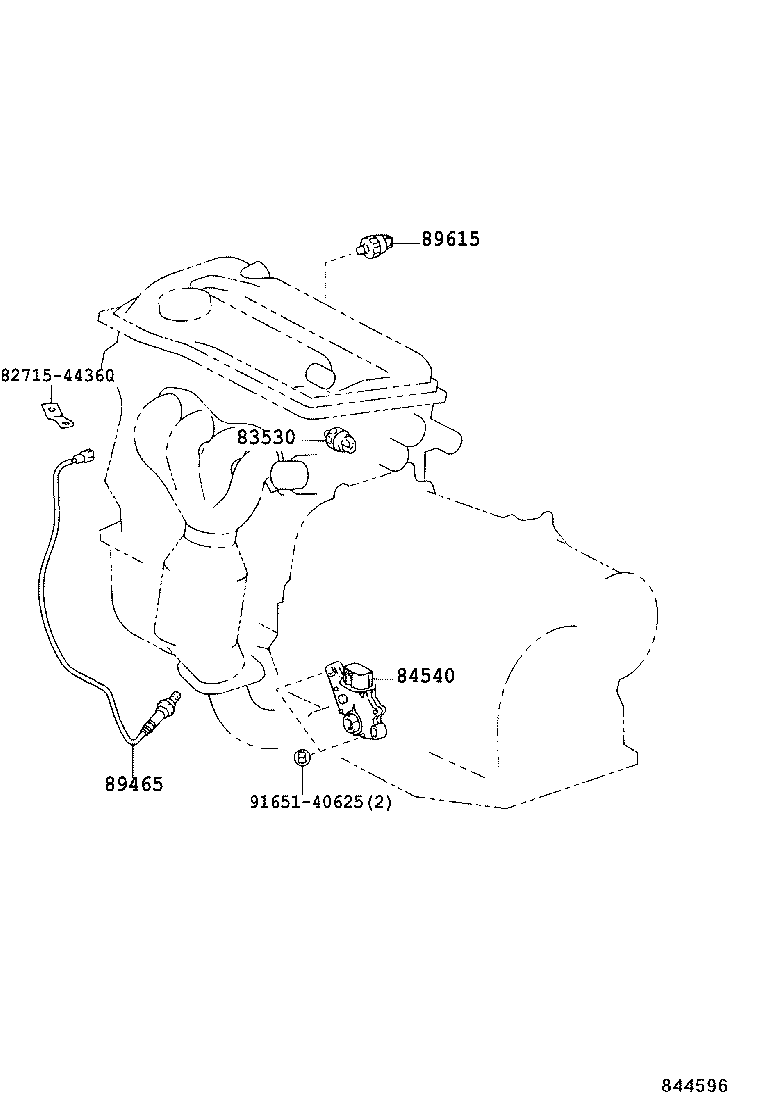

ILLUST NO. 1 OF 7(0111-0408)

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ

diagram 8271544360 83530 84540 89465 89615 9165140625
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020

AZR6#

YAZAKI

 1
83530-28020

AZR6#

DENSO

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-12230

AZR6#

 1
89465 - SENSOR, OXYGEN
89465-44070

AZR6#

 1
89615 - SENSOR, KNOCK CONTROL
89615-44010

AZR6#

 1
Common parts
82715-44360
91651-40625

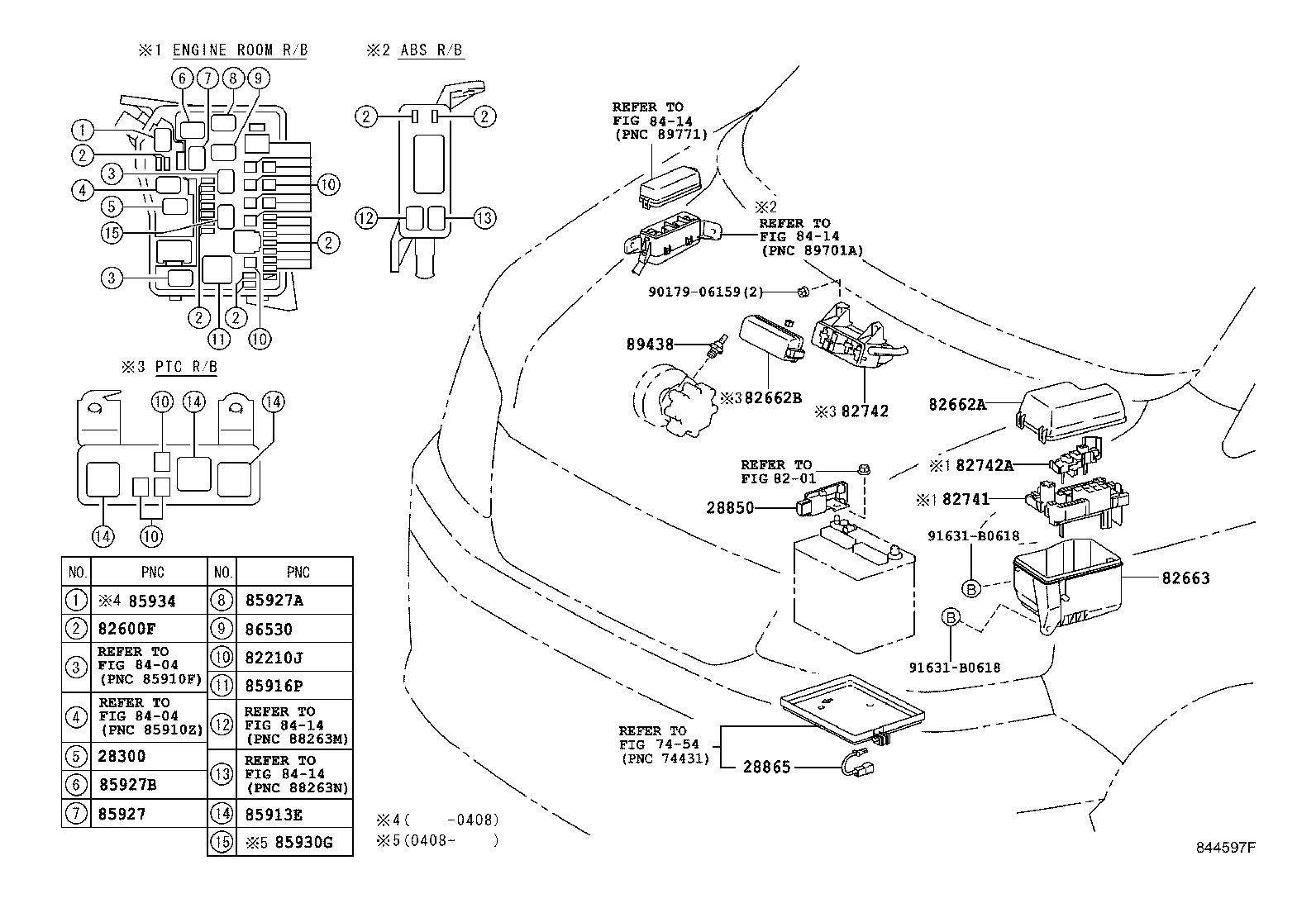

ILLUST NO. 2 OF 7(0111- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

diagram 28300 28850 28865 7454 8201 82210J 82600F 82662A 82662B 82663 82741 82742 82742A 8404 8404 8414 8414 8414 8414 85913E 85916P 85927 85927A 85927B 85930G 85934 86530 89438 9017906159 91631B0618 91631B0618
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-28010

1AZFSE..AZR6#

 1
82210J - FUSIBLE LINK
90982-08286

AZR6#

140A,ｵｽ端子,赤茶

 1
90982-08284

AZR6#

40A,ﾒｽ端子,緑

 4
90982-08283

AZR6#

30A,ﾒｽ端子,桃

 4
90982-08285

AZR6#

50A,ﾒｽ端子,赤

 3
82600F - FUSE, FUSE BLOCK
90982-09008

AZR6#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 5
90982-09013

AZR6#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 3
90982-09009

AZR6#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 3
90982-09011

AZR6#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
90982-09010

AZR6#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 8
90982-09012

AZR6#

25A,ﾐﾆ ﾋｭｰｽﾞ

 5
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-28050

AZR6#

 1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-44110

AZR6#

ｱﾘ(PTC)

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-44010

AZR6#

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-44040

AZR6#

 1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82744-44010

AZR6#

ｱﾘ(PTC)

 1
82742A - BLOCK, ENGINE ROOM RELAY, NO.5
82742-44030

AZR6#

 1
85913E - RELAY, HEATER, NO.3
90987-02025

AZR6#

 3
85916P - RELAY, HEADLAMP
90987-02025

AZR6#

 1
90987-02025

AZR6#

 1
85927 - RELAY, COOLING FAN
90987-02024

AZR6#

 1
85927A - RELAY, COOLING FAN, NO.2
90987-04004

AZR6#

 1
85927B - RELAY, COOLING FAN, NO.3
90987-02024

AZR6#

 1
85934 - RELAY, MAGNET-CLUTCH
90987-02028

AZR6#

 1
86530 - RELAY ASSY, HORN
90987-02012

AZR6#

DENSO

 1
90987-02024

AZR6#

MATSUSHITA

 1
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

AZR6#

 1
Common parts
90179-06159
91631-B0618
Linked diagrams
7454
8201
8404
8414

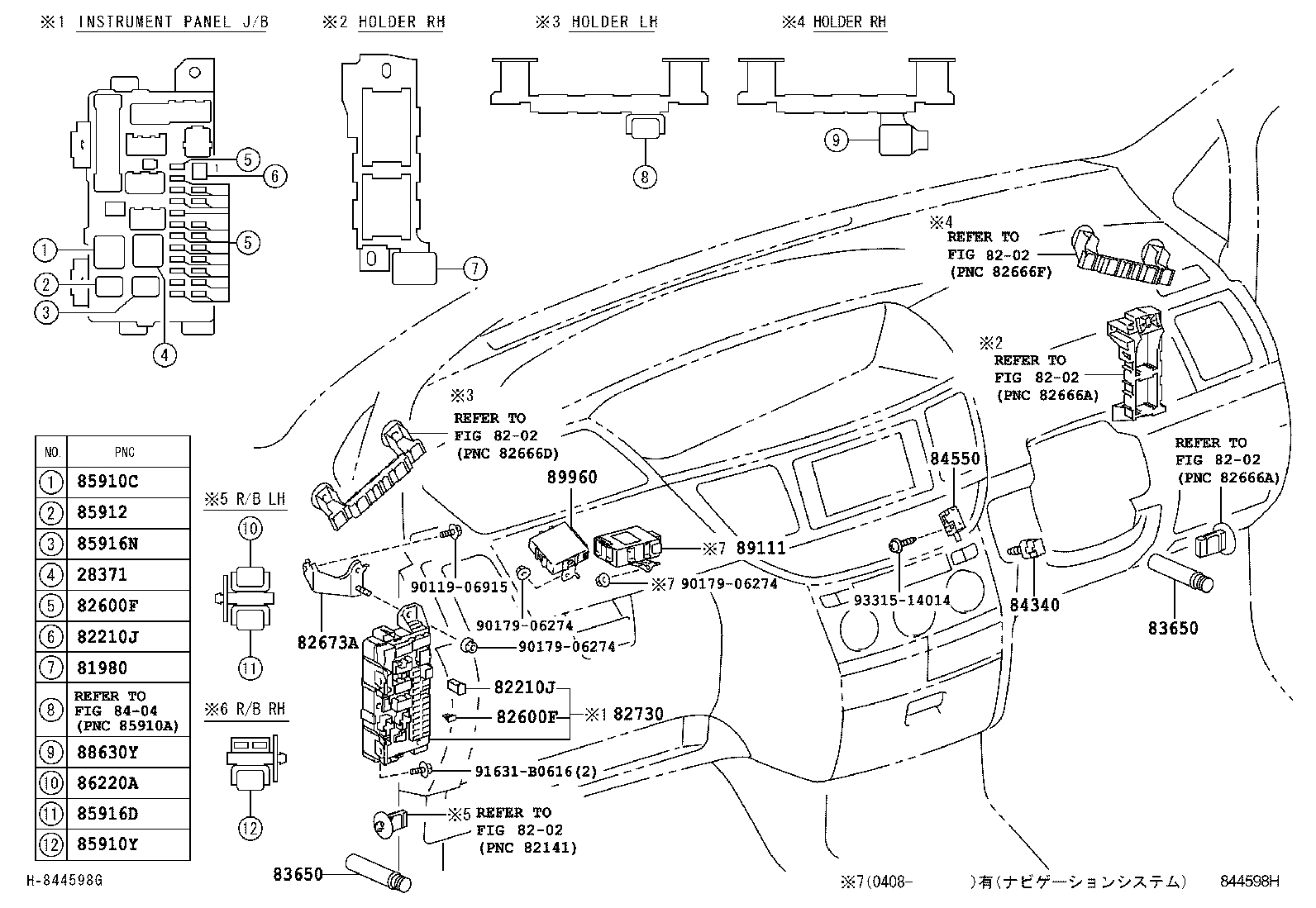

ILLUST NO. 3 OF 7(0111- )

Click highlighted areas on diagram

ｶｳﾙ

diagram 28371 81980 8202 8202 8202 8202 8202 82210J 82210J 82600F 82600F 82673A 82730 83650 83650 8404 84340 84550 85910C 85910Y 85912 85916D 85916N 86220A 88630Y 89111 89960 9011906915 9017906274 9017906274 9017906274 91631B0616 9331514014
Part # Description Qty Price
28371 - RELAY, IGNITION, NO.1
90987-02025

1AZFSE..AZR6#

 1
90987-02025

1AZFSE..AZR6#

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-50030

AZR6#

 1
82210J - FUSIBLE LINK
90982-08286

AZR6#

140A,ｵｽ端子,赤茶

 1
90982-08284

AZR6#

40A,ﾒｽ端子,緑

 4
90982-08283

AZR6#

30A,ﾒｽ端子,桃

 4
90982-08285

AZR6#

50A,ﾒｽ端子,赤

 3
82210J - FUSIBLE LINK
90982-08286

AZR6#

140A,ｵｽ端子,赤茶

 1
90982-08284

AZR6#

40A,ﾒｽ端子,緑

 4
90982-08283

AZR6#

30A,ﾒｽ端子,桃

 4
90982-08285

AZR6#

50A,ﾒｽ端子,赤

 3
82600F - FUSE, FUSE BLOCK
90982-09008

AZR6#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 5
90982-09013

AZR6#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 3
90982-09009

AZR6#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 3
90982-09011

AZR6#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
90982-09010

AZR6#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 8
90982-09012

AZR6#

25A,ﾐﾆ ﾋｭｰｽﾞ

 5
82600F - FUSE, FUSE BLOCK
90982-09008

AZR6#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 5
90982-09013

AZR6#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 3
90982-09009

AZR6#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 3
90982-09011

AZR6#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
90982-09010

AZR6#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 8
90982-09012

AZR6#

25A,ﾐﾆ ﾋｭｰｽﾞ

 5
82673A - BRACKET, JUNCTION BLOCK
82673-28030

AZR6#

 1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-28051

AZR6#

 1
82730-28061

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-)

 1
82730-28061

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
82730-28061

AZR6#

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-)

 1
82730-28050

AZR6#

 1
82730-28060

AZR6#

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-)

 1
82730-28060

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-)

 1
82730-28060

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
83650 - FUSEE
90986-01005

AZR6#

 1
83650 - FUSEE
90986-01005

AZR6#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-49025

AZR6#

 1
84340-69025

AZR6#

 1
84340-49045

AZR6#

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-30080

AZR6#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04010

AZR6#

 1
85910Y - RELAY, REAR HEATER
90987-02024

AZR6#

 1
85912 - RELAY, DEFOGGER
90987-02024

AZR6#

 1
85916D - RELAY, FOG LAMP
90987-02024

AZR6#

 1
90987-02024

AZR6#..4HC..Z;AZR6#..NOAH..4HC..X

ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D),ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F)

 1
85916N - RELAY, TAIL LAMP
90987-02024

AZR6#

 1
86220A - RELAY, INVERTER
90987-02024

AZR6#

 1
88630Y - RELAY, REAR COOLER
90987-02025

AZR6#

 1
Common parts
90119-06915
90179-06274
91631-B0616
93315-14014
Linked diagrams
8202
8404

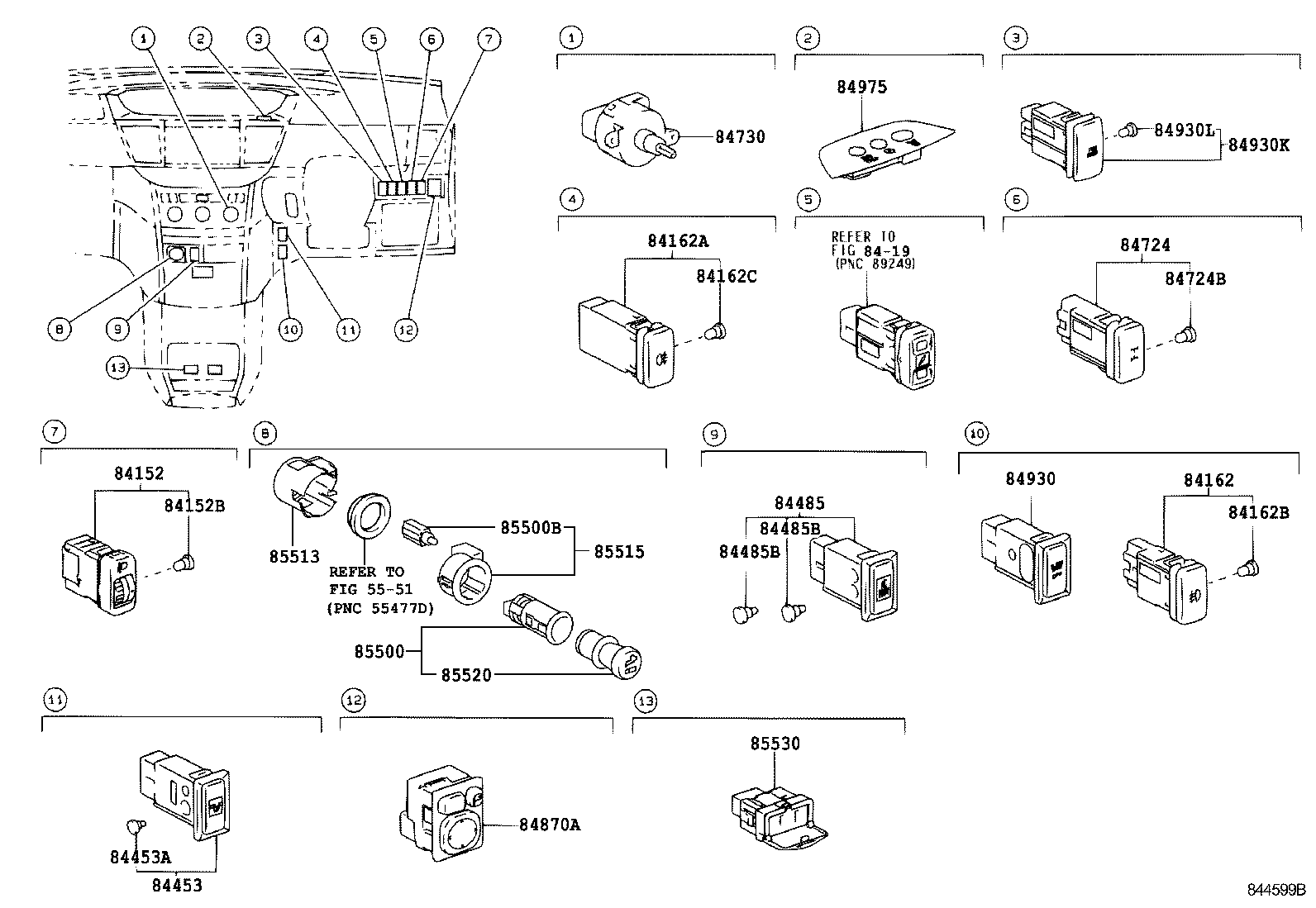

ILLUST NO. 4 OF 7(0111-0408)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 5551 84152 84152B 84162 84162A 84162B 84162C 8419 84453 84453A 84485 84485B 84485B 84724 84724B 84730 84870A 84930 84930K 84930L 84975 85500 85500B 85513 85515 85520 85530
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-44020

AZR6#

 1
84152B - BULB (FOR HEADLAMP LEVELING SWITCH)
90010-08100

AZR6#

14V 40MA,ｸﾞﾘｰﾝ

 1
84162 - SWITCH, FRONT FOG LAMP
84160-28060

AZR6#..X

 1
C8475-20010

AZR6#..4HC..(S,Z)

ﾓﾃﾞﾘｽﾀ-ｻﾞ ｽﾋﾟ-ﾄﾞ

 1
84162A - SWITCH, REAR FOG LAMP
84165-33040

AZR6#

 1
84162B - BULB, FOG LAMP SWITCH
90010-01039

AZR6#..X

14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
84162C - BULB (FOR REAR FOG LAMP SWITCH)
90010-01061

AZR6#

14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
84453 - SWITCH, IDLE UP
84453-28020

AZR6#

 1
84453A - BULB, IDLE UP SWITCH
84999-10320

AZR6#

 1
84485 - SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET)
84485-26010

AZR6#

 1
84485B - BULB, POWER OUTLET(ACCESSORY SOCKET) SWITCH
84999-10320

AZR6#

14V 0.84W

 1
90010-01024

AZR6#

12V 0.56W

 1
84485B - BULB, POWER OUTLET(ACCESSORY SOCKET) SWITCH
84999-10320

AZR6#

14V 0.84W

 1
90010-01024

AZR6#

12V 0.56W

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-28100

AZR6#..S,X,Z

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-28020

AZR6#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-)

 1
84870-34010

AZR6#..S,X,Z

 1
84930 - SWITCH ASSY, DOOR CONTROL
84930-28070

AZR6#

 1
84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL
84930-28040

AZR6#

 1
84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH
90010-01039

AZR6#

14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
84975 - SWITCH, TRIP
84975-28030

AZR6#..S

ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(C)

 1
84975-28030

AZR6#..L,V

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-)

 1
84975-28020

AZR6#..L,V

 1
84975-28040

AZR6#..S,X,Z

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-)

 1
84975-28010

AZR6#..S,X,Z

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-28050

AZR6#

 1
85500B - BULB, CIGARETTE LIGHTER
90010-01022

AZR6#

14V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
85513 - COVER, CIGARETTE LIGHTER
85513-28020

AZR6#

 1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-26010

AZR6#

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010

AZR6#

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-28080B0

AZR6#

DK.GRAY,TRIM1#

 1
Linked diagrams
5551
8419

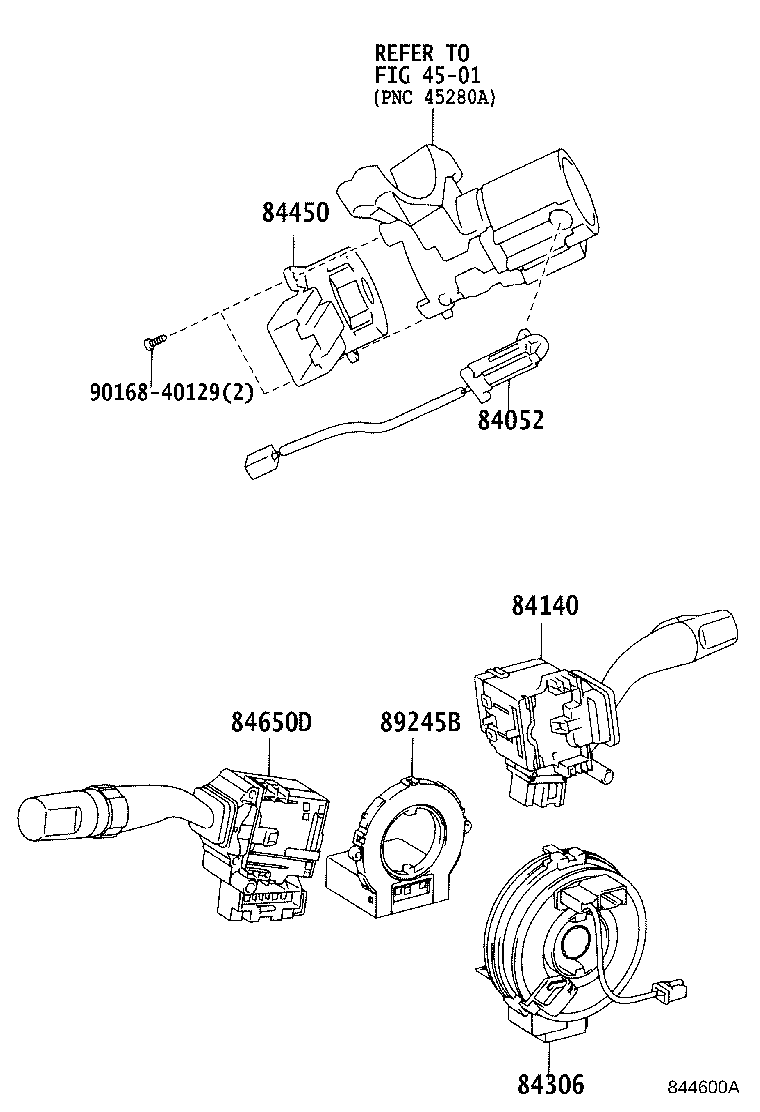

ILLUST NO. 5 OF 7(0111- )

Click highlighted areas on diagram

ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ

diagram 4501 84052 84140 84306 84450 84650D 89245B 9016840129
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-32030

AZR6#

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-32230

AZR6#..L,S,V,Z

 1
84140-32220

AZR6#..X

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-52020

AZR6#

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200

AZR6#

 1
84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL)
84652-28630

AZR6#

 1
89245B - SENSOR, STEERING
89245-12010

AZR6#

ｱﾘ(TEMS)

 1
89245-12010

AZR60

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ- & ﾊﾞﾂｸ ｶﾞｲﾄﾞ ﾓﾆﾀ-)

 1
89245-12010

AZR60

ｱﾘ(ﾊﾞﾂｸ ｶﾞｲﾄﾞ ﾓﾆﾀ-)

 1
Common parts
90168-40129
Linked diagrams
4501

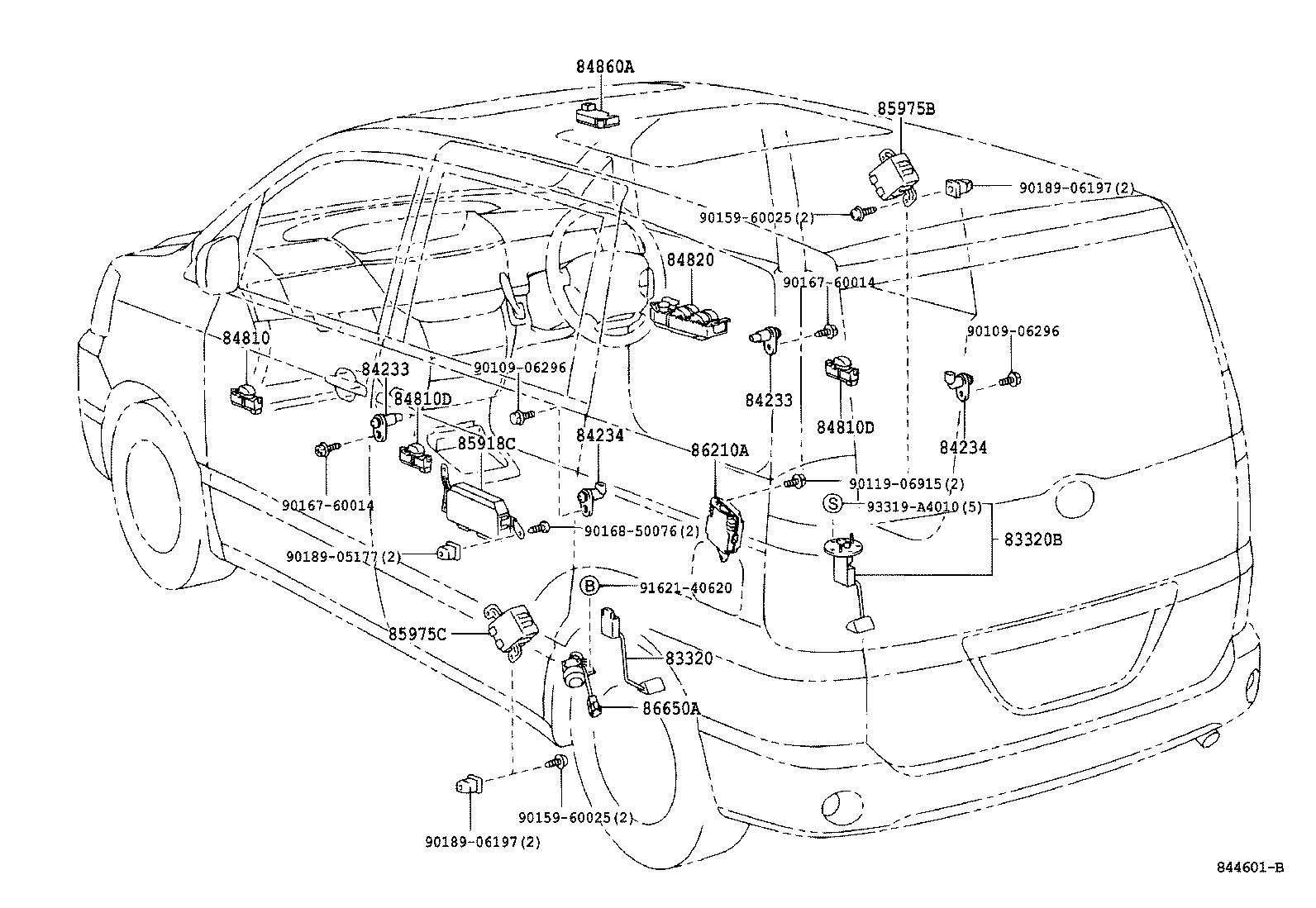

ILLUST NO. 7 OF 7(0111-0408)

Click highlighted areas on diagram

ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾊﾞﾂｸﾄﾞｱ

diagram 83320 83320B 84233 84233 84234 84234 84810 84810D 84810D 84820 84860A 85918C 85975B 85975C 86210A 86650A 9010906296 9010906296 9011906915 9015960025 9015960025 9016760014 9016760014 9016850076 9018905177 9018906197 9018906197 9162140620 93319A4010
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-44060

AZR60

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-52020

AZR6#

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-52020

AZR6#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-53010

AZR6#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-53010

AZR6#

 2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84030-44010

AZR6#

 1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84030-44010

AZR6#

 2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84030-44010

AZR6#

 2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84040-44010

AZR6#

 1
84860A - SWITCH ASSY, SLIDING ROOF
84860-28060B0

AZR6#

LT.GRAY,TRIM1#

 1
85918C - RELAY, DOOR CONTROL, LH
85918-28070

AZR6#

 1
85975B - RELAY, SLIDE DOOR CLOSER, RH
85975-28090

AZR6#

 1
85975C - RELAY, SLIDE DOOR CLOSER, LH
85975-28090

AZR6#

 1
86210A - INVERTER ASSY, VOLTAGE
86210-28020

AZR6#

 1
86650A - BUZZER ASSY, DOOR OPENING
86650-28100

AZR6#

 1
Common parts
90109-06296
90119-06915
90159-60025
90167-60014
90168-50076
90189-05177
90189-06197
91621-40620
93319-A4010
