AZR60G-BRSQH (2001)
Toyota Noah/Voxy

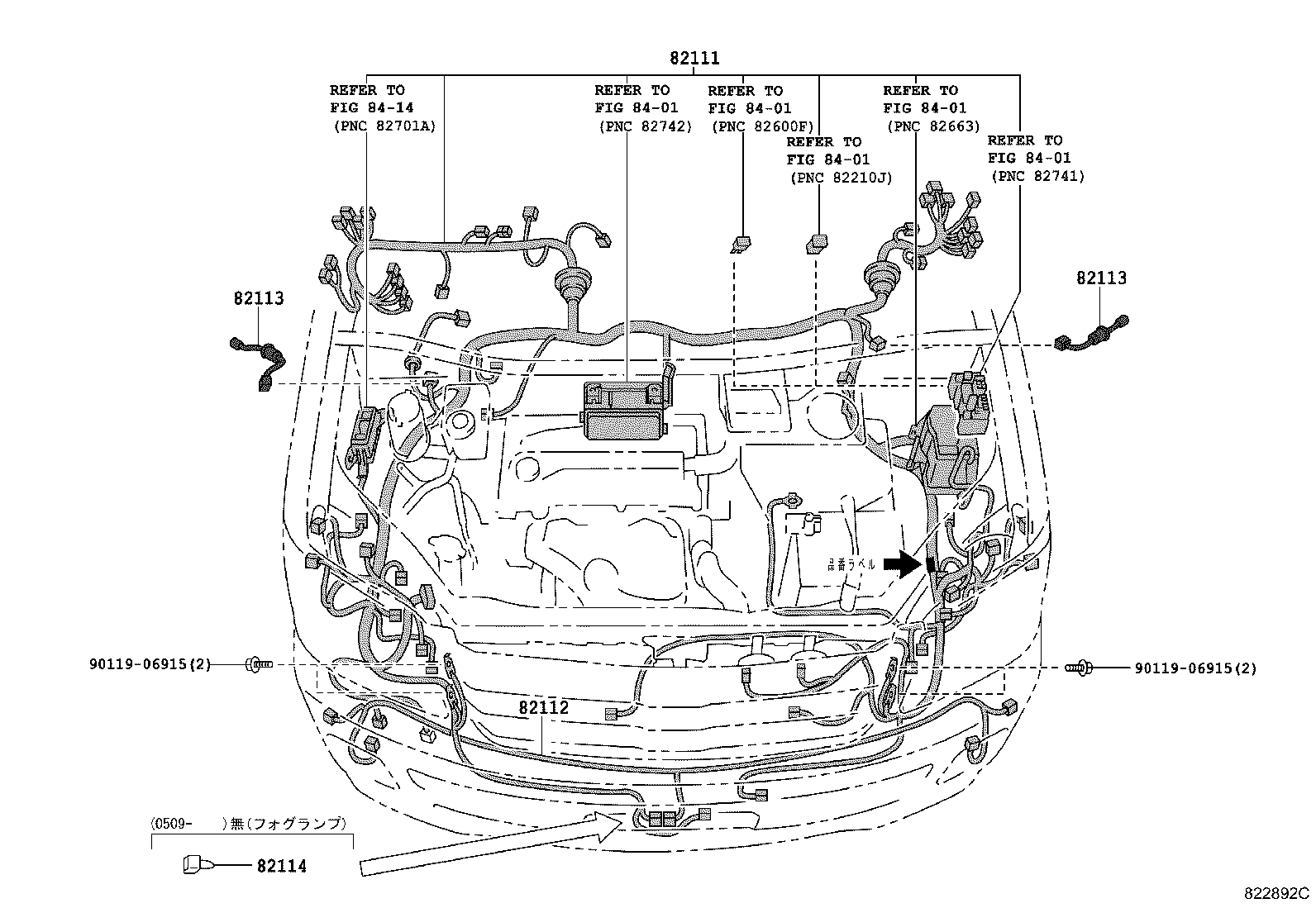

ILLUST NO. 1 OF 8(0111- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-28460 |
AZR60..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-28460 |
1 | ||
| 82115-28480 |
AZR60..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-28480 |
1 | ||
| 82115-28470 |
AZR60..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-28470 |
1 | ||
| 82115-28450 |
AZR60..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-28450 |
1 | ||
| 82115-28590 |
AZR60..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-28590 |
1 | ||
| 82115-28490 |
AZR60..VOXY ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-28490 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-28140 |
AZR6#..4HC..Z;AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D) |
1 | ||
| 82112-28180 |
AZR6#..VOXY..(V,X) ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ- & ﾌﾛﾝﾄ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 82112-28160 |
AZR6#..VOXY..X ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82112-28220 |
AZR6#..Z ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82112-28170 |
AZR6#..VOXY..(V,X) ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82112-28190 |
AZR6#..S |
1 | ||
| 82112-28200 |
AZR6#..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82112-28210 |
AZR6#..Z |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-28040 |
AZR6# |
2 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-28040 |
AZR6# |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8414 | ||||

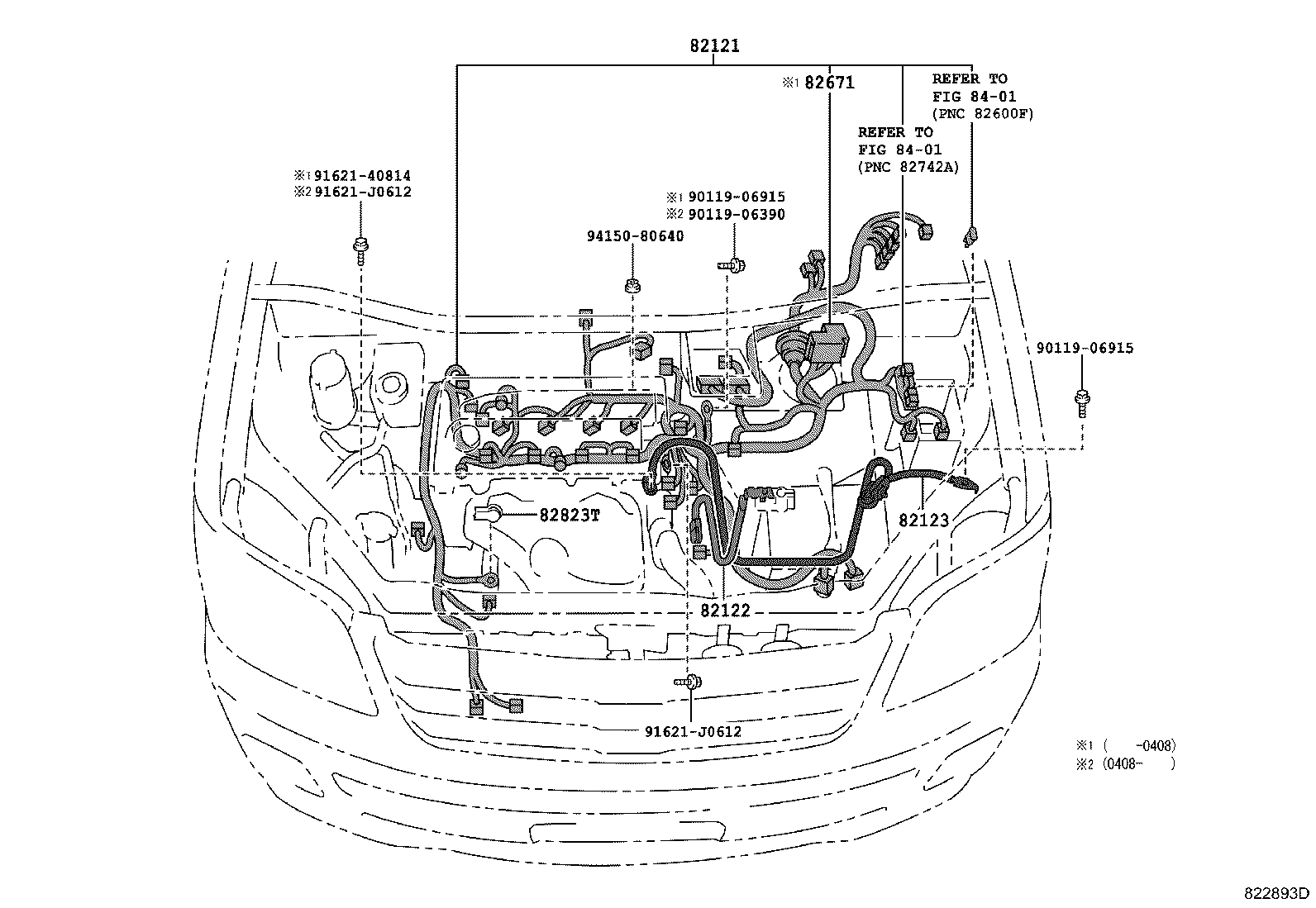

ILLUST NO. 2 OF 8(0111- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28670 |
AZR60..L,V,X ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ) |
1 | ||
| 82121-28830 |
AZR6# ｱﾘ(PTC ﾋ-ﾀ) |
1 | ||
| 82121-28820 |
AZR6# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28500 |
AZR6# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-28370 |
AZR6# ﾊﾞﾂﾃﾘ=46B24L-MF |
1 | ||
| 82123-28360 |
AZR6# ﾊﾞﾂﾃﾘ=55D23L-MF |
1 | ||
| 82123-28350 |
AZR6#..S,X,Z ﾊﾞﾂﾃﾘ=34B19L-MF |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-44010 |
AZR6# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
AZR6# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| 91621-40814 | ||||
| 91621-J0612 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 8401 | ||||

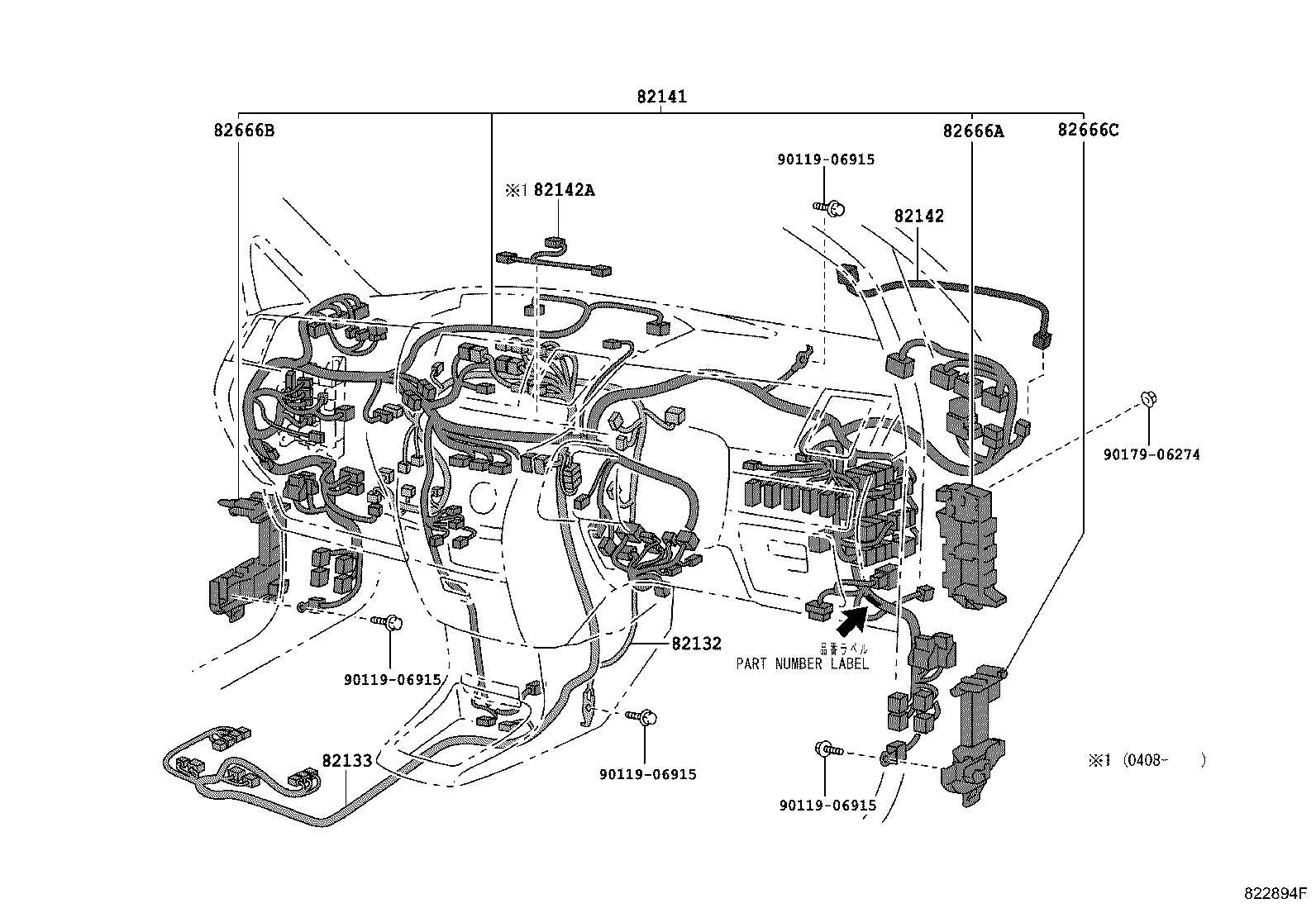

ILLUST NO. 3 OF 8(0111- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-28890 |
AZR6#..S,X,Z ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ) |
1 | ||
| 82132-2J010 |
AZR6# ｱﾘ(ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ) |
1 | ||
| 82132-28880 |
AZR6# ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82132-28870 |
AZR6#..S,X,Z ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-28420 |
AZR6#..4HC ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82133-28421 |
AZR6# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82133-28431 |
AZR6# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾘﾔ ﾃﾚﾋﾞ) |
1 | ||
| 82133-28430 |
AZR6#..4HC ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾘﾔ ﾃﾚﾋﾞ) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-2J260 |
AZR60..4HC..X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J260 |
1 | ||
| 82141-2J170 |
AZR60..4HC..(S,X,Z) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J170 |
1 | ||
| 82141-2J230 |
AZR60..4HC..(S,X,Z) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J230 |
1 | ||
| 82141-2J190 |
AZR60..4HC ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J190 |
1 | ||
| 82141-2J180 |
AZR60..4HC ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J180 |
1 | ||
| 82141-2J280 |
AZR60..4HC..(L,V,X) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J280 |
1 | ||
| 82141-2J220 |
AZR60..4HC..(S,X,Z) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J220 |
1 | ||
| 82141-2J181 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J181 |
1 | ||
| 82141-2J191 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J191 |
1 | ||
| 82141-2J160 |
AZR60..4HC..X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J160 |
1 | ||
| 82141-2J281 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J281 |
1 | ||
| 82141-2J320 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J320 |
1 | ||
| 82141-2J261 |
AZR60..X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J261 |
1 | ||
| 82141-2J161 |
AZR60..X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J161 |
1 | ||
| 82141-2J301 |
AZR60..S,X,Z ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J301 |
1 | ||
| 82141-2J231 |
AZR60..S,X,Z ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J231 |
1 | ||
| 82141-2J310 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J310 |
1 | ||
| 82141-2J300 |
AZR60..4HC..(S,X,Z) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-2J300 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-28010 |
AZR6# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-28290 |
AZR6# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-44130 |
AZR6# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-44140 |
AZR6# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||

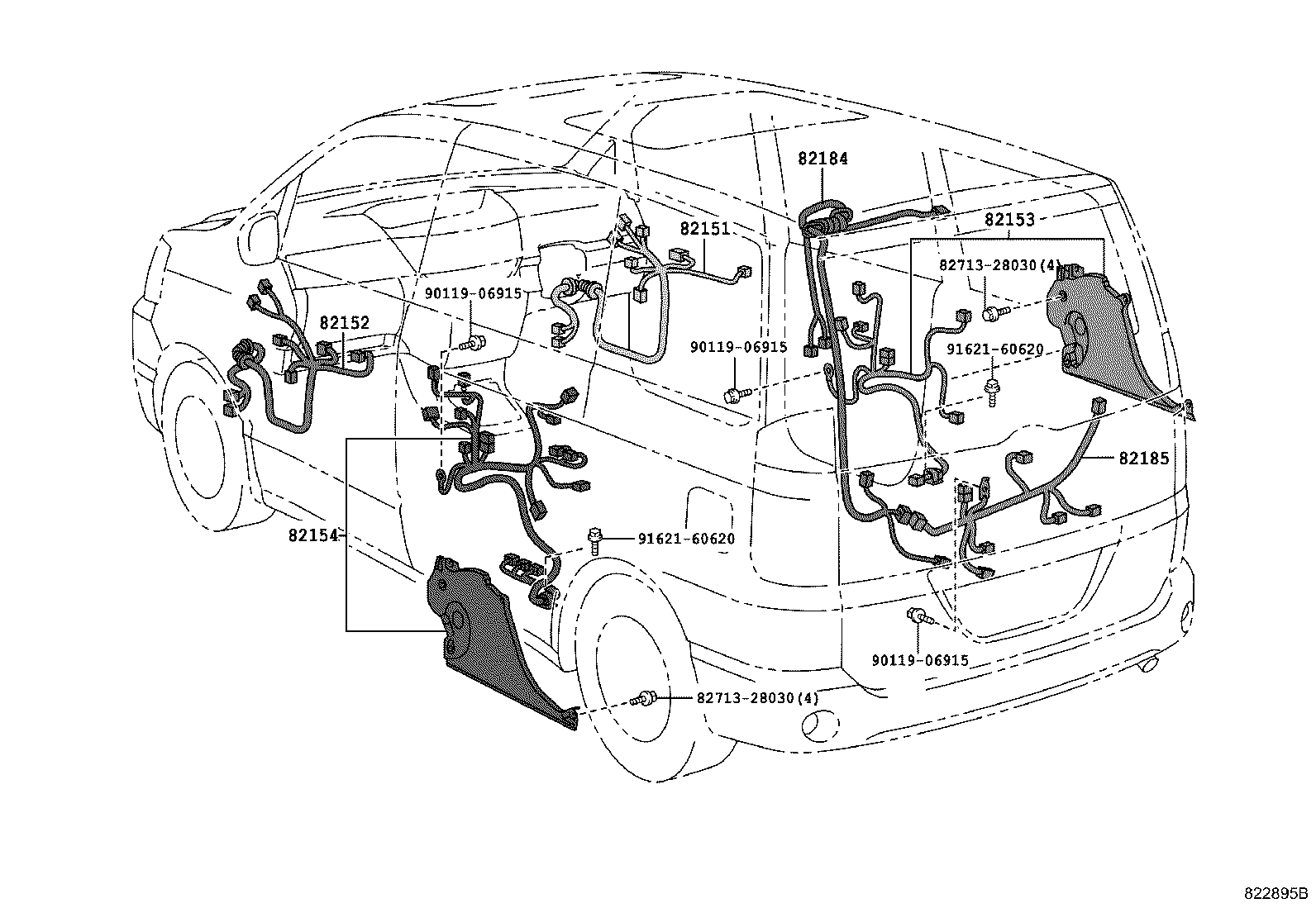

ILLUST NO. 4 OF 8(0111- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-28790 |
AZR6#..S,X,Z |
1 | ||
| 82151-28800 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82151-28810 |
AZR6# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-28750 |
AZR6# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82152-28760 |
AZR6#..L,V,X ｳｴﾙｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 82152-28740 |
AZR6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82152-28730 |
AZR6#..S,X,Z |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82053-28020 |
AZR6# ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 82053-28010 |
AZR6#..S,X,Z |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82054-28010 |
AZR6#..S,X,Z |
1 | ||
| 82054-28020 |
AZR6# ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 82054-28030 |
AZR6# ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-28400 |
AZR60..L,V,X ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ) & ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 82184-28290 |
AZR6# |
1 | ||
| 82184-28310 |
AZR60..L,V,X ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ) |
1 | ||
| 82184-28300 |
AZR6# ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-28690 |
AZR6# |
1 | ||
| 82185-28700 |
AZR60..L,V,X ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ) |
1 | ||
| Common parts | ||||
| 82713-28030 | ||||
| 90119-06915 | ||||
| 91621-60620 | ||||

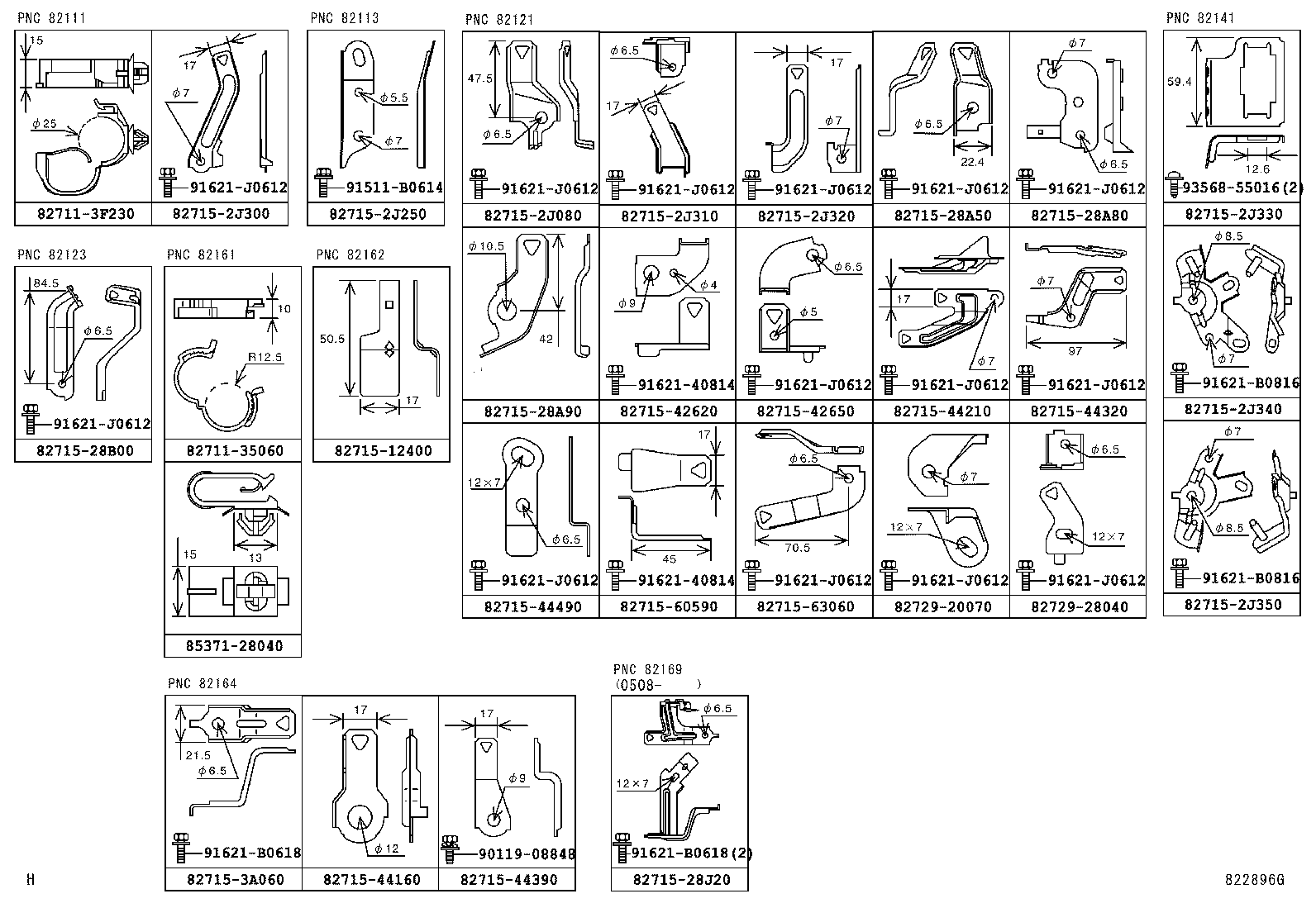

ILLUST NO. 6 OF 8(0111- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35060 | ||||
| 82711-3F230 | ||||
| 82715-12400 | ||||
| 82715-28A50 | ||||
| 82715-28A80 | ||||
| 82715-28A90 | ||||
| 82715-28B00 | ||||
| 82715-28J20 | ||||
| 82715-2J080 | ||||
| 82715-2J250 | ||||
| 82715-2J300 | ||||
| 82715-2J310 | ||||
| 82715-2J320 | ||||
| 82715-2J330 | ||||
| 82715-2J340 | ||||
| 82715-2J350 | ||||
| 82715-3A060 | ||||
| 82715-42620 | ||||
| 82715-42650 | ||||
| 82715-44160 | ||||
| 82715-44210 | ||||
| 82715-44320 | ||||
| 82715-44390 | ||||
| 82715-44490 | ||||
| 82715-60590 | ||||
| 82715-63060 | ||||
| 82729-20070 | ||||
| 82729-28040 | ||||
| 85371-28040 | ||||
| 90119-08848 | ||||
| 91511-B0614 | ||||
| 91621-40814 | ||||
| 91621-B0618 | ||||
| 91621-B0816 | ||||
| 91621-J0612 | ||||
| 93568-55016 | ||||

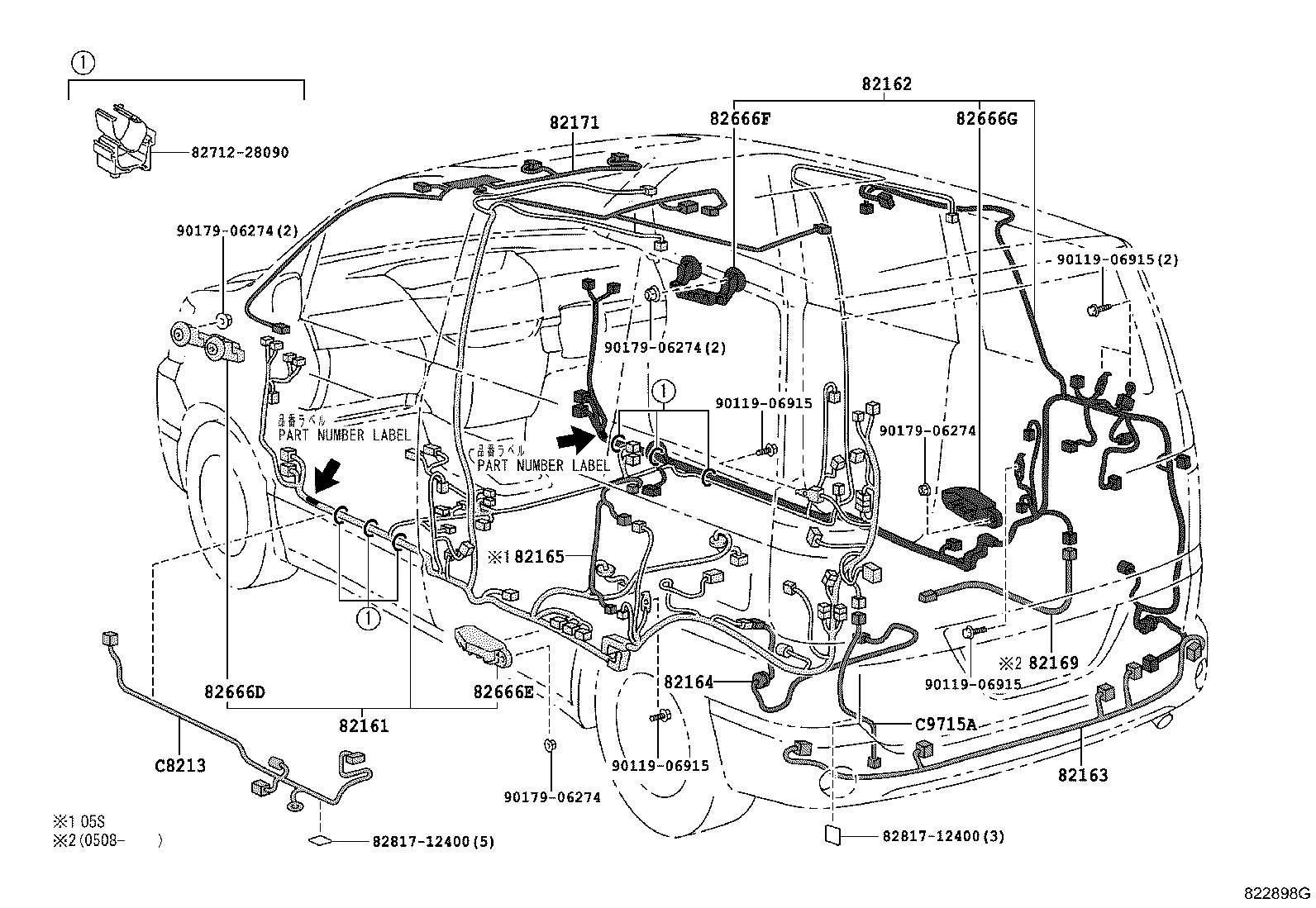

ILLUST NO. 5 OF 8(0111- )
ﾌﾛｱ & ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2J400 |
AZR60..S,X,Z ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J400 |
1 | ||
| 82161-2J470 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J470 |
1 | ||
| 82161-2J430 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J430 |
1 | ||
| 82161-2J460 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J460 |
1 | ||
| 82161-2J520 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J520 |
1 | ||
| 82161-2J550 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J550 |
1 | ||
| 82161-2J440 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J440 |
1 | ||
| 82161-2J540 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J540 |
1 | ||
| 82161-2J560 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J560 |
1 | ||
| 82161-2J500 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J500 |
1 | ||
| 82161-2J420 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J420 |
1 | ||
| 82161-2J610 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J610 |
1 | ||
| 82161-2J570 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J570 |
1 | ||
| 82161-2J410 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J410 |
1 | ||
| 82161-2J450 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J450 |
1 | ||
| 82161-2J600 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J600 |
1 | ||
| 82161-2J630 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J630 |
1 | ||
| 82161-2J480 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J480 |
1 | ||
| 82161-2J640 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J640 |
1 | ||
| 82161-2J580 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J580 |
1 | ||
| 82161-2J510 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J510 |
1 | ||
| 82161-2J620 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J620 |
1 | ||
| 82161-2J590 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J590 |
1 | ||
| 82161-2J530 |
AZR60..L,V,X ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J530 |
1 | ||
| 82161-2J490 |
AZR60 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-2J490 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-28800 |
AZR6# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-28800 |
1 | ||
| 82162-28710 |
AZR6#..S,X,Z ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-28710 |
1 | ||
| 82162-28810 |
AZR6#..S,X,Z ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-28810 |
1 | ||
| 82162-28720 |
AZR6# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-28720 |
1 | ||
| 82162-28700 |
AZR6#..S,X,Z ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-28700 |
1 | ||
| 82162-28840 |
AZR6# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-28840 |
1 | ||
| 82162-28860 |
AZR6#..S,X,Z ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-28860 |
1 | ||
| 82162-28850 |
AZR6# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-28850 |
1 | ||
| 82162-28830 |
AZR6#..S,X,Z ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-28830 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-28130 |
AZR6# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-28A40 |
AZR6#..4HC..Z;AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D),ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F) |
1 | ||
| 82171-2J770 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F) & ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-2J770 |
AZR6#..4HC..Z;AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D),ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F) & ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 82171-2J760 |
AZR6#..S,X,Z ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-2J740 |
AZR6#..S,X,Z |
1 | ||
| 82171-2J750 |
AZR6#..L,V |
1 | ||
| 82171-2J780 |
AZR6#..S,X,Z ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ) |
1 | ||
| 82171-2J770 |
AZR6#..L,V ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-2J750 |
AZR6#..4HC..Z;AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D),ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F) & ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ) |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-28300 |
AZR6# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-28310 |
AZR6# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-28300 |
AZR6# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-28310 |
AZR6# |
1 | ||
| Common parts | ||||
| 82712-28090 | ||||
| 82817-12400 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||

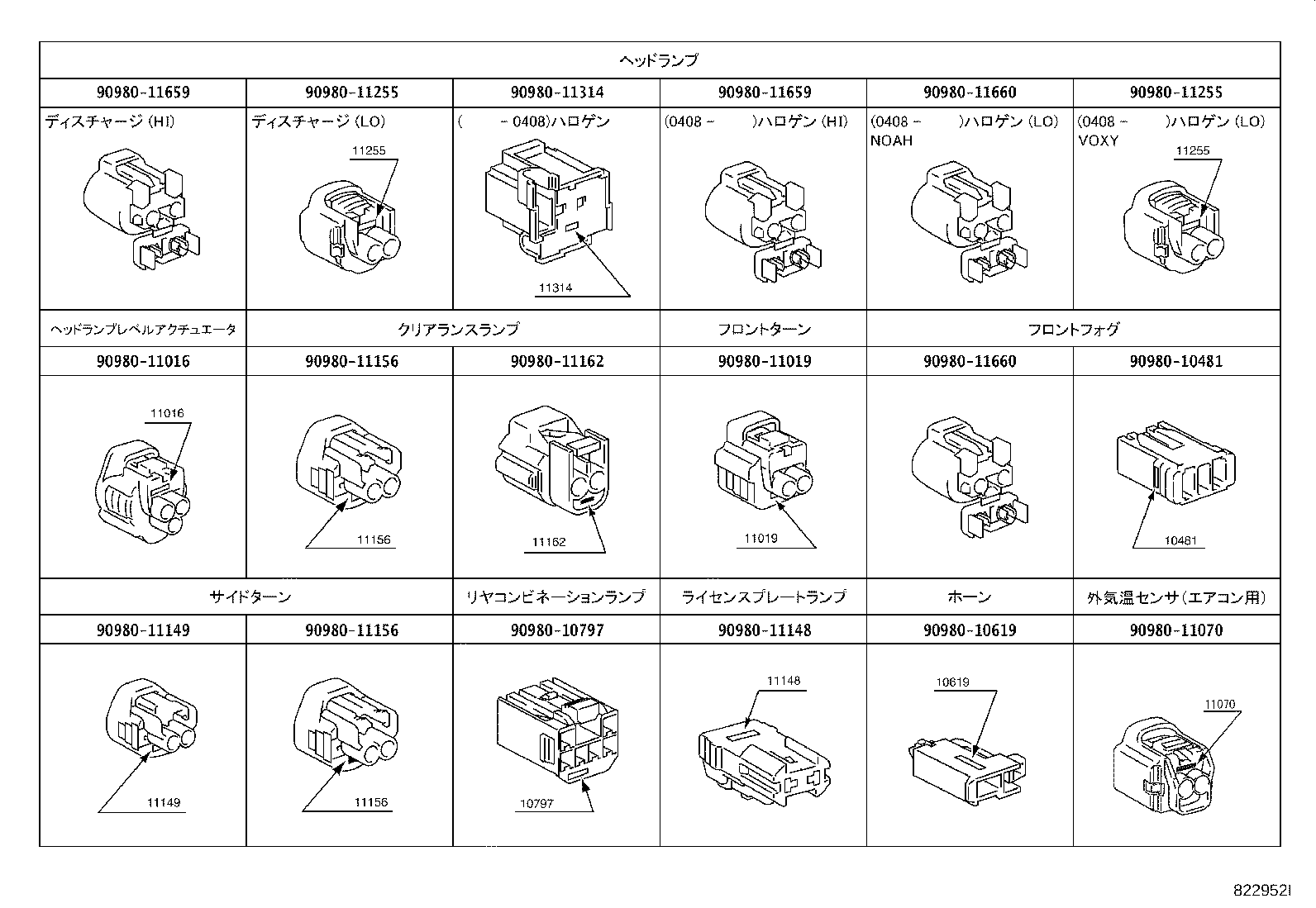

ILLUST NO. 8 OF 8(0111- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11314 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||

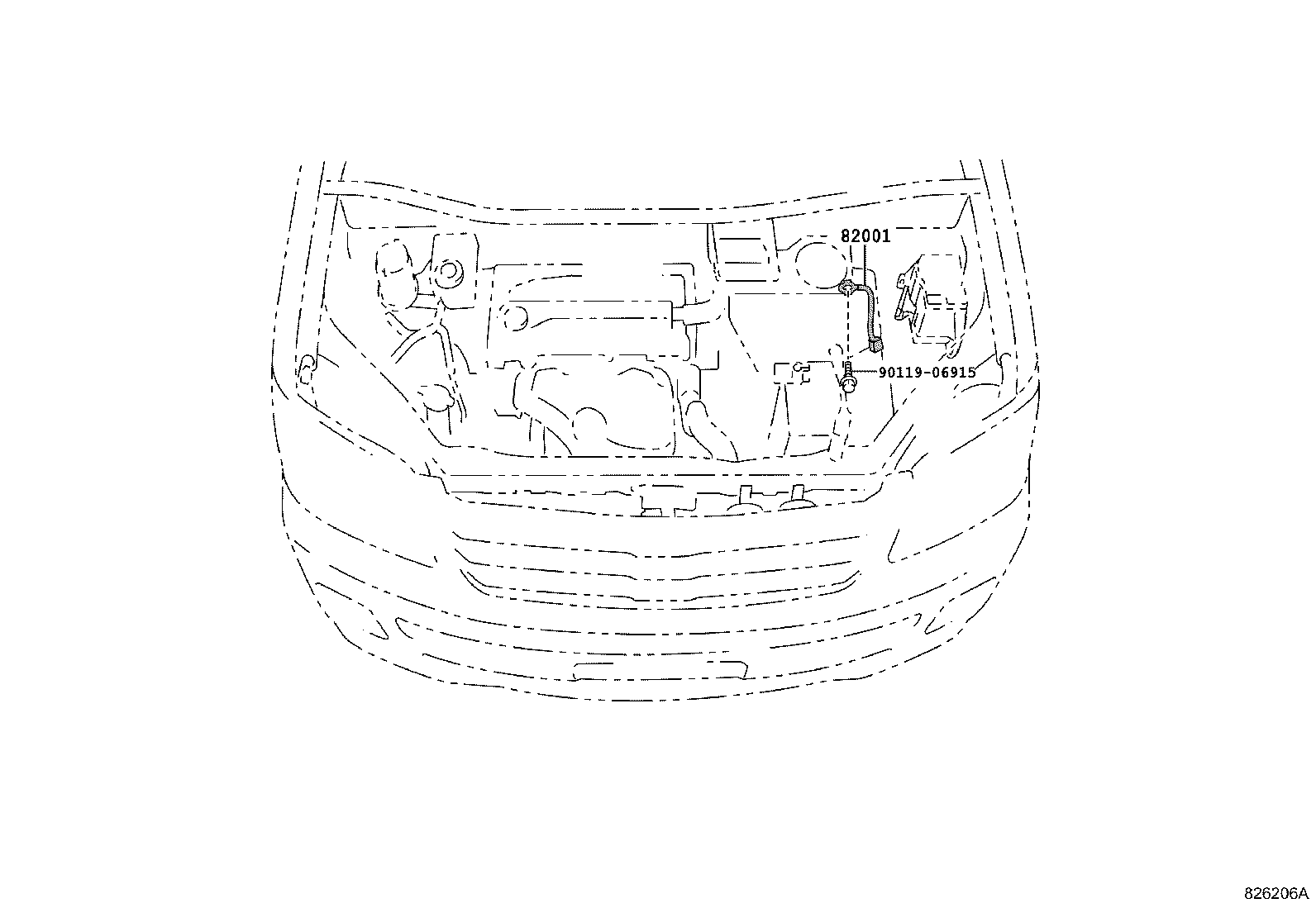

ILLUST NO. 7 OF 8(0111- )
ｹ-ﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AZR6# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
