AZR60G-BRSQH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

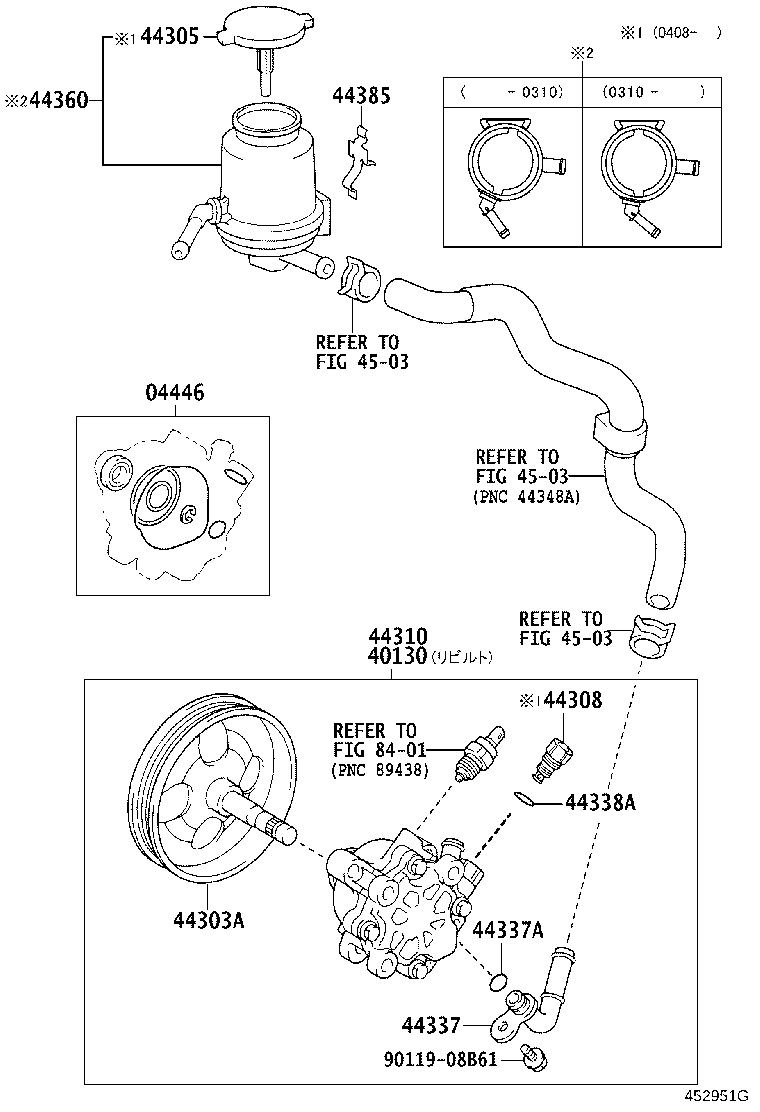

Click highlighted areas on diagram

diagram 04446 40130 44303A 44305 44308 44310 44337 44337A 44338A 44360 44385 4503 4503 4503 8401 9011908B61
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-32050

AZR6#

 1
40130 - PUMP ASSY,VANE REBUILT
40130-42070

AZR6#

 1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-28010

AZR6#

 1
44310 - PUMP ASSY, VANE
44310-42070

AZR6#

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-42010

AZR6#

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020

AZR6#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-18009

AZR6#

外径=22,内径=18.6

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-44010

AZR6#

 1
44360-44030

AZR6#

 1
44385 - SUPPORT, SPRING, UPPER(FOR VANE PUMP OIL RESERVOIR)
44385-38010

AZR6#

 1
Common parts
90119-08B61
Linked diagrams
4503
8401
