AZR60G-BRSEH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004

Engine 1AZFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0111- )

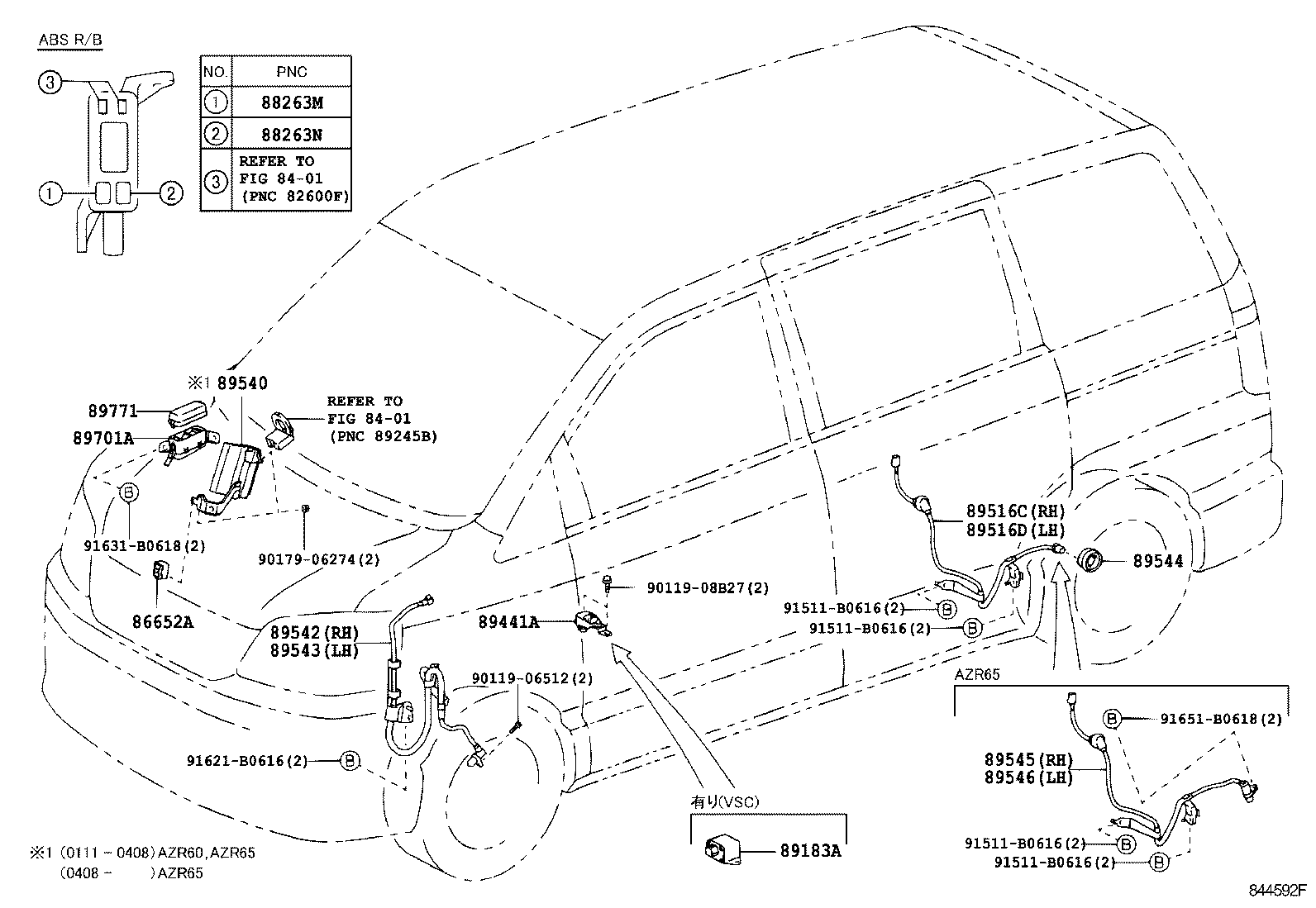

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
88263M - RELAY, ABS SOLENOID
88263-32070	AZR6#	11/2001 - 08/2004	1
88263N - RELAY, ABS MOTOR
88263-32070	AZR6#	11/2001 - 08/2004	1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-28030	AZR60	11/2001 - 08/2004	1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-28040	AZR60	11/2001 - 08/2004	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-28410	AZR60	11/2001 - 08/2004	1
89542 - SENSOR, SPEED, FRONT RH
89542-44030	AZR6#	11/2001 - 08/2004	1
89543 - SENSOR, SPEED, FRONT LH
89543-44030	AZR6#	11/2001 - 08/2004	1
89544 - SENSOR, SKID CONTROL
89544-47010	AZR60	11/2001 - 10/2003	2
89544-20010	AZR60	10/2003 - 08/2004	2
89701A - BLOCK SUB-ASSY, ABS RELAY
82743-44070	AZR6#	11/2001 - 08/2004	1
89771 - COVER, ABS RELAY BLOCK, UPPER
82662-28040	AZR6#	11/2001 - 08/2004	1
Common parts
90119-06512
90119-08B27
90179-06274
91511-B0616
91621-B0616
91631-B0618
91651-B0618
Linked diagrams
8401
