AZR60G-BRSEH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )4HC

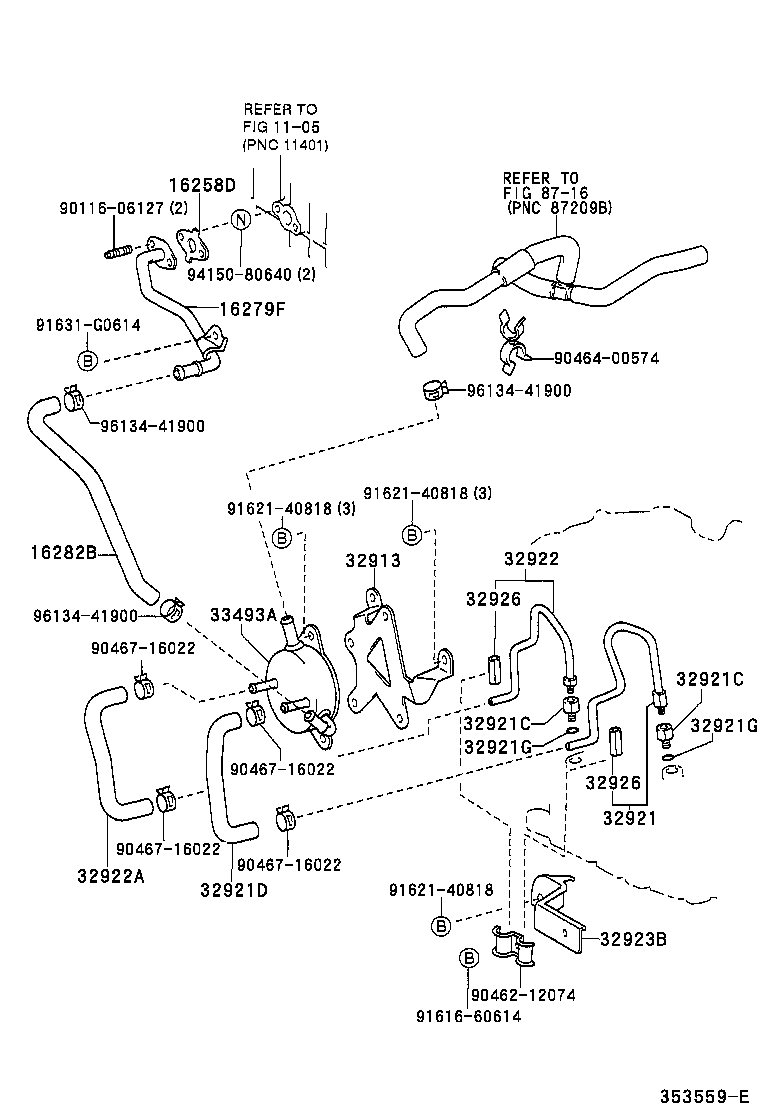

Click highlighted areas on diagram

A248E,A248F

diagram 1105 16258D 16279F 16282B 32913 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923B 32926 32926 33493A 8716 9011606127 9046212074 9046400574 9046716022 9046716022 9046716022 9046716022 9161660614 9162140818 9162140818 9162140818 91631G0614 9415080640 9613441900 9613441900 9613441900
Part # Description Qty Price
16258D - GASKET(FOR WATER BY-PASS PIPE)
16258-28020

1AZFSE..AZR6#..4HC

 1
16258-28040

1AZFSE..AZR6#

 1
16258-28021

1AZFSE..AZR6#..4HC

 1
16279F - PIPE, WATER BY-PASS, NO.3
16279-28030

1AZFSE..AZR6#

 1
16282B - HOSE, WATER BY-PASS, NO.5
16282-28030

1AZFSE..AZR6#

 1
32913 - BRACKET, OIL COOLER
32913-28030

AZR6#

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-28300

AZR6#

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

AZR6#

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

AZR6#

 2
32921D - HOSE(FOR OIL COOLER INLET)
32943-28050

AZR6#

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

AZR6#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

AZR6#

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-28220

AZR6#

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32943-28050

AZR6#

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-28130

AZR6#

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

AZR6#

長さ=35,内径=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

AZR6#

長さ=35,内径=10

 2
33493A - COOLER, TRANSMISSION OIL
33493-28010

AZR6#

 1
Common parts
90116-06127
90462-12074
90464-00574
90467-16022
91616-60614
91621-40818
91631-G0614
94150-80640
96134-41900
Linked diagrams
1105
8716
