AZR60G-BRESH (2004)

Toyota Noah/Voxy

Production Aug 2004 - Jun 2007
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

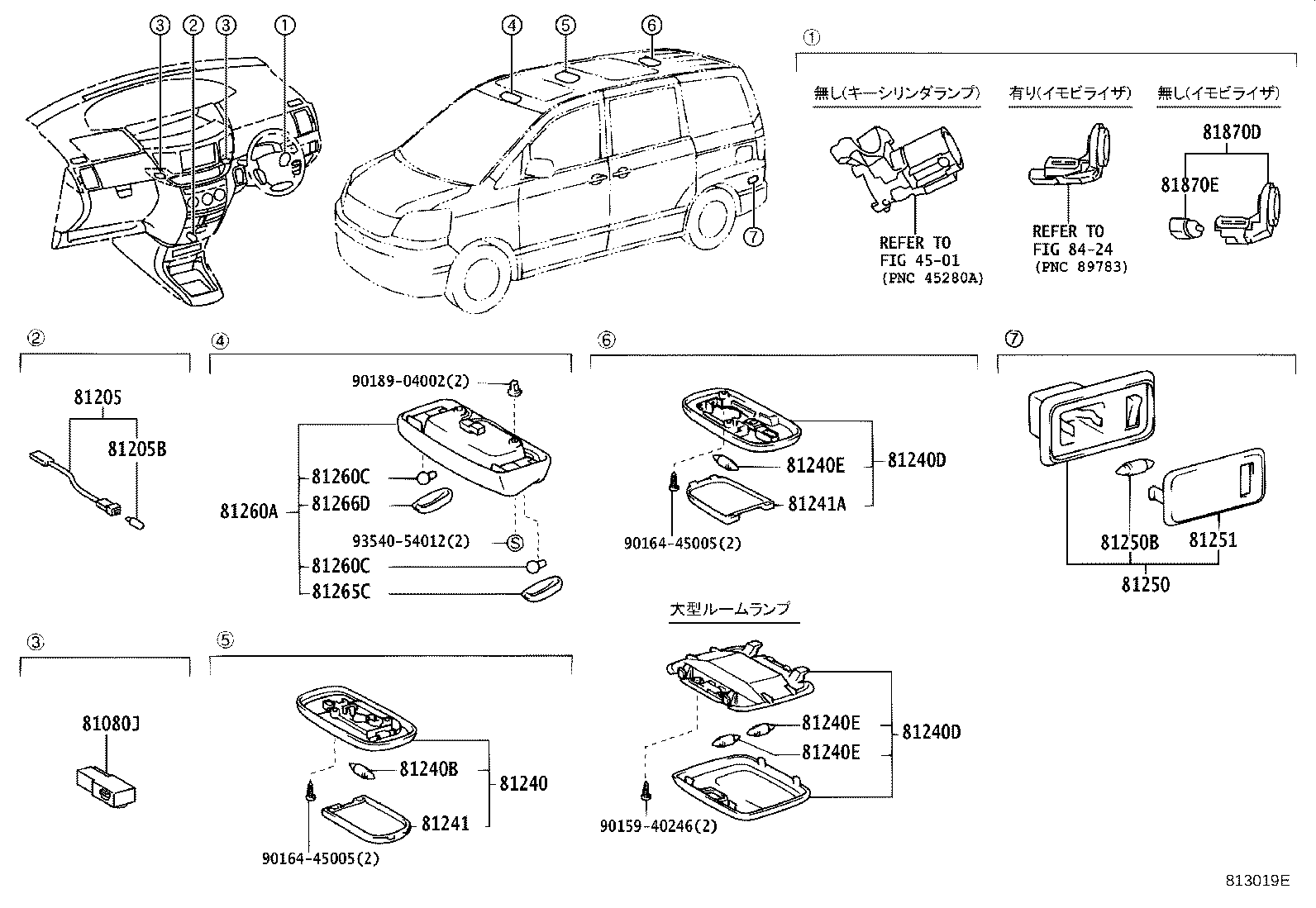

Click highlighted areas on diagram

diagram 4501 81080J 81205 81205B 81240 81240B 81240D 81240D 81240E 81240E 81240E 81241 81241A 81250 81250B 81251 81260A 81260C 81260C 81265C 81266D 81870D 81870E 8424 9015940246 9016445005 9016445005 9018904002 9354054012
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-28010

AZR6#

 2
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81850-44010

AZR6#

 1
81850-44010

AZR6#

 1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014

AZR6#

14V 1.4W

 1
90981-11014

AZR6#

14V 1.4W

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12060P0

AZR6#

LT.GRAY,TRIM1#

 1
81240-52010B0

AZR6#..05S,08S

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81240-52010B0

AZR6#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81240-12060P0

AZR6#

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

AZR6#

12V 8W

 1
90981-14011

AZR6#

12V 8W

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-12060P0

AZR6#..07S,08S

LT.GRAY,TRIM1#

 1
81240-28080B0

AZR6#

ｵｵｶﾞﾀ ﾙｰﾑ ﾗﾝﾌﾟ,LT.GRAY,TRIM1#

 1
81240-12060P0

AZR6#..S,X,Z

LT.GRAY,TRIM1#

 1
81240-28080B0

AZR6#

ｵｵｶﾞﾀ ﾙｰﾑ ﾗﾝﾌﾟ,LT.GRAY,TRIM1#

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-12060P0

AZR6#..07S,08S

LT.GRAY,TRIM1#

 1
81240-28080B0

AZR6#

ｵｵｶﾞﾀ ﾙｰﾑ ﾗﾝﾌﾟ,LT.GRAY,TRIM1#

 1
81240-12060P0

AZR6#..S,X,Z

LT.GRAY,TRIM1#

 1
81240-28080B0

AZR6#

ｵｵｶﾞﾀ ﾙｰﾑ ﾗﾝﾌﾟ,LT.GRAY,TRIM1#

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14011

AZR6#

12V 8W,ｵｵｶﾞﾀ ﾙｰﾑ ﾗﾝﾌﾟ

 2
90981-14011

AZR6#

12V 8W,ｵｵｶﾞﾀ ﾙｰﾑ ﾗﾝﾌﾟ

 2
90981-14011

AZR6#..S,X,Z

12V 8W

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14011

AZR6#

12V 8W,ｵｵｶﾞﾀ ﾙｰﾑ ﾗﾝﾌﾟ

 2
90981-14011

AZR6#

12V 8W,ｵｵｶﾞﾀ ﾙｰﾑ ﾗﾝﾌﾟ

 2
90981-14011

AZR6#..S,X,Z

12V 8W

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14011

AZR6#

12V 8W,ｵｵｶﾞﾀ ﾙｰﾑ ﾗﾝﾌﾟ

 2
90981-14011

AZR6#

12V 8W,ｵｵｶﾞﾀ ﾙｰﾑ ﾗﾝﾌﾟ

 2
90981-14011

AZR6#..S,X,Z

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AZR6#

 1
81241-44010

AZR6#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ)

 1
81241-12020

AZR6#

 1
81241-44010

AZR6#..05S,08S

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ)

 1
81241A - LENS, ROOM LAMP, NO.2
81241-12020

AZR6#..S,X,Z

 1
81241-12020

AZR6#..07S,08S

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-12030B7

AZR6#

STONE,TRIM1#

 1
81250-12030P1

AZR6#..07S,08S

GRAY,TRIM1#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AZR6#

12V 5W

 1
99132-13050

AZR6#

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

AZR6#

 1
81251-12030

AZR6#

 1
81260A - LAMP ASSY, MAP
81260-20260B6

AZR6#

LT.GRAY,TRIM1#

 1
81260-20261B6

AZR6#

LT.GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12020

AZR6#

12V 8W

 2
90981-12020

AZR6#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12020

AZR6#

12V 8W

 2
90981-12020

AZR6#

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-20260

AZR6#

助手席側

 1
81265-20260

AZR6#

助手席側

 1
81266D - LENS, MAP LAMP, NO.2
81266-20260

AZR6#

運転席側

 1
81266-20260

AZR6#

運転席側

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-13010

AZR6#

 1
81870-13010

AZR6#

 1
81870E - BULB, KEY CYLINDER LAMP
90010-01056

AZR6#

14V 1.4W

 1
90010-01056

AZR6#

14V 1.4W

 1
Common parts
90159-40246
90164-45005
90189-04002
93540-54012
Linked diagrams
4501
8424
