AZR60G-BREEH (2004)

Toyota Noah/Voxy

Production Aug 2004 - Jun 2007
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

Click highlighted areas on diagram

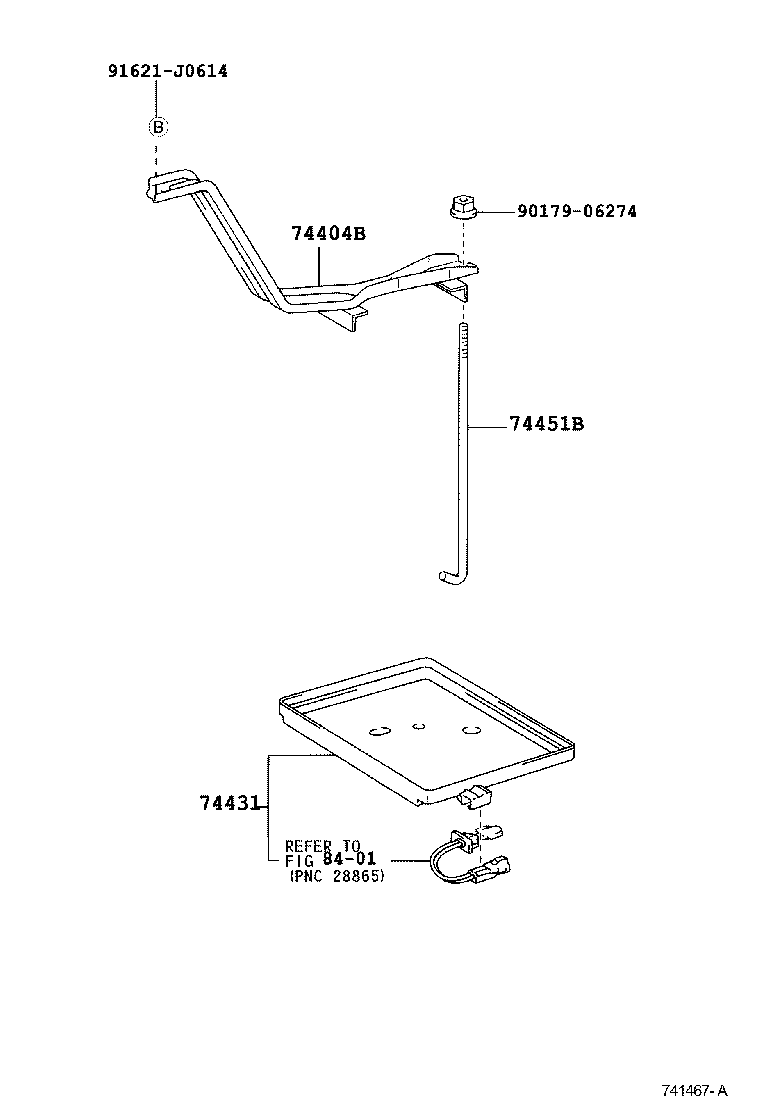

diagram 74404B 74431 74451B 8401 9017906274 91621J0614
Part # Description Qty Price
74404B - CLAMP SUB-ASSY, BATTERY
74404-28160

AZR6#

ﾊﾞﾂﾃﾘ=55D

 1
74404-28160

AZR6#

ﾊﾞﾂﾃﾘ=55D

 1
74404-28150

AZR6#

ﾊﾞﾂﾃﾘ=34B OR 46B

 1
74404-28150

AZR6#..05S,08S

ﾊﾞﾂﾃﾘ=34B OR 46B

 1
74431 - TRAY, BATTERY
74431-28010

AZR6#

ﾊﾞﾂﾃﾘ=55D

 1
74450-44010

AZR6#

 1
74431-20090

AZR6#

ﾊﾞﾂﾃﾘ=34B OR 46B

 1
74451B - BOLT, BATTERY CLAMP
74451-10060

AZR6#

 1
74451-10060

AZR6#

 1
Common parts
90179-06274
91621-J0614
Linked diagrams
8401
