AZR60G-ARSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )AZR60

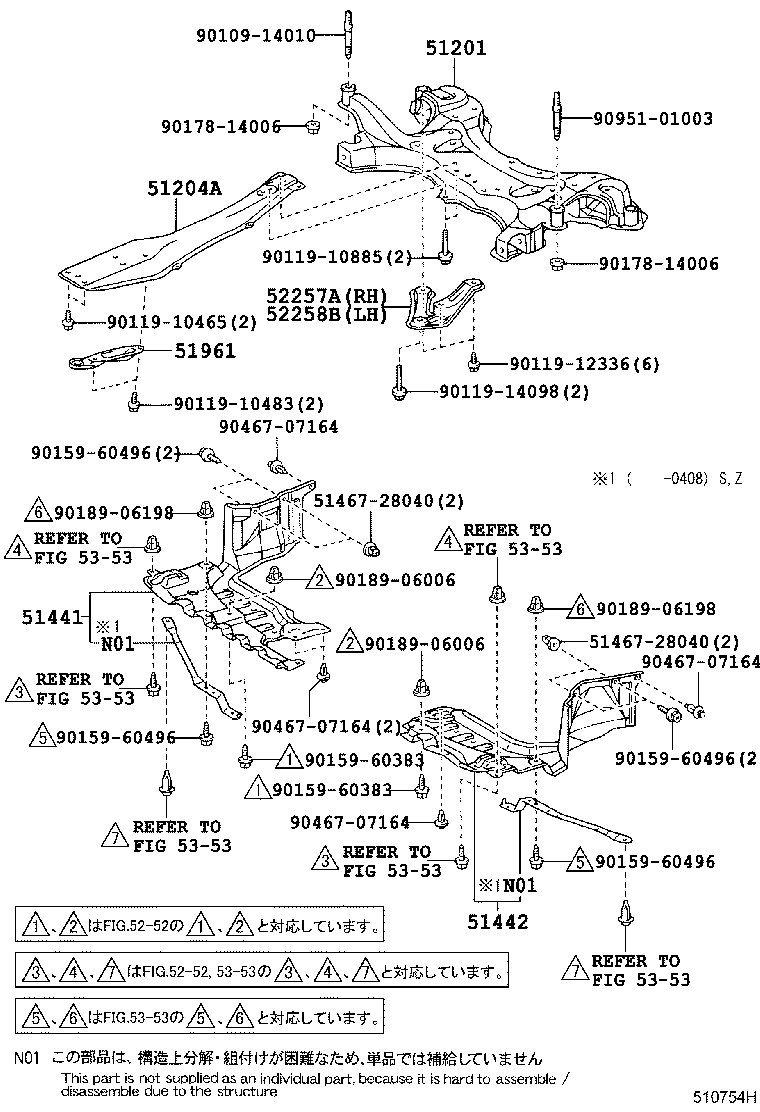

Click highlighted areas on diagram

diagram 51201 51204A 51441 51442 5146728040 5146728040 51961 52257A 52258B 5353 5353 5353 5353 5353 5353 9010914010 9011910465 9011910483 9011910885 9011912336 9011914098 9015960383 9015960383 9015960496 9015960496 9015960496 9015960496 9017814006 9017814006 9018906006 9018906006 9018906198 9018906198 9046707164 9046707164 9046707164 9046707164 9095101003
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-28230

AZR60

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-44010

AZR60

 1
51441 - COVER, ENGINE UNDER, NO.1
51440-28110

AZR6#..S,Z

 1
51442 - COVER, ENGINE UNDER, NO.2
51450-28050

AZR6#..S,Z

 1
51961 - HOOK, NO.1
51963-32040

AZR6#

 1
52257A - BRACE, FRONT SUSPENSION MEMBER, REAR RH
51023-28030

AZR6#

 1
52258B - BRACE, FRONT SUSPENSION MEMBER, REAR LH
51024-28030

AZR6#

 1
Common parts
51467-28040
90109-14010
90119-10465
90119-10483
90119-10885
90119-12336
90119-14098
90159-60383
90159-60496
90178-14006
90189-06006
90189-06198
90467-07164
90951-01003
Linked diagrams
5353
