AZR60G-ARSSH (2001)
Toyota Noah/Voxy
Production
Nov 2001
-
Aug 2004
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0111- )

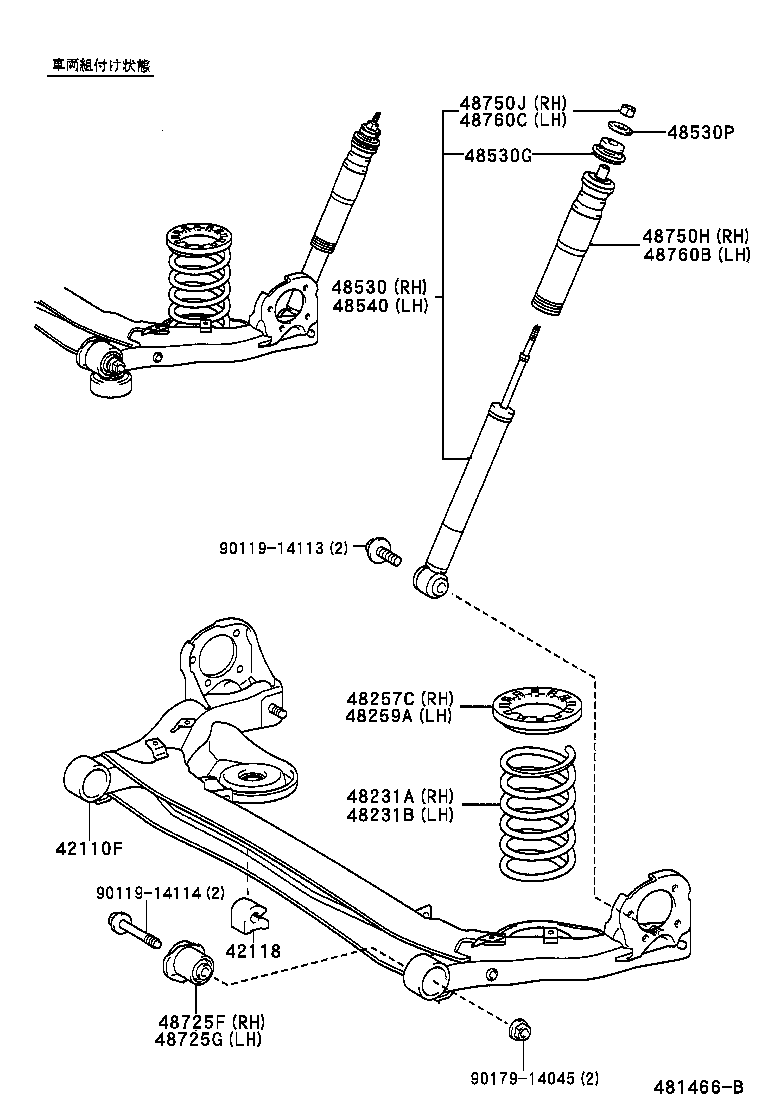

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-28410 |
AZR6# |
1 | ||
| 42118 - DAMPER, REAR AXLE BEAM | ||||
| 42118-28010 |
AZR6# |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2J080 |
AZR60 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2J080 |
AZR60 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-28060 |
AZR6# |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-28060 |
AZR6# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80065 |
AZR60 ﾏｰｸ 48530−44010,ｱﾘ(TEMS) |
1 | ||
| 48531-80702 |
AZR60 ﾏｰｸ 48531−28590 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90905-40019 |
AZR6# |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02159 |
AZR6# |
2 | ||
| 90948-02192 |
AZR65;AZR60..S,Z |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80065 |
AZR60 ﾏｰｸ 48530−44010,ｱﾘ(TEMS) |
1 | ||
| 48531-80702 |
AZR60 ﾏｰｸ 48531−28590 |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-44050 |
AZR6# |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-44050 |
AZR6# |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-44010 |
AZR6# |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90170-12045 |
AZR6# |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-44010 |
AZR6# |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90170-12045 |
AZR6# |
1 | ||
| Common parts | ||||
| 90119-14113 | ||||
| 90119-14114 | ||||
| 90179-14045 | ||||
(0111- )

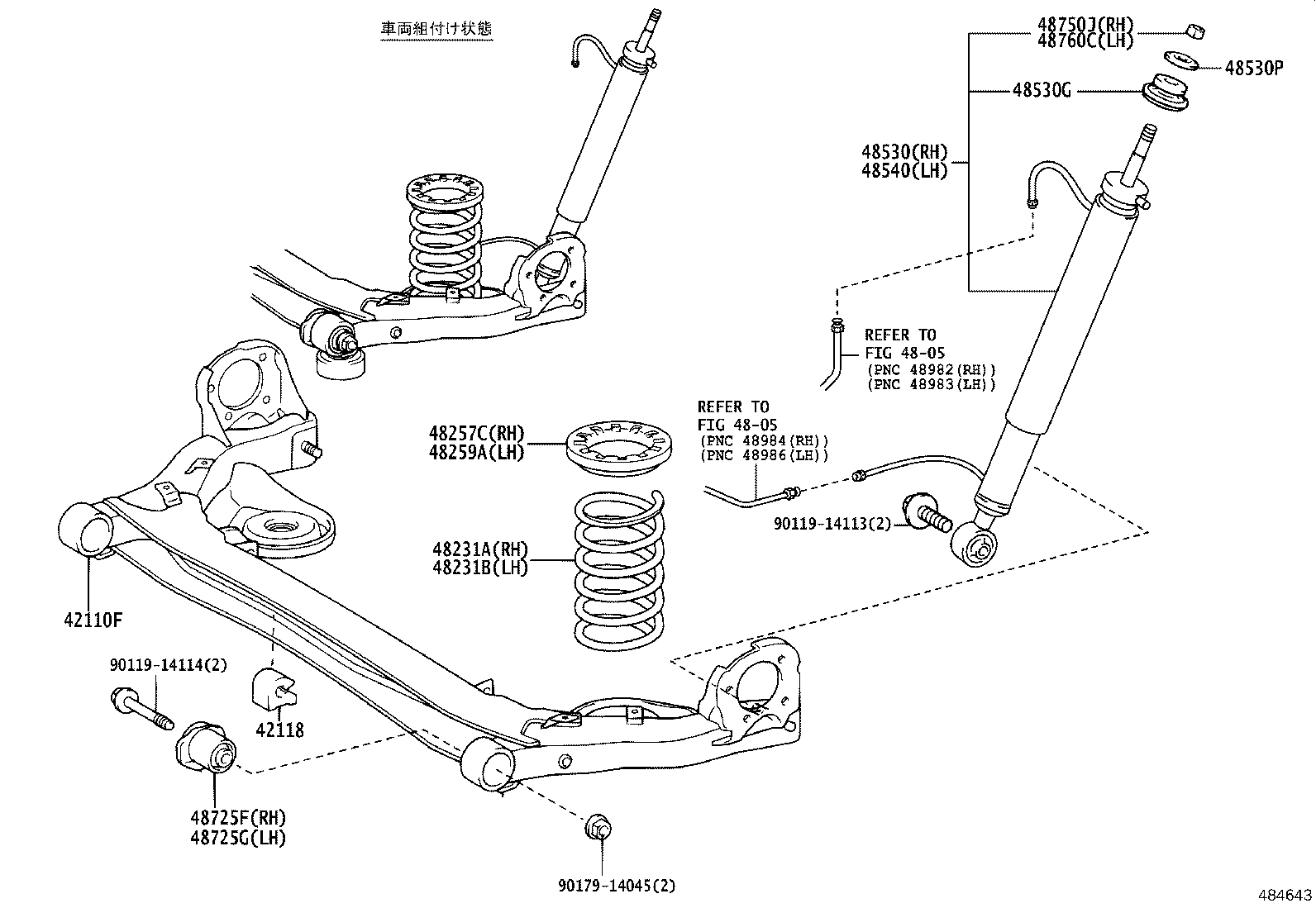

Click highlighted areas on diagram
ｱﾘ(TEMS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-28410 |
AZR6# |
1 | ||
| 42118 - DAMPER, REAR AXLE BEAM | ||||
| 42118-28010 |
AZR6# |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2J080 |
AZR60 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2J080 |
AZR60 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-28060 |
AZR6# |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-28060 |
AZR6# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80065 |
AZR60 ﾏｰｸ 48530−44010,ｱﾘ(TEMS) |
1 | ||
| 48531-80702 |
AZR60 ﾏｰｸ 48531−28590 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90905-40019 |
AZR6# |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02159 |
AZR6# |
2 | ||
| 90948-02192 |
AZR65;AZR60..S,Z |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80065 |
AZR60 ﾏｰｸ 48530−44010,ｱﾘ(TEMS) |
1 | ||
| 48531-80702 |
AZR60 ﾏｰｸ 48531−28590 |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-44050 |
AZR6# |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-44050 |
AZR6# |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-44010 |
AZR6# |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90170-12045 |
AZR6# |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-44010 |
AZR6# |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90170-12045 |
AZR6# |
1 | ||
| Common parts | ||||
| 90119-14113 | ||||
| 90119-14114 | ||||
| 90179-14045 | ||||
(0111-0408)AZR60..L,V,X ; (0408- )AZR60..08S

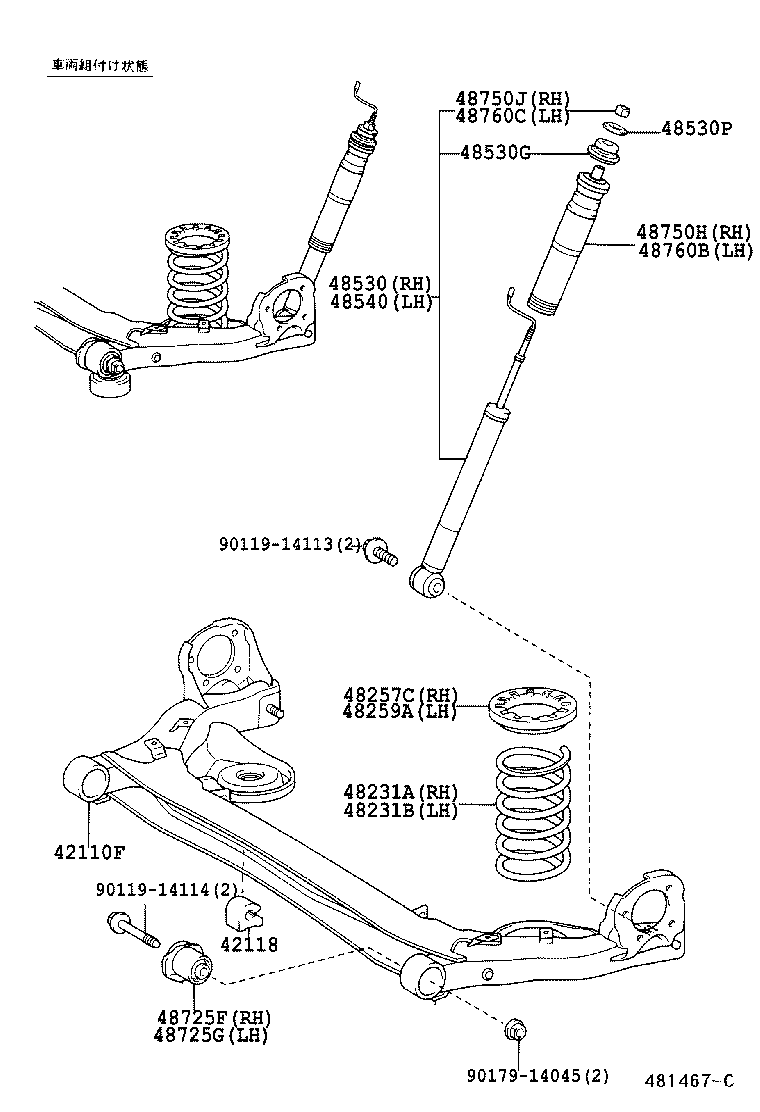

Click highlighted areas on diagram
ｱﾘ(ﾊｲﾄｺﾝﾄﾛｰﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-28410 |
AZR6# |
1 | ||
| 42118 - DAMPER, REAR AXLE BEAM | ||||
| 42118-28010 |
AZR6# |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2J080 |
AZR60 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2J080 |
AZR60 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-28060 |
AZR6# |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-28060 |
AZR6# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80065 |
AZR60 ﾏｰｸ 48530−44010,ｱﾘ(TEMS) |
1 | ||
| 48531-80702 |
AZR60 ﾏｰｸ 48531−28590 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90905-40019 |
AZR6# |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02159 |
AZR6# |
2 | ||
| 90948-02192 |
AZR65;AZR60..S,Z |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80065 |
AZR60 ﾏｰｸ 48530−44010,ｱﾘ(TEMS) |
1 | ||
| 48531-80702 |
AZR60 ﾏｰｸ 48531−28590 |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-44050 |
AZR6# |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-44050 |
AZR6# |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90170-12045 |
AZR6# |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90170-12045 |
AZR6# |
1 | ||
| Common parts | ||||
| 90119-14113 | ||||
| 90119-14114 | ||||
| 90179-14045 | ||||
| Linked diagrams | ||||
| 4805 | ||||
