AZR60G-ARSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

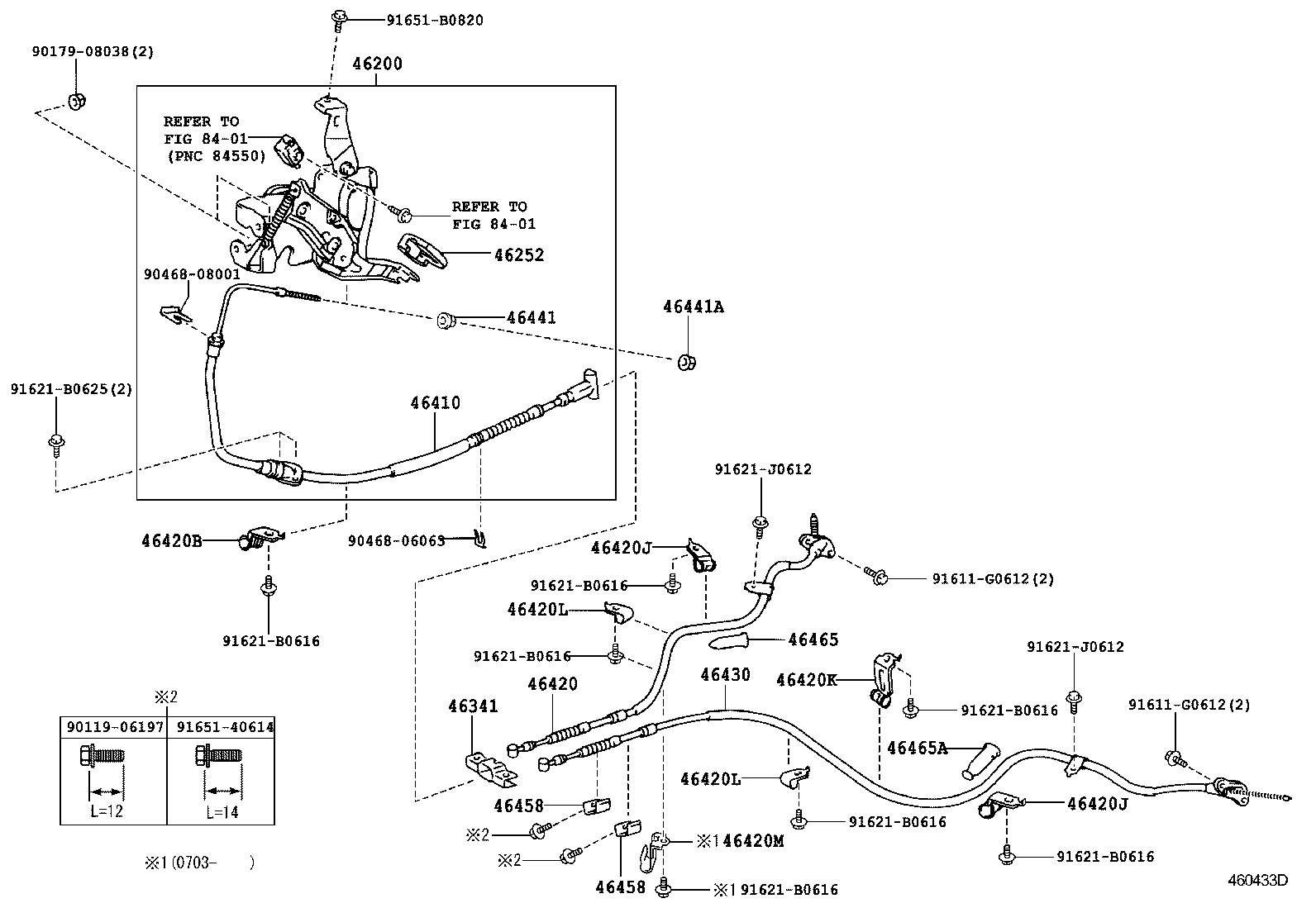

Click highlighted areas on diagram

diagram 46200 46252 46341 46410 46420 46420B 46420J 46420J 46420K 46420L 46420L 46420M 46430 46441 46441A 46458 46458 46465 46465A 8401 8401 9011906197 9017908038 9046806063 9046808001 91611G0612 91611G0612 91621B0616 91621B0616 91621B0616 91621B0616 91621B0616 91621B0616 91621B0616 91621B0625 91621J0612 91621J0612 9165140614 91651B0820
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-28040

AZR6#

 1
46252 - PAD, PARKING PEDAL
46252-52010

AZR6#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12020

AZR6#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-28250

AZR6#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-28450

AZR6#

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01C86

AZR6#

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01C69

AZR6#

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01C69

AZR6#

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
90949-01C87

AZR6#

 1
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
90949-01C71

AZR6#

 2
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
90949-01C71

AZR6#

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-28400

AZR6#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

AZR6#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06299

AZR6#

 1
46458 - RETAINER, CABLE
46458-28010

AZR6#

 2
46458 - RETAINER, CABLE
46458-28010

AZR6#

 2
46465 - GUIDE, PARKING BRAKE CABLE, RH
46465-44010

AZR6#

 1
46465A - GUIDE, PARKING BRAKE CABLE, LH
46465-44020

AZR6#

 1
Common parts
90119-06197
90179-08038
90468-06063
90468-08001
91611-G0612
91621-B0616
91621-B0625
91621-J0612
91651-40614
91651-B0820
Linked diagrams
8401
